7402-NWO-FG-ORR

7402-04-02-04-NWO-FG

$33.23

Attribute: 7402-04-02-04-NWO-FG (04MJ-02MBS...)

Stock Status: True

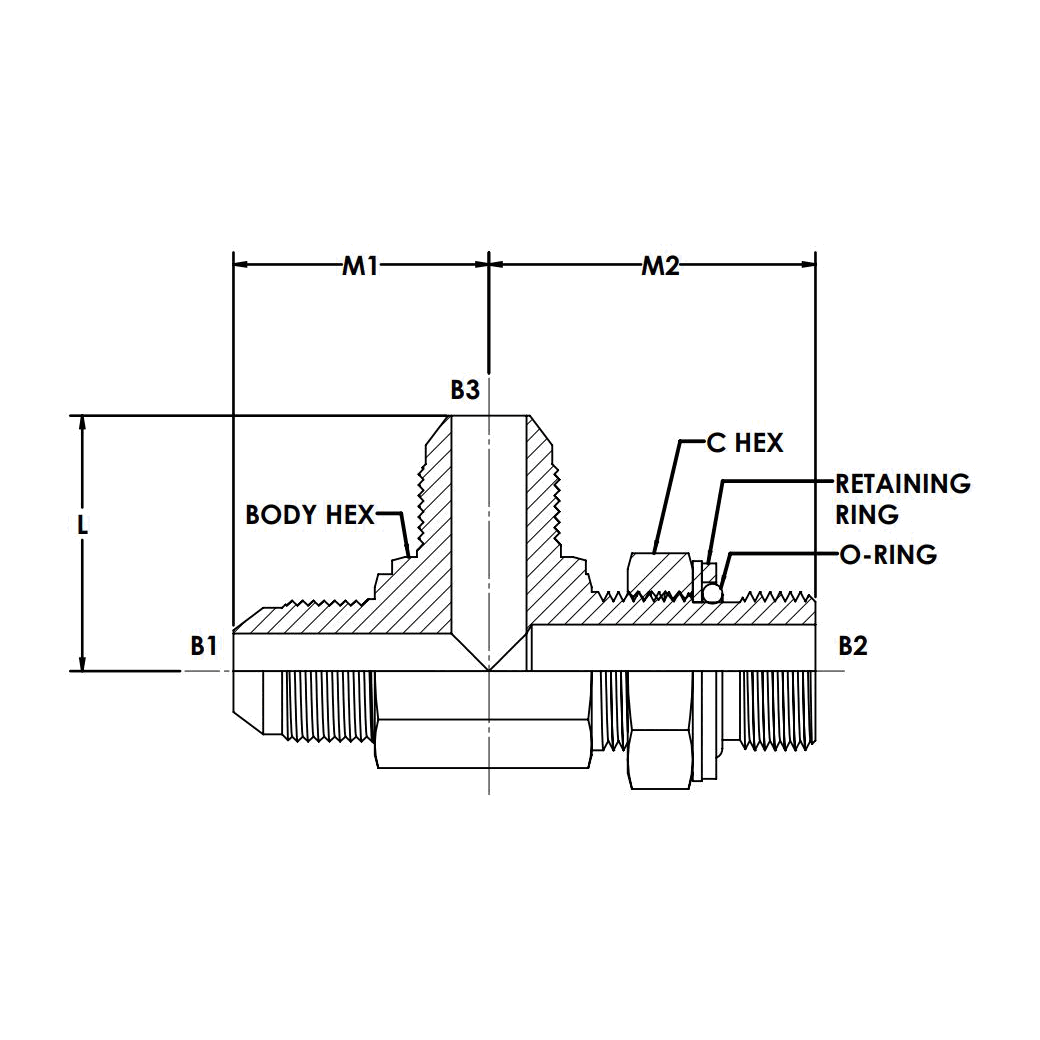

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/16-20
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B2	1/8-28
THREAD SPECIFICATION B2	BS 5200
THREAD TYPE B3	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B3	7/16-20
THREAD SPECIFICATION B3	SAE J514
BODY HEX (MM)	11.1
HEX C 1 (MM)	14.0
CENTERLINE LENGTH M1 (MM)	22.6
CENTERLINE LENGTH M2 (MM)	26.2
CENTERLINE LENGTH L (MM)	22.6
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	3,600
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.173

7402-04-04-04-NWO-FG

$29.49

Attribute: 7402-04-04-04-NWO-FG (04MJ-04MBS...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/16-20
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B2	1/4-19
THREAD SPECIFICATION B2	BS 5200
THREAD TYPE B3	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B3	7/16-20
THREAD SPECIFICATION B3	SAE J514
BODY HEX (MM)	14.0
HEX C 1 (MM)	19.0
CENTERLINE LENGTH M1 (MM)	26.9
CENTERLINE LENGTH M2 (MM)	32.0
CENTERLINE LENGTH L (MM)	26.9
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.315

7402-05-04-05-NWO-FG

$47.59

Attribute: 7402-05-04-05-NWO-FG (05MJ-04MBS...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1/2-20
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B2	1/4-19
THREAD SPECIFICATION B2	BS 5200
THREAD TYPE B3	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B3	1/2-20
THREAD SPECIFICATION B3	SAE J514
HEX C 1 (MM)	19.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	3,600
CALIFORNIA RESIDENTS	PROP-65 WARNING

7402-06-04-06-NWO-FG

$46.52

Attribute: 7402-06-04-06-NWO-FG (06MJ-04MBS...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B2	1/4-19
THREAD SPECIFICATION B2	BS 5200
THREAD TYPE B3	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B3	9/16-18
THREAD SPECIFICATION B3	SAE J514
BODY HEX (MM)	14.0
HEX C 1 (MM)	19.0
CENTERLINE LENGTH M1 (MM)	28.4
CENTERLINE LENGTH M2 (MM)	32.0
CENTERLINE LENGTH L (MM)	28.4
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	3,600
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.480

7402-06-06-06-NWO-FG

$100.91

Attribute: 7402-06-06-06-NWO-FG (06MJ-06MBS...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B2	3/8-19
THREAD SPECIFICATION B2	BS 5200
THREAD TYPE B3	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B3	9/16-18
THREAD SPECIFICATION B3	SAE J514
BODY HEX (MM)	19.0
HEX C 1 (MM)	22.0
CENTERLINE LENGTH M1 (MM)	29.0
CENTERLINE LENGTH M2 (MM)	36.8
CENTERLINE LENGTH L (MM)	29.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	4.200
MAXIMUM DYNAMIC PRESSURE (PSI)	3,600
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.401

7402-08-06-08-NWO-FG

$52.47

Attribute: 7402-08-06-08-NWO-FG (08MJ-06MBS...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B2	3/8-19
THREAD SPECIFICATION B2	BS 5200
THREAD TYPE B3	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B3	3/4-16
THREAD SPECIFICATION B3	SAE J514
BODY HEX (MM)	19.0
HEX C 1 (MM)	22.0
CENTERLINE LENGTH M1 (MM)	31.8
CENTERLINE LENGTH M2 (MM)	36.8
CENTERLINE LENGTH L (MM)	31.8
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	3,600
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.804

7402-08-08-08-NWO-FG

$117.38

Attribute: 7402-08-08-08-NWO-FG (08MJ-08MBS...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B2	1/2-14
THREAD SPECIFICATION B2	BS 5200
THREAD TYPE B3	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B3	3/4-16
THREAD SPECIFICATION B3	SAE J514
BODY HEX (MM)	22.2
HEX C 1 (MM)	27.0
CENTERLINE LENGTH M1 (MM)	33.8
CENTERLINE LENGTH M2 (MM)	43.2
CENTERLINE LENGTH L (MM)	33.8
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	3,600
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.696

7402-10-06-10-NWO-FG

$66.21

Attribute: 7402-10-06-10-NWO-FG (10MJ-06MBS...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/8-14
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B2	3/8-19
THREAD SPECIFICATION B2	BS 5200
THREAD TYPE B3	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B3	7/8-14
THREAD SPECIFICATION B3	SAE J514
HEX C 1 (MM)	22.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	3,600
CALIFORNIA RESIDENTS	PROP-65 WARNING

7402-10-08-10-NWO-FG

$66.41

Attribute: 7402-10-08-10-NWO-FG (10MJ-08MBS...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/8-14
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B2	1/2-14
THREAD SPECIFICATION B2	BS 5200
THREAD TYPE B3	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B3	7/8-14
THREAD SPECIFICATION B3	SAE J514
HEX C 1 (MM)	27.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	3,600
CALIFORNIA RESIDENTS	PROP-65 WARNING

7402-12-12-12-NWO-FG

$79.90

Attribute: 7402-12-12-12-NWO-FG (12MJ-12MBS...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B2	3/4-14
THREAD SPECIFICATION B2	BS 5200
THREAD TYPE B3	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B3	1-1/16-12
THREAD SPECIFICATION B3	SAE J514
HEX C 1 (MM)	36.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	3,600
CALIFORNIA RESIDENTS	PROP-65 WARNING

7402-14-12-14-NWO-FG

$87.86

Attribute: 7402-14-12-14-NWO-FG (14MJ-12MBS...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-3/16-12
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B2	3/4-14
THREAD SPECIFICATION B2	BS 5200
THREAD TYPE B3	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B3	1-3/16-12
THREAD SPECIFICATION B3	SAE J514
HEX C 1 (MM)	36.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	3,600
CALIFORNIA RESIDENTS	PROP-65 WARNING

7402-16-16-16-NWO-FG

$95.74

Attribute: 7402-16-16-16-NWO-FG (16MJ-16MBS...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/16-12
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B2	1-11
THREAD SPECIFICATION B2	BS 5200
THREAD TYPE B3	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B3	1-5/16-12
THREAD SPECIFICATION B3	SAE J514
HEX C 1 (MM)	41.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	3,600
CALIFORNIA RESIDENTS	PROP-65 WARNING

7402-20-20-20-NWO-FG

$364.50

Attribute: 7402-20-20-20-NWO-FG (20MJ-20MBS...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/8-12
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B2	1-1/4-11
THREAD SPECIFICATION B2	BS 5200
THREAD TYPE B3	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B3	1-5/8-12
THREAD SPECIFICATION B3	SAE J514
HEX C 1 (MM)	50.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING

7402-24-24-24-NWO-FG

$385.13

Attribute: 7402-24-24-24-NWO-FG (24MJ-24MBS...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-7/8-12
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B2	1-1/2-11
THREAD SPECIFICATION B2	BS 5200
THREAD TYPE B3	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B3	1-7/8-12
THREAD SPECIFICATION B3	SAE J514
HEX C 1 (MM)	55.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	2,000
CALIFORNIA RESIDENTS	PROP-65 WARNING

7402-32-32-32-NWO-FG

$936.74

Attribute: 7402-32-32-32-NWO-FG (32MJ-32MBS...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	2-1/2-12
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B2	2-11
THREAD SPECIFICATION B2	BS 5200
THREAD TYPE B3	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B3	2-1/2-12
THREAD SPECIFICATION B3	SAE J514
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	2,000
CALIFORNIA RESIDENTS	PROP-65 WARNING

Connections	JIC, BSP
Shape	Tee
