Description

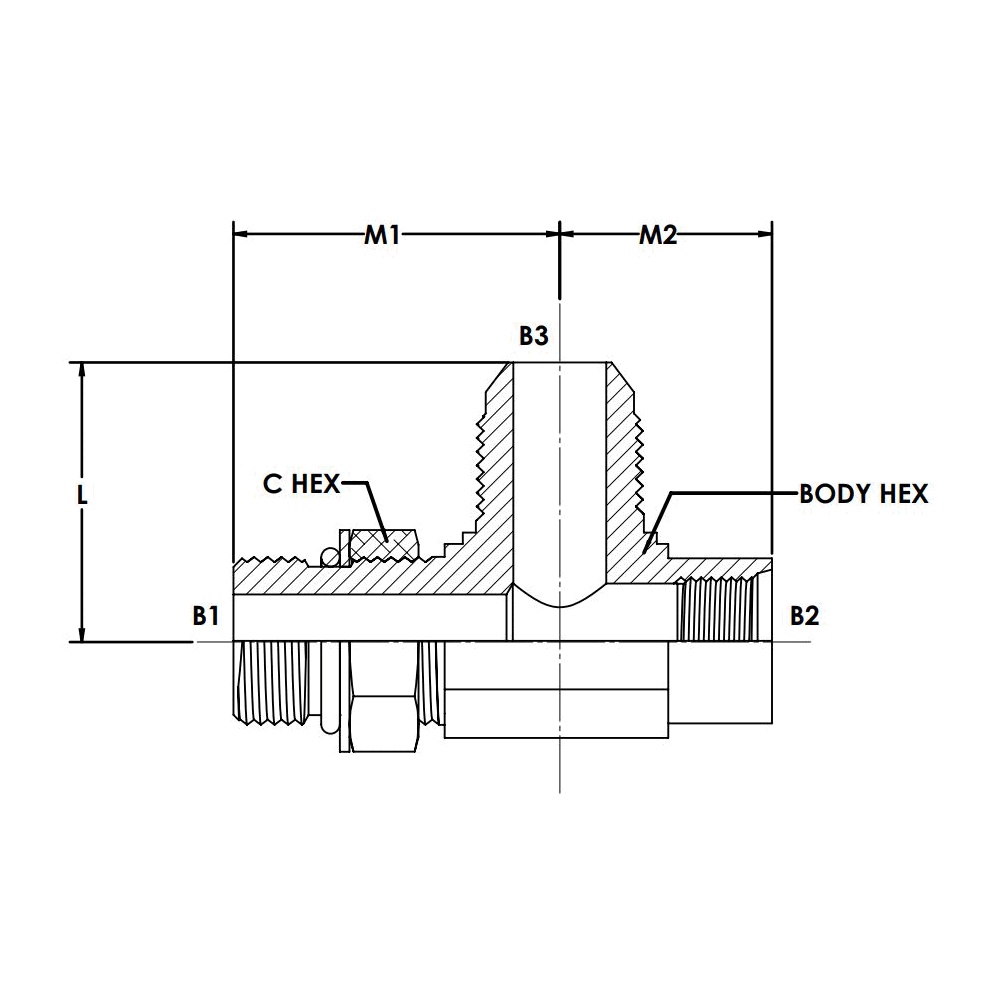

MAORB-FBSPP-MJ TEE. MALE SAE ADJUSTABLE O-RING BOSS
Description
Variations (1)
7363-10-06-10-NWO-FG
$0.00Attribute: 7363-10-06-10-NWO-FG (10MAORB-06...)
Stock Status: True
| THREAD TYPE B1 | MALE SAE ADJUSTABLE ORING BOSS |
|---|---|
| THREAD SIZE B1 | 7/8-14 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | FEMALE BSPP (G) |
| THREAD SIZE B2 | 3/8-19 |
| THREAD SPECIFICATION B2 | ISO 1179, ISO 8434-6, BS 5200 |
| THREAD TYPE 3 | MALE JIC SAE 37 DEGREE FLARE |
| THREAD DRILL 3 (MM) | 7/8-14 |
| THREAD SPECIFICATION 3 | SAE J514 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
General Attributes
| Connections | JIC, ORB, BSP |
|---|---|
| Shape | Tee |
