Description

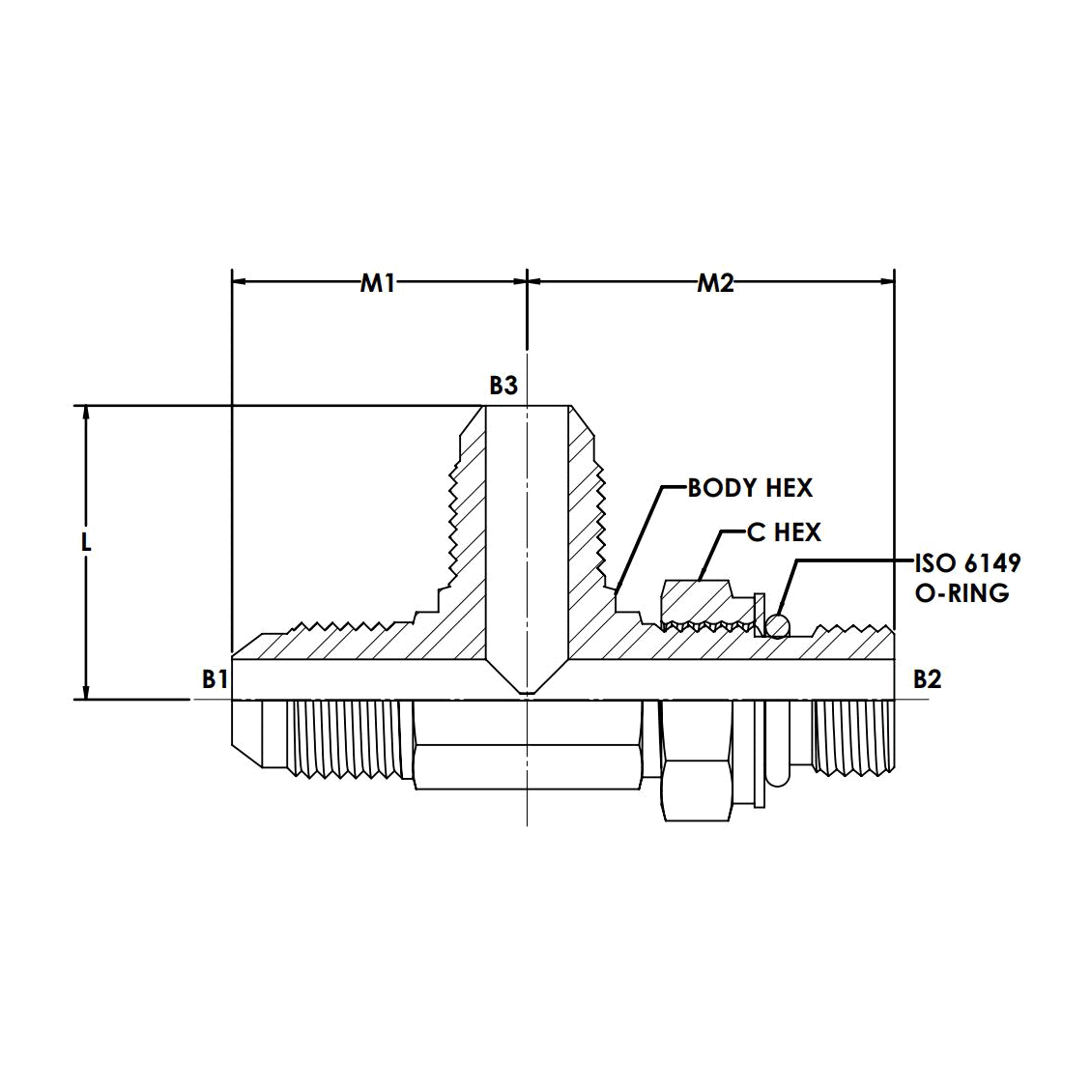

MJ-MMAROB-MJ ISO 6149 BRANCH TEE. MALE METRIC ADJUSTABLE ISO 6149 PORT O-RING
Description
Variations (8)
7305-04-10-04-NWO-FG
$77.48Attribute: 7305-04-10-04-NWO-FG (04MJ-10MMA...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 7/16-20 |
| THREAD DRILL B1 (MM) | 4.4 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC ADJUSTABLE ISO6149 |
| THREAD SIZE B2 | M10X1.0 |
| THREAD DRILL B2 (MM) | 4.4 |
| THREAD SPECIFICATION B2 | METRIC ISO 6149 PORT O-RING |
| THREAD TYPE B3 | MALE JIC SAE 37 DEGREE FLARE |
| THREAD SIZE B3 | 7/16-20 |
| THREAD DRILL B3 (MM) | 4.4 |
| THREAD SPECIFICATION B3 | SAE J514 |
| BODY HEX (MM) | 11.0 |
| C HEX 1 (MM) | 14.0 |
| CENTERLINE LENGTH M1 (MM) | 22.6 |
| CENTERLINE LENGTH M2 (MM) | 22.6 |
| CENTERLINE LENGTH L (MM) | 25.4 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
7305-04-12-04-NWO-FG
$65.22Attribute: 7305-04-12-04-NWO-FG (04MJ-12MMA...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 7/16-20 |
| THREAD DRILL B1 (MM) | 4.4 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC ADJUSTABLE ISO6149 |
| THREAD SIZE B2 | M12X1.5 |
| THREAD DRILL B2 (MM) | 6.0 |
| THREAD SPECIFICATION B2 | METRIC ISO 6149 PORT O-RING |
| THREAD TYPE B3 | MALE JIC SAE 37 DEGREE FLARE |
| THREAD SIZE B3 | 7/16-20 |
| THREAD DRILL B3 (MM) | 4.4 |
| THREAD SPECIFICATION B3 | SAE J514 |
| BODY HEX (MM) | 14.0 |
| C HEX 1 (MM) | 17.0 |
| CENTERLINE LENGTH M1 (MM) | 26.7 |
| CENTERLINE LENGTH M2 (MM) | 26.7 |
| CENTERLINE LENGTH L (MM) | 32.5 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
7305-06-14-06-NWO-FG
$17.97Attribute: 7305-06-14-06-NWO-FG (06MJ-14MMA...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 9/16-18 |
| THREAD DRILL B1 (MM) | 7.5 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC ADJUSTABLE ISO6149 |
| THREAD SIZE B2 | M14X1.5 |
| THREAD DRILL B2 (MM) | 7.5 |
| THREAD SPECIFICATION B2 | METRIC ISO 6149 PORT O-RING |
| THREAD TYPE B3 | MALE JIC SAE 37 DEGREE FLARE |
| THREAD SIZE B3 | 9/16-18 |
| THREAD DRILL B3 (MM) | 7.5 |
| THREAD SPECIFICATION B3 | SAE J514 |
| BODY HEX (MM) | 14.0 |
| C HEX 1 (MM) | 19.0 |
| CENTERLINE LENGTH M1 (MM) | 26.9 |
| CENTERLINE LENGTH M2 (MM) | 26.9 |
| CENTERLINE LENGTH L (MM) | 33.5 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.163 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
7305-08-16-08-NWO-FG
$123.58Attribute: 7305-08-16-08-NWO-FG (08MJ-16MMA...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 3/4-16 |
| THREAD DRILL B1 (MM) | 9.9 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC ADJUSTABLE ISO6149 |
| THREAD SIZE B2 | M16X1.5 |
| THREAD DRILL B2 (MM) | 9.0 |
| THREAD SPECIFICATION B2 | METRIC ISO 6149 PORT O-RING |
| THREAD TYPE B3 | MALE JIC SAE 37 DEGREE FLARE |
| THREAD SIZE B3 | 3/4-16 |
| THREAD DRILL B3 (MM) | 9.9 |
| THREAD SPECIFICATION B3 | SAE J514 |
| BODY HEX (MM) | 19.0 |
| C HEX 1 (MM) | 22.0 |
| CENTERLINE LENGTH M1 (MM) | 31.8 |
| CENTERLINE LENGTH M2 (MM) | 31.8 |
| CENTERLINE LENGTH L (MM) | 36.4 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
7305-08-18-08-NWO-FG
$117.38Attribute: 7305-08-18-08-NWO-FG (08MJ-18MMA...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 3/4-16 |
| THREAD DRILL B1 (MM) | 9.9 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC ADJUSTABLE ISO6149 |
| THREAD SIZE B2 | M18X1.5 |
| THREAD DRILL B2 (MM) | 11.0 |
| THREAD SPECIFICATION B2 | METRIC ISO 6149 PORT O-RING |
| THREAD TYPE B3 | MALE JIC SAE 37 DEGREE FLARE |
| THREAD SIZE B3 | 3/4-16 |
| THREAD DRILL B3 (MM) | 9.9 |
| THREAD SPECIFICATION B3 | SAE J514 |
| BODY HEX (MM) | 19.0 |
| C HEX 1 (MM) | 24.0 |
| CENTERLINE LENGTH M1 (MM) | 31.8 |
| CENTERLINE LENGTH M2 (MM) | 31.8 |
| CENTERLINE LENGTH L (MM) | 36.8 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
7305-10-22-10-NWO-FG
$143.46Attribute: 7305-10-22-10-NWO-FG (10MJ-22MMA...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 7/8-14 |
| THREAD DRILL B1 (MM) | 12.3 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC ADJUSTABLE ISO6149 |
| THREAD SIZE B2 | M22X1.5 |
| THREAD DRILL B2 (MM) | 14.0 |
| THREAD SPECIFICATION B2 | METRIC ISO 6149 PORT O-RING |
| THREAD TYPE B3 | MALE JIC SAE 37 DEGREE FLARE |
| THREAD SIZE B3 | 7/8-14 |
| THREAD DRILL B3 (MM) | 12.3 |
| THREAD SPECIFICATION B3 | SAE J514 |
| BODY HEX (MM) | 22.0 |
| C HEX 1 (MM) | 27.0 |
| CENTERLINE LENGTH M1 (MM) | 36.8 |
| CENTERLINE LENGTH M2 (MM) | 36.8 |
| CENTERLINE LENGTH L (MM) | 42.5 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
7305-12-27-12-NWO-FG
$169.53Attribute: 7305-12-27-12-NWO-FG (12MJ-27MMA...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 1-1/16-12 |
| THREAD DRILL B1 (MM) | 15.5 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC ADJUSTABLE ISO6149 |
| THREAD SIZE B2 | M27X2.0 |
| THREAD DRILL B2 (MM) | 18.0 |
| THREAD SPECIFICATION B2 | METRIC ISO 6149 PORT O-RING |
| THREAD TYPE B3 | MALE JIC SAE 37 DEGREE FLARE |
| THREAD SIZE B3 | 1-1/16-12 |
| THREAD DRILL B3 (MM) | 15.5 |
| THREAD SPECIFICATION B3 | SAE J514 |
| BODY HEX (MM) | 27.0 |
| C HEX 1 (MM) | 32.0 |
| CENTERLINE LENGTH M1 (MM) | 42.2 |
| CENTERLINE LENGTH M2 (MM) | 42.2 |
| CENTERLINE LENGTH L (MM) | 50.0 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
7305-16-33-16-NWO-FG
$471.36Attribute: 7305-16-33-16-NWO-FG (16MJ-33MMA...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 1-5/16-12 |
| THREAD DRILL B1 (MM) | 21.4 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC ADJUSTABLE ISO6149 |
| THREAD SIZE B2 | M33X2.0 |
| THREAD DRILL B2 (MM) | 23.0 |
| THREAD SPECIFICATION B2 | METRIC ISO 6149 PORT O-RING |
| THREAD TYPE B3 | MALE JIC SAE 37 DEGREE FLARE |
| THREAD SIZE B3 | 1-5/16-12 |
| THREAD DRILL B3 (MM) | 21.4 |
| THREAD SPECIFICATION B3 | SAE J514 |
| BODY HEX (MM) | 33.0 |
| C HEX 1 (MM) | 41.0 |
| CENTERLINE LENGTH M1 (MM) | 44.7 |
| CENTERLINE LENGTH M2 (MM) | 44.7 |
| CENTERLINE LENGTH L (MM) | 53.0 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
General Attributes
| Connections | JIC, Other |
|---|---|
| Shape | Tee |
