Description

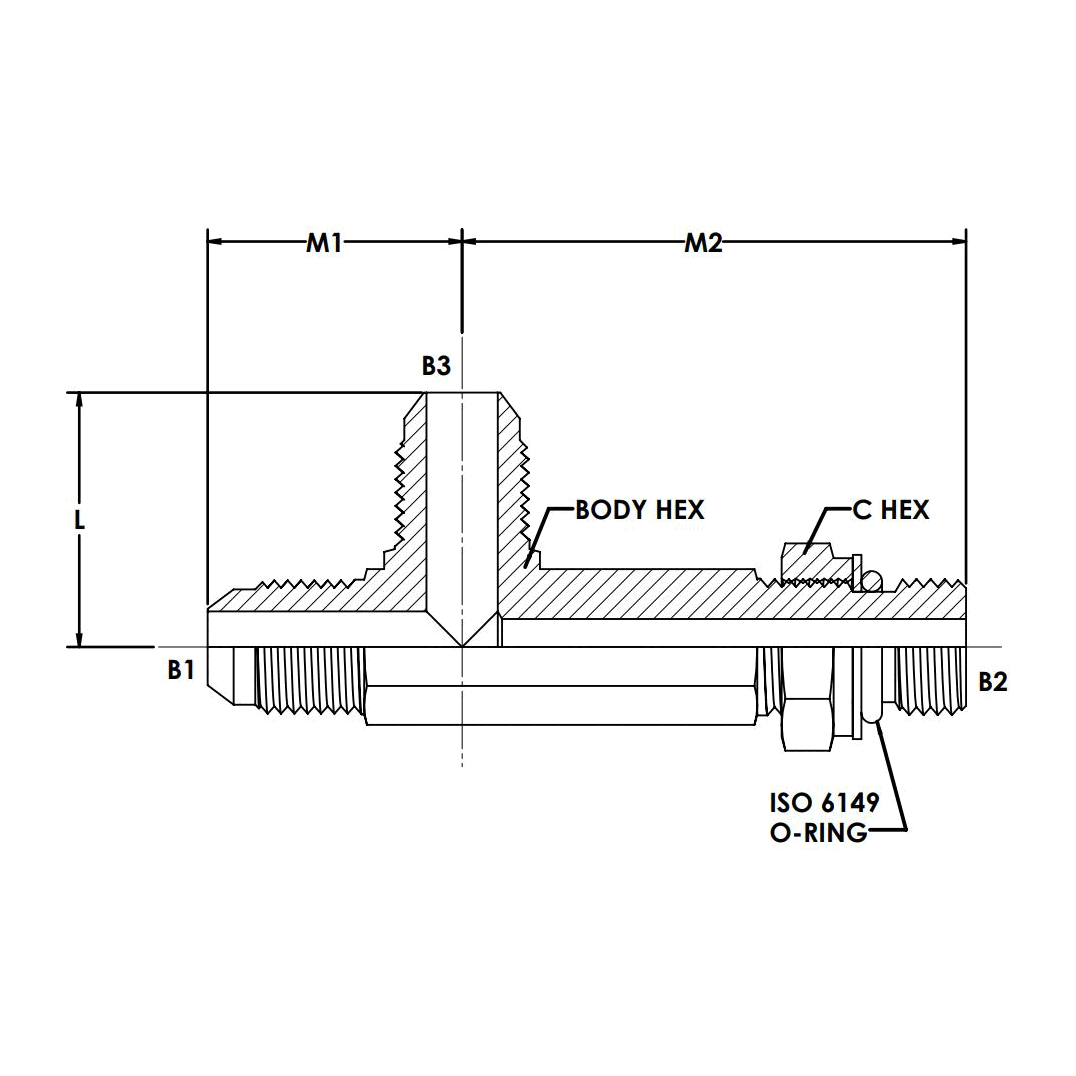

MJ-MMAROB-MJ ISO 6149 LONG BRANCH TEE. MALE METRIC ADJUSTABLE ISO 6149 PORT O-RING
Description
Variations (1)
7305-L-06-14-06-NWO-FG
$0.00Attribute: 7305-L-06-14-06-NWO-FG (06MJ-14M...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 9/16-18 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC ADJUSTABLE ISO6149 |
| THREAD SIZE B2 | M14X1.5 |
| THREAD SPECIFICATION B2 | METRIC ISO 6149 PORT O-RING |
| THREAD TYPE B3 | MALE JIC SAE 37 DEGREE FLARE |
| THREAD SIZE B3 | 9/16-18 |
| THREAD SPECIFICATION B3 | SAE J514 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.219 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
