7302-NWO-FG-ORR

7302-04-04-02-NWO-FG

$25.89

Attribute: 7302-04-04-02-NWO-FG (04MJ-04MJ-...)

Stock Status: True

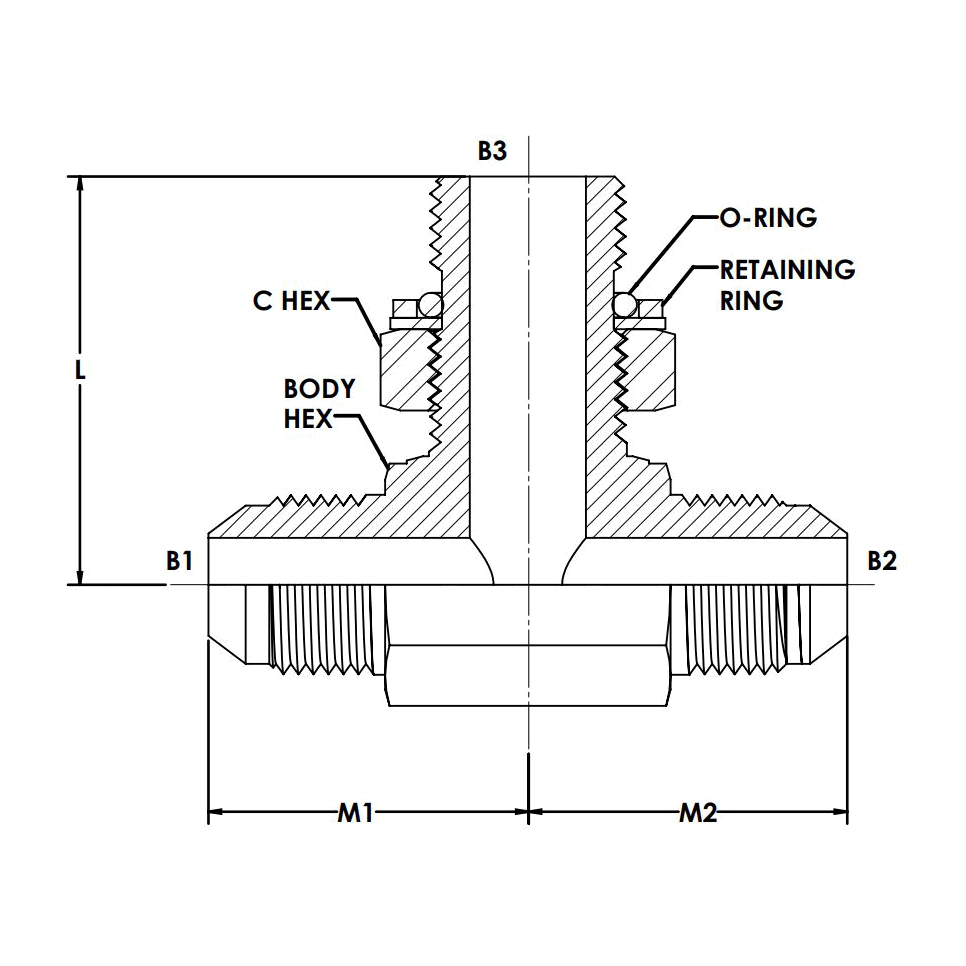

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B2	7/16-20
THREAD DRILL B2 (MM)	4.4
THREAD SPECIFICATION B2	SAE J514
THREAD TYPE B3	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B3	1/8-28
THREAD DRILL B3 (MM)	4.0
THREAD SPECIFICATION B3	BS 5200
BODY HEX (MM)	11.1
HEX C 1 (MM)	14.0
CENTERLINE LENGTH M1 (MM)	22.6
CENTERLINE LENGTH M2 (MM)	22.6
CENTERLINE LENGTH L (MM)	26.16
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	3,600
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.225

7302-04-04-04-NWO-FG

$25.89

Attribute: 7302-04-04-04-NWO-FG (04MJ-04MJ-...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B2	7/16-20
THREAD DRILL B2 (MM)	4.4
THREAD SPECIFICATION B2	SAE J514
THREAD TYPE B3	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B3	1/4-19
THREAD DRILL B3 (MM)	4.7
THREAD SPECIFICATION B3	BS 5200
BODY HEX (MM)	14.0
HEX C 1 (MM)	19.0
CENTERLINE LENGTH M1 (MM)	26.9
CENTERLINE LENGTH M2 (MM)	26.9
CENTERLINE LENGTH L (MM)	32.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	3,600
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.433

7302-06-06-04-NWO-FG

$27.47

Attribute: 7302-06-06-04-NWO-FG (06MJ-06MJ-...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B2	9/16-18
THREAD DRILL B2 (MM)	7.5
THREAD SPECIFICATION B2	SAE J514
THREAD TYPE B3	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B3	1/4-19
THREAD DRILL B3 (MM)	4.7
THREAD SPECIFICATION B3	BS 5200
BODY HEX (MM)	14.3
HEX C 1 (MM)	19.0
CENTERLINE LENGTH M1 (MM)	26.9
CENTERLINE LENGTH M2 (MM)	26.9
CENTERLINE LENGTH L (MM)	32.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	3,600
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.442

7302-06-06-04-NWO-FG-VITON

$84.44

Attribute: 7302-06-06-04-NWO-FG-VITON (06MJ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B2	9/16-18
THREAD DRILL B2 (MM)	7.5
THREAD SPECIFICATION B2	SAE J514
THREAD TYPE B3	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B3	1/4-19
THREAD DRILL B3 (MM)	4.7
THREAD SPECIFICATION B3	BS 5200
BODY HEX (MM)	14.3
HEX C 1 (MM)	19.0
CENTERLINE LENGTH M1 (MM)	26.9
CENTERLINE LENGTH M2 (MM)	26.9
CENTERLINE LENGTH L (MM)	32.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.156
MAXIMUM DYNAMIC PRESSURE (PSI)	3,600
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.828

7302-06-06-06-NWO-FG

$52.82

Attribute: 7302-06-06-06-NWO-FG (06MJ-06MJ-...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B2	9/16-18
THREAD DRILL B2 (MM)	7.5
THREAD SPECIFICATION B2	SAE J514
THREAD TYPE B3	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B3	3/8-19
THREAD DRILL B3 (MM)	7.9
THREAD SPECIFICATION B3	BS 5200
BODY HEX (MM)	19.0
HEX C 1 (MM)	22.0
CENTERLINE LENGTH M1 (MM)	29.0
CENTERLINE LENGTH M2 (MM)	29.0
CENTERLINE LENGTH L (MM)	36.8
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	3,600
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.425

7302-06-06-08-NWO-FG

$123.58

Attribute: 7302-06-06-08-NWO-FG (06MJ-06MJ-...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B2	9/16-18
THREAD DRILL B2 (MM)	7.5
THREAD SPECIFICATION B2	SAE J514
THREAD TYPE B3	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B3	1/2-14
THREAD DRILL B3 (MM)	11.0
THREAD SPECIFICATION B3	BS 5200
BODY HEX (MM)	22.2
HEX C 1 (MM)	27.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	3,600
CALIFORNIA RESIDENTS	PROP-65 WARNING

7302-08-08-06-NWO-FG

$34.40

Attribute: 7302-08-08-06-NWO-FG (08MJ-08MJ-...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B2	3/4-16
THREAD DRILL B2 (MM)	9.9
THREAD SPECIFICATION B2	SAE J514
THREAD TYPE B3	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B3	3/8-19
THREAD DRILL B3 (MM)	7.9
THREAD SPECIFICATION B3	BS 5200
BODY HEX (MM)	19.0
HEX C 1 (MM)	22.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	3,600
CALIFORNIA RESIDENTS	PROP-65 WARNING

7302-08-08-08-NWO-FG

$46.52

Attribute: 7302-08-08-08-NWO-FG (08MJ-08MJ-...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B2	3/4-16
THREAD DRILL B2 (MM)	9.9
THREAD SPECIFICATION B2	SAE J514
THREAD TYPE B3	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B3	1/2-14
THREAD DRILL B3 (MM)	11.0
THREAD SPECIFICATION B3	BS 5200
BODY HEX (MM)	22.2
HEX C 1 (MM)	27.0
CENTERLINE LENGTH M1 (MM)	33.8
CENTERLINE LENGTH M2 (MM)	33.8
CENTERLINE LENGTH L (MM)	43.2
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	3,600
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.048

7302-10-10-04-NWO-FG

$39.33

Attribute: 7302-10-10-04-NWO-FG (10MJ-10MJ-...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B2	7/8-14
THREAD DRILL B2 (MM)	12.3
THREAD SPECIFICATION B2	SAE J514
THREAD TYPE B3	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B3	1/4-19
THREAD DRILL B3 (MM)	4.7
THREAD SPECIFICATION B3	BS 5200
BODY HEX (MM)	22.2
HEX C 1 (MM)	14.0
CENTERLINE LENGTH M1 (MM)	36.8
CENTERLINE LENGTH M2 (MM)	36.8
CENTERLINE LENGTH L (MM)	39.4
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.388
MAXIMUM DYNAMIC PRESSURE (PSI)	3,600
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.035

7302-10-10-08-NWO-FG

$41.80

Attribute: 7302-10-10-08-NWO-FG (10MJ-10MJ-...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B2	7/8-14
THREAD DRILL B2 (MM)	12.3
THREAD SPECIFICATION B2	SAE J514
THREAD TYPE B3	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B3	1/2-14
THREAD DRILL B3 (MM)	11.0
THREAD SPECIFICATION B3	BS 5200
BODY HEX (MM)	22.2
HEX C 1 (MM)	27.0
CENTERLINE LENGTH M1 (MM)	36.8
CENTERLINE LENGTH M2 (MM)	36.8
CENTERLINE LENGTH L (MM)	43.2
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	3,600
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.585

7302-12-12-12-NWO-FG

$50.45

Attribute: 7302-12-12-12-NWO-FG (12MJ-12MJ-...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B2	1-1/16-12
THREAD DRILL B2 (MM)	15.5
THREAD SPECIFICATION B2	SAE J514
THREAD TYPE B3	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B3	3/4-14
THREAD DRILL B3 (MM)	16.0
THREAD SPECIFICATION B3	BS 5200
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
CENTERLINE LENGTH M1 (MM)	42.16
CENTERLINE LENGTH M2 (MM)	42.16
CENTERLINE LENGTH L (MM)	49.27
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.813
MAXIMUM DYNAMIC PRESSURE (PSI)	3,600
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.627

7302-14-14-12-NWO-FG

$78.66

Attribute: 7302-14-14-12-NWO-FG (14MJ-14MJ-...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-3/16-12
THREAD DRILL B1 (MM)	18.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B2	1-3/16-12
THREAD DRILL B2 (MM)	18.3
THREAD SPECIFICATION B2	SAE J514
THREAD TYPE B3	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B3	3/4-14
THREAD DRILL B3 (MM)	16.0
THREAD SPECIFICATION B3	BS 5200
HEX C 1 (MM)	36.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	3,600
CALIFORNIA RESIDENTS	PROP-65 WARNING

7302-16-16-16-NWO-FG

$95.44

Attribute: 7302-16-16-16-NWO-FG (16MJ-16MJ-...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	21.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B2	1-5/16-12
THREAD DRILL B2 (MM)	21.4
THREAD SPECIFICATION B2	SAE J514
THREAD TYPE B3	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B3	1-11
THREAD DRILL B3 (MM)	21.0
THREAD SPECIFICATION B3	BS 5200
HEX C 1 (MM)	41.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	3,600
CALIFORNIA RESIDENTS	PROP-65 WARNING

7302-16-16-20-NWO-FG

$118.28

Attribute: 7302-16-16-20-NWO-FG (16MJ-16MJ-...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	21.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B2	1-5/16-12
THREAD DRILL B2 (MM)	21.4
THREAD SPECIFICATION B2	SAE J514
THREAD TYPE B3	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B3	1-1/4-11
THREAD DRILL B3 (MM)	28.0
THREAD SPECIFICATION B3	BS 5200
BODY HEX (MM)	41.3
HEX C 1 (MM)	50.0
CENTERLINE LENGTH M1 (MM)	51.0
CENTERLINE LENGTH M2 (MM)	51.0
CENTERLINE LENGTH L (MM)	58.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	24.478

7302-20-20-20-NWO-FG

$404.57

Attribute: 7302-20-20-20-NWO-FG (20MJ-20MJ-...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/8-12
THREAD DRILL B1 (MM)	27.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B2	1-5/8-12
THREAD DRILL B2 (MM)	27.4
THREAD SPECIFICATION B2	SAE J514
THREAD TYPE B3	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B3	1-1/4-11
THREAD DRILL B3 (MM)	28.0
THREAD SPECIFICATION B3	BS 5200
HEX C 1 (MM)	50.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING

7302-24-24-24-NWO-FG

$343.34

Attribute: 7302-24-24-24-NWO-FG (24MJ-24MJ-...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-7/8-12
THREAD DRILL B1 (MM)	33.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B2	1-7/8-12
THREAD DRILL B2 (MM)	33.3
THREAD SPECIFICATION B2	SAE J514
THREAD TYPE B3	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B3	1-1/2-11
THREAD DRILL B3 (MM)	33.3
THREAD SPECIFICATION B3	BS 5200
HEX C 1 (MM)	55.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	2,000
CALIFORNIA RESIDENTS	PROP-65 WARNING

7302-32-32-32-NWO-FG

$745.64

Attribute: 7302-32-32-32-NWO-FG (32MJ-32MJ-...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	2-1/2-12
THREAD DRILL B1 (MM)	49.2
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B2	2-1/2-12
THREAD DRILL B2 (MM)	49.2
THREAD SPECIFICATION B2	SAE J514
THREAD TYPE B3	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B3	2-11
THREAD DRILL B3 (MM)	46.0
THREAD SPECIFICATION B3	BS 5200
HEX C 1 (MM)	70.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	2,000
CALIFORNIA RESIDENTS	PROP-65 WARNING

Connections	JIC, BSP
Shape	Tee

ID	10149551
Category	Conversion Adapters

Description

Description

Variations (17)

7302-04-04-02-NWO-FG

7302-04-04-04-NWO-FG

7302-06-06-04-NWO-FG

7302-06-06-04-NWO-FG-VITON

7302-06-06-06-NWO-FG

7302-06-06-08-NWO-FG

7302-08-08-06-NWO-FG

7302-08-08-08-NWO-FG

7302-10-10-04-NWO-FG

7302-10-10-08-NWO-FG

7302-12-12-12-NWO-FG

7302-14-14-12-NWO-FG

7302-16-16-16-NWO-FG

7302-16-16-20-NWO-FG

7302-20-20-20-NWO-FG

7302-24-24-24-NWO-FG

7302-32-32-32-NWO-FG

General Attributes

PDF Documents
