Description

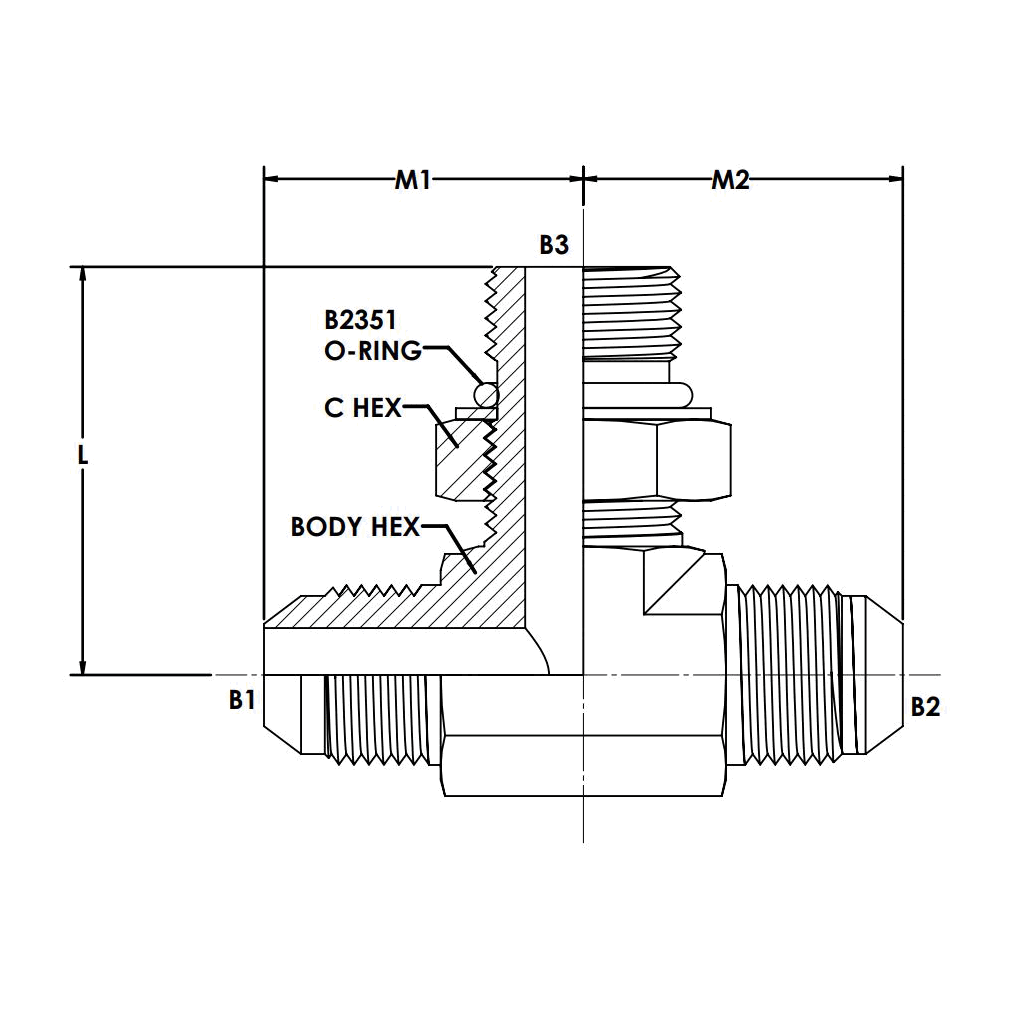

MJ-MJ-MBSPPAORB JIS B2351 TEE. MALE BSPP ADJUSTABLE WITH JIS B2351 O-RING
Description
Variations (1)
7302-08-08-08-NWO-FG-B2351
$0.00Attribute: 7302-08-08-08-NWO-FG-B2351 (08MJ...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 3/4-16 |
| THREAD DRILL B1 (MM) | 9.9 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE JIC SAE 37 DEGREE FLARE |
| THREAD SIZE B2 | 3/4-16 |
| THREAD DRILL B2 (MM) | 9.9 |
| THREAD SPECIFICATION B2 | SAE J514 |
| THREAD TYPE B3 | MALE BSPP ADJUSTABLE JIS B2351 |
| THREAD SIZE B3 | 1/2-14 |
| THREAD DRILL B3 (MM) | 11.0 |
| THREAD SPECIFICATION B3 | BS 5200 |
| BODY HEX (MM) | 22.2 |
| HEX C 1 (MM) | 27.0 |
| CENTERLINE LENGTH M1 (MM) | 33.9 |
| CENTERLINE LENGTH M2 (MM) | 33.9 |
| CENTERLINE LENGTH L (MM) | 43.2 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
General Attributes
| Connections | JIC, BSP |
|---|---|
| Shape | Tee |
