Description

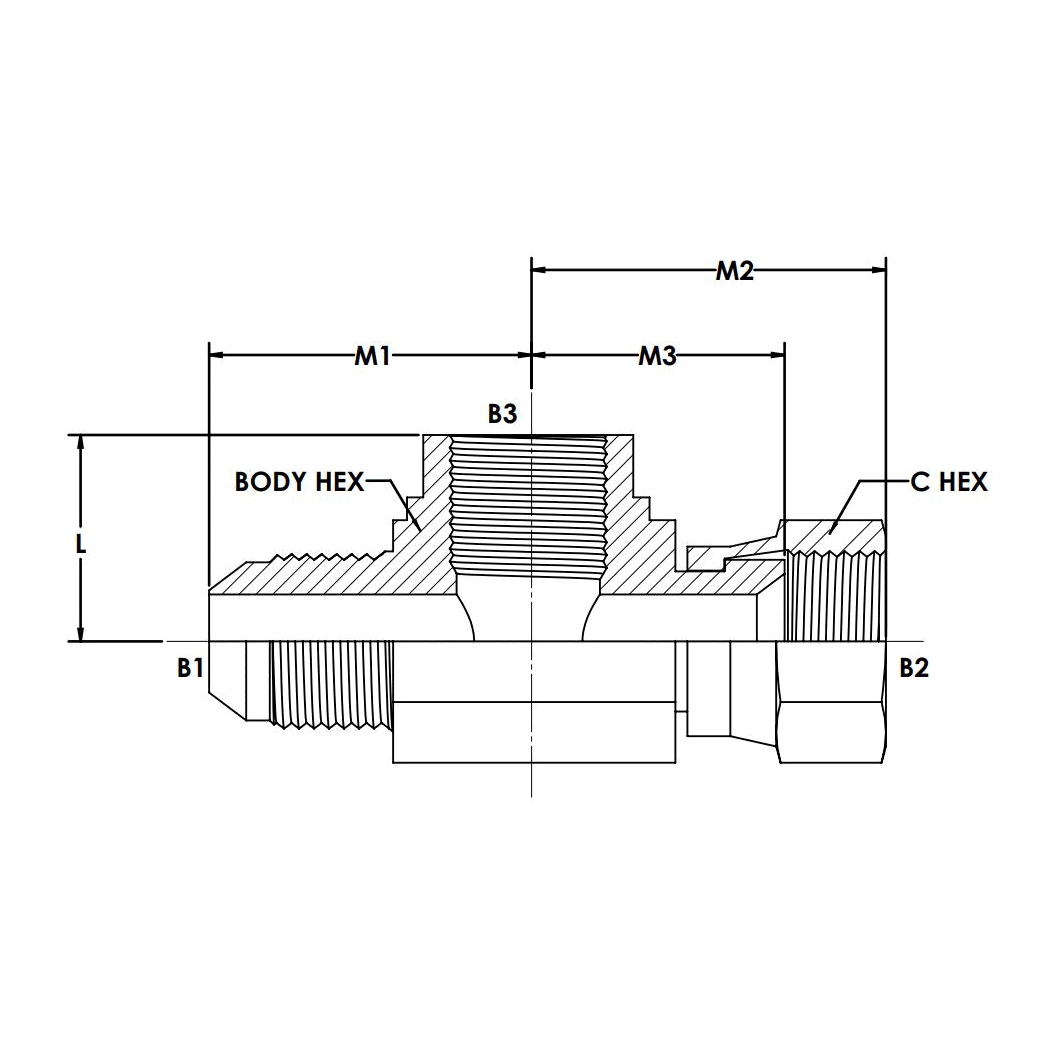

MJ-FJ-FBSPP TEE
Description
Variations (2)
7303-08-08-06-FG
$77.13Attribute: 7303-08-08-06-FG (08MJ-08FJS-06F...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 3/4-16 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | FEMALE JIC SWIVEL 37 DEG FLARE |
| THREAD SIZE B2 | 3/4-16 |
| THREAD SPECIFICATION B2 | SAE J514 |
| THREAD TYPE B3 | FEMALE BSPP (G) |
| THREAD SIZE B3 | 3/8-19 |
| THREAD SPECIFICATION B3 | ISO 1179, ISO 8434-6, BS 5200 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.313 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,800 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
7303-10-10-06-FG
$102.65Attribute: 7303-10-10-06-FG (10MJ-10FJS-06F...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 7/8-14 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | FEMALE JIC SWIVEL 37 DEG FLARE |
| THREAD SIZE B2 | 7/8-14 |
| THREAD SPECIFICATION B2 | SAE J514 |
| THREAD TYPE B3 | FEMALE BSPP (G) |
| THREAD SIZE B3 | 3/8-19 |
| THREAD SPECIFICATION B3 | ISO 1179, ISO 8434-6, BS 5200 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.356 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
General Attributes
| Connections | JIC, BSP |
|---|---|
| Shape | Tee |
