Description

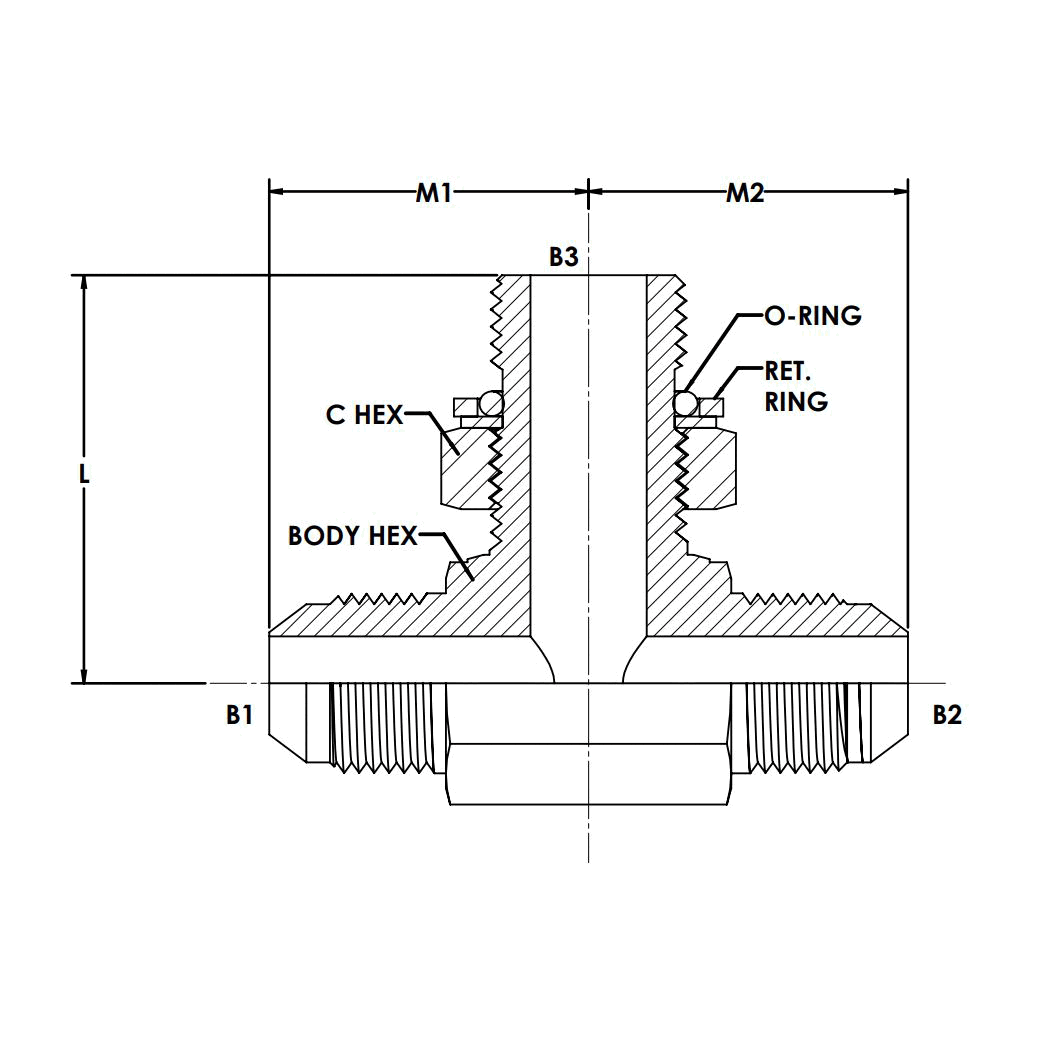

MJ-MJ-MMAORB RR BRANCH TEE. MALE METRIC ADJUSTABLE O-RING & RETAINING RING (ISO 9974 PORT THREAD)
Description
Variations (9)
7295-04-04-10-NWO-FG
$77.48Attribute: 7295-04-04-10-NWO-FG (04MJ-04MJ-...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 7/16-20 |
| THREAD DRILL B1 (MM) | 4.4 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE JIC SAE 37 DEGREE FLARE |
| THREAD SIZE B2 | 7/16-20 |
| THREAD DRILL B2 (MM) | 4.4 |
| THREAD SPECIFICATION B2 | SAE J514 |
| THREAD TYPE B3 | MALE METRIC ADJUSTABLE ORR |
| THREAD SIZE B3 | M10X1.0 |
| THREAD DRILL B3 (MM) | 4.4 |
| THREAD SPECIFICATION B3 | ISO 9974 |
| BODY HEX (MM) | 11.0 |
| C HEX 1 (MM) | 14.0 |
| CENTERLINE LENGTH M1 (MM) | 22.6 |
| CENTERLINE LENGTH M2 (MM) | 22.6 |
| CENTERLINE LENGTH L (MM) | 25.4 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
7295-04-04-12-NWO-FG
$65.22Attribute: 7295-04-04-12-NWO-FG (04MJ-04MJ-...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 7/16-20 |
| THREAD DRILL B1 (MM) | 4.4 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE JIC SAE 37 DEGREE FLARE |
| THREAD SIZE B2 | 7/16-20 |
| THREAD DRILL B2 (MM) | 4.4 |
| THREAD SPECIFICATION B2 | SAE J514 |
| THREAD TYPE B3 | MALE METRIC ADJUSTABLE ORR |
| THREAD SIZE B3 | M12X1.5 |
| THREAD DRILL B3 (MM) | 6.0 |
| THREAD SPECIFICATION B3 | ISO 9974 |
| BODY HEX (MM) | 14.0 |
| C HEX 1 (MM) | 17.0 |
| CENTERLINE LENGTH M1 (MM) | 26.7 |
| CENTERLINE LENGTH M2 (MM) | 26.7 |
| CENTERLINE LENGTH L (MM) | 32.5 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
7295-05-05-10-NWO-FG
$92.49Attribute: 7295-05-05-10-NWO-FG (05MJ-05MJ-...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 1/2-20 |
| THREAD DRILL B1 (MM) | 6.0 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE JIC SAE 37 DEGREE FLARE |
| THREAD SIZE B2 | 1/2-20 |
| THREAD DRILL B2 (MM) | 6.0 |
| THREAD SPECIFICATION B2 | SAE J514 |
| THREAD TYPE B3 | MALE METRIC ADJUSTABLE ORR |
| THREAD SIZE B3 | M10X1.0 |
| THREAD DRILL B3 (MM) | 4.4 |
| THREAD SPECIFICATION B3 | ISO 9974 |
| BODY HEX (MM) | 14.0 |
| C HEX 1 (MM) | 14.0 |
| CENTERLINE LENGTH M1 (MM) | 24.1 |
| CENTERLINE LENGTH M2 (MM) | 24.1 |
| CENTERLINE LENGTH L (MM) | 26.4 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.113 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
7295-06-06-14-NWO-FG
$297.86Attribute: 7295-06-06-14-NWO-FG (06MJ-06MJ-...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 9/16-18 |
| THREAD DRILL B1 (MM) | 7.5 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE JIC SAE 37 DEGREE FLARE |
| THREAD SIZE B2 | 9/16-18 |
| THREAD DRILL B2 (MM) | 7.5 |
| THREAD SPECIFICATION B2 | SAE J514 |
| THREAD TYPE B3 | MALE METRIC ADJUSTABLE ORR |
| THREAD SIZE B3 | M14X1.5 |
| THREAD DRILL B3 (MM) | 7.5 |
| THREAD SPECIFICATION B3 | ISO 9974 |
| BODY HEX (MM) | 14.0 |
| C HEX 1 (MM) | 19.0 |
| CENTERLINE LENGTH M1 (MM) | 26.9 |
| CENTERLINE LENGTH M2 (MM) | 26.9 |
| CENTERLINE LENGTH L (MM) | 33.5 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.006 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
7295-08-08-16-NWO-FG
$123.58Attribute: 7295-08-08-16-NWO-FG (08MJ-08MJ-...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 3/4-16 |
| THREAD DRILL B1 (MM) | 9.9 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE JIC SAE 37 DEGREE FLARE |
| THREAD SIZE B2 | 3/4-16 |
| THREAD DRILL B2 (MM) | 9.9 |
| THREAD SPECIFICATION B2 | SAE J514 |
| THREAD TYPE B3 | MALE METRIC ADJUSTABLE ORR |
| THREAD SIZE B3 | M16X1.5 |
| THREAD DRILL B3 (MM) | 9.0 |
| THREAD SPECIFICATION B3 | ISO 9974 |
| BODY HEX (MM) | 19.0 |
| C HEX 1 (MM) | 22.0 |
| CENTERLINE LENGTH M1 (MM) | 31.8 |
| CENTERLINE LENGTH M2 (MM) | 31.8 |
| CENTERLINE LENGTH L (MM) | 36.4 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
7295-08-08-18-NWO-FG
$117.38Attribute: 7295-08-08-18-NWO-FG (08MJ-08MJ-...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 3/4-16 |
| THREAD DRILL B1 (MM) | 9.9 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE JIC SAE 37 DEGREE FLARE |
| THREAD SIZE B2 | 3/4-16 |
| THREAD DRILL B2 (MM) | 9.9 |
| THREAD SPECIFICATION B2 | SAE J514 |
| THREAD TYPE B3 | MALE METRIC ADJUSTABLE ORR |
| THREAD SIZE B3 | M18X1.5 |
| THREAD DRILL B3 (MM) | 11.0 |
| THREAD SPECIFICATION B3 | ISO 9974 |
| BODY HEX (MM) | 19.0 |
| C HEX 1 (MM) | 24.0 |
| CENTERLINE LENGTH M1 (MM) | 31.8 |
| CENTERLINE LENGTH M2 (MM) | 31.8 |
| CENTERLINE LENGTH L (MM) | 36.8 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
7295-10-10-22-NWO-FG
$143.46Attribute: 7295-10-10-22-NWO-FG (10MJ-10MJ-...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 7/8-14 |
| THREAD DRILL B1 (MM) | 12.3 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE JIC SAE 37 DEGREE FLARE |
| THREAD SIZE B2 | 7/8-14 |
| THREAD DRILL B2 (MM) | 12.3 |
| THREAD SPECIFICATION B2 | SAE J514 |
| THREAD TYPE B3 | MALE METRIC ADJUSTABLE ORR |
| THREAD SIZE B3 | M22X1.5 |
| THREAD DRILL B3 (MM) | 14.0 |
| THREAD SPECIFICATION B3 | ISO 9974 |
| BODY HEX (MM) | 22.0 |
| C HEX 1 (MM) | 27.0 |
| CENTERLINE LENGTH M1 (MM) | 36.8 |
| CENTERLINE LENGTH M2 (MM) | 36.8 |
| CENTERLINE LENGTH L (MM) | 42.5 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
7295-12-12-27-NWO-FG
$169.53Attribute: 7295-12-12-27-NWO-FG (12MJ-12MJ-...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 1-1/16-12 |
| THREAD DRILL B1 (MM) | 15.5 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE JIC SAE 37 DEGREE FLARE |
| THREAD SIZE B2 | 1-1/16-12 |
| THREAD DRILL B2 (MM) | 15.5 |
| THREAD SPECIFICATION B2 | SAE J514 |
| THREAD TYPE B3 | MALE METRIC ADJUSTABLE ORR |
| THREAD SIZE B3 | M27X2.0 |
| THREAD DRILL B3 (MM) | 18.0 |
| THREAD SPECIFICATION B3 | ISO 9974 |
| BODY HEX (MM) | 27.0 |
| C HEX 1 (MM) | 32.0 |
| CENTERLINE LENGTH M1 (MM) | 42.2 |
| CENTERLINE LENGTH M2 (MM) | 42.2 |
| CENTERLINE LENGTH L (MM) | 50.0 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
7295-16-16-33-NWO-FG
$227.32Attribute: 7295-16-16-33-NWO-FG (16MJ-16MJ-...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 1-5/16-12 |
| THREAD DRILL B1 (MM) | 21.4 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE JIC SAE 37 DEGREE FLARE |
| THREAD SIZE B2 | 1-5/16-12 |
| THREAD DRILL B2 (MM) | 21.4 |
| THREAD SPECIFICATION B2 | SAE J514 |
| THREAD TYPE B3 | MALE METRIC ADJUSTABLE ORR |
| THREAD SIZE B3 | M33X2.0 |
| THREAD DRILL B3 (MM) | 23.0 |
| THREAD SPECIFICATION B3 | ISO 9974 |
| BODY HEX (MM) | 33.0 |
| C HEX 1 (MM) | 41.0 |
| CENTERLINE LENGTH M1 (MM) | 44.7 |
| CENTERLINE LENGTH M2 (MM) | 44.7 |
| CENTERLINE LENGTH L (MM) | 53.0 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
General Attributes
| Connections | JIC, ORB |
|---|---|
| Shape | Tee |
