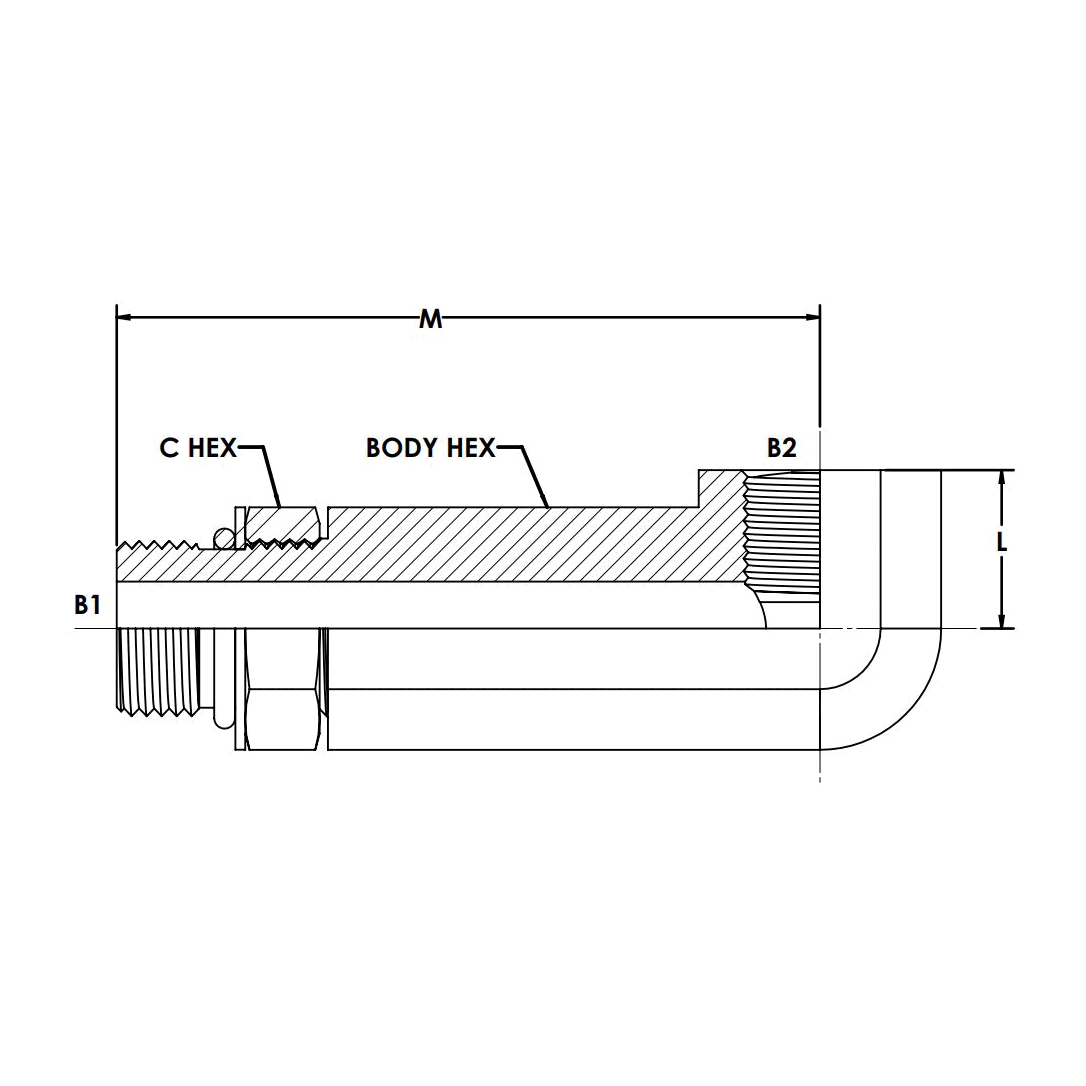

7263-L-NWO-FG

Attribute: 7263-L-08-06-NWO-FG (08MAORB-06F...)

Stock Status: True

THREAD TYPE B1	MALE SAE ADJUSTABLE ORING BOSS
THREAD SIZE B1	3/4-16
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	3/8-19
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.456
MAXIMUM DYNAMIC PRESSURE (PSI)	5,800
