Description

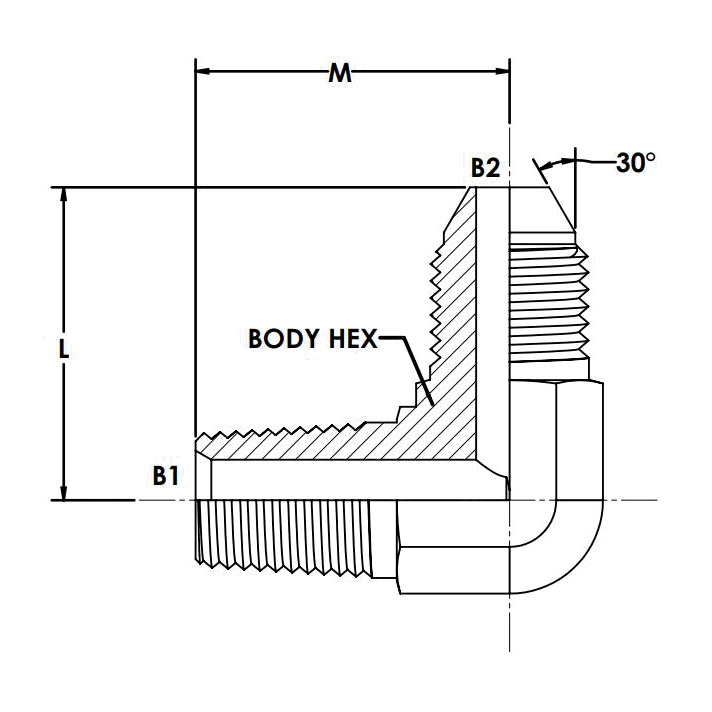

MP-MK 90 ELBOW. MALE KOMATSU
Description
Variations (1)
7239-04-14
$0.00Attribute: 7239-04-14 (04MP-14MK 90 Elbow F...)
Stock Status: True
| THREAD TYPE B1 | MALE NPT |
|---|---|
| THREAD SIZE B1 | 1/4-18 |
| THREAD DRILL B1 (MM) | 7.1 |
| THREAD SPECIFICATION B1 | ANSI B1.20.1 |
| THREAD TYPE B2 | MALE KOMATSU |
| THREAD SIZE B2 | M14X1.5 |
| THREAD DRILL B2 (MM) | 7.5 |
| THREAD SPECIFICATION B2 | ISO 261 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.113 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
General Attributes
| Connections | NPT, Other |
|---|---|
| Shape | Straight |
