7232-NWO-FG

Attribute: 7232-06-08-NWO (06MP-08MBSPPAORB...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	10.3
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP ADJUSTABLE ORR
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.3
THREAD SPECIFICATION B2	DOESNOT INCLUDE RETAINING RING
THREAD TYPE 3	ONLY 9901-08 O-RING ASSEMBLED

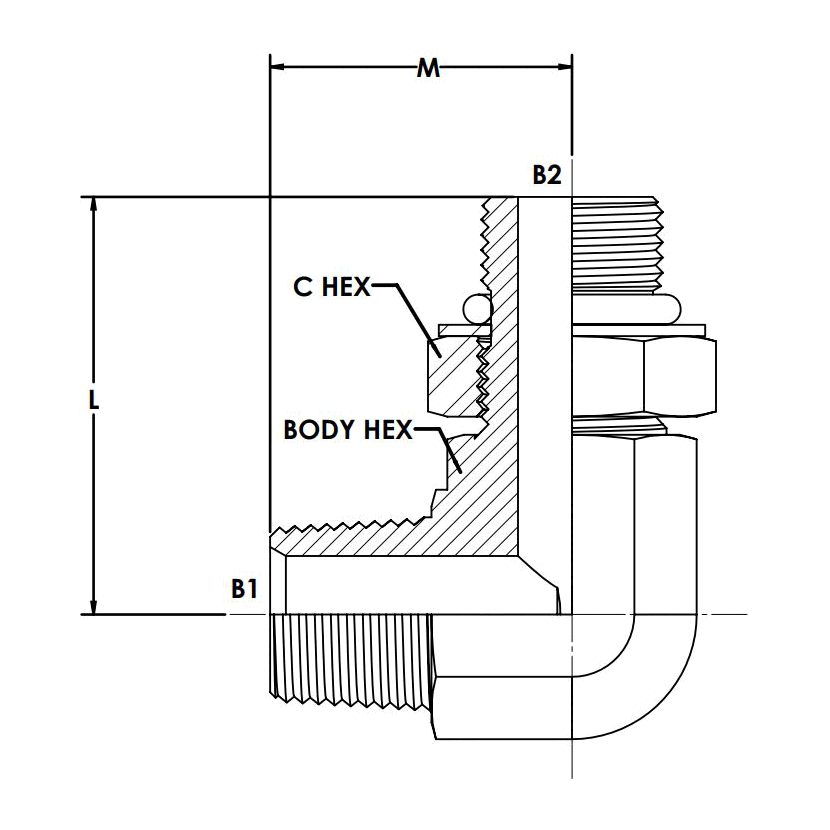

BODY HEX (MM)	22.22
CENTERLINE LENGTH M (MM)	30.99
CENTERLINE LENGTH L (MM)	41.91
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT (LBS)	0.331
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.026
