7223-FG

7223-02-02-FG

$26.24

Attribute: 7223-02-02-FG (02MP-02FBSPPS 90 ...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/8-27
THREAD DRILL B1 (MM)	4.8
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	3.5
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING

7223-02-02-SS

$190.39

Attribute: 7223-02-02-SS (02MP-02FBSPPS 90 ...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/8-27
THREAD DRILL B1 (MM)	4.8
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	3.5
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING

7223-02-04-FG

$19.14

Attribute: 7223-02-04-FG (02MP-04FBSPPS 90 ...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/8-27
THREAD DRILL B1 (MM)	4.8
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	4.4
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING

7223-04-04-FG

$16.99

Attribute: 7223-04-04-FG (04MP-04FBSPPS 90 ...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/4-18
THREAD DRILL B1 (MM)	7.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	4.4
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING

7223-04-04-SS

$203.72

Attribute: 7223-04-04-SS (04MP-04FBSPPS 90 ...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/4-18
THREAD DRILL B1 (MM)	7.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	4.4
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING

7223-06-06-FG

$31.16

Attribute: 7223-06-06-FG (06MP-06FBSPPS 90 ...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	10.3
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	7.0
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200

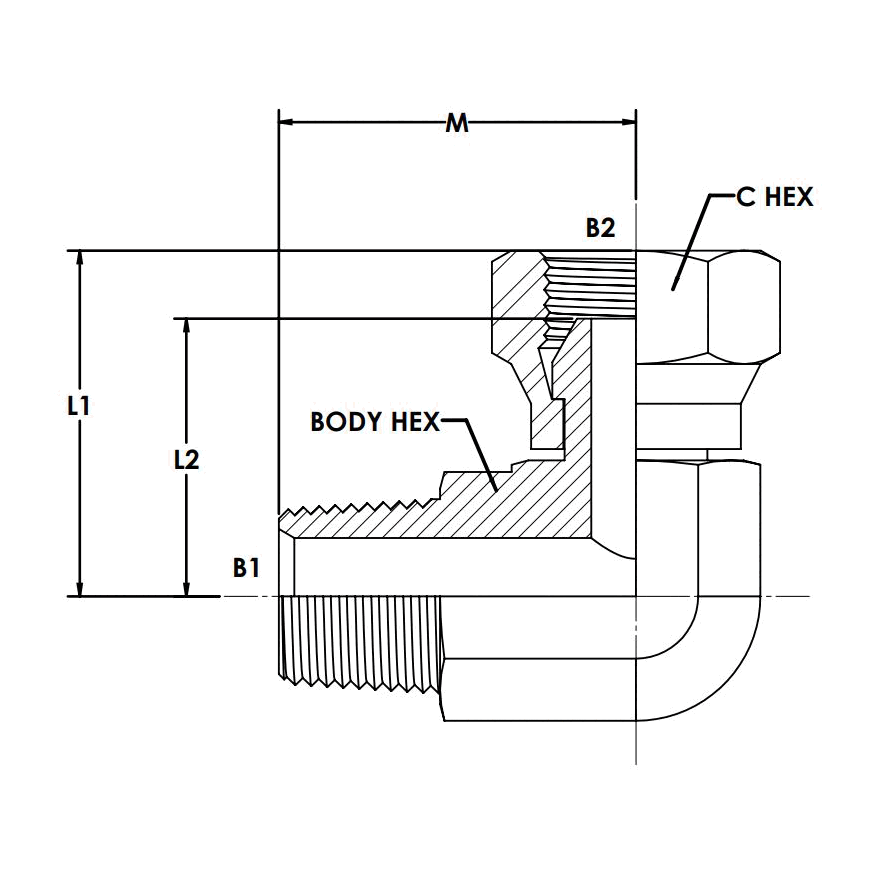

BODY HEX (MM)	19.0
HEX C 1 (MM)	22.0
CENTERLINE LENGTH M (MM)	31.5
CENTERLINE LENGTH L1 (MM)	30.9
CENTERLINE LENGTH L2 (MM)	24.5
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT (LBS)	0.219
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING

7223-06-06-SS

$285.56

Attribute: 7223-06-06-SS (06MP-06FBSPPS 90 ...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	10.3
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	7.0
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
HEX C 1 (MM)	22.0
CENTERLINE LENGTH M (MM)	31.5
CENTERLINE LENGTH L1 (MM)	30.9
CENTERLINE LENGTH L2 (MM)	24.5
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING

7223-08-08-FG

$55.82

Attribute: 7223-08-08-FG (08MP-08FBSPPS 90 ...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	13.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	9.5
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT (LBS)	0.338
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING

7223-08-08-SS

$336.96

Attribute: 7223-08-08-SS (08MP-08FBSPPS 90 ...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	13.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	9.5
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING

7223-12-12-FG

$86.83

Attribute: 7223-12-12-FG (12MP-12FBSPPS 90 ...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	18.3
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	15.3
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT (LBS)	0.500
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING

7223-12-12-SS

$475.91

Attribute: 7223-12-12-SS (12MP-12FBSPPS 90 ...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	18.3
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	15.3
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING

7223-16-16-FG

$97.03

Attribute: 7223-16-16-FG (16MP-16FBSPPS 90 ...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-11-1/2
THREAD DRILL B1 (MM)	23.8
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	20.2
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING

7223-16-16-SS

$609.17

Attribute: 7223-16-16-SS (16MP-16FBSPPS 90 ...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-11-1/2
THREAD DRILL B1 (MM)	23.8
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	20.2
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING

7223-20-20-FG

$191.77

Attribute: 7223-20-20-FG (20MP-20FBSPPS 90 ...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-1/4-11-1/2
THREAD DRILL B1 (MM)	31.7
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	25.8
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING

7223-20-20-SS

$761.47

Attribute: 7223-20-20-SS (20MP-20FBSPPS 90 ...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-1/4-11-1/2
THREAD DRILL B1 (MM)	31.7
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	25.8
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING

7223-24-24-FG

$287.91

Attribute: 7223-24-24-FG (24MP-24FBSPPS 90 ...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-1/2-11-1/2
THREAD DRILL B1 (MM)	38.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	30.5
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING

7223-24-24-SS

$1,713.27

Attribute: 7223-24-24-SS (24MP-24FBSPPS 90 ...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-1/2-11-1/2
THREAD DRILL B1 (MM)	38.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	30.5
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING

7223-32-32-FG

$829.98

Attribute: 7223-32-32-FG (32MP-32FBSPPS 90 ...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	2-11-1/2
THREAD DRILL B1 (MM)	49.2
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	2-11
THREAD DRILL B2 (MM)	43.2
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
CALIFORNIA RESIDENTS	PROP-65 WARNING

7223-32-32-SS

$3,997.64

Attribute: 7223-32-32-SS (32MP-32FBSPPS 90 ...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	2-11-1/2
THREAD DRILL B1 (MM)	49.2
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	2-11
THREAD DRILL B2 (MM)	43.2
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
CALIFORNIA RESIDENTS	PROP-65 WARNING

Connections	NPT, BSP
Shape	Elbow

ID	10149417
Category	Conversion Adapters

Description

Description

Variations (19)

7223-02-02-FG

7223-02-02-SS

7223-02-04-FG

7223-04-04-FG

7223-04-04-SS

7223-06-06-FG

7223-06-06-SS

7223-08-08-FG

7223-08-08-SS

7223-12-12-FG

7223-12-12-SS

7223-16-16-FG

7223-16-16-SS

7223-20-20-FG

7223-20-20-SS

7223-24-24-FG

7223-24-24-SS

7223-32-32-FG

7223-32-32-SS
