Description

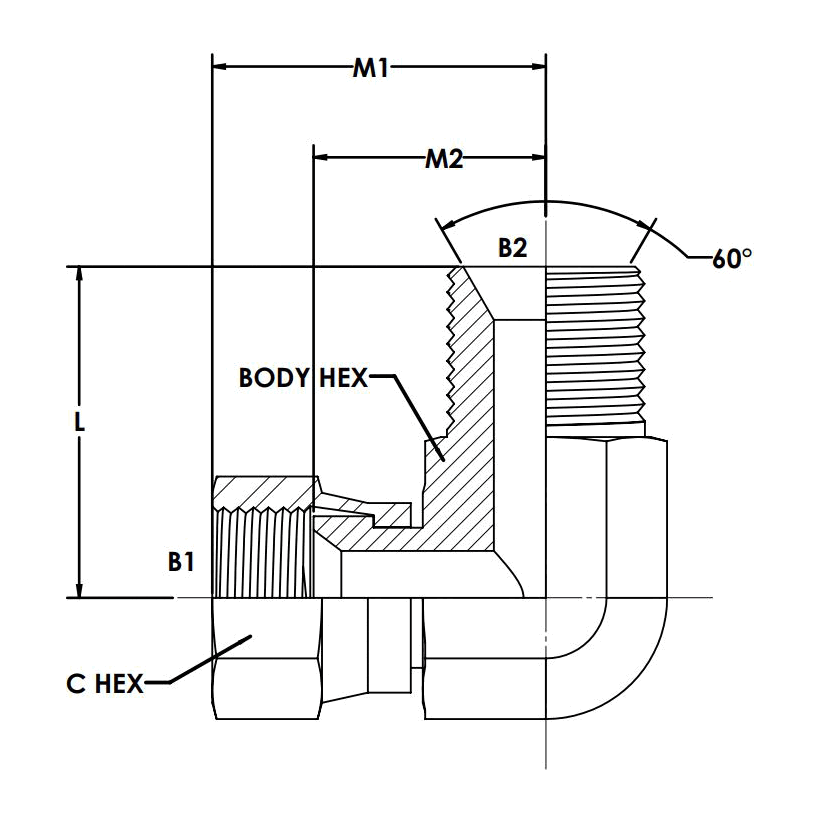

FJS-MBSPP 90 ELBOW. MALE BSPP WITH 60 DEGREE SEAT
Description
Variations (8)
7222-04-04-FG
$13.88Attribute: 7222-04-04-FG (04FJS-04MBSPP 90 ...)
Stock Status: True
| THREAD TYPE B1 | FEMALE JIC SWIVEL 37 DEG FLARE |
|---|---|
| THREAD SIZE B1 | 7/16-20 |
| THREAD DRILL B1 (MM) | 4.4 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE BSPP WITH 60 DEGREE SEAT |
| THREAD SIZE B2 | 1/4-19 |
| THREAD DRILL B2 (MM) | 7.5 |
| THREAD SPECIFICATION B2 | BS 5200 |
| BODY HEX (MM) | 14.3 |
| HEX C 1 (MM) | 14.3 |
| CENTERLINE LENGTH M1 (MM) | 31.49 |
| CENTERLINE LENGTH M2 (MM) | 22.75 |
| CENTERLINE LENGTH L (MM) | 26.92 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.125 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,100 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.149 |
7222-06-06-FG
$19.79Attribute: 7222-06-06-FG (06FJS-06MBSPP 90 ...)
Stock Status: True
| THREAD TYPE B1 | FEMALE JIC SWIVEL 37 DEG FLARE |
|---|---|
| THREAD SIZE B1 | 9/16-18 |
| THREAD DRILL B1 (MM) | 7.5 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE BSPP WITH 60 DEGREE SEAT |
| THREAD SIZE B2 | 3/8-19 |
| THREAD DRILL B2 (MM) | 9.5 |
| THREAD SPECIFICATION B2 | BS 5200 |
| BODY HEX (MM) | 19.0 |
| HEX C 1 (MM) | 19.0 |
| CENTERLINE LENGTH M1 (MM) | 31.7 |
| CENTERLINE LENGTH M2 (MM) | 22.19 |
| CENTERLINE LENGTH L (MM) | 31.0 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.213 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,100 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.935 |
7222-06-08-FG
$37.02Attribute: 7222-06-08-FG (06FJS-08MBSPP 90 ...)
Stock Status: True
| THREAD TYPE B1 | FEMALE JIC SWIVEL 37 DEG FLARE |
|---|---|
| THREAD SIZE B1 | 9/16-18 |
| THREAD DRILL B1 (MM) | 7.5 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE BSPP WITH 60 DEGREE SEAT |
| THREAD SIZE B2 | 1/2-14 |
| THREAD DRILL B2 (MM) | 12.3 |
| THREAD SPECIFICATION B2 | BS 5200 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 2,900 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
7222-08-06-FG
$76.06Attribute: 7222-08-06-FG (08FJS-06MBSPP 90 ...)
Stock Status: True
| THREAD TYPE B1 | FEMALE JIC SWIVEL 37 DEG FLARE |
|---|---|
| THREAD SIZE B1 | 3/4-16 |
| THREAD DRILL B1 (MM) | 9.9 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE BSPP WITH 60 DEGREE SEAT |
| THREAD SIZE B2 | 3/8-19 |
| THREAD DRILL B2 (MM) | 9.5 |
| THREAD SPECIFICATION B2 | BS 5200 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,100 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
7222-08-08-FG
$117.15Attribute: 7222-08-08-FG (08FJS-08MBSPP 90 ...)
Stock Status: True
| THREAD TYPE B1 | FEMALE JIC SWIVEL 37 DEG FLARE |
|---|---|
| THREAD SIZE B1 | 3/4-16 |
| THREAD DRILL B1 (MM) | 9.9 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE BSPP WITH 60 DEGREE SEAT |
| THREAD SIZE B2 | 1/2-14 |
| THREAD DRILL B2 (MM) | 12.3 |
| THREAD SPECIFICATION B2 | BS 5200 |
| BODY HEX (MM) | 22.2 |
| HEX C 1 (MM) | 22.2 |
| CENTERLINE LENGTH M1 (MM) | 35.3 |
| CENTERLINE LENGTH M2 (MM) | 23.82 |
| CENTERLINE LENGTH L (MM) | 35.05 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 2,900 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 2.901 |
7222-08-10-FG
$150.04Attribute: 7222-08-10-FG (08FJS-10MBSPP 90 ...)
Stock Status: True
| THREAD TYPE B1 | FEMALE JIC SWIVEL 37 DEG FLARE |
|---|---|
| THREAD SIZE B1 | 3/4-16 |
| THREAD DRILL B1 (MM) | 9.9 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE BSPP WITH 60 DEGREE SEAT |
| THREAD SIZE B2 | 5/8-14 |
| THREAD DRILL B2 (MM) | 12.0 |
| THREAD SPECIFICATION B2 | BS 5200 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 2,900 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
7222-10-08-FG
$140.64Attribute: 7222-10-08-FG (10FJS-08MBSPP 90 ...)
Stock Status: True
| THREAD TYPE B1 | FEMALE JIC SWIVEL 37 DEG FLARE |
|---|---|
| THREAD SIZE B1 | 7/8-14 |
| THREAD DRILL B1 (MM) | 12.3 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE BSPP WITH 60 DEGREE SEAT |
| THREAD SIZE B2 | 1/2-14 |
| THREAD DRILL B2 (MM) | 12.3 |
| THREAD SPECIFICATION B2 | BS 5200 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 2,900 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
7222-12-12-FG
$191.83Attribute: 7222-12-12-FG (12FJS-12MBSPP 90 ...)
Stock Status: True
| THREAD TYPE B1 | FEMALE JIC SWIVEL 37 DEG FLARE |
|---|---|
| THREAD SIZE B1 | 1-1/16-12 |
| THREAD DRILL B1 (MM) | 15.5 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE BSPP WITH 60 DEGREE SEAT |
| THREAD SIZE B2 | 3/4-14 |
| THREAD DRILL B2 (MM) | 15.5 |
| THREAD SPECIFICATION B2 | BS 5200 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.500 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 2,900 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
General Attributes
| Connections | JIC, BSP |
|---|---|
| Shape | Elbow |
