Description
FJS-MBSPT 90 ELBOW
Description
Variations (5)
7220-04-04-FG
$25.01Attribute: 7220-04-04-FG (04FJS-04MBSPT 90 ...)
Stock Status: True
| THREAD TYPE B1 | FEMALE JIC SWIVEL 37 DEG FLARE |
|---|---|
| THREAD SIZE B1 | 7/16-20 |
| THREAD DRILL B1 (MM) | 4.4 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE BSPT (R) |
| THREAD SIZE B2 | 1/4-19 |
| THREAD DRILL B2 (MM) | 7.5 |
| THREAD SPECIFICATION B2 | ISO 7-1 |

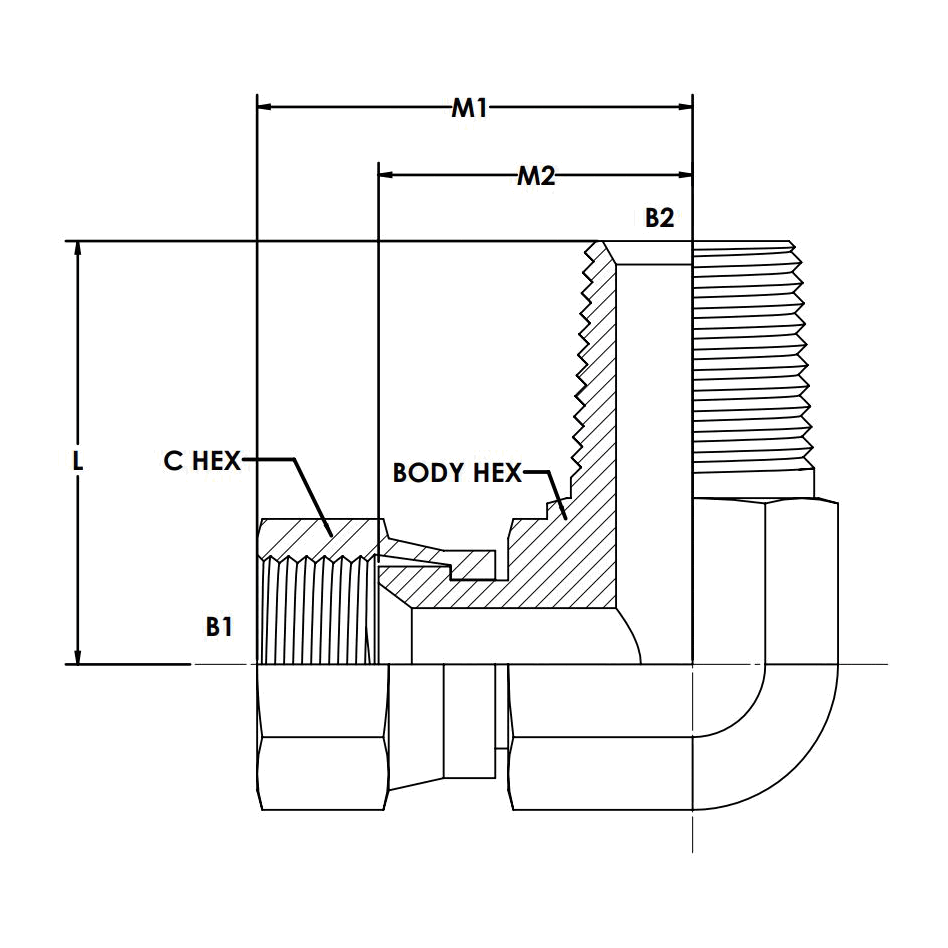

| BODY HEX (MM) | 14.3 |
| HEX C 1 (MM) | 14.3 |
| CENTERLINE LENGTH M1 (MM) | 29.05 |
| CENTERLINE LENGTH M2 (MM) | 20.32 |
| CENTERLINE LENGTH L (MM) | 27.68 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.113 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.100 |
7220-06-06-FG
$20.93Attribute: 7220-06-06-FG (06FJS-06MBSPT 90 ...)
Stock Status: True
| THREAD TYPE B1 | FEMALE JIC SWIVEL 37 DEG FLARE |
|---|---|
| THREAD SIZE B1 | 9/16-18 |
| THREAD DRILL B1 (MM) | 7.5 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE BSPT (R) |
| THREAD SIZE B2 | 3/8-19 |
| THREAD DRILL B2 (MM) | 9.5 |
| THREAD SPECIFICATION B2 | ISO 7-1 |
| BODY HEX (MM) | 19.0 |
| HEX C 1 (MM) | 17.5 |
| CENTERLINE LENGTH M1 (MM) | 32.59 |
| CENTERLINE LENGTH M2 (MM) | 23.06 |
| CENTERLINE LENGTH L (MM) | 30.99 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.194 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.976 |
7220-06-08-FG
$143.46Attribute: 7220-06-08-FG (06FJS-08MBSPT 90 ...)
Stock Status: True
| THREAD TYPE B1 | FEMALE JIC SWIVEL 37 DEG FLARE |
|---|---|
| THREAD SIZE B1 | 9/16-18 |
| THREAD DRILL B1 (MM) | 7.5 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE BSPT (R) |
| THREAD SIZE B2 | 1/2-14 |
| THREAD DRILL B2 (MM) | 12.3 |
| THREAD SPECIFICATION B2 | ISO 7-1 |
| BODY HEX (MM) | 22.2 |
| HEX C 1 (MM) | 17.5 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
7220-08-08-FG
$24.57Attribute: 7220-08-08-FG (08FJS-08MBSPT 90 ...)
Stock Status: True
| THREAD TYPE B1 | FEMALE JIC SWIVEL 37 DEG FLARE |
|---|---|
| THREAD SIZE B1 | 3/4-16 |
| THREAD DRILL B1 (MM) | 9.9 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE BSPT (R) |
| THREAD SIZE B2 | 1/2-14 |
| THREAD DRILL B2 (MM) | 12.3 |
| THREAD SPECIFICATION B2 | ISO 7-1 |
| BODY HEX (MM) | 22.2 |
| HEX C 1 (MM) | 22.2 |
| CENTERLINE LENGTH M1 (MM) | 38.59 |
| CENTERLINE LENGTH M2 (MM) | 27.69 |
| CENTERLINE LENGTH L (MM) | 37.34 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.306 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 3.261 |
7220-12-12-FG
$26.34Attribute: 7220-12-12-FG (12FJS-12MBSPT 90 ...)
Stock Status: True
| THREAD TYPE B1 | FEMALE JIC SWIVEL 37 DEG FLARE |
|---|---|
| THREAD SIZE B1 | 1-1/16-12 |
| THREAD DRILL B1 (MM) | 15.5 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE BSPT (R) |
| THREAD SIZE B2 | 3/4-14 |
| THREAD DRILL B2 (MM) | 15.5 |
| THREAD SPECIFICATION B2 | ISO 7-1 |
| BODY HEX (MM) | 27.0 |
| HEX C 1 (MM) | 31.75 |
| CENTERLINE LENGTH M1 (MM) | 44.45 |
| CENTERLINE LENGTH M2 (MM) | 30.17 |
| CENTERLINE LENGTH L (MM) | 40.38 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.588 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 6.050 |
General Attributes
| Connections | JIC, BSP |
|---|---|
| Shape | Elbow |
