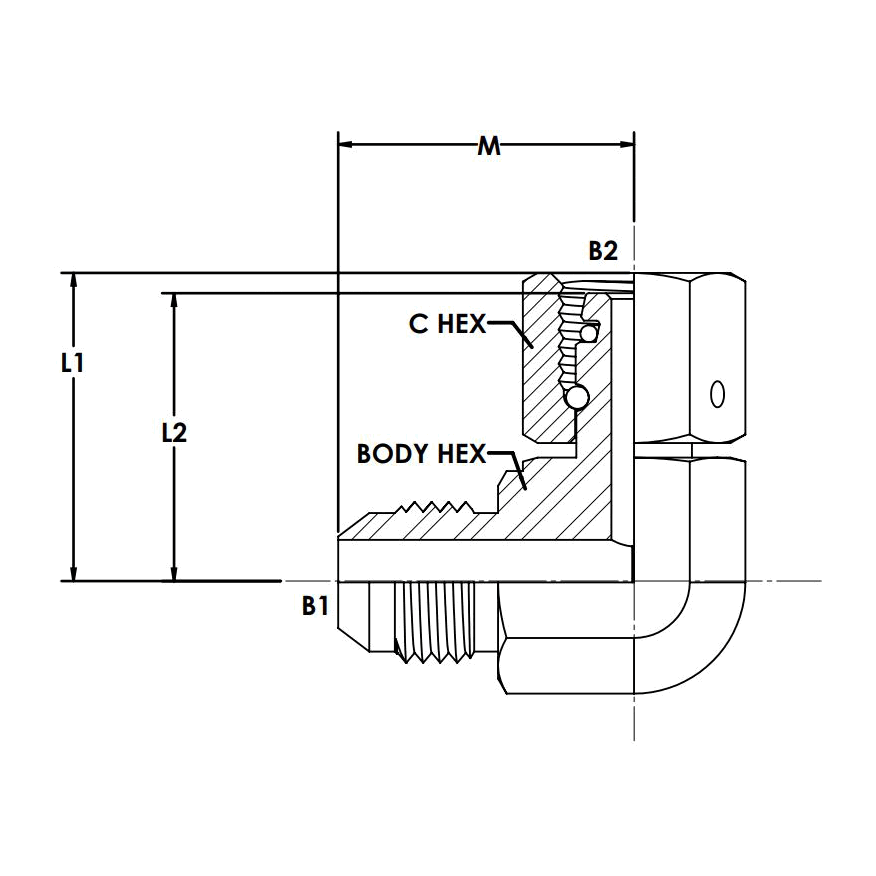

MJ-FEMALE METRIC SWIVEL DIN / DKO SOFT SEAT 90 ELBOW
Description
Variations (4)
7207-04-L06-12
$32.80Attribute: 7207-04-L06-12 (04MJ-12FMS 90 El...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 7/16-20 |
| THREAD DRILL B1 (MM) | 4.4 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | FEMALE METRIC DIN / DKO SWIVEL |
| THREAD SIZE B2 | M12X1.5 |
| THREAD DRILL B2 (MM) | 4.0 |
| THREAD SPECIFICATION B2 | ISO 8434-1 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
7207-06-L08-14
$41.00Attribute: 7207-06-L08-14 (06MJ-14FMS 90 El...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 9/16-18 |
| THREAD DRILL B1 (MM) | 7.5 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | FEMALE METRIC DIN / DKO SWIVEL |
| THREAD SIZE B2 | M14X1.5 |
| THREAD DRILL B2 (MM) | 6.0 |
| THREAD SPECIFICATION B2 | ISO 8434-1 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
7207-06-L10-16
$42.44Attribute: 7207-06-L10-16 (06MJ-16FMS 90 El...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 9/16-18 |
| THREAD DRILL B1 (MM) | 7.5 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | FEMALE METRIC DIN / DKO SWIVEL |
| THREAD SIZE B2 | M16X1.5 |
| THREAD DRILL B2 (MM) | 7.0 |
| THREAD SPECIFICATION B2 | ISO 8434-1 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
7207-08-L12-18
$46.12Attribute: 7207-08-L12-18 (08MJ-18FMS 90 El...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 3/4-16 |
| THREAD DRILL B1 (MM) | 9.9 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | FEMALE METRIC DIN / DKO SWIVEL |
| THREAD SIZE B2 | M18X1.5 |
| THREAD DRILL B2 (MM) | 10.0 |
| THREAD SPECIFICATION B2 | ISO 8434-1 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
General Attributes
| Connections | JIC, Other |
|---|---|
| Shape | Elbow |
