Description

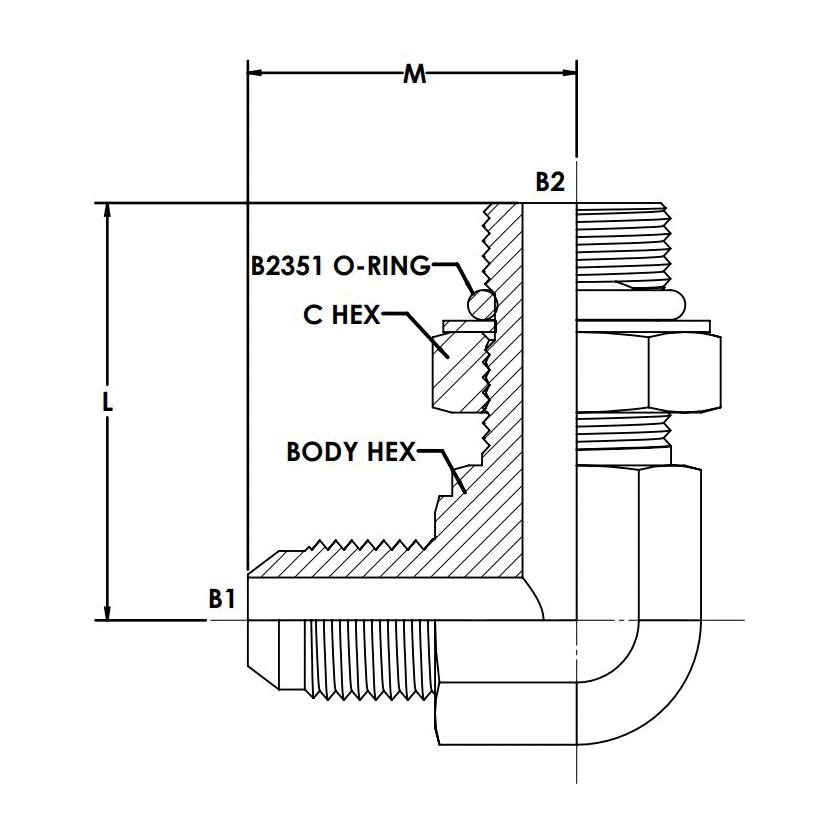

MJ-MBSPPAORB B2351 90 ELBOW FORGED. MALE BSPP ADJUSTABLE WITH JIS B2351 O-RING
Description
Variations (7)
7202-04-04-NWO-FG-ZN-B2351
$42.63Attribute: 7202-04-04-NWO-FG-ZN-B2351 (04MJ...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 7/16-20 |
| THREAD DRILL B1 (MM) | 4.4 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE BSPP ADJUSTABLE JIS B2351 |
| THREAD SIZE B2 | 1/4-19 |
| THREAD DRILL B2 (MM) | 7.5 |
| THREAD SPECIFICATION B2 | BS 5200 |
| BODY HEX (MM) | 14.0 |
| HEX C 1 (MM) | 19.0 |
| CENTERLINE LENGTH M (MM) | 26.9 |
| CENTERLINE LENGTH L (MM) | 32.0 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | ZINC NICKEL |
| O-RING / SEAL MATERIAL | NBR |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,800 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.962 |
7202-06-04-NWO-FG-B2351
$24.57Attribute: 7202-06-04-NWO-FG-B2351 (06MJ-04...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 9/16-18 |
| THREAD DRILL B1 (MM) | 7.5 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE BSPP ADJUSTABLE JIS B2351 |
| THREAD SIZE B2 | 1/4-19 |
| THREAD DRILL B2 (MM) | 7.5 |
| THREAD SPECIFICATION B2 | BS 5200 |
| BODY HEX (MM) | 14.3 |
| HEX C 1 (MM) | 19.0 |
| CENTERLINE LENGTH M (MM) | 26.9 |
| CENTERLINE LENGTH L (MM) | 31.8 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.119 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,800 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.995 |
7202-06-06-NWO-FG-B2351
$54.59Attribute: 7202-06-06-NWO-FG-B2351 (06MJ-06...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 9/16-18 |
| THREAD DRILL B1 (MM) | 7.5 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE BSPP ADJUSTABLE JIS B2351 |
| THREAD SIZE B2 | 3/8-19 |
| THREAD DRILL B2 (MM) | 9.5 |
| THREAD SPECIFICATION B2 | BS 5200 |
| BODY HEX (MM) | 19.0 |
| HEX C 1 (MM) | 22.0 |
| CENTERLINE LENGTH M (MM) | 29.0 |
| CENTERLINE LENGTH L (MM) | 36.8 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,800 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 3.532 |
7202-08-08-NWO-FG-ZN-B2351
$48.34Attribute: 7202-08-08-NWO-FG-ZN-B2351 (08MJ...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 3/4-16 |
| THREAD DRILL B1 (MM) | 9.9 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE BSPP ADJUSTABLE JIS B2351 |
| THREAD SIZE B2 | 1/2-14 |
| THREAD DRILL B2 (MM) | 12.3 |
| THREAD SPECIFICATION B2 | BS 5200 |
| BODY HEX (MM) | 22.2 |
| HEX C 1 (MM) | 27.0 |
| CENTERLINE LENGTH M (MM) | 33.8 |
| CENTERLINE LENGTH L (MM) | 43.2 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | ZINC NICKEL |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.350 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,800 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 5.664 |
7202-10-08-NWO-FG-B2351
$57.97Attribute: 7202-10-08-NWO-FG-B2351 (10MJ-08...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 7/8-14 |
| THREAD DRILL B1 (MM) | 12.3 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE BSPP ADJUSTABLE JIS B2351 |
| THREAD SIZE B2 | 1/2-14 |
| THREAD DRILL B2 (MM) | 12.3 |
| THREAD SPECIFICATION B2 | BS 5200 |
| BODY HEX (MM) | 22.2 |
| HEX C 1 (MM) | 27.0 |
| CENTERLINE LENGTH M (MM) | 36.8 |
| CENTERLINE LENGTH L (MM) | 43.2 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.363 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 5.885 |
7202-10-12-NWO-FG-B2351
$64.64Attribute: 7202-10-12-NWO-FG-B2351 (10MJ-12...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 7/8-14 |
| THREAD DRILL B1 (MM) | 12.3 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE BSPP ADJUSTABLE JIS B2351 |
| THREAD SIZE B2 | 3/4-14 |
| THREAD DRILL B2 (MM) | 15.5 |
| THREAD SPECIFICATION B2 | BS 5200 |
| BODY HEX (MM) | 27.0 |
| HEX C 1 (MM) | 36.0 |
| CENTERLINE LENGTH M (MM) | 39.1 |
| CENTERLINE LENGTH L (MM) | 49.3 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.644 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 9.147 |
7202-12-12-NWO-FG-B2351
$89.69Attribute: 7202-12-12-NWO-FG-B2351 (12MJ-12...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 1-1/16-12 |
| THREAD DRILL B1 (MM) | 15.5 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE BSPP ADJUSTABLE JIS B2351 |
| THREAD SIZE B2 | 3/4-14 |
| THREAD DRILL B2 (MM) | 15.5 |
| THREAD SPECIFICATION B2 | BS 5200 |
| BODY HEX (MM) | 27.0 |
| HEX C 1 (MM) | 36.0 |
| CENTERLINE LENGTH M (MM) | 42.2 |
| CENTERLINE LENGTH L (MM) | 49.3 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.656 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 9.468 |
General Attributes
| Connections | JIC, BSP |
|---|---|
| Shape | Elbow |
