7200-FG

7200-04-02-FG

$36.47

Attribute: 7200-04-02-FG (04MJ-02MBSPT 90 E...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	4.8
THREAD SPECIFICATION B2	ISO 7-1

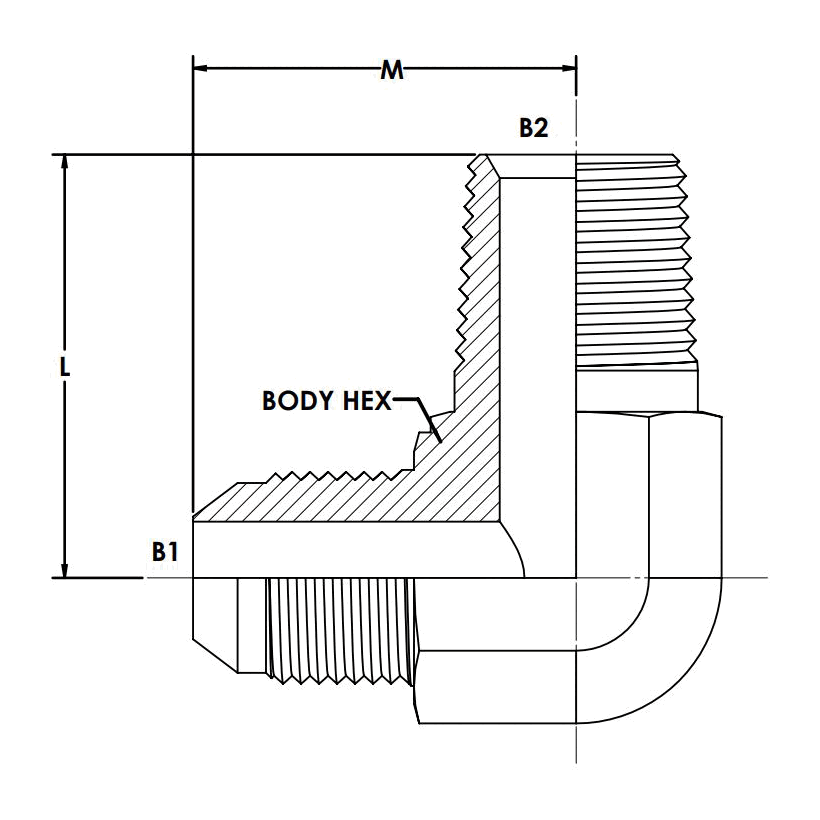

BODY HEX (MM)	11.1
CENTERLINE LENGTH M (MM)	22.5
CENTERLINE LENGTH L (MM)	20.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT (LBS)	0.050
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.736

7200-04-02-SS

$181.93

Attribute: 7200-04-02-SS (04MJ-02MBSPT 90 E...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	4.8
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	12.0
CENTERLINE LENGTH M (MM)	22.5
CENTERLINE LENGTH L (MM)	20.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.188
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.809

7200-04-04-FG

$31.41

Attribute: 7200-04-04-FG (04MJ-04MBSPT 90 E...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	7.1
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	14.3
CENTERLINE LENGTH M (MM)	26.7
CENTERLINE LENGTH L (MM)	27.7
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT (LBS)	0.100
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.654

7200-04-04-SS

$79.25

Attribute: 7200-04-04-SS (04MJ-04MBSPT 90 E...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	7.1
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	14.3
CENTERLINE LENGTH M (MM)	26.7
CENTERLINE LENGTH L (MM)	27.7
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.098
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.654

7200-04-06-FG

$24.57

Attribute: 7200-04-06-FG (04MJ-06MBSPT 90 E...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	9.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	19.0
CENTERLINE LENGTH M (MM)	28.0
CENTERLINE LENGTH L (MM)	31.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.771

7200-05-02-FG

$25.84

Attribute: 7200-05-02-FG (05MJ-02MBSPT 90 E...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1/2-20
THREAD DRILL B1 (MM)	6.0
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/8-28
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	14.3
CENTERLINE LENGTH M (MM)	26.7
CENTERLINE LENGTH L (MM)	25.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT (LBS)	0.094
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.450

7200-05-04-FG

$38.40

Attribute: 7200-05-04-FG (05MJ-04MBSPT 90 E...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1/2-20
THREAD DRILL B1 (MM)	6.0
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	7.1
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	14.3
CENTERLINE LENGTH M (MM)	26.7
CENTERLINE LENGTH L (MM)	27.7
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT (LBS)	0.094
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.654

7200-06-02-FG

$23.38

Attribute: 7200-06-02-FG (06MJ-02MBSPT 90 E...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	4.5
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	14.3
CENTERLINE LENGTH M (MM)	26.9
CENTERLINE LENGTH L (MM)	27.7
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT (LBS)	0.094
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.660

7200-06-02-SS

$322.16

Attribute: 7200-06-02-SS (06MJ-02MBSPT 90 E...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	4.5
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	14.3
CENTERLINE LENGTH M (MM)	26.9
CENTERLINE LENGTH L (MM)	27.7
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.200
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.660

7200-06-04-FG

$24.51

Attribute: 7200-06-04-FG (06MJ-04MBSPT 90 E...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	7.1
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	14.3
CENTERLINE LENGTH M (MM)	26.9
CENTERLINE LENGTH L (MM)	27.7
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT (LBS)	0.100
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.660

7200-06-04-SS

$222.20

Attribute: 7200-06-04-SS (06MJ-04MBSPT 90 E...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	7.1
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	14.3
CENTERLINE LENGTH M (MM)	26.9
CENTERLINE LENGTH L (MM)	27.7
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.200
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.660

7200-06-06-FG

$24.37

Attribute: 7200-06-06-FG (06MJ-06MBSPT 90 E...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	10.3
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	19.0
CENTERLINE LENGTH M (MM)	29.0
CENTERLINE LENGTH L (MM)	31.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT (LBS)	0.181
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.817

7200-06-06-SS

$130.59

Attribute: 7200-06-06-SS (06MJ-06MBSPT 90 E...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	10.3
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	19.0
CENTERLINE LENGTH M (MM)	29.0
CENTERLINE LENGTH L (MM)	31.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.184
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.817

7200-06-08-FG

$33.86

Attribute: 7200-06-08-FG (06MJ-08MBSPT 90 E...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	13.1
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	22.0
CENTERLINE LENGTH M (MM)	31.0
CENTERLINE LENGTH L (MM)	37.3
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT (LBS)	0.263
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.429

7200-08-04-FG

$46.02

Attribute: 7200-08-04-FG (08MJ-04MBSPT 90 E...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	19.0
CENTERLINE LENGTH M (MM)	31.8
CENTERLINE LENGTH L (MM)	31.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.949

7200-08-06-FG

$46.02

Attribute: 7200-08-06-FG (08MJ-06MBSPT 90 E...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	10.3
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	19.0
CENTERLINE LENGTH M (MM)	32.0
CENTERLINE LENGTH L (MM)	31.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT (LBS)	0.194
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.958

7200-08-06-SS

$291.65

Attribute: 7200-08-06-SS (08MJ-06MBSPT 90 E...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	10.3
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	19.0
CENTERLINE LENGTH M (MM)	32.0
CENTERLINE LENGTH L (MM)	31.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.375
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.958

7200-08-08-FG

$44.11

Attribute: 7200-08-08-FG (08MJ-08MBSPT 90 E...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	13.5
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	22.0
CENTERLINE LENGTH M (MM)	34.0
CENTERLINE LENGTH L (MM)	37.5
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT (LBS)	0.193
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.656

7200-08-08-SS

$179.91

Attribute: 7200-08-08-SS (08MJ-08MBSPT 90 E...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	13.5
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	22.0
CENTERLINE LENGTH M (MM)	34.0
CENTERLINE LENGTH L (MM)	37.5
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.286
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.656

7200-08-12-FG

$44.40

Attribute: 7200-08-12-FG (08MJ-12MBSPT 90 E...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	17.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	27.0
CENTERLINE LENGTH M (MM)	35.8
CENTERLINE LENGTH L (MM)	37.3
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT (LBS)	0.094
MAXIMUM DYNAMIC PRESSURE (PSI)	5,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.119

7200-10-06-FG

$45.19

Attribute: 7200-10-06-FG (10MJ-06MBSPT 90 E...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	9.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	22.2
CENTERLINE LENGTH M (MM)	36.8
CENTERLINE LENGTH L (MM)	36.7
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT (LBS)	0.094
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.760

7200-10-08-FG

$45.54

Attribute: 7200-10-08-FG (10MJ-08MBSPT 90 E...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	13.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	22.2
CENTERLINE LENGTH M (MM)	36.8
CENTERLINE LENGTH L (MM)	37.3
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT (LBS)	0.306
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.859

7200-10-12-FG

$59.91

Attribute: 7200-10-12-FG (10MJ-12MBSPT 90 E...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	17.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	27.0
CENTERLINE LENGTH M (MM)	37.9
CENTERLINE LENGTH L (MM)	40.4
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT (LBS)	0.094
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.954

7200-12-08-FG

$71.62

Attribute: 7200-12-08-FG (12MJ-08MBSPT 90 E...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	27.0
CENTERLINE LENGTH M (MM)	44.2
CENTERLINE LENGTH L (MM)	40.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT (LBS)	0.456
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.422

7200-12-08-SS

$374.23

Attribute: 7200-12-08-SS (12MJ-08MBSPT 90 E...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	27.0
CENTERLINE LENGTH M (MM)	44.2
CENTERLINE LENGTH L (MM)	40.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.422

7200-12-12-FG

$56.16

Attribute: 7200-12-12-FG (12MJ-12MBSPT 90 E...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	18.3
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	27.0
CENTERLINE LENGTH M (MM)	42.2
CENTERLINE LENGTH L (MM)	40.4
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT (LBS)	0.450
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.336

7200-12-12-SS

$310.45

Attribute: 7200-12-12-SS (12MJ-12MBSPT 90 E...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	18.3
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	27.0
CENTERLINE LENGTH M (MM)	42.2
CENTERLINE LENGTH L (MM)	40.4
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.336

7200-12-16-FG

$145.26

Attribute: 7200-12-16-FG (12MJ-16MBSPT 90 E...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	33.3
CENTERLINE LENGTH M (MM)	44.8
CENTERLINE LENGTH L (MM)	50.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	4,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	12.840

7200-12-16-SS

$445.51

Attribute: 7200-12-16-SS (12MJ-16MBSPT 90 E...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	33.3
CENTERLINE LENGTH M (MM)	44.8
CENTERLINE LENGTH L (MM)	50.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
MAXIMUM DYNAMIC PRESSURE (PSI)	4,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	12.840

7200-16-12-FG

$126.75

Attribute: 7200-16-12-FG (16MJ-12MBSPT 90 E...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	21.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	18.3
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	33.3
CENTERLINE LENGTH M (MM)	46.0
CENTERLINE LENGTH L (MM)	45.2
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT (LBS)	0.725
MAXIMUM DYNAMIC PRESSURE (PSI)	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.462

7200-16-16-FG

$122.42

Attribute: 7200-16-16-FG (16MJ-16MBSPT 90 E...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	21.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	23.8
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	33.3
CENTERLINE LENGTH M (MM)	46.0
CENTERLINE LENGTH L (MM)	50.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT (LBS)	0.788
MAXIMUM DYNAMIC PRESSURE (PSI)	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	13.002

7200-16-16-SS

$408.31

Attribute: 7200-16-16-SS (16MJ-16MBSPT 90 E...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	21.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	23.8
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	33.3
CENTERLINE LENGTH M (MM)	46.0
CENTERLINE LENGTH L (MM)	50.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
MAXIMUM DYNAMIC PRESSURE (PSI)	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	13.002

7200-20-16-FG

$123.79

Attribute: 7200-20-16-FG (20MJ-16MBSPT 90 E...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/8-12
THREAD DRILL B1 (MM)	27.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	23.8
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	41.3
CENTERLINE LENGTH M (MM)	52.3
CENTERLINE LENGTH L (MM)	59.7
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT (LBS)	0.094
MAXIMUM DYNAMIC PRESSURE (PSI)	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	22.681

7200-20-20-FG

$165.19

Attribute: 7200-20-20-FG (20MJ-20MBSPT 90 E...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/8-12
THREAD DRILL B1 (MM)	27.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	31.7
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	41.3
CENTERLINE LENGTH M (MM)	52.5
CENTERLINE LENGTH L (MM)	60.5
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT (LBS)	1.267
MAXIMUM DYNAMIC PRESSURE (PSI)	2,300
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	23.111

7200-20-20-SS

$523.52

Attribute: 7200-20-20-SS (20MJ-20MBSPT 90 E...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/8-12
THREAD DRILL B1 (MM)	27.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	31.7
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	41.3
CENTERLINE LENGTH M (MM)	52.5
CENTERLINE LENGTH L (MM)	60.5
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
MAXIMUM DYNAMIC PRESSURE (PSI)	2,300
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	23.111

7200-24-20-FG

$294.16

Attribute: 7200-24-20-FG (24MJ-20MBSPT 90 E...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-7/8-12
THREAD DRILL B1 (MM)	33.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	31.7
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	47.6
CENTERLINE LENGTH M (MM)	59.2
CENTERLINE LENGTH L (MM)	70.4
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT (LBS)	0.094
MAXIMUM DYNAMIC PRESSURE (PSI)	2,300
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	35.462

7200-24-24-FG

$323.10

Attribute: 7200-24-24-FG (24MJ-24MBSPT 90 E...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-7/8-12
THREAD DRILL B1 (MM)	33.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	38.1
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	47.6
CENTERLINE LENGTH M (MM)	59.2
CENTERLINE LENGTH L (MM)	67.1
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT (LBS)	1.744
MAXIMUM DYNAMIC PRESSURE (PSI)	2,300
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	33.348

7200-24-24-SS

$1,572.43

Attribute: 7200-24-24-SS (20MJ-20MBSPT 90 E...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-7/8-12
THREAD DRILL B1 (MM)	33.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	38.1
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	47.6
CENTERLINE LENGTH M (MM)	59.2
CENTERLINE LENGTH L (MM)	67.1
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
MAXIMUM DYNAMIC PRESSURE (PSI)	2,300
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	33.348

7200-32-32-FG

$323.01

Attribute: 7200-32-32-FG (32MJ-32MBSPT 90 E...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	2-1/2-12
THREAD DRILL B1 (MM)	49.2
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	2-11
THREAD DRILL B2 (MM)	45.2
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	63.5
CENTERLINE LENGTH M (MM)	77.7
CENTERLINE LENGTH L (MM)	76.2
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT (LBS)	3.719
MAXIMUM DYNAMIC PRESSURE (PSI)	2,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	64.378

Connections	JIC, BSP
Shape	Elbow

ID	10149312
Category	Conversion Adapters

Description

Description

Variations (39)

7200-04-02-FG

7200-04-02-SS

7200-04-04-FG

7200-04-04-SS

7200-04-06-FG

7200-05-02-FG

7200-05-04-FG

7200-06-02-FG

7200-06-02-SS

7200-06-04-FG

7200-06-04-SS

7200-06-06-FG

7200-06-06-SS

7200-06-08-FG

7200-08-04-FG

7200-08-06-FG

7200-08-06-SS

7200-08-08-FG

7200-08-08-SS

7200-08-12-FG

7200-10-06-FG

7200-10-08-FG

7200-10-12-FG

7200-12-08-FG

7200-12-08-SS

7200-12-12-FG

7200-12-12-SS

7200-12-16-FG

7200-12-16-SS

7200-16-12-FG

7200-16-16-FG

7200-16-16-SS

7200-20-16-FG

7200-20-20-FG

7200-20-20-SS

7200-24-20-FG

7200-24-24-FG

7200-24-24-SS

7200-32-32-FG

General Attributes

PDF Documents
