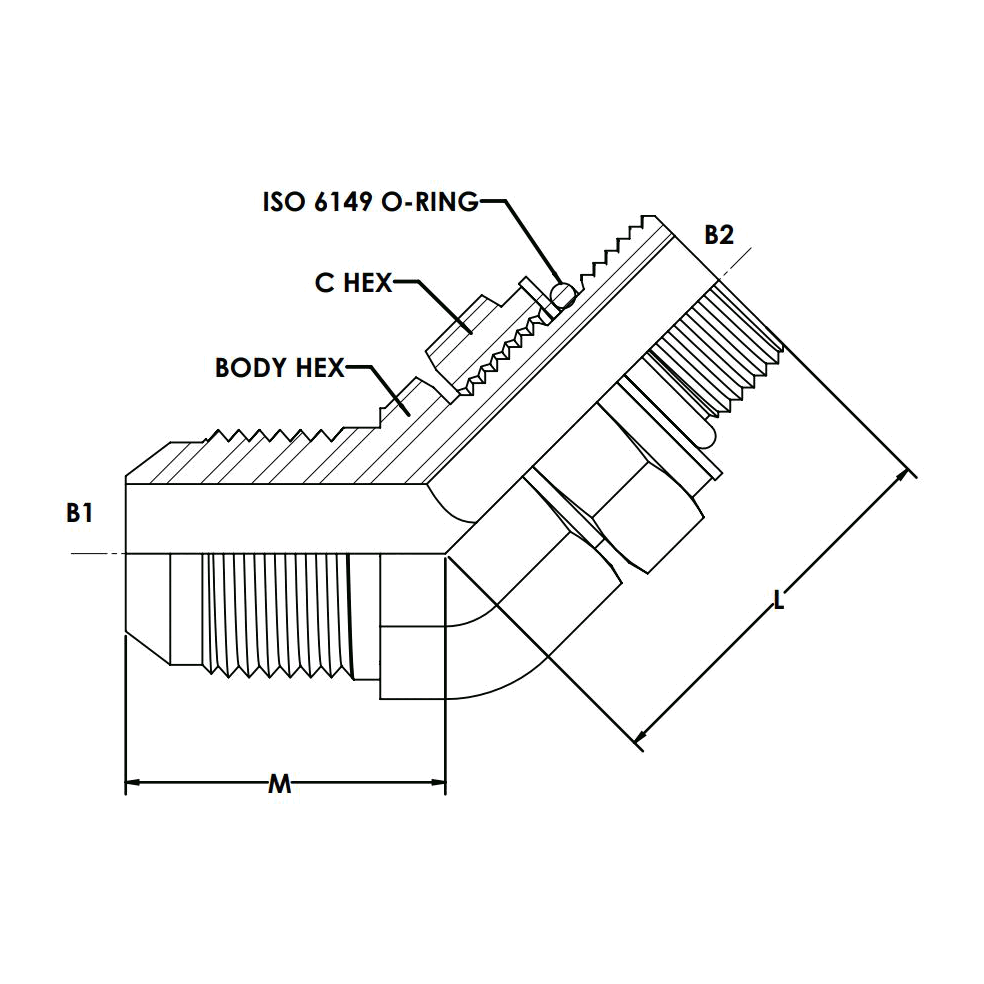

7150-NWO-FG-ISO 6149

Attribute: 7150-10-18-NWO-FG (10MJ-18MMAORB...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC ADJUSTABLE ISO6149
THREAD SIZE B2	M18X1.5
THREAD DRILL B2 (MM)	11.0
THREAD SPECIFICATION B2	ISO 6149 O-RING PORT
BODY HEX (MM)	22.2
HEX C 1 (MM)	24.0
CENTERLINE LENGTH M (MM)	28.2
CENTERLINE LENGTH L (MM)	34.1
SHAPE	45 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.250
CALIFORNIA RESIDENTS	PROP-65 WARNING

Attribute: 7150-12-27-NWO-FG (12MJ-27MMAORB...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC ADJUSTABLE ISO6149
THREAD SIZE B2	M27X2.0
THREAD DRILL B2 (MM)	18.2
THREAD SPECIFICATION B2	ISO 6149 O-RING PORT
BODY HEX (MM)	27.0
CENTERLINE LENGTH M (MM)	32.5
CENTERLINE LENGTH L (MM)	43.2
SHAPE	45 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING
