MJ-FMS 45 ELBOW. FEMALE METRIC SWIVEL
Description
Variations (1)
7107-04-10-FG
$0.00Attribute: 7107-04-10-FG (04MJ-10FMS 45 Elb...)
Stock Status: True

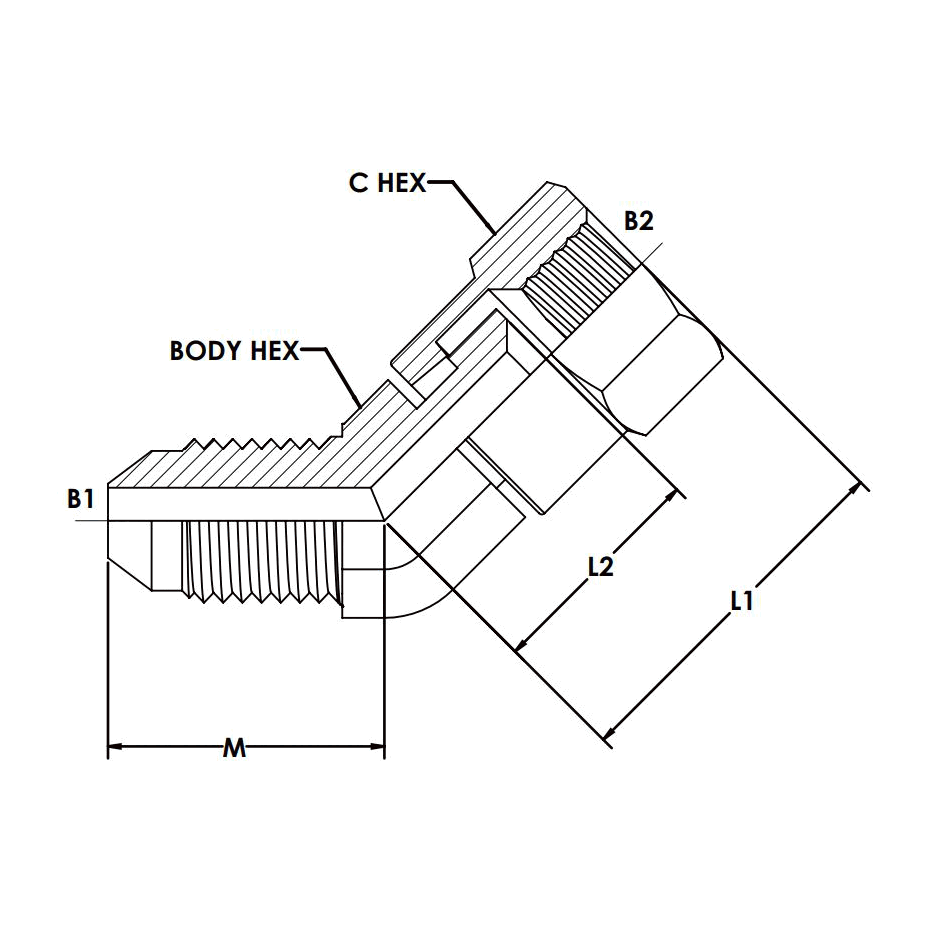

| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 7/16-20 |
| THREAD DRILL B1 (MM) | 4.4 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | FEMALE METRIC SWIVEL |
| THREAD SIZE B2 | M10X1.25 |
| THREAD DRILL B2 (MM) | 4.4 |
| BODY HEX (MM) | 11.13 |
| C HEX 1 (MM) | 14.29 |
| CENTERLINE LENGTH M (MM) | 18.29 |
| CENTERLINE LENGTH L (MM) | 23.88 |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.063 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
General Attributes
| Connections | JIC, Metric |
|---|---|
| Shape | Elbow |
