Description

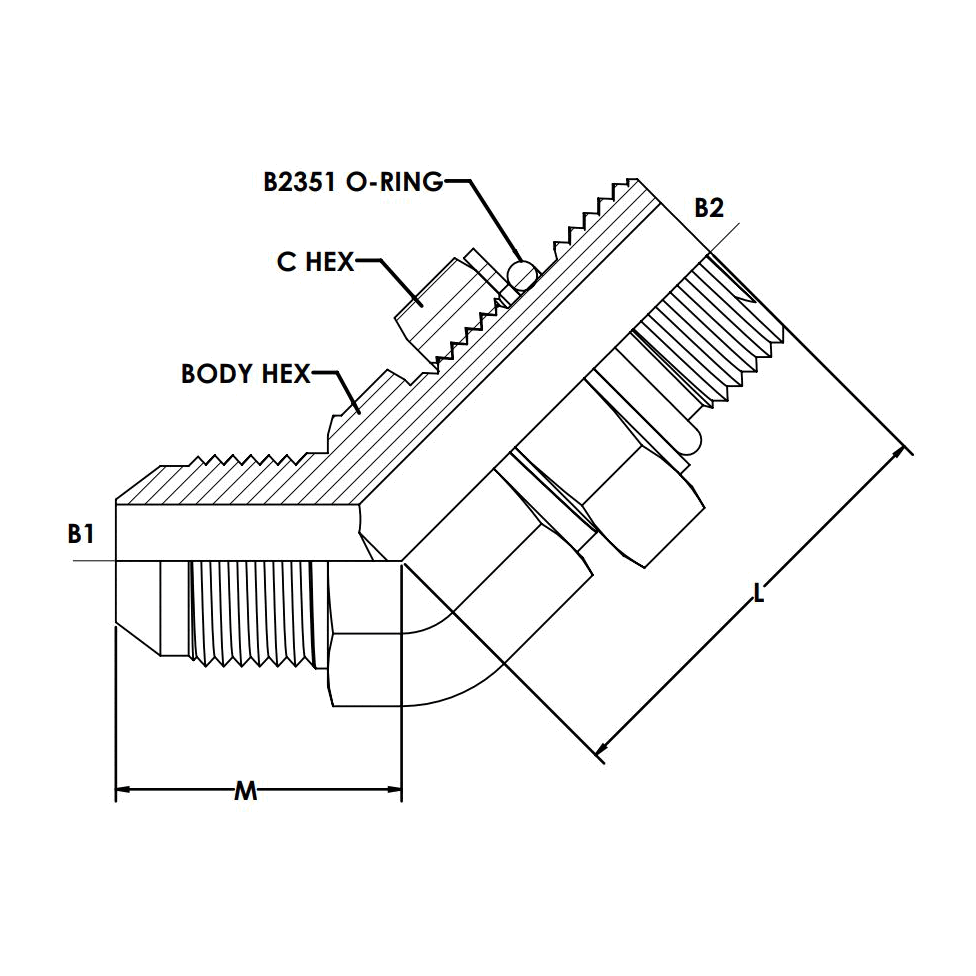

MJ-MBSPPAORB B2351 45 ELBOW FORGED. MALE BSPP ADJUSTABLE WITH JIS B2351 O-RING
Description
Variations (4)
7102-06-04-NWO-FG-B2351
$67.31Attribute: 7102-06-04-NWO-FG-B2351 (06MJ-04...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 9/16-18 |
| THREAD DRILL B1 (MM) | 7.5 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE BSPP ADJUSTABLE JIS B2351 |
| THREAD SIZE B2 | 1/4-19 |
| THREAD DRILL B2 (MM) | 7.6 |
| THREAD SPECIFICATION B2 | BS 5200 |
| BODY HEX (MM) | 14.1 |
| HEX C 1 (MM) | 19.0 |
| CENTERLINE LENGTH M (MM) | 21.1 |
| CENTERLINE LENGTH L (MM) | 26.8 |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.100 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,800 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.971 |
7102-06-06-NWO-FG-B2351
$29.19Attribute: 7102-06-06-NWO-FG-B2351 (06MJ-06...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 9/16-18 |
| THREAD DRILL B1 (MM) | 7.5 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE BSPP ADJUSTABLE JIS B2351 |
| THREAD SIZE B2 | 3/8-19 |
| THREAD DRILL B2 (MM) | 9.5 |
| THREAD SPECIFICATION B2 | BS 5200 |
| BODY HEX (MM) | 19.0 |
| HEX C 1 (MM) | 22.0 |
| CENTERLINE LENGTH M (MM) | 22.0 |
| CENTERLINE LENGTH L (MM) | 33.0 |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,800 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.607 |
7102-08-06-NWO-FG-B2351
$58.24Attribute: 7102-08-06-NWO-FG-B2351 (08MJ-06...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 3/4-16 |
| THREAD DRILL B1 (MM) | 9.9 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE BSPP ADJUSTABLE JIS B2351 |
| THREAD SIZE B2 | 3/8-19 |
| THREAD DRILL B2 (MM) | 9.5 |
| THREAD SPECIFICATION B2 | BS 5200 |
| BODY HEX (MM) | 19.0 |
| HEX C 1 (MM) | 22.0 |
| CENTERLINE LENGTH M (MM) | 24.9 |
| CENTERLINE LENGTH L (MM) | 33.0 |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.175 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,800 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.871 |
7102-10-12-NWO-FG-B2351
$87.08Attribute: 7102-10-12-NWO-FG-B2351 (10MJ-12...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 7/8-14 |
| THREAD DRILL B1 (MM) | 12.3 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE BSPP ADJUSTABLE JIS B2351 |
| THREAD SIZE B2 | 3/4-14 |
| THREAD DRILL B2 (MM) | 15.5 |
| THREAD SPECIFICATION B2 | BS 5200 |
| BODY HEX (MM) | 27.0 |
| HEX C 1 (MM) | 36.0 |
| CENTERLINE LENGTH M (MM) | 26.0 |
| CENTERLINE LENGTH L (MM) | 43.9 |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.220 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 4.035 |
General Attributes
| Connections | JIC, BSP |
|---|---|
| Shape | Elbow |
