7100-FG

7100-04-02-FG

$14.03

Attribute: 7100-04-02-FG (04MJ-02MBSPT 45 E...)

Stock Status: True

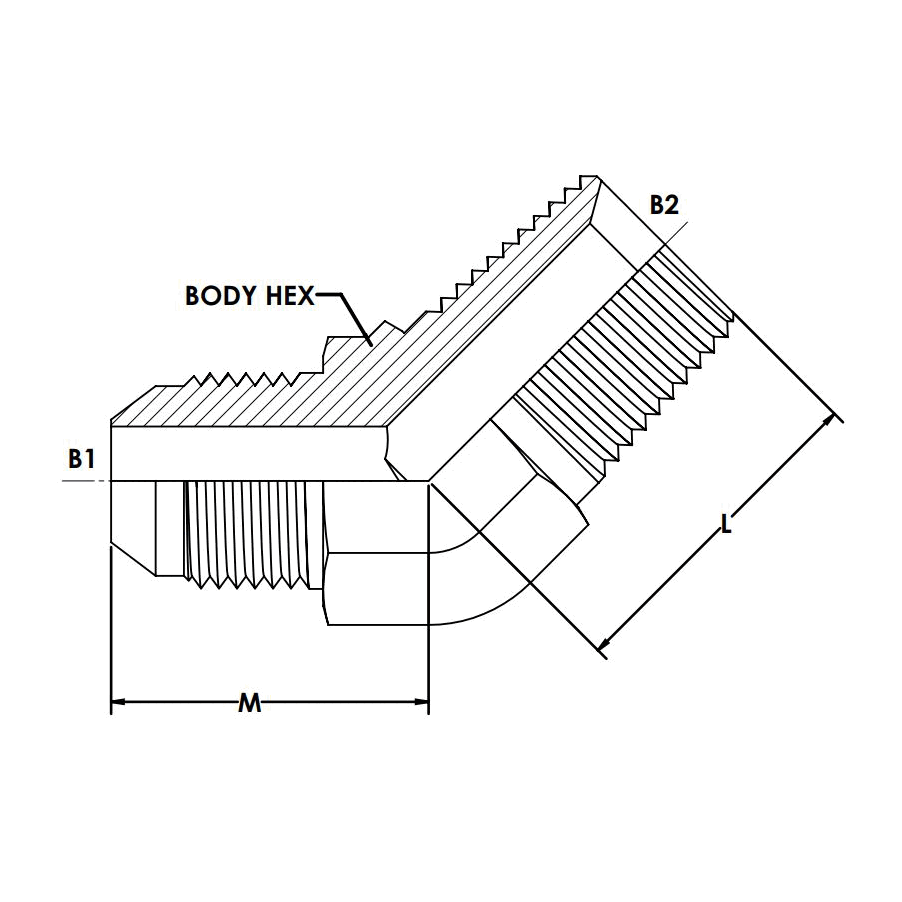

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	4.5
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	11.0
CENTERLINE LENGTH M (MM)	21.5
CENTERLINE LENGTH L (MM)	17.0
SHAPE	45 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT (LBS)	0.058
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.581

7100-04-04-FG

$12.06

Attribute: 7100-04-04-FG (04MJ-04MBSPT 45 E...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	7.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	14.0
CENTERLINE LENGTH M (MM)	22.3
CENTERLINE LENGTH L (MM)	21.0
SHAPE	45 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT (LBS)	0.079
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.036

7100-04-04-SS

$114.89

Attribute: 7100-04-04-SS (04MJ-04MBSPT 45 E...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	7.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	14.0
CENTERLINE LENGTH M (MM)	22.3
CENTERLINE LENGTH L (MM)	21.0
SHAPE	45 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.036

7100-06-04-FG

$18.96

Attribute: 7100-06-04-FG (06MJ-04MBSPT 45 E...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	7.5
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	14.1
CENTERLINE LENGTH M (MM)	22.8
CENTERLINE LENGTH L (MM)	21.0
SHAPE	45 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT (LBS)	0.086
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.057

7100-06-06-FG

$38.10

Attribute: 7100-06-06-FG (06MJ-06MBSPT 45 E...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	10.3
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	19.0
CENTERLINE LENGTH M (MM)	22.1
CENTERLINE LENGTH L (MM)	24.1
SHAPE	45 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT (LBS)	0.106
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.800

7100-06-08-FG

$24.57

Attribute: 7100-06-08-FG (06MJ-08MBSPT 45 E...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	22.0
CENTERLINE LENGTH M (MM)	25.2
CENTERLINE LENGTH L (MM)	29.5
SHAPE	45 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.974

7100-08-04-FG

$40.61

Attribute: 7100-08-04-FG (08MJ-04MBSPT 45 E...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	7.5
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	19.0
CENTERLINE LENGTH M (MM)	25.7
CENTERLINE LENGTH L (MM)	24.9
SHAPE	45 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.018

7100-08-06-FG

$41.20

Attribute: 7100-08-06-FG (08MJ-06MBSPT 45 E...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	10.3
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	19.0
CENTERLINE LENGTH M (MM)	25.0
CENTERLINE LENGTH L (MM)	24.0
SHAPE	45 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT (LBS)	0.144
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.903

7100-08-08-FG

$35.54

Attribute: 7100-08-08-FG (08MJ-08MBSPT 45 E...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	22.0
CENTERLINE LENGTH M (MM)	28.0
CENTERLINE LENGTH L (MM)	29.5
SHAPE	45 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT (LBS)	0.194
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.126

7100-10-08-FG

$72.12

Attribute: 7100-10-08-FG (10MJ-08MBSPT 45 E...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	13.5
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	22.0
CENTERLINE LENGTH M (MM)	28.0
CENTERLINE LENGTH L (MM)	30.0
SHAPE	45 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT (LBS)	0.206
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.193

7100-12-12-FG

$61.28

Attribute: 7100-12-12-FG (12MJ-12MBSPT 45 E...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	18.3
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	27.0
CENTERLINE LENGTH M (MM)	32.51
CENTERLINE LENGTH L (MM)	30.51
SHAPE	45 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT (LBS)	0.338
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.570

7100-16-12-FG

$222.73

Attribute: 7100-16-12-FG (16MJ-12MBSPT 45 E...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	18.3
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	33.0
CENTERLINE LENGTH M (MM)	37.4
CENTERLINE LENGTH L (MM)	33.0
SHAPE	45 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.018

7100-16-16-FG

$156.48

Attribute: 7100-16-16-FG (16MJ-16MBSPT 45 E...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	21.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	33.0
CENTERLINE LENGTH M (MM)	37.4
CENTERLINE LENGTH L (MM)	37.6
SHAPE	45 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT (LBS)	0.556
MAXIMUM DYNAMIC PRESSURE (PSI)	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.171

7100-20-20-FG

$387.34

Attribute: 7100-20-20-FG (20MJ-20MBSPT 45 E...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/8-12
THREAD DRILL B1 (MM)	27.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	28.6
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	41.3
CENTERLINE LENGTH M (MM)	40.4
CENTERLINE LENGTH L (MM)	38.6
SHAPE	45 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,300
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.797

7100-24-24-FG

$542.25

Attribute: 7100-24-24-FG (24MJ-24MBSPT 45 E...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-7/8-12
THREAD DRILL B1 (MM)	33.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	33.3
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	47.6
SHAPE	45 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,300
CALIFORNIA RESIDENTS	PROP-65 WARNING

7100-32-32-FG

$813.39

Attribute: 7100-32-32-FG (32MJ-32MBSPT 45 E...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	2-1/2-12
THREAD DRILL B1 (MM)	49.2
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	2-11
THREAD DRILL B2 (MM)	45.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	63.5
SHAPE	45 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,000
CALIFORNIA RESIDENTS	PROP-65 WARNING

Connections	JIC, BSP
Shape	Elbow

ID	10149247
Category	Conversion Adapters
