Description

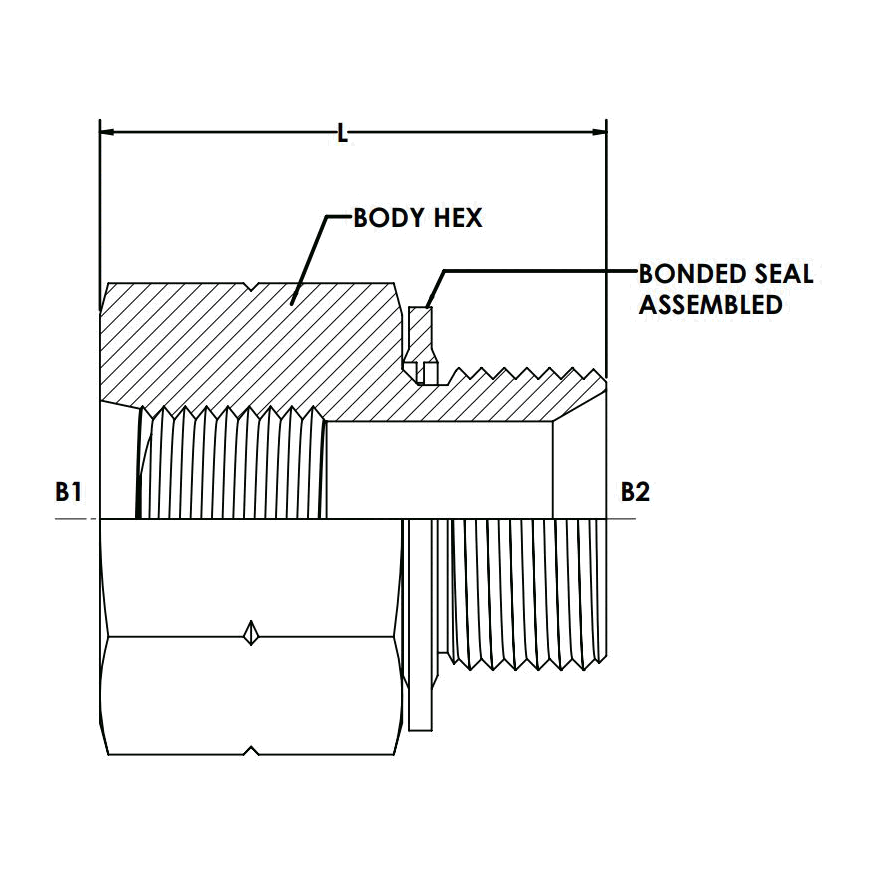

FORB-MM STRAIGHT WITH BONDED SEAL ASSEMBLED (FOR ISO 9974 PORT)
Description
Variations (3)
7075-08-18-BS
$63.25Attribute: 7075-08-18-BS (08FORB-18MM Strai...)
Stock Status: True
| THREAD TYPE B1 | FEMALE SAE O-RING BOSS |
|---|---|
| THREAD SIZE B1 | 3/4-16 |
| THREAD DRILL B1 (MM) | 17.5 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M18X1.5 |
| THREAD DRILL B2 (MM) | 11.0 |
| THREAD SPECIFICATION B2 | ISO 261 W/ METRIC BONDED SEAL |
| WEIGHT (LBS) | 0.006 |
7075-10-22-BS
$288.37Attribute: 7075-10-22-BS (10FORB-22MM Strai...)
Stock Status: True
| THREAD TYPE B1 | FEMALE SAE O-RING BOSS |
|---|---|
| THREAD SIZE B1 | 7/8-14 |
| THREAD DRILL B1 (MM) | 20.4 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M22X1.5 |
| THREAD DRILL B2 (MM) | 14.0 |
| THREAD SPECIFICATION B2 | ISO 261 W/ METRIC BONDED SEAL |
| WEIGHT (LBS) | 0.225 |
7075-16-33-BS
$156.78Attribute: 7075-16-33-BS (16FORB-33MM Strai...)
Stock Status: True
| THREAD TYPE B1 | FEMALE SAE O-RING BOSS |
|---|---|
| THREAD SIZE B1 | 1-5/16-12 |
| THREAD DRILL B1 (MM) | 31.2 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M33X2.0 |
| THREAD DRILL B2 (MM) | 23.0 |
| THREAD SPECIFICATION B2 | ISO 261 W/ METRIC BONDED SEAL |
| WEIGHT (LBS) | 0.013 |
General Attributes
| Connections | ORB, Metric |
|---|---|
| Shape | Straight |
