Description

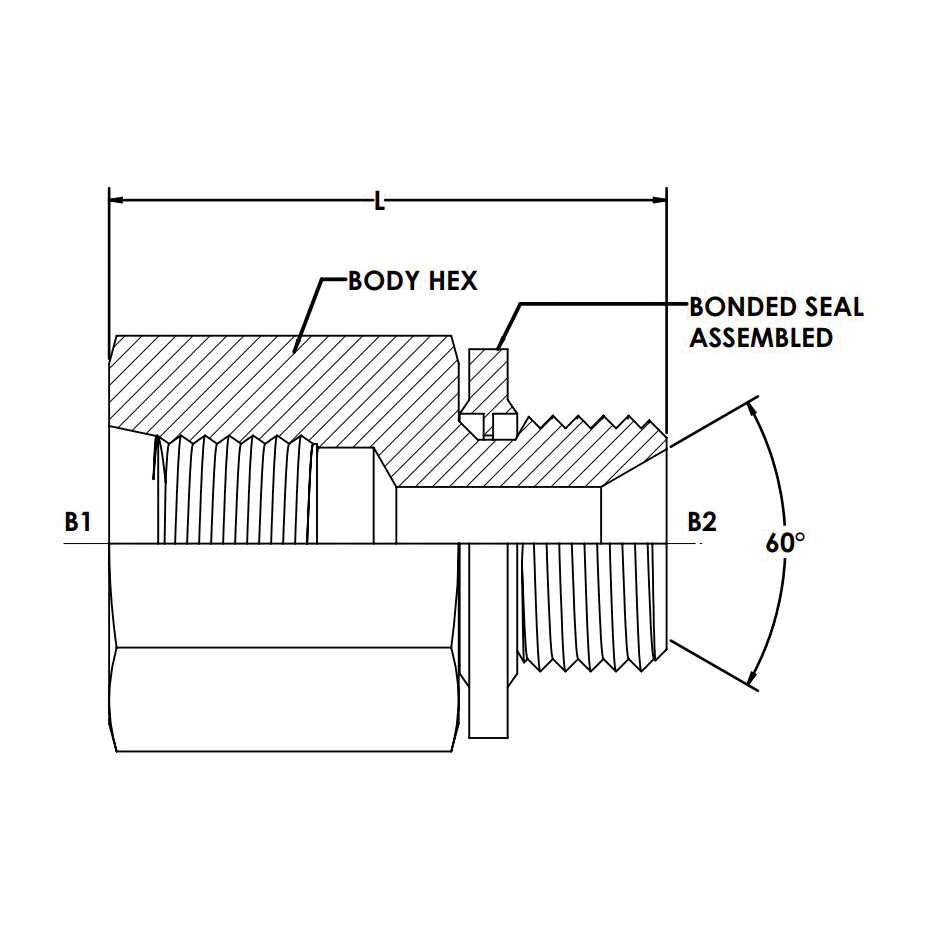

FORB-MBSPP STRAIGHT WITH 60 DEGREE SEAT & BONDED SEAL ASSEMBLED (FOR ISO 1179 PORT)
Description
Variations (6)
7072-04-02-BS
$22.20Attribute: 7072-04-02-BS (04FORB-02MBSPP St...)
Stock Status: True
| THREAD TYPE B1 | FEMALE SAE O-RING BOSS |
|---|---|
| THREAD SIZE B1 | 7/16-20 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE BSPP ORR |
| THREAD SIZE B2 | 1/8-28 |
| THREAD DRILL B2 (MM) | 4.5 |
| THREAD SPECIFICATION B2 | FOR ISO 1179 PORT |
| ASSEMBLED BSPP BONDED SEAL | 9900-02 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.006 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
7072-04-04-BS
$31.95Attribute: 7072-04-04-BS (04FORB-04MBSPP St...)
Stock Status: True
| THREAD TYPE B1 | FEMALE SAE O-RING BOSS |
|---|---|
| THREAD SIZE B1 | 7/16-20 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE BSPP ORR |
| THREAD SIZE B2 | 1/4-19 |
| THREAD DRILL B2 (MM) | 6.0 |
| THREAD SPECIFICATION B2 | FOR ISO 1179 PORT |
| ASSEMBLED BSPP BONDED SEAL | 9900-04 |
| BODY HEX (MM) | 19.05 |
| OVERALL LENGTH L (MM) | 29.5 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.106 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.653 |
7072-06-04-BS
$38.79Attribute: 7072-06-04-BS (06FORB-04MBSPP St...)
Stock Status: True
| THREAD TYPE B1 | FEMALE SAE O-RING BOSS |
|---|---|
| THREAD SIZE B1 | 9/16-18 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE BSPP ORR |
| THREAD SIZE B2 | 1/4-19 |
| THREAD DRILL B2 (MM) | 6.0 |
| THREAD SPECIFICATION B2 | FOR ISO 1179 PORT |
| ASSEMBLED BSPP BONDED SEAL | 9900-04 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.006 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
7072-08-16-BS
$238.64Attribute: 7072-08-16-BS (08FORB-16MBSPP St...)
Stock Status: True
| THREAD TYPE B1 | FEMALE SAE O-RING BOSS |
|---|---|
| THREAD SIZE B1 | 3/4-16 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE BSPP ORR |
| THREAD SIZE B2 | 1-11 |
| THREAD DRILL B2 (MM) | 22.0 |
| THREAD SPECIFICATION B2 | FOR ISO 1179 PORT |
| ASSEMBLED BSPP BONDED SEAL | 9900-16 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.025 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
7072-12-12-BS
$80.97Attribute: 7072-12-12-BS (12FORB-12MBSPP St...)
Stock Status: True
| THREAD TYPE B1 | FEMALE SAE O-RING BOSS |
|---|---|
| THREAD SIZE B1 | 1-1/16-12 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE BSPP ORR |
| THREAD SIZE B2 | 3/4-14 |
| THREAD DRILL B2 (MM) | 16.7 |
| THREAD SPECIFICATION B2 | FOR ISO 1179 PORT |
| ASSEMBLED BSPP BONDED SEAL | 9900-12 |
| BODY HEX (MM) | 34.93 |
| OVERALL LENGTH L (MM) | 50.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.424 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 3.723 |
7072-16-16-BS
$294.05Attribute: 7072-16-16-BS (16FORB-16MBSPP St...)
Stock Status: True
| THREAD TYPE B1 | FEMALE SAE O-RING BOSS |
|---|---|
| THREAD SIZE B1 | 1-5/16-12 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE BSPP ORR |
| THREAD SIZE B2 | 1-11 |
| THREAD DRILL B2 (MM) | 22.0 |
| THREAD SPECIFICATION B2 | FOR ISO 1179 PORT |
| ASSEMBLED BSPP BONDED SEAL | 9900-16 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.025 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
General Attributes
| Connections | ORB, BSP |
|---|---|
| Shape | Straight |
