7065

Attribute: 7065-12-12 (12FJS-12MBSPT Straig...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	17.0
THREAD SPECIFICATION B2	ISO 7-1

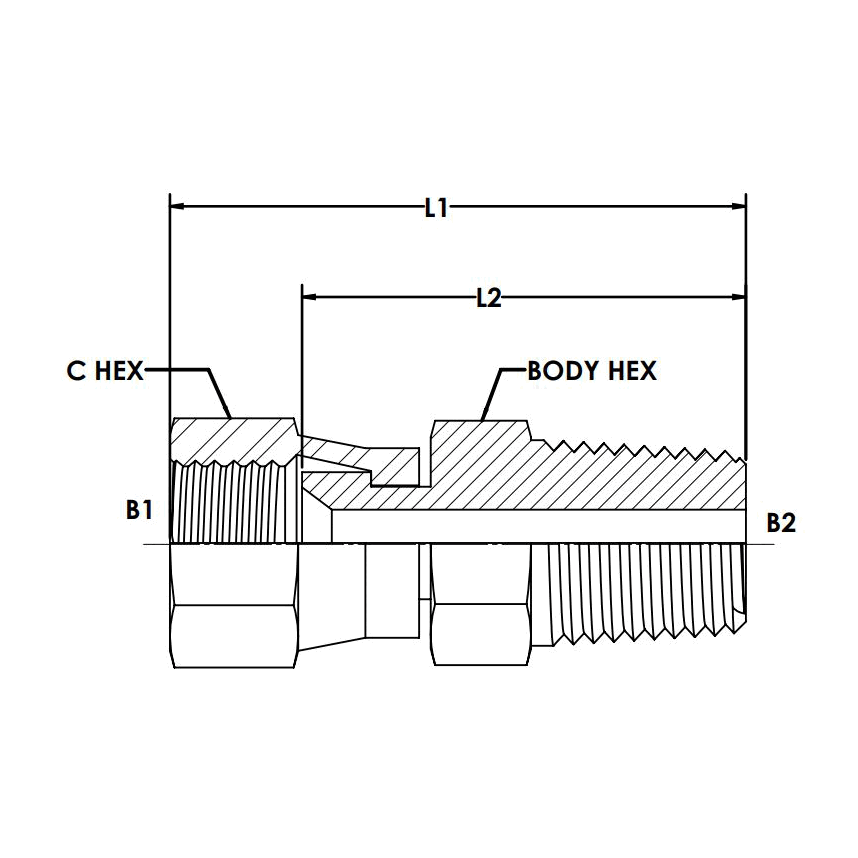

BODY HEX (MM)	28.58
HEX C 1 (MM)	32.0
OVERALL LENGTH 1 (MM)	57.25
OVERALL LENGTH 2 (MM)	42.15
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.356
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.578
