Description

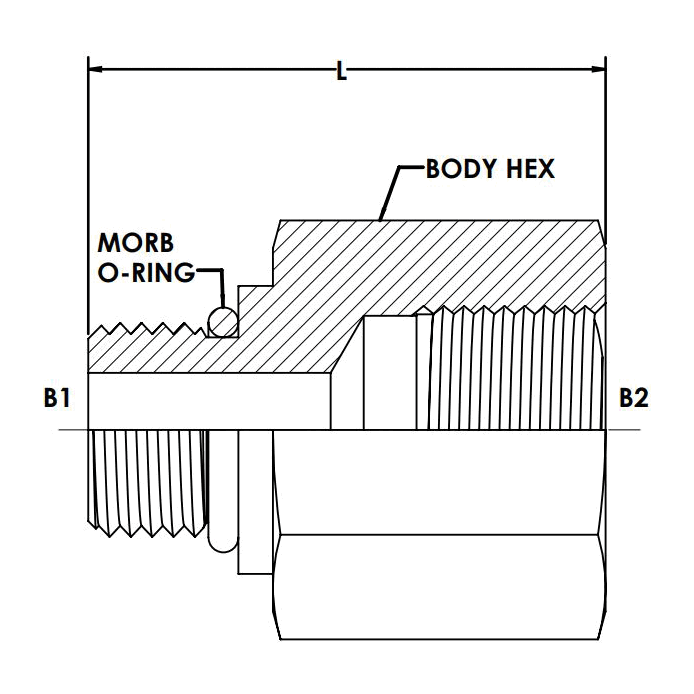

MORB-FBSPP STRAIGHT
Description
Variations (5)
7063-04-04
$20.43Attribute: 7063-04-04 (04MORB-04FBSPP Strai...)
Stock Status: True
| THREAD TYPE B1 | MALE SAE O-RING BOSS |
|---|---|
| THREAD SIZE B1 | 7/16-20 |
| THREAD DRILL B1 (MM) | 4.4 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | FEMALE BSPP (G) |
| THREAD SIZE B2 | 1/4-19 |
| THREAD DRILL B2 (MM) | 11.6 |
| THREAD SPECIFICATION B2 | ISO 1179, ISO 8434-6, BS 5200 |
| BODY HEX (MM) | 19.1 |
| OVERALL LENGTH L (MM) | 29.5 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.088 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.657 |
7063-06-06
$31.99Attribute: 7063-06-06 (06MORB-06FBSPP Strai...)
Stock Status: True
| THREAD TYPE B1 | MALE SAE O-RING BOSS |
|---|---|
| THREAD SIZE B1 | 9/16-18 |
| THREAD DRILL B1 (MM) | 7.5 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | FEMALE BSPP (G) |
| THREAD SIZE B2 | 3/8-19 |
| THREAD DRILL B2 (MM) | 15.2 |
| THREAD SPECIFICATION B2 | ISO 1179, ISO 8434-6, BS 5200 |
| BODY HEX (MM) | 24.0 |
| OVERALL LENGTH L (MM) | 34.2 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.150 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,800 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.202 |
7063-12-06
$123.65Attribute: 7063-12-06 (12MORB-06FBSPP Strai...)
Stock Status: True
| THREAD TYPE B1 | MALE SAE O-RING BOSS |
|---|---|
| THREAD SIZE B1 | 1-1/16-12 |
| THREAD DRILL B1 (MM) | 15.5 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | FEMALE BSPP (G) |
| THREAD SIZE B2 | 3/8-19 |
| THREAD DRILL B2 (MM) | 15.2 |
| THREAD SPECIFICATION B2 | ISO 1179, ISO 8434-6, BS 5200 |
| BODY HEX (MM) | 30.0 |
| OVERALL LENGTH L (MM) | 23.4 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.320 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.285 |
7063-12-08
$93.16Attribute: 7063-12-08 (12MORB-08FBSPP Strai...)
Stock Status: True
| THREAD TYPE B1 | MALE SAE O-RING BOSS |
|---|---|
| THREAD SIZE B1 | 1-1/16-12 |
| THREAD DRILL B1 (MM) | 15.5 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | FEMALE BSPP (G) |
| THREAD SIZE B2 | 1/2-14 |
| THREAD DRILL B2 (MM) | 18.9 |
| THREAD SPECIFICATION B2 | ISO 1179, ISO 8434-6, BS 5200 |
| BODY HEX (MM) | 30.0 |
| OVERALL LENGTH L (MM) | 25.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.320 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.373 |
7063-16-12
$207.77Attribute: 7063-16-12 (16MORB-12FBSPP Strai...)
Stock Status: True
| THREAD TYPE B1 | MALE SAE O-RING BOSS |
|---|---|
| THREAD SIZE B1 | 1-5/16-12 |
| THREAD DRILL B1 (MM) | 21.4 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | FEMALE BSPP (G) |
| THREAD SIZE B2 | 3/4-14 |
| THREAD DRILL B2 (MM) | 24.4 |
| THREAD SPECIFICATION B2 | ISO 1179, ISO 8434-6, BS 5200 |
| BODY HEX (MM) | 38.1 |
| OVERALL LENGTH L (MM) | 45.5 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.472 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 4,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 4.031 |
General Attributes
| Connections | ORB, BSP |
|---|---|
| Shape | Straight |
