7062-BS

7062-04-04-BS

$18.86

Attribute: 7062-04-04-BS (04MORB-04MBSPP St...)

Stock Status: True

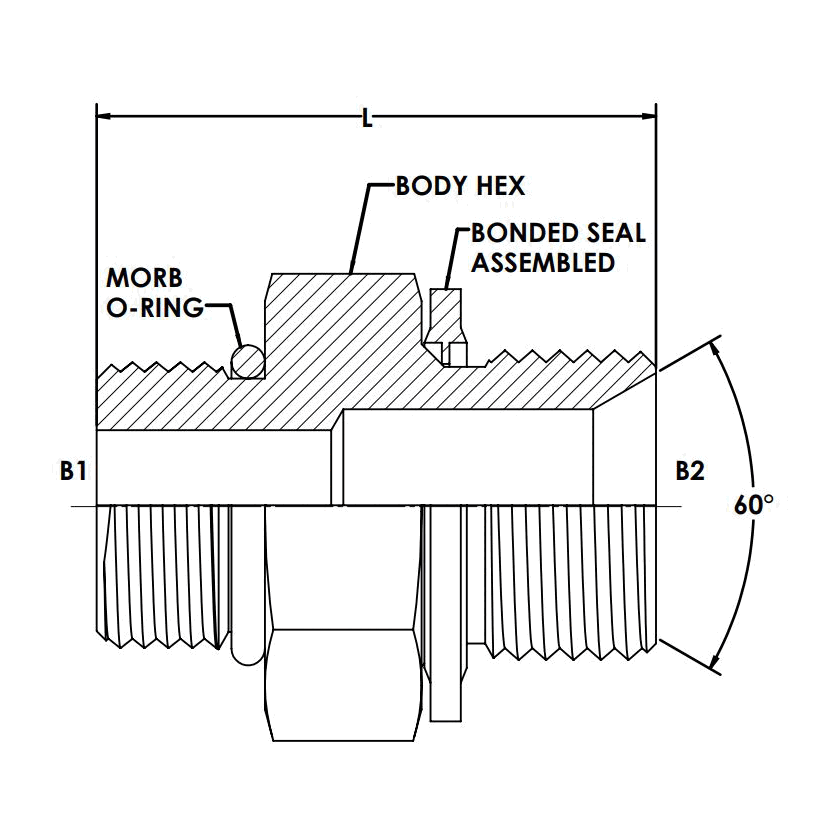

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-04
BODY HEX (MM)	18.0
OVERALL LENGTH L (MM)	27.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.069
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.534

7062-04-06-BS

$22.35

Attribute: 7062-04-06-BS (04MORB-06MBSPP St...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	9.5
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-06
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	31.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.112
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.930

7062-06-04-BS

$18.66

Attribute: 7062-06-04-BS (06MORB-04MBSPP St...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-04
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	32.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.075
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.705

7062-06-08-BS

$20.77

Attribute: 7062-06-08-BS (06MORB-08MBSPP St...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.7
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-08
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	34.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.012
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.513

7062-08-06-BS

$26.28

Attribute: 7062-08-06-BS (08MORB-06MBSPP St...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	9.5
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-06
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	31.8
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.118
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.939

7062-08-06-BS-VITON

$33.42

Attribute: 7062-08-06-BS-VITON (08MORB-06MB...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	9.5
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-06-VITON
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	31.8
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.106
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.939

7062-08-08-BS

$20.63

Attribute: 7062-08-08-BS (08MORB-08MBSPP St...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.7
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-08
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	37.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.175
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.646

7062-10-08-BS

$30.82

Attribute: 7062-10-08-BS (10MORB-08MBSPP St...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.7
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-08
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	42.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.012
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.868

7062-12-08-BS

$45.58

Attribute: 7062-12-08-BS (12MORB-08MBSPP St...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.7
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-08
BODY HEX (MM)	32.0
OVERALL LENGTH L (MM)	42.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.281
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.656

7062-12-12-BS

$38.69

Attribute: 7062-12-12-BS (12MORB-12MBSPP St...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	17.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-12
BODY HEX (MM)	32.0
OVERALL LENGTH L (MM)	48.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.299
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.999

7062-16-06-SS-BS

$446.81

Attribute: 7062-16-06-SS-BS (16MORB-06MBSPP...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	21.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	9.5
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-06-SS
BODY HEX (MM)	38.1
OVERALL LENGTH L (MM)	38.6
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.338
MAXIMUM DYNAMIC PRESSURE (PSI)	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.419

7062-16-12-BS

$62.22

Attribute: 7062-16-12-BS (16MORB-12MBSPP St...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	21.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	17.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-12
BODY HEX (MM)	38.0
OVERALL LENGTH L (MM)	44.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.387
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.921

7062-16-16-BS

$65.96

Attribute: 7062-16-16-BS (16MORB-16MBSPP St...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	21.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-16
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	46.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.456
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.770

7062-20-12-SS-BS-DOM

$724.04

Attribute: 7062-20-12-SS-BS-DOM (20MORB-12M...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	1-5/8-12
THREAD DRILL B1 (MM)	27.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	17.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-12-SS
BODY HEX (MM)	47.6
OVERALL LENGTH L (MM)	49.8
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.688
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.886

7062-20-20-BS

$133.64

Attribute: 7062-20-20-BS (20MORB-20MBSPP St...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	1-5/8-12
THREAD DRILL B1 (MM)	27.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	30.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-20
BODY HEX (MM)	50.0
OVERALL LENGTH L (MM)	54.7
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.031
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.345

7062-24-24-BS

$232.00

Attribute: 7062-24-24-BS (24MORB-24MBSPP St...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	1-7/8-12
THREAD DRILL B1 (MM)	33.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	33.3
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-24
BODY HEX (MM)	55.0
OVERALL LENGTH L (MM)	57.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.869
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.522

Connections	ORB, BSP
Shape	Straight

ID	10149165
Category	Conversion Adapters

Description

Description

Variations (16)

7062-04-04-BS

7062-04-06-BS

7062-06-04-BS

7062-06-08-BS

7062-08-06-BS

7062-08-06-BS-VITON

7062-08-08-BS

7062-10-08-BS

7062-12-08-BS

7062-12-12-BS

7062-16-06-SS-BS

7062-16-12-BS

7062-16-16-BS

7062-20-12-SS-BS-DOM

7062-20-20-BS

7062-24-24-BS

General Attributes

PDF Documents
