7062

7062-03-04

$14.92

Attribute: 7062-03-04 (03MORB-04MBSPP Strai...)

Stock Status: True

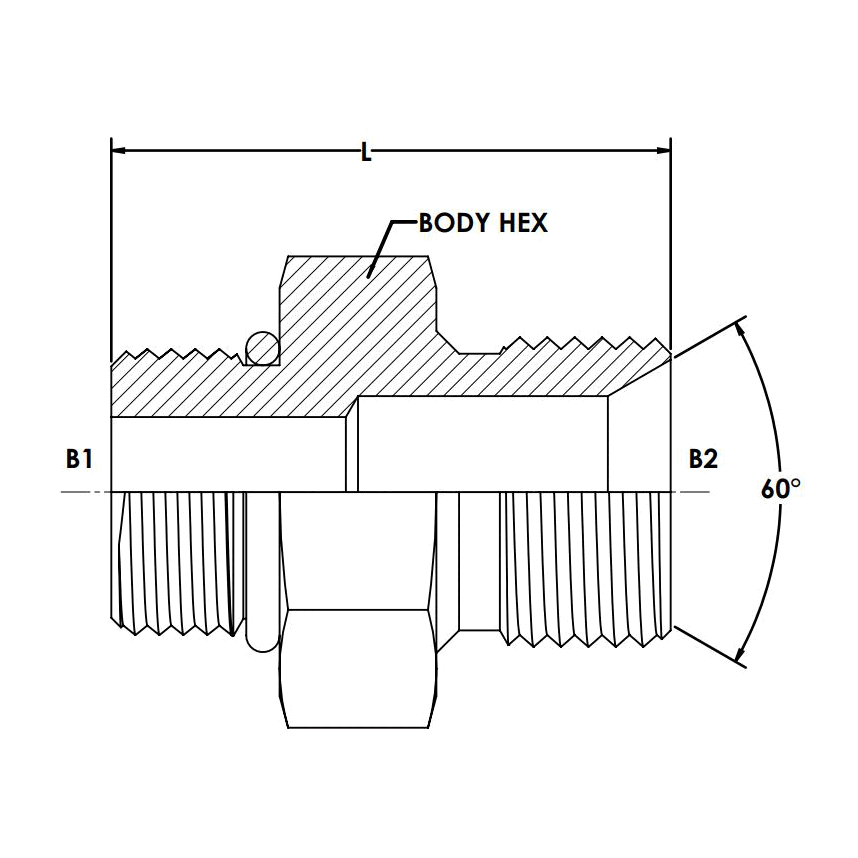

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	3/8-24
THREAD DRILL B1 (MM)	3.2
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	28.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.063
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.617

7062-03-04-SS

$45.19

Attribute: 7062-03-04-SS (03MORB-04MBSPP St...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	3/8-24
THREAD DRILL B1 (MM)	3.2
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	28.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.617

7062-04-02

$13.69

Attribute: 7062-04-02 (04MORB-02MBSPP Strai...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	4.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	18.0
OVERALL LENGTH L (MM)	26.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.514

7062-04-04

$16.10

Attribute: 7062-04-04 (04MORB-04MBSPP Strai...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	18.0
OVERALL LENGTH L (MM)	27.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.063
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.534

7062-04-04-SS

$78.11

Attribute: 7062-04-04-SS (04MORB-04MBSPP St...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	18.0
OVERALL LENGTH L (MM)	27.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.063
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.534

7062-04-06

$19.99

Attribute: 7062-04-06 (04MORB-06MBSPP Strai...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	7.9
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	31.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.100
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.930

7062-04-06-SS

$93.73

Attribute: 7062-04-06-SS (04MORB-06MBSPP St...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	7.9
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	31.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.930

7062-04-08

$29.49

Attribute: 7062-04-08 (04MORB-08MBSPP Strai...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.7
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	31.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.401

7062-04-16

$29.68

Attribute: 7062-04-16 (04MORB-16MBSPP Strai...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	48.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.975

7062-05-04

$13.39

Attribute: 7062-05-04 (05MORB-04MBSPP Strai...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	1/2-20
THREAD DRILL B1 (MM)	6.0
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	27.1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.069
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.597

7062-05-04-SS

$78.71

Attribute: 7062-05-04-SS (05MORB-04MBSPP St...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	1/2-20
THREAD DRILL B1 (MM)	6.0
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	27.1
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.597

7062-05-06

$23.48

Attribute: 7062-05-06 (05MORB-06MBSPP Strai...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	1/2-20
THREAD DRILL B1 (MM)	6.0
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	7.9
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	32.7
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.966

7062-05-08

$29.06

Attribute: 7062-05-08 (05MORB-08MBSPP Strai...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	1/2-20
THREAD DRILL B1 (MM)	6.0
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.7
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	31.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.401

7062-06-04

$15.16

Attribute: 7062-06-04 (06MORB-04MBSPP Strai...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	6.0
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	32.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.069
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.705

7062-06-04-SS

$79.50

Attribute: 7062-06-04-SS (06MORB-04MBSPP St...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	6.0
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	32.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.705

7062-06-04-VITON

$16.49

Attribute: 7062-06-04-VITON (06MORB-04MBSPP...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	6.0
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	32.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.079
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.705

7062-06-06

$16.64

Attribute: 7062-06-06 (06MORB-06MBSPP Strai...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	9.5
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	33.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.087
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.989

7062-06-06-SS

$77.73

Attribute: 7062-06-06-SS (06MORB-06MBSPP St...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	9.5
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	33.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.100
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.989

7062-06-08

$23.73

Attribute: 7062-06-08 (06MORB-08MBSPP Strai...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.7
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	34.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.169
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.513

7062-06-08-SS

$128.03

Attribute: 7062-06-08-SS (06MORB-08MBSPP St...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.7
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	34.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.513

7062-06-10

$67.81

Attribute: 7062-06-10 (06MORB-10MBSPP Strai...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	5/8-14
THREAD DRILL B2 (MM)	12.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	40.2
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.788

7062-08-04

$18.46

Attribute: 7062-08-04 (08MORB-04MBSPP Strai...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	29.3
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.865

7062-08-06

$25.21

Attribute: 7062-08-06 (08MORB-06MBSPP Strai...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	9.5
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	31.8
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.106
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.939

7062-08-06-SS

$70.79

Attribute: 7062-08-06-SS (08MORB-06MBSPP St...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	9.5
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	31.8
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.106
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.939

7062-08-08

$18.76

Attribute: 7062-08-08 (08MORB-08MBSPP Strai...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.7
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	37.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.143
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.646

7062-08-08-SS

$123.21

Attribute: 7062-08-08-SS (08MORB-08MBSPP St...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.7
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	37.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.188
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.646

7062-08-10

$33.37

Attribute: 7062-08-10 (08MORB-10MBSPP Strai...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	5/8-14
THREAD DRILL B2 (MM)	14.3
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	30.0
OVERALL LENGTH L (MM)	39.1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.250
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.147

7062-08-10-SS

$126.90

Attribute: 7062-08-10-SS (08MORB-10MBSPP St...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	5/8-14
THREAD DRILL B2 (MM)	14.3
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	30.0
OVERALL LENGTH L (MM)	39.1
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.147

7062-08-12

$45.04

Attribute: 7062-08-12 (08MORB-12MBSPP Strai...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	16.7
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	32.0
OVERALL LENGTH L (MM)	39.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.238
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.437

7062-08-12-SS

$229.43

Attribute: 7062-08-12-SS (08MORB-12MBSPP St...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	16.7
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	32.0
OVERALL LENGTH L (MM)	39.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.437

7062-10-04

$43.71

Attribute: 7062-10-04 (10MORB-04MBSPP Strai...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	37.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.646

7062-10-06

$26.78

Attribute: 7062-10-06 (10MORB-06MBSPP Strai...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	9.5
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	39.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.175
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.757

7062-10-06-SS

$157.32

Attribute: 7062-10-06-SS (10MORB-06MBSPP St...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	9.5
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	39.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.757

7062-10-08

$30.22

Attribute: 7062-10-08 (10MORB-08MBSPP Strai...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.7
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	42.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.175
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.868

7062-10-08-SS

$162.78

Attribute: 7062-10-08-SS (10MORB-08MBSPP St...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.7
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	42.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.868

7062-10-10

$38.64

Attribute: 7062-10-10 (10MORB-10MBSPP Strai...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	5/8-14
THREAD DRILL B2 (MM)	14.3
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	44.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.256
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.957

7062-10-12

$54.00

Attribute: 7062-10-12 (10MORB-12MBSPP Strai...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	18.2
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	32.0
OVERALL LENGTH L (MM)	43.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.369
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.718

7062-10-12-SS

$221.66

Attribute: 7062-10-12-SS (10MORB-12MBSPP St...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	18.2
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	32.0
OVERALL LENGTH L (MM)	43.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.718

7062-10-16

$70.09

Attribute: 7062-10-16 (10MORB-16MBSPP Strai...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	47.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.914

7062-12-06

$50.55

Attribute: 7062-12-06 (12MORB-06MBSPP Strai...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	9.5
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	32.0
OVERALL LENGTH L (MM)	40.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.500

7062-12-08

$43.22

Attribute: 7062-12-08 (12MORB-08MBSPP Strai...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.7
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	32.0
OVERALL LENGTH L (MM)	42.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.269
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.656

7062-12-08-SS

$226.57

Attribute: 7062-12-08-SS (12MORB-08MBSPP St...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.7
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	32.0
OVERALL LENGTH L (MM)	42.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.656

7062-12-10

$43.27

Attribute: 7062-12-10 (12MORB-10MBSPP Strai...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	5/8-14
THREAD DRILL B2 (MM)	14.3
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	32.0
OVERALL LENGTH L (MM)	41.1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.568

7062-12-12

$34.80

Attribute: 7062-12-12 (12MORB-12MBSPP Strai...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	15.5
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	32.0
OVERALL LENGTH L (MM)	48.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.281
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.999

7062-12-12-SS

$445.22

Attribute: 7062-12-12-SS (12MORB-12MBSPP St...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	15.5
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	32.0
OVERALL LENGTH L (MM)	48.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.281
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.999

7062-12-16

$45.82

Attribute: 7062-12-16 (12MORB-16MBSPP Strai...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.2
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	47.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.413
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.821

7062-12-16-SS

$251.88

Attribute: 7062-12-16-SS (12MORB-16MBSPP St...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	47.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.821

7062-14-12

$143.46

Attribute: 7062-14-12 (14MORB-12MBSPP Strai...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	1-3/16-12
THREAD DRILL B1 (MM)	18.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	15.5
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	36.0
OVERALL LENGTH L (MM)	48.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.796

7062-16-04

$81.98

Attribute: 7062-16-04 (16MORB-04MBSPP Strai...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	21.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	38.1
OVERALL LENGTH L (MM)	36.6
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.242

7062-16-08

$64.68

Attribute: 7062-16-08 (16MORB-08MBSPP Strai...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	21.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.7
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	38.0
OVERALL LENGTH L (MM)	41.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.369
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.657

7062-16-12

$57.89

Attribute: 7062-16-12 (16MORB-12MBSPP Strai...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	21.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	16.7
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	38.0
OVERALL LENGTH L (MM)	44.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.369
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.921

7062-16-12-SS

$236.22

Attribute: 7062-16-12-SS (16MORB-12MBSPP St...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	21.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	16.7
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	38.0
OVERALL LENGTH L (MM)	44.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.921

7062-16-16

$57.06

Attribute: 7062-16-16 (16MORB-16MBSPP Strai...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	21.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	21.4
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	46.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.456
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.770

7062-16-16-SS

$240.61

Attribute: 7062-16-16-SS (16MORB-16MBSPP St...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	21.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	46.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.770

7062-16-16-VITON

$64.19

Attribute: 7062-16-16-VITON (16MORB-16MBSPP...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	21.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	46.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.466
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.770

7062-16-20

$68.18

Attribute: 7062-16-20 (16MORB-20MBSPP Strai...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	21.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	30.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	50.0
OVERALL LENGTH L (MM)	52.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.694
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.009

7062-16-24

$88.51

Attribute: 7062-16-24 (16MORB-24MBSPP Strai...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	21.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	33.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	55.0
OVERALL LENGTH L (MM)	55.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.153

7062-20-12

$138.34

Attribute: 7062-20-12 (20MORB-12MBSPP Strai...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	1-5/8-12
THREAD DRILL B1 (MM)	27.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	17.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	47.6
OVERALL LENGTH L (MM)	49.8
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.886

7062-20-16

$97.21

Attribute: 7062-20-16 (20MORB-16MBSPP Strai...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	1-5/8-12
THREAD DRILL B1 (MM)	27.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.2
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	50.0
OVERALL LENGTH L (MM)	48.7
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.669
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.430

7062-20-16-SS

$363.47

Attribute: 7062-20-16-SS (20MORB-16MBSPP St...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	1-5/8-12
THREAD DRILL B1 (MM)	27.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	50.0
OVERALL LENGTH L (MM)	48.7
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.430

7062-20-20

$132.61

Attribute: 7062-20-20 (20MORB-20MBSPP Strai...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	1-5/8-12
THREAD DRILL B1 (MM)	27.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	30.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	50.0
OVERALL LENGTH L (MM)	54.7
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.031
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.345

7062-20-20-SS

$480.58

Attribute: 7062-20-20-SS (20MORB-20MBSPP St...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	1-5/8-12
THREAD DRILL B1 (MM)	27.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	30.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	50.0
OVERALL LENGTH L (MM)	54.7
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.345

7062-20-24

$173.21

Attribute: 7062-20-24 (20MORB-24MBSPP Strai...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	1-5/8-12
THREAD DRILL B1 (MM)	27.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	33.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	55.0
OVERALL LENGTH L (MM)	54.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.061

7062-24-16

$231.03

Attribute: 7062-24-16 (24MORB-16MBSPP Strai...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	1-7/8-12
THREAD DRILL B1 (MM)	33.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	55.0
OVERALL LENGTH L (MM)	54.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.061

7062-24-20

$146.45

Attribute: 7062-24-20 (24MORB-20MBSPP Strai...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	1-7/8-12
THREAD DRILL B1 (MM)	33.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	30.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	55.0
OVERALL LENGTH L (MM)	55.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.806
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.153

7062-24-20-SS

$702.73

Attribute: 7062-24-20-SS (24MORB-20MBSPP St...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	1-7/8-12
THREAD DRILL B1 (MM)	33.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	30.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	55.0
OVERALL LENGTH L (MM)	55.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.153

7062-24-24

$201.92

Attribute: 7062-24-24 (24MORB-24MBSPP Strai...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	1-7/8-12
THREAD DRILL B1 (MM)	33.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	33.3
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	55.0
OVERALL LENGTH L (MM)	57.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.831
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.522

7062-24-24-SS

$503.02

Attribute: 7062-24-24-SS (24MORB-24MBSPP St...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	1-7/8-12
THREAD DRILL B1 (MM)	33.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	33.3
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	55.0
OVERALL LENGTH L (MM)	57.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.522

7062-24-32

$409.88

Attribute: 7062-24-32 (24MORB-32MBSPP Strai...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	1-7/8-12
THREAD DRILL B1 (MM)	33.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	2-11
THREAD DRILL B2 (MM)	45.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	70.0
OVERALL LENGTH L (MM)	60.7
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	18.150

7062-32-32

$368.94

Attribute: 7062-32-32 (32MORB-32MBSPP Strai...)

Stock Status: True

THREAD TYPE B1	MALE SAE O-RING BOSS
THREAD SIZE B1	2-1/2-12
THREAD DRILL B1 (MM)	49.2
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	2-11
THREAD DRILL B2 (MM)	45.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	70.0
OVERALL LENGTH L (MM)	63.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	18.838

Description

Description

Variations (70)

7062-03-04

7062-03-04-SS

7062-04-02

7062-04-04

7062-04-04-SS

7062-04-06

7062-04-06-SS

7062-04-08

7062-04-16

7062-05-04

7062-05-04-SS

7062-05-06

7062-05-08

7062-06-04

7062-06-04-SS

7062-06-04-VITON

7062-06-06

7062-06-06-SS

7062-06-08

7062-06-08-SS

7062-06-10

7062-08-04

7062-08-06

7062-08-06-SS

7062-08-08

7062-08-08-SS

7062-08-10

7062-08-10-SS

7062-08-12

7062-08-12-SS

7062-10-04

7062-10-06

7062-10-06-SS

7062-10-08

7062-10-08-SS

7062-10-10

7062-10-12

7062-10-12-SS

7062-10-16

7062-12-06

7062-12-08

7062-12-08-SS

7062-12-10

7062-12-12

7062-12-12-SS

7062-12-16

7062-12-16-SS

7062-14-12

7062-16-04

7062-16-08

7062-16-12

7062-16-12-SS

7062-16-16

7062-16-16-SS

7062-16-16-VITON

7062-16-20

7062-16-24

7062-20-12

7062-20-16

7062-20-16-SS

7062-20-20

7062-20-20-SS

7062-20-24

7062-24-16

7062-24-20

7062-24-20-SS

7062-24-24

7062-24-24-SS

7062-24-32

7062-32-32

General Attributes

PDF Documents
