Description

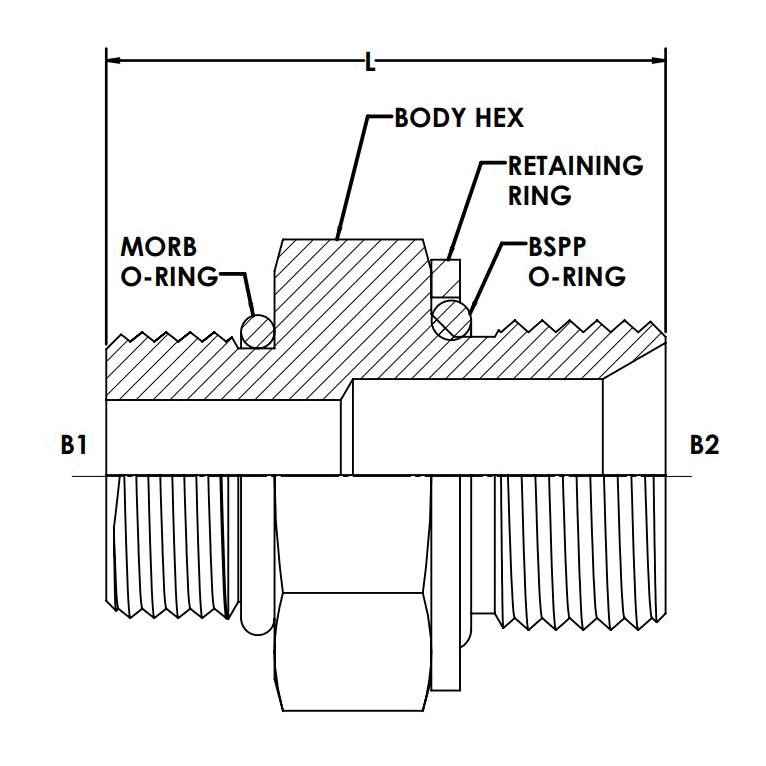

MORB-MBSPP ORR STRAIGHT. MBSPP WITH O-RING AND RETAINING RING
Description
Variations (1)
7061-06-04
$0.00Attribute: 7061-06-04 (06MORB-04MBSPP ORR S...)
Stock Status: True
| THREAD TYPE B1 | MALE SAE O-RING BOSS |
|---|---|
| THREAD SIZE B1 | 9/16-18 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE BSPP ORR |
| THREAD SIZE B2 | 1/4-19 |
| THREAD SPECIFICATION B2 | BS 5200 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
General Attributes
| Connections | ORB, BSP |
|---|---|
| Shape | Straight |
