Description

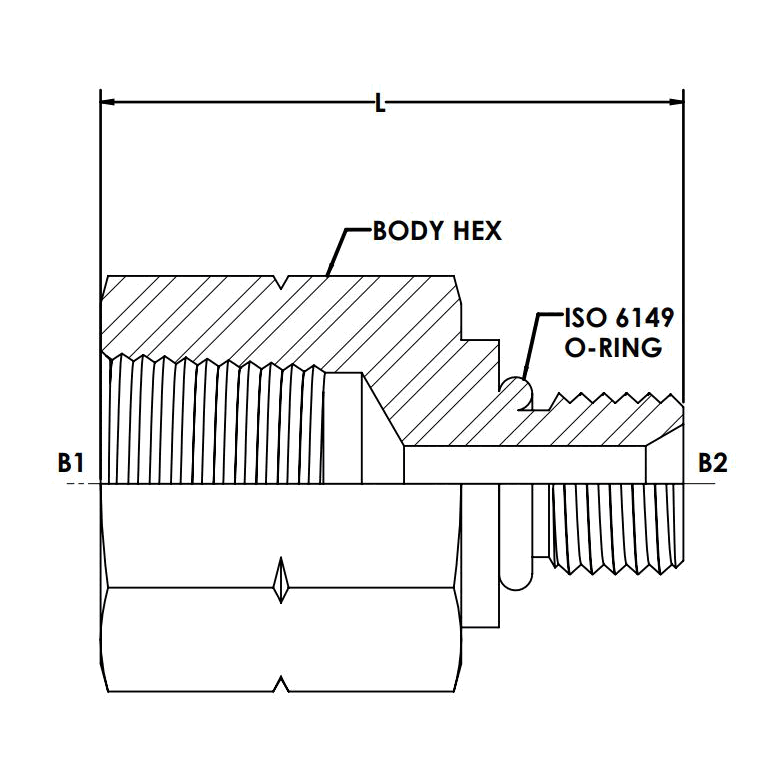

FP-MM STRAIGHT. ISO 6149 PORT O-RING
Description
Variations (1)
7045-02-10-6149-O
$0.00Attribute: 7045-02-10-6149-O (02FP-10MMX1.0...)
Stock Status: True
| THREAD TYPE B1 | FEMALE NPTF |
|---|---|
| THREAD SIZE B1 | 1/8-27 |
| THREAD DRILL B1 (MM) | 8.5 |
| THREAD SPECIFICATION B1 | ANSI B1.20.3 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M10X1.0 |
| THREAD DRILL B2 (MM) | 4.4 |
| THREAD SPECIFICATION B2 | ISO 9974 |
| BODY HEX (MM) | 14.3 |
| OVERALL LENGTH L (MM) | 29.7 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.050 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.371 |
General Attributes
| Connections | NPT, Metric |
|---|---|
| Shape | Straight |
