7045

7045-02-06

$11.08

Attribute: 7045-02-06 (02FP-06MMX1.0 Straig...)

Stock Status: True

THREAD TYPE B1	FEMALE NPTF
THREAD SIZE B1	1/8-27
THREAD DRILL B1 (MM)	8.5
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M06X1.0
THREAD DRILL B2 (MM)	1.5
THREAD SPECIFICATION B2	ISO 9974

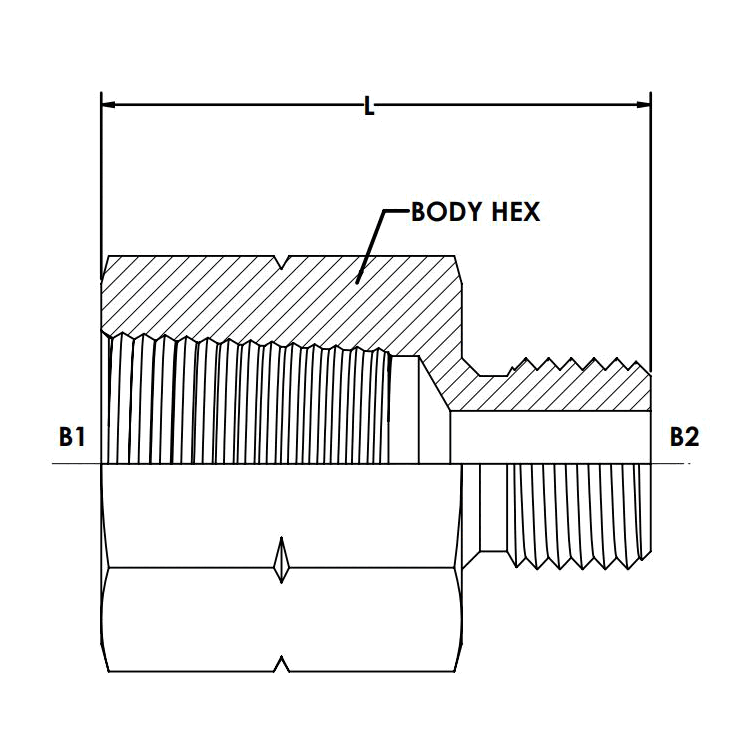

BODY HEX (MM)	14.3
OVERALL LENGTH L (MM)	25.7
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.050
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.321

7045-02-06-SS

$32.93

Attribute: 7045-02-06-SS (02FP-06MMX1.0 Str...)

Stock Status: True

THREAD TYPE B1	FEMALE NPTF
THREAD SIZE B1	1/8-27
THREAD DRILL B1 (MM)	8.5
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M06X1.0
THREAD DRILL B2 (MM)	1.5
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	14.3
OVERALL LENGTH L (MM)	25.7
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.321

7045-02-08

$12.26

Attribute: 7045-02-08 (02FP-08MMX1.0 Straig...)

Stock Status: True

THREAD TYPE B1	FEMALE NPTF
THREAD SIZE B1	1/8-27
THREAD DRILL B1 (MM)	8.5
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M08X1.0
THREAD DRILL B2 (MM)	2.8
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	14.3
OVERALL LENGTH L (MM)	25.7
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.050
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.321

7045-02-08-SS

$235.27

Attribute: 7045-02-08-SS (02FP-08MMX1.0 Str...)

Stock Status: True

THREAD TYPE B1	FEMALE NPTF
THREAD SIZE B1	1/8-27
THREAD DRILL B1 (MM)	8.5
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M08X1.0
THREAD DRILL B2 (MM)	2.8
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	14.3
OVERALL LENGTH L (MM)	25.7
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.050
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.321

7045-02-10

$16.15

Attribute: 7045-02-10 (02FP-10MMX1.0 Straig...)

Stock Status: True

THREAD TYPE B1	FEMALE NPTF
THREAD SIZE B1	1/8-27
THREAD DRILL B1 (MM)	8.5
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M10X1.0
THREAD DRILL B2 (MM)	4.4
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	14.3
OVERALL LENGTH L (MM)	29.7
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.056
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.371

7045-02-10-SS

$28.99

Attribute: 7045-02-10-SS (02FP-10MMX1.0 Str...)

Stock Status: True

THREAD TYPE B1	FEMALE NPTF
THREAD SIZE B1	1/8-27
THREAD DRILL B1 (MM)	8.5
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M10X1.0
THREAD DRILL B2 (MM)	4.4
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	14.3
OVERALL LENGTH L (MM)	29.7
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.371

7045-02-10X1.5

$15.22

Attribute: 7045-02-10X1.5 (02FP-10MMX1.5 St...)

Stock Status: True

THREAD TYPE B1	FEMALE NPTF
THREAD SIZE B1	1/8-27
THREAD DRILL B1 (MM)	8.5
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M10X1.5
THREAD DRILL B2 (MM)	4.4
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	14.3
OVERALL LENGTH L (MM)	29.7
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.050
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.371

7045-02-12

$32.93

Attribute: 7045-02-12 (02FP-12MMX1.5 Straig...)

Stock Status: True

THREAD TYPE B1	FEMALE NPTF
THREAD SIZE B1	1/8-27
THREAD DRILL B1 (MM)	8.5
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M12X1.5
THREAD DRILL B2 (MM)	5.0
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	19.1
OVERALL LENGTH L (MM)	25.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.075
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.568

7045-02-12-SS

$64.04

Attribute: 7045-02-12-SS (02FP-12MMX1.5 Str...)

Stock Status: True

THREAD TYPE B1	FEMALE NPTF
THREAD SIZE B1	1/8-27
THREAD DRILL B1 (MM)	8.5
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M12X1.5
THREAD DRILL B2 (MM)	5.0
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	19.1
OVERALL LENGTH L (MM)	25.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.568

7045-02-14

$38.84

Attribute: 7045-02-14 (02FP-14MMX1.5 Straig...)

Stock Status: True

THREAD TYPE B1	FEMALE NPTF
THREAD SIZE B1	1/8-27
THREAD DRILL B1 (MM)	8.5
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M14X1.5
THREAD DRILL B2 (MM)	7.5
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	17.2
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.069
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.379

7045-02-14-SS

$38.00

Attribute: 7045-02-14-SS (02FP-14MMX1.5 Str...)

Stock Status: True

THREAD TYPE B1	FEMALE NPTF
THREAD SIZE B1	1/8-27
THREAD DRILL B1 (MM)	8.5
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M14X1.5
THREAD DRILL B2 (MM)	7.5
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	17.2
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.379

7045-02-16

$40.11

Attribute: 7045-02-16 (02FP-16MMX1.5 Straig...)

Stock Status: True

THREAD TYPE B1	FEMALE NPTF
THREAD SIZE B1	1/8-27
THREAD DRILL B1 (MM)	8.5
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M16X1.5
THREAD DRILL B2 (MM)	9.0
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	16.8
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.094
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.496

7045-02-16-SS

$82.84

Attribute: 7045-02-16-SS (02FP-16MMX1.5 Str...)

Stock Status: True

THREAD TYPE B1	FEMALE NPTF
THREAD SIZE B1	1/8-27
THREAD DRILL B1 (MM)	8.5
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M16X1.5
THREAD DRILL B2 (MM)	9.0
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	16.8
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.496

7045-02-18

$60.80

Attribute: 7045-02-18 (02FP-18MMX1.5 Straig...)

Stock Status: True

THREAD TYPE B1	FEMALE NPTF
THREAD SIZE B1	1/8-27
THREAD DRILL B1 (MM)	8.5
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M18X1.5
THREAD DRILL B2 (MM)	8.6
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	24.0
OVERALL LENGTH L (MM)	21.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.119
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.738

7045-02-20

$81.81

Attribute: 7045-02-20 (02FP-20MMX1.5 Straig...)

Stock Status: True

THREAD TYPE B1	FEMALE NPTF
THREAD SIZE B1	1/8-27
THREAD DRILL B1 (MM)	8.5
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M20X1.5
THREAD DRILL B2 (MM)	12.7
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	21.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.116
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.934

7045-04-10

$20.23

Attribute: 7045-04-10 (04FP-10MMX1.0 Straig...)

Stock Status: True

THREAD TYPE B1	FEMALE NPTF
THREAD SIZE B1	1/4-18
THREAD DRILL B1 (MM)	7.1
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M10X1.0
THREAD DRILL B2 (MM)	4.4
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	31.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.094
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.683

7045-04-12

$35.99

Attribute: 7045-04-12 (04FP-12MMX1.5 Straig...)

Stock Status: True

THREAD TYPE B1	FEMALE NPTF
THREAD SIZE B1	1/4-18
THREAD DRILL B1 (MM)	7.1
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M12X1.5
THREAD DRILL B2 (MM)	5.0
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	32.8
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.100
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.723

7045-04-14

$37.60

Attribute: 7045-04-14 (04FP-14MMX1.5 Straig...)

Stock Status: True

THREAD TYPE B1	FEMALE NPTF
THREAD SIZE B1	1/4-18
THREAD DRILL B1 (MM)	7.1
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M14X1.5
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	33.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.100
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.727

7045-04-14-SS

$76.14

Attribute: 7045-04-14-SS (04FP-14MMX1.5 Str...)

Stock Status: True

THREAD TYPE B1	FEMALE NPTF
THREAD SIZE B1	1/4-18
THREAD DRILL B1 (MM)	7.1
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M14X1.5
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	33.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.100
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.727

7045-04-16

$52.82

Attribute: 7045-04-16 (04FP-16MMX1.5 Straig...)

Stock Status: True

THREAD TYPE B1	FEMALE NPTF
THREAD SIZE B1	1/4-18
THREAD DRILL B1 (MM)	7.1
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M16X1.5
THREAD DRILL B2 (MM)	9.5
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	22.2
OVERALL LENGTH L (MM)	34.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.175
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.023

7045-04-18

$57.79

Attribute: 7045-04-18 (04FP-18MMX1.5 Straig...)

Stock Status: True

THREAD TYPE B1	FEMALE NPTF
THREAD SIZE B1	1/4-18
THREAD DRILL B1 (MM)	7.1
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M18X1.5
THREAD DRILL B2 (MM)	8.6
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	22.2
OVERALL LENGTH L (MM)	34.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.179
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.023

7045-04-20

$61.38

Attribute: 7045-04-20 (04FP-20MMX1.5 Straig...)

Stock Status: True

THREAD TYPE B1	FEMALE NPTF
THREAD SIZE B1	1/4-18
THREAD DRILL B1 (MM)	7.1
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M20X1.5
THREAD DRILL B2 (MM)	11.1
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	23.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.125
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.023

7045-06-10X1.5

$31.41

Attribute: 7045-06-10X1.5 (06FP-10MMX1.5 St...)

Stock Status: True

THREAD TYPE B1	FEMALE NPTF
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	13.5
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M10X1.5
THREAD DRILL B2 (MM)	4.4
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	23.8
OVERALL LENGTH L (MM)	33.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.158

7045-06-12

$21.21

Attribute: 7045-06-12 (06FP-12MMX1.5 Straig...)

Stock Status: True

THREAD TYPE B1	FEMALE NPTF
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	13.5
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M12X1.5
THREAD DRILL B2 (MM)	5.0
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	23.8
OVERALL LENGTH L (MM)	38.6
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.169
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.334

7045-06-14

$22.25

Attribute: 7045-06-14 (06FP-14MMX1.5 Straig...)

Stock Status: True

THREAD TYPE B1	FEMALE NPTF
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	13.5
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M14X1.5
THREAD DRILL B2 (MM)	7.1
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	23.8
OVERALL LENGTH L (MM)	38.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.119
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.327

7045-06-16

$37.21

Attribute: 7045-06-16 (06FP-16MMX1.5 Straig...)

Stock Status: True

THREAD TYPE B1	FEMALE NPTF
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	13.5
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M16X1.5
THREAD DRILL B2 (MM)	9.5
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	22.2
OVERALL LENGTH L (MM)	34.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.150
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.038

7045-06-16-OAL-1.51

$27.32

Attribute: 7045-06-16-OAL-1.51 (06FP-16MMX1...)

Stock Status: True

THREAD TYPE B1	FEMALE NPTF
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	13.5
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M16X1.5
THREAD DRILL B2 (MM)	9.5
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	22.2
OVERALL LENGTH L (MM)	38.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.150
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.155

7045-06-16-SS

$104.55

Attribute: 7045-06-16-SS (06FP-16MMX1.5 Str...)

Stock Status: True

THREAD TYPE B1	FEMALE NPTF
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	13.5
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M16X1.5
THREAD DRILL B2 (MM)	9.5
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	22.2
OVERALL LENGTH L (MM)	34.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.119
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.038

7045-06-16-ZN

$52.10

Attribute: 7045-06-16-ZN (06FP-16MMX1.5 Str...)

Stock Status: True

THREAD TYPE B1	FEMALE NPTF
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	13.5
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M16X1.5
THREAD DRILL B2 (MM)	9.5
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	22.2
OVERALL LENGTH L (MM)	34.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.125
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.038

7045-06-18

$49.96

Attribute: 7045-06-18 (06FP-18MMX1.5 Straig...)

Stock Status: True

THREAD TYPE B1	FEMALE NPTF
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	13.5
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M18X1.5
THREAD DRILL B2 (MM)	11.0
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	22.2
OVERALL LENGTH L (MM)	34.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.173
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.038

7045-06-18-SS

$246.56

Attribute: 7045-06-18-SS (06FP-18MMX1.5 Str...)

Stock Status: True

THREAD TYPE B1	FEMALE NPTF
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	13.5
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M18X1.5
THREAD DRILL B2 (MM)	11.0
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	22.2
OVERALL LENGTH L (MM)	34.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.038

7045-06-20

$45.38

Attribute: 7045-06-20 (06FP-20MMX1.5 Straig...)

Stock Status: True

THREAD TYPE B1	FEMALE NPTF
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	13.5
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M20X1.5
THREAD DRILL B2 (MM)	11.0
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	35.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.213
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.557

7045-06-20-SS

$112.33

Attribute: 7045-06-20-SS (06FP-20MMX1.5 Str...)

Stock Status: True

THREAD TYPE B1	FEMALE NPTF
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	13.5
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M20X1.5
THREAD DRILL B2 (MM)	11.0
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	35.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.557

7045-06-22

$59.71

Attribute: 7045-06-22 (06FP-22MMX1.5 Straig...)

Stock Status: True

THREAD TYPE B1	FEMALE NPTF
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	13.5
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M22X1.5
THREAD DRILL B2 (MM)	14.0
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	28.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.156
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.246

7045-06-22-SS

$112.67

Attribute: 7045-06-22-SS (06FP-22MMX1.5 Str...)

Stock Status: True

THREAD TYPE B1	FEMALE NPTF
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	13.5
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M22X1.5
THREAD DRILL B2 (MM)	14.0
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	28.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.156
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.246

7045-08-16

$47.75

Attribute: 7045-08-16 (08FP-16MMX1.5 Straig...)

Stock Status: True

THREAD TYPE B1	FEMALE NPTF
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	16.5
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M16X1.5
THREAD DRILL B2 (MM)	9.5
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	28.6
OVERALL LENGTH L (MM)	40.1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.250
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.002

7045-08-16-SS

$173.27

Attribute: 7045-08-16-SS (08FP-16MMX1.5 Str...)

Stock Status: True

THREAD TYPE B1	FEMALE NPTF
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	16.5
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M16X1.5
THREAD DRILL B2 (MM)	9.5
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	28.6
OVERALL LENGTH L (MM)	40.1
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.002

7045-08-18

$50.70

Attribute: 7045-08-18 (08FP-18MMX1.5 Straig...)

Stock Status: True

THREAD TYPE B1	FEMALE NPTF
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	16.5
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M18X1.5
THREAD DRILL B2 (MM)	11.0
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	28.6
OVERALL LENGTH L (MM)	40.1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.225
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.002

7045-08-18-SS

$164.41

Attribute: 7045-08-18-SS (08FP-18MMX1.5 Str...)

Stock Status: True

THREAD TYPE B1	FEMALE NPTF
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	16.5
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M18X1.5
THREAD DRILL B2 (MM)	11.0
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	28.6
OVERALL LENGTH L (MM)	40.1
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.002

7045-08-20

$41.64

Attribute: 7045-08-20 (08FP-20MMX1.5 Straig...)

Stock Status: True

THREAD TYPE B1	FEMALE NPTF
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	16.5
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M20X1.5
THREAD DRILL B2 (MM)	11.0
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	42.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.231
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.886

7045-08-22

$63.79

Attribute: 7045-08-22 (08FP-22MMX1.5 Straig...)

Stock Status: True

THREAD TYPE B1	FEMALE NPTF
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	16.5
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M22X1.5
THREAD DRILL B2 (MM)	14.0
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	45.2
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.263
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.011

7045-08-22-SS

$441.40

Attribute: 7045-08-22-SS (08FP-22MMX1.5 Str...)

Stock Status: True

THREAD TYPE B1	FEMALE NPTF
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	16.5
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M22X1.5
THREAD DRILL B2 (MM)	14.0
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	45.2
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.244
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.011

7045-08-26

$118.53

Attribute: 7045-08-26 (08FP-26MMX1.5 Straig...)

Stock Status: True

THREAD TYPE B1	FEMALE NPTF
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	16.5
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M26X1.5
THREAD DRILL B2 (MM)	17.5
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	31.8
OVERALL LENGTH L (MM)	42.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.350
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.647

7045-08-30X1.5

$135.37

Attribute: 7045-08-30X1.5 (08FP-30MMX1.5 St...)

Stock Status: True

THREAD TYPE B1	FEMALE NPTF
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	16.5
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M30X1.5
THREAD DRILL B2 (MM)	18.2
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	38.1
OVERALL LENGTH L (MM)	31.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.325
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.746

7045-08-42

$297.56

Attribute: 7045-08-42 (08FP-42MMX2.0 Straig...)

Stock Status: True

THREAD TYPE B1	FEMALE NPTF
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	16.5
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M42X2.0
THREAD DRILL B2 (MM)	30.1
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	50.8
OVERALL LENGTH L (MM)	33.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.339

7045-12-22

$92.93

Attribute: 7045-12-22 (12FP-22MMX1.5 Straig...)

Stock Status: True

THREAD TYPE B1	FEMALE NPTF
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	17.0
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M22X1.5
THREAD DRILL B2 (MM)	14.0
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	32.0
OVERALL LENGTH L (MM)	50.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.338
MAXIMUM DYNAMIC PRESSURE (PSI)	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.156

7045-12-24

$95.74

Attribute: 7045-12-24 (12FP-24MMX1.5 Straig...)

Stock Status: True

THREAD TYPE B1	FEMALE NPTF
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	17.0
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M24X1.5
THREAD DRILL B2 (MM)	13.0
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	32.0
OVERALL LENGTH L (MM)	50.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.337
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.156

7045-12-26

$106.03

Attribute: 7045-12-26 (12FP-26MMX1.5 Straig...)

Stock Status: True

THREAD TYPE B1	FEMALE NPTF
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	17.0
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M26X1.5
THREAD DRILL B2 (MM)	17.0
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	34.9
OVERALL LENGTH L (MM)	45.2
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.360

7045-12-27

$103.42

Attribute: 7045-12-27 (12FP-27MMX2.0 Straig...)

Stock Status: True

THREAD TYPE B1	FEMALE NPTF
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	17.0
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M27X2.0
THREAD DRILL B2 (MM)	18.2
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	34.9
OVERALL LENGTH L (MM)	47.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.409
MAXIMUM DYNAMIC PRESSURE (PSI)	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.531

7045-12-30

$117.10

Attribute: 7045-12-30 (12FP-30MMX2.0 Straig...)

Stock Status: True

THREAD TYPE B1	FEMALE NPTF
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	17.0
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M30X2.0
THREAD DRILL B2 (MM)	20.0
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	34.9
OVERALL LENGTH L (MM)	48.3
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.413
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.590

7045-12-30X1.5

$70.25

Attribute: 7045-12-30X1.5 (12FP-30MMX1.5 St...)

Stock Status: True

THREAD TYPE B1	FEMALE NPTF
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	17.0
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M30X1.5
THREAD DRILL B2 (MM)	18.2
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	34.9
OVERALL LENGTH L (MM)	48.3
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.413
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.590

7045-16-33

$137.08

Attribute: 7045-16-33 (16FP-33MMX2.0 Straig...)

Stock Status: True

THREAD TYPE B1	FEMALE NPTF
THREAD SIZE B1	1-11-1/2
THREAD DRILL B1 (MM)	27.4
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M33X2.0
THREAD DRILL B2 (MM)	23.0
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	41.3
OVERALL LENGTH L (MM)	54.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.594
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.621

7045-16-42

$351.02

Attribute: 7045-16-42 (16FP-42MMX2.0 Straig...)

Stock Status: True

THREAD TYPE B1	FEMALE NPTF
THREAD SIZE B1	1-11-1/2
THREAD DRILL B1 (MM)	27.4
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M42X2.0
THREAD DRILL B2 (MM)	30.1
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	50.8
OVERALL LENGTH L (MM)	57.8
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	1.219
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.102

Description

Description

Variations (53)

7045-02-06

7045-02-06-SS

7045-02-08

7045-02-08-SS

7045-02-10

7045-02-10-SS

7045-02-10X1.5

7045-02-12

7045-02-12-SS

7045-02-14

7045-02-14-SS

7045-02-16

7045-02-16-SS

7045-02-18

7045-02-20

7045-04-10

7045-04-12

7045-04-14

7045-04-14-SS

7045-04-16

7045-04-18

7045-04-20

7045-06-10X1.5

7045-06-12

7045-06-14

7045-06-16

7045-06-16-OAL-1.51

7045-06-16-SS

7045-06-16-ZN

7045-06-18

7045-06-18-SS

7045-06-20

7045-06-20-SS

7045-06-22

7045-06-22-SS

7045-08-16

7045-08-16-SS

7045-08-18

7045-08-18-SS

7045-08-20

7045-08-22

7045-08-22-SS

7045-08-26

7045-08-30X1.5

7045-08-42

7045-12-22

7045-12-24

7045-12-26

7045-12-27

7045-12-30

7045-12-30X1.5

7045-16-33

7045-16-42

General Attributes

PDF Documents
