7042-BS

7042-02-02-B-BS

$15.10

Attribute: 7042-02-02-B-BS (02FP-02MBSPP St...)

Stock Status: True

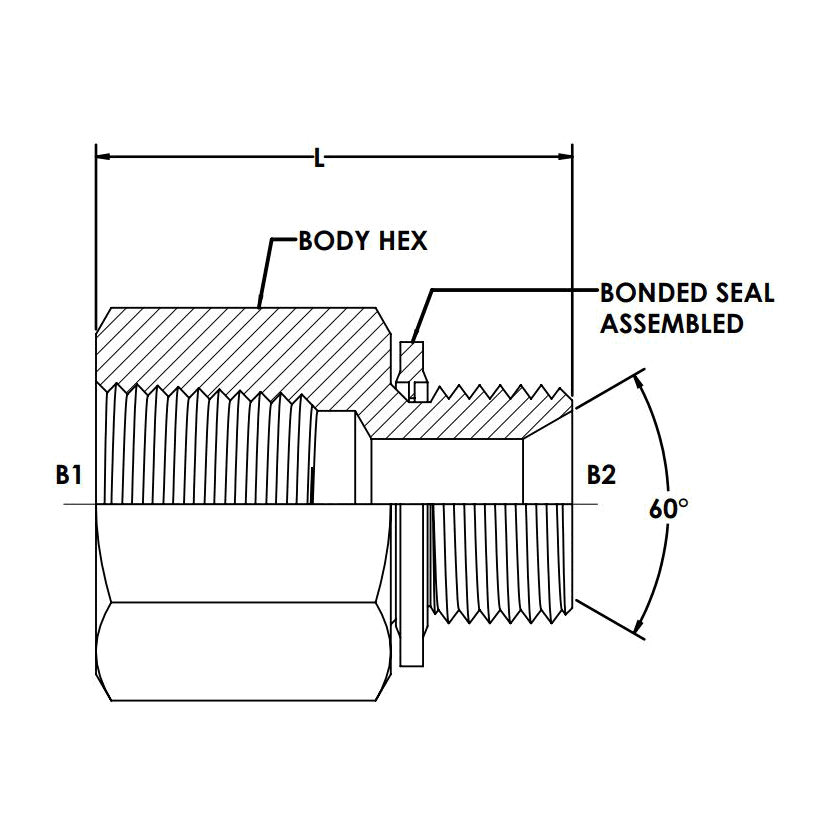

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1/8-27
THREAD DRILL B1 (MM)	8.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	4.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-02
BODY HEX (MM)	16.0
OVERALL LENGTH L (MM)	28.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.006
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.437

7042-02-02-BS

$16.69

Attribute: 7042-02-02-BS (02FP-02MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1/8-27
THREAD DRILL B1 (MM)	8.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	4.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-02
BODY HEX (MM)	16.0
OVERALL LENGTH L (MM)	28.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.060
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.437

7042-02-02-BS-VITON

$23.82

Attribute: 7042-02-02-BS-VITON (02FP-02MBSP...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1/8-27
THREAD DRILL B1 (MM)	8.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	4.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-02-VITON
BODY HEX (MM)	16.0
OVERALL LENGTH L (MM)	28.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.038
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.437

7042-02-02-SS-BS

$68.99

Attribute: 7042-02-02-SS-BS (02FP-02MBSPP S...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1/8-27
THREAD DRILL B1 (MM)	8.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	4.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-02-SS
BODY HEX (MM)	16.0
OVERALL LENGTH L (MM)	28.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.437

7042-02-04-BS

$21.81

Attribute: 7042-02-04-BS (02FP-04MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1/8-27
THREAD DRILL B1 (MM)	8.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-04
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	28.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.106
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.617

7042-02-06-BS

$42.43

Attribute: 7042-02-06-BS (02FP-06MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1/8-27
THREAD DRILL B1 (MM)	8.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	9.5
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-06
BODY HEX (MM)	22.2
OVERALL LENGTH L (MM)	21.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.187
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.647

7042-02-08-BS

$45.37

Attribute: 7042-02-08-BS (02FP-08MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1/8-27
THREAD DRILL B1 (MM)	8.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.7
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-08
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	24.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.012
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.090

7042-04-02-BS

$86.39

Attribute: 7042-04-02-BS (04FP-02MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1/4-18
THREAD DRILL B1 (MM)	7.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	4.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-02
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	34.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.106
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.749

7042-04-02-SS-BS

$84.21

Attribute: 7042-04-02-SS-BS (04FP-02MBSPP S...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1/4-18
THREAD DRILL B1 (MM)	7.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	4.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-02-SS
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	34.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.013
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.749

7042-04-04-BS

$21.81

Attribute: 7042-04-04-BS (04FP-04MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1/4-18
THREAD DRILL B1 (MM)	7.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-04
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	32.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.106
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.716

7042-04-04-BS-VITON

$24.10

Attribute: 7042-04-04-BS-VITON (04FP-04MBSP...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1/4-18
THREAD DRILL B1 (MM)	7.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-04-VITON
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	32.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.081
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.716

7042-04-04-SS-BS

$85.99

Attribute: 7042-04-04-SS-BS (04FP-04MBSPP S...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1/4-18
THREAD DRILL B1 (MM)	7.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-04-SS
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	32.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.013
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.716

7042-04-06-BS

$37.21

Attribute: 7042-04-06-BS (04FP-06MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1/4-18
THREAD DRILL B1 (MM)	7.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	9.5
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-06
BODY HEX (MM)	24.0
OVERALL LENGTH L (MM)	35.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.187
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.248

7042-04-06-SS-BS

$108.93

Attribute: 7042-04-06-SS-BS (04FP-06MBSPP S...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1/4-18
THREAD DRILL B1 (MM)	7.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	9.5
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-06-SS
BODY HEX (MM)	24.0
OVERALL LENGTH L (MM)	35.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.006
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.248

7042-04-08-BS

$47.75

Attribute: 7042-04-08-BS (04FP-08MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1/4-18
THREAD DRILL B1 (MM)	7.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.7
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-08
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	25.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.156
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.112

7042-04-08-SS-BS

$170.24

Attribute: 7042-04-08-SS-BS (04FP-08MBSPP S...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1/4-18
THREAD DRILL B1 (MM)	7.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.7
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-08-SS
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	25.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.150
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.112

7042-04-12-BS

$74.33

Attribute: 7042-04-12-BS (04FP-12MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1/4-18
THREAD DRILL B1 (MM)	7.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	17.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-12
BODY HEX (MM)	32.0
OVERALL LENGTH L (MM)	29.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.018
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.812

7042-04-12-SS-BS

$213.21

Attribute: 7042-04-12-SS-BS (04FP-12MBSPP S...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1/4-18
THREAD DRILL B1 (MM)	7.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	17.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-12-SS
BODY HEX (MM)	32.0
OVERALL LENGTH L (MM)	29.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.812

7042-06-02-BS

$34.66

Attribute: 7042-06-02-BS (06FP-02MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	13.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	4.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-02
BODY HEX (MM)	24.0
OVERALL LENGTH L (MM)	34.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.006
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.195

7042-06-04-BS

$30.92

Attribute: 7042-06-04-BS (06FP-04MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	13.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-04
BODY HEX (MM)	24.0
OVERALL LENGTH L (MM)	34.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.169
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.195

7042-06-04-SS-BS

$106.53

Attribute: 7042-06-04-SS-BS (06FP-04MBSPP S...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	13.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-04-SS
BODY HEX (MM)	24.0
OVERALL LENGTH L (MM)	34.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.195

7042-06-06-BS

$28.41

Attribute: 7042-06-06-BS (06FP-06MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	13.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	9.5
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-06
BODY HEX (MM)	22.22
OVERALL LENGTH L (MM)	35.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.163
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.070

7042-06-06-SS-BS

$111.30

Attribute: 7042-06-06-SS-BS (06FP-06MBSPP S...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	13.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	9.5
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-06-SS
BODY HEX (MM)	22.22
OVERALL LENGTH L (MM)	35.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.169
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.070

7042-06-08-BS

$47.06

Attribute: 7042-06-08-BS (06FP-08MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	13.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.7
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-08
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	42.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.012
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.886

7042-06-08-SS-BS

$119.58

Attribute: 7042-06-08-SS-BS (06FP-08MBSPP S...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	13.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.7
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-08-SS
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	42.4
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.886

7042-06-12-BS

$120.11

Attribute: 7042-06-12-BS (06FP-12MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	13.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	17.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-12
BODY HEX (MM)	32.0
OVERALL LENGTH L (MM)	29.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.812

7042-08-02-BS

$67.52

Attribute: 7042-08-02-BS (08FP-02MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	16.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	4.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-02
BODY HEX (MM)	28.0
OVERALL LENGTH L (MM)	36.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.006
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.722

7042-08-02-SS-BS

$160.37

Attribute: 7042-08-02-SS-BS (08FP-02MBSPP S...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	16.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	4.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-02-SS
BODY HEX (MM)	28.0
OVERALL LENGTH L (MM)	36.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.722

7042-08-04-BS

$68.18

Attribute: 7042-08-04-BS (08FP-04MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	16.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-04
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	41.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.250
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.824

7042-08-04-SS-BS

$143.68

Attribute: 7042-08-04-SS-BS (08FP-04MBSPP S...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	16.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-04-SS
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	41.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.824

7042-08-06-BS

$45.72

Attribute: 7042-08-06-BS (08FP-06MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	16.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	9.5
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-06
BODY HEX (MM)	30.0
OVERALL LENGTH L (MM)	39.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.237
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.169

7042-08-06-SS-BS

$130.72

Attribute: 7042-08-06-SS-BS (08FP-06MBSPP S...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	16.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	9.5
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-06-SS
BODY HEX (MM)	30.0
OVERALL LENGTH L (MM)	39.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.169

7042-08-08-BS

$39.67

Attribute: 7042-08-08-BS (08FP-08MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	16.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.7
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-08
BODY HEX (MM)	30.0
OVERALL LENGTH L (MM)	42.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.230
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.307

7042-08-08-SS-BS

$135.66

Attribute: 7042-08-08-SS-BS (08FP-08MBSPP S...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	16.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.7
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-08-SS
BODY HEX (MM)	30.0
OVERALL LENGTH L (MM)	42.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.256
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.307

7042-08-12-BS

$86.39

Attribute: 7042-08-12-BS (08FP-12MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	16.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	17.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-12
BODY HEX (MM)	32.0
OVERALL LENGTH L (MM)	53.3
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.424
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.331

7042-08-12-SS-BS

$187.12

Attribute: 7042-08-12-SS-BS (08FP-12MBSPP S...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	16.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	17.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-12-SS
BODY HEX (MM)	32.0
OVERALL LENGTH L (MM)	53.3
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.331

7042-08-16-BS

$131.73

Attribute: 7042-08-16-BS (08FP-16MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	16.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-16
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	32.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.025
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.283

7042-12-08-BS

$74.13

Attribute: 7042-12-08-BS (12FP-08MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	17.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.7
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-08
BODY HEX (MM)	32.0
OVERALL LENGTH L (MM)	50.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.012
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.124

7042-12-08-SS-BS

$254.75

Attribute: 7042-12-08-SS-BS (12FP-08MBSPP S...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	17.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.7
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-08-SS
BODY HEX (MM)	32.0
OVERALL LENGTH L (MM)	50.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.124

7042-12-12-BS

$52.92

Attribute: 7042-12-12-BS (12FP-12MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	17.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	17.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-12
BODY HEX (MM)	34.92
OVERALL LENGTH L (MM)	45.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.268
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.386

7042-12-12-BS-VITON

$60.05

Attribute: 7042-12-12-BS-VITON (12FP-12MBSP...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	17.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	17.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-12-VITON
BODY HEX (MM)	34.92
OVERALL LENGTH L (MM)	45.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.268
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.386

7042-12-12-SS-BS

$254.24

Attribute: 7042-12-12-SS-BS (12FP-12MBSPP S...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	17.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	17.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-12-SS
BODY HEX (MM)	34.92
OVERALL LENGTH L (MM)	45.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.019
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.386

7042-12-16-BS

$112.70

Attribute: 7042-12-16-BS (12FP-16MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	17.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-16
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	47.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.821

7042-12-16-SS-BS

$305.98

Attribute: 7042-12-16-SS-BS (12FP-16MBSPP S...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	17.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-16-SS
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	47.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.821

7042-12-24-SS-BS

$619.14

Attribute: 7042-12-24-SS-BS (12FP-24MBSPP S...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	17.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	33.3
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-24-SS
BODY HEX (MM)	55.0
OVERALL LENGTH L (MM)	37.2
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.867

7042-16-12-BS

$139.48

Attribute: 7042-16-12-BS (16FP-12MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1-11-1/2
THREAD DRILL B1 (MM)	27.4
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	17.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-12
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	55.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.683

7042-16-16-BS

$90.62

Attribute: 7042-16-16-BS (16FP-16MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1-11-1/2
THREAD DRILL B1 (MM)	27.4
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-16
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	56.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.638
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.745

7042-16-16-SS-BS

$358.99

Attribute: 7042-16-16-SS-BS (16FP-16MBSPP S...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1-11-1/2
THREAD DRILL B1 (MM)	27.4
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-16-SS
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	56.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.019
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.745

7042-16-16-SS-BS-VITON

$351.82

Attribute: 7042-16-16-SS-BS-VITON (16FP-16M...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1-11-1/2
THREAD DRILL B1 (MM)	27.4
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-16-SS-VITON
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	56.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.019
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.745

7042-16-20-BS

$169.87

Attribute: 7042-16-20-BS (16FP-20MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1-11-1/2
THREAD DRILL B1 (MM)	27.4
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	28.6
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-20
BODY HEX (MM)	50.0
OVERALL LENGTH L (MM)	60.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.450
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.154

7042-16-20-SS-BS

$412.09

Attribute: 7042-16-20-SS-BS (16FP-20MBSPP S...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1-11-1/2
THREAD DRILL B1 (MM)	27.4
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	28.6
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-20-SS
BODY HEX (MM)	50.0
OVERALL LENGTH L (MM)	60.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.154

7042-16-24-BS

$302.97

Attribute: 7042-16-24-BS (16FP-24MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1-11-1/2
THREAD DRILL B1 (MM)	27.4
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	33.3
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-24
BODY HEX (MM)	55.0
OVERALL LENGTH L (MM)	42.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.725
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.753

7042-16-24-SS-BS

$641.99

Attribute: 7042-16-24-SS-BS (16FP-24MBSPP S...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1-11-1/2
THREAD DRILL B1 (MM)	27.4
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	33.3
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-24-SS
BODY HEX (MM)	55.0
OVERALL LENGTH L (MM)	42.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.753

7042-20-16-BS

$190.64

Attribute: 7042-20-16-BS (20FP-16MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1-1/4-11-1/2
THREAD DRILL B1 (MM)	36.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-16
BODY HEX (MM)	50.8
OVERALL LENGTH L (MM)	57.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.025
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.976

7042-20-16-SS-BS

$448.75

Attribute: 7042-20-16-SS-BS (20FP-16MBSPP S...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1-1/4-11-1/2
THREAD DRILL B1 (MM)	36.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-16-SS
BODY HEX (MM)	50.8
OVERALL LENGTH L (MM)	57.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.976

7042-20-20-BS

$133.34

Attribute: 7042-20-20-BS (20FP-20MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1-1/4-11-1/2
THREAD DRILL B1 (MM)	36.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	28.6
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-20
BODY HEX (MM)	50.0
OVERALL LENGTH L (MM)	60.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.838
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.154

7042-20-20-SS-BS

$499.77

Attribute: 7042-20-20-SS-BS (20FP-20MBSPP S...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1-1/4-11-1/2
THREAD DRILL B1 (MM)	36.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	28.6
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-20-SS
BODY HEX (MM)	50.0
OVERALL LENGTH L (MM)	60.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.154

7042-20-24-BS

$284.37

Attribute: 7042-20-24-BS (20FP-24MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1-1/4-11-1/2
THREAD DRILL B1 (MM)	36.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	33.3
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-24
BODY HEX (MM)	55.0
OVERALL LENGTH L (MM)	45.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.831
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.307

7042-20-24-SS-BS

$607.73

Attribute: 7042-20-24-SS-BS (20FP-24MBSPP S...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1-1/4-11-1/2
THREAD DRILL B1 (MM)	36.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	33.3
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-24-SS
BODY HEX (MM)	55.0
OVERALL LENGTH L (MM)	45.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.307

7042-24-20-BS

$357.22

Attribute: 7042-24-20-BS (24FP-20MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1-1/2-11-1/2
THREAD DRILL B1 (MM)	42.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	28.6
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-20
BODY HEX (MM)	60.3
OVERALL LENGTH L (MM)	58.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.050
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	12.958

7042-24-20-SS-BS

$855.63

Attribute: 7042-24-20-SS-BS (24FP-20MBSPP S...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1-1/2-11-1/2
THREAD DRILL B1 (MM)	42.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	28.6
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-20-SS
BODY HEX (MM)	60.3
OVERALL LENGTH L (MM)	58.4
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.056
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	12.958

7042-24-24-BS

$189.90

Attribute: 7042-24-24-BS (24FP-24MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1-1/2-11-1/2
THREAD DRILL B1 (MM)	42.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	33.3
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-24
BODY HEX (MM)	57.0
OVERALL LENGTH L (MM)	62.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	1.244
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	12.293

7042-24-24-SS-BS

$820.07

Attribute: 7042-24-24-SS-BS (24FP-24MBSPP S...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1-1/2-11-1/2
THREAD DRILL B1 (MM)	42.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	33.3
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-24-SS
BODY HEX (MM)	57.0
OVERALL LENGTH L (MM)	62.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.056
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	12.293

7042-24-40-BS

$1,372.64

Attribute: 7042-24-40-BS (24FP-40MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1-1/2-11-1/2
THREAD DRILL B1 (MM)	42.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	2-1/2-11
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-40
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

7042-32-32-BS

$353.04

Attribute: 7042-32-32-BS (32FP-32MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	2-11-1/2
THREAD DRILL B1 (MM)	56.3
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	2-11
THREAD DRILL B2 (MM)	45.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-32
BODY HEX (MM)	73.0
OVERALL LENGTH L (MM)	69.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	1.700
MAXIMUM DYNAMIC PRESSURE (PSI)	1,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	22.731

7042-32-32-SS-BS

$1,537.32

Attribute: 7042-32-32-SS-BS (32FP-32MBSPP S...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	2-11-1/2
THREAD DRILL B1 (MM)	56.3
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	2-11
THREAD DRILL B2 (MM)	45.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-32-SS
BODY HEX (MM)	73.0
OVERALL LENGTH L (MM)	69.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	22.731

7042-32-40-BS

$1,214.72

Attribute: 7042-32-40-BS (32FP-40MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	2-11-1/2
THREAD DRILL B1 (MM)	56.3
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	2-1/2-11
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-40
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

7042-48-48-BS

$2,254.88

Attribute: 7042-48-48-BS (32FP-40MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	3-8
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3-11
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-48
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

Description

Description

Variations (68)

7042-02-02-B-BS

7042-02-02-BS

7042-02-02-BS-VITON

7042-02-02-SS-BS

7042-02-04-BS

7042-02-06-BS

7042-02-08-BS

7042-04-02-BS

7042-04-02-SS-BS

7042-04-04-BS

7042-04-04-BS-VITON

7042-04-04-SS-BS

7042-04-06-BS

7042-04-06-SS-BS

7042-04-08-BS

7042-04-08-SS-BS

7042-04-12-BS

7042-04-12-SS-BS

7042-06-02-BS

7042-06-04-BS

7042-06-04-SS-BS

7042-06-06-BS

7042-06-06-SS-BS

7042-06-08-BS

7042-06-08-SS-BS

7042-06-12-BS

7042-08-02-BS

7042-08-02-SS-BS

7042-08-04-BS

7042-08-04-SS-BS

7042-08-06-BS

7042-08-06-SS-BS

7042-08-08-BS

7042-08-08-SS-BS

7042-08-12-BS

7042-08-12-SS-BS

7042-08-16-BS

7042-12-08-BS

7042-12-08-SS-BS

7042-12-12-BS

7042-12-12-BS-VITON

7042-12-12-SS-BS

7042-12-16-BS

7042-12-16-SS-BS

7042-12-24-SS-BS

7042-16-12-BS

7042-16-16-BS

7042-16-16-SS-BS

7042-16-16-SS-BS-VITON

7042-16-20-BS

7042-16-20-SS-BS

7042-16-24-BS

7042-16-24-SS-BS

7042-20-16-BS

7042-20-16-SS-BS

7042-20-20-BS

7042-20-20-SS-BS

7042-20-24-BS

7042-20-24-SS-BS

7042-24-20-BS

7042-24-20-SS-BS

7042-24-24-BS

7042-24-24-SS-BS

7042-24-40-BS

7042-32-32-BS

7042-32-32-SS-BS

7042-32-40-BS

7042-48-48-BS

General Attributes

PDF Documents
