7042

7042-02-02

$14.57

Attribute: 7042-02-02 (02FP-02MBSPP Straigh...)

Stock Status: True

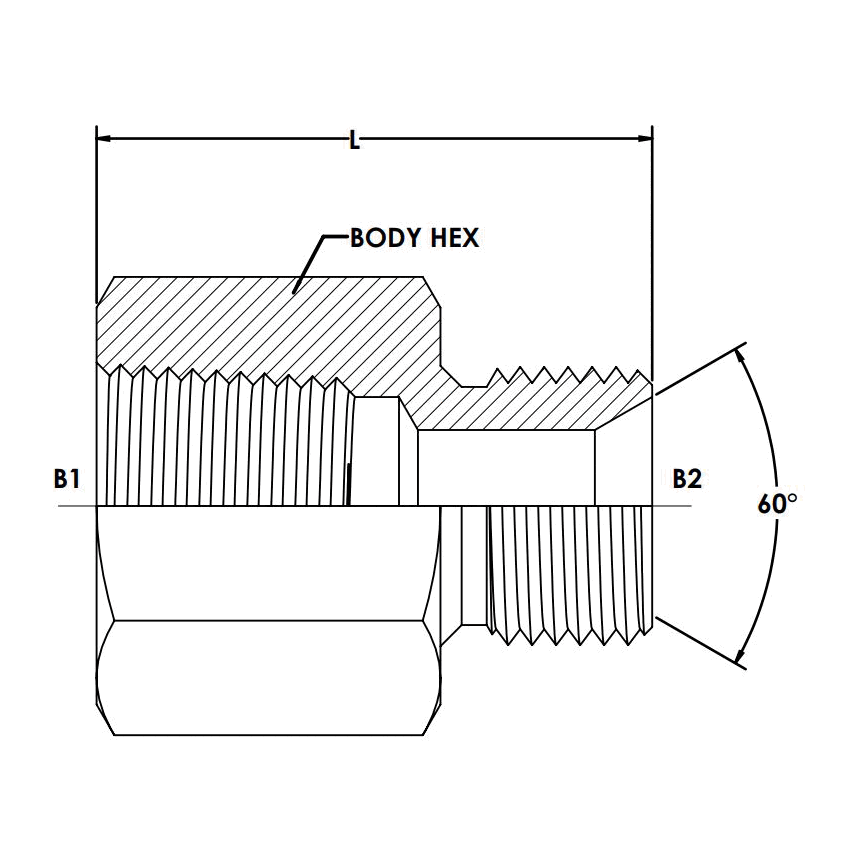

THREAD TYPE B1	FEMALE NPT
THREAD B1 SIZE	1/8-27
THREAD B1 DRILL MM	8.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/8-28
THREAD DRILL B2 MM	4.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX MM	16.0
OVERALL LENGTH L MM	28.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.038
MAXIMUM DYNAMIC PRESSURE PSI	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.437

7042-02-02-B

$13.79

Attribute: 7042-02-02-B (02FP-02MBSPP Strai...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD B1 SIZE	1/8-27
THREAD B1 DRILL MM	8.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/8-28
THREAD DRILL B2 MM	4.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX MM	16.0
OVERALL LENGTH L MM	28.0
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
WEIGHT LBS	0.063
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.437

7042-02-02-SS

$67.09

Attribute: 7042-02-02-SS (02FP-02MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD B1 SIZE	1/8-27
THREAD B1 DRILL MM	8.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/8-28
THREAD DRILL B2 MM	4.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX MM	16.0
OVERALL LENGTH L MM	28.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.056
MAXIMUM DYNAMIC PRESSURE PSI	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.437

7042-02-04

$19.89

Attribute: 7042-02-04 (02FP-04MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD B1 SIZE	1/8-27
THREAD B1 DRILL MM	8.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 MM	6.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX MM	19.0
OVERALL LENGTH L MM	28.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.100
MAXIMUM DYNAMIC PRESSURE PSI	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.617

7042-02-06

$24.57

Attribute: 7042-02-06 (02FP-06MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD B1 SIZE	1/8-27
THREAD B1 DRILL MM	8.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 MM	8.6
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX MM	22.2
OVERALL LENGTH L MM	21.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.077
MAXIMUM DYNAMIC PRESSURE PSI	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.647

7042-02-08

$28.35

Attribute: 7042-02-08 (02FP-08MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD B1 SIZE	1/8-27
THREAD B1 DRILL MM	8.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 MM	12.7
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX MM	27.0
OVERALL LENGTH L MM	24.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.169
MAXIMUM DYNAMIC PRESSURE PSI	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.090

7042-04-02

$21.27

Attribute: 7042-04-02 (04FP-02MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL MM	7.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/8-28
THREAD DRILL B2 MM	4.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX MM	19.0
OVERALL LENGTH L MM	34.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.100
MAXIMUM DYNAMIC PRESSURE PSI	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.749

7042-04-02-SS

$82.99

Attribute: 7042-04-02-SS (04FP-02MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL MM	7.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/8-28
THREAD DRILL B2 MM	4.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX MM	19.0
OVERALL LENGTH L MM	34.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.106
MAXIMUM DYNAMIC PRESSURE PSI	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.749

7042-04-04

$19.34

Attribute: 7042-04-04 (04FP-04MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL MM	7.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 MM	6.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX MM	19.0
OVERALL LENGTH L MM	32.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.081
MAXIMUM DYNAMIC PRESSURE PSI	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.716

7042-04-04-SS

$74.57

Attribute: 7042-04-04-SS (04FP-04MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL MM	7.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 MM	6.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX MM	19.0
OVERALL LENGTH L MM	32.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.106
MAXIMUM DYNAMIC PRESSURE PSI	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.716

7042-04-06

$23.38

Attribute: 7042-04-06 (04FP-06MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL MM	7.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 MM	9.5
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX MM	24.0
OVERALL LENGTH L MM	35.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.175
MAXIMUM DYNAMIC PRESSURE PSI	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.248

7042-04-06-SS

$124.93

Attribute: 7042-04-06-SS (04FP-06MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL MM	7.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 MM	9.5
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX MM	24.0
OVERALL LENGTH L MM	35.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.181
MAXIMUM DYNAMIC PRESSURE PSI	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.248

7042-04-08

$24.51

Attribute: 7042-04-08 (04FP-08MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL MM	7.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 MM	12.7
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX MM	27.0
OVERALL LENGTH L MM	25.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.144
MAXIMUM DYNAMIC PRESSURE PSI	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.112

7042-04-08-SS

$151.57

Attribute: 7042-04-08-SS (04FP-08MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL MM	7.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 MM	12.7
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX MM	27.0
OVERALL LENGTH L MM	25.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.138
MAXIMUM DYNAMIC PRESSURE PSI	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.112

7042-04-12

$70.05

Attribute: 7042-04-12 (04FP-12MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL MM	7.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 MM	16.7
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX MM	32.0
OVERALL LENGTH L MM	29.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.188
MAXIMUM DYNAMIC PRESSURE PSI	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.812

7042-04-12-SS

$190.39

Attribute: 7042-04-12-SS (04FP-12MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL MM	7.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 MM	17.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX MM	32.0
OVERALL LENGTH L MM	29.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE PSI	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.812

7042-06-02

$32.49

Attribute: 7042-06-02 (06FP-02MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL MM	13.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/8-28
THREAD DRILL B2 MM	4.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX MM	24.0
OVERALL LENGTH L MM	34.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.150
MAXIMUM DYNAMIC PRESSURE PSI	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.195

7042-06-04

$25.21

Attribute: 7042-06-04 (06FP-04MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL MM	13.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 MM	6.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX MM	24.0
OVERALL LENGTH L MM	34.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.163
MAXIMUM DYNAMIC PRESSURE PSI	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.195

7042-06-04-SS

$88.21

Attribute: 7042-06-04-SS (06FP-04MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL MM	13.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 MM	6.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX MM	24.0
OVERALL LENGTH L MM	34.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE PSI	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.195

7042-06-06

$26.68

Attribute: 7042-06-06 (06FP-06MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL MM	13.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 MM	9.53
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX MM	22.22
OVERALL LENGTH L MM	35.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.143
MAXIMUM DYNAMIC PRESSURE PSI	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.070

7042-06-06-24MM HEX

$38.76

Attribute: 7042-06-06-24MM HEX (06FP-06MBSP...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL MM	13.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 MM	9.5
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX MM	24.0
OVERALL LENGTH L MM	35.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE PSI	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.248

7042-06-06-SS

$97.41

Attribute: 7042-06-06-SS (06FP-06MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL MM	13.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 MM	9.5
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX MM	22.22
OVERALL LENGTH L MM	35.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.163
MAXIMUM DYNAMIC PRESSURE PSI	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.070

7042-06-08

$39.03

Attribute: 7042-06-08 (06FP-08MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL MM	13.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 MM	12.7
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX MM	27.0
OVERALL LENGTH L MM	42.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.263
MAXIMUM DYNAMIC PRESSURE PSI	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.886

7042-06-08-SS

$71.33

Attribute: 7042-06-08-SS (06FP-08MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL MM	13.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 MM	12.7
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX MM	27.0
OVERALL LENGTH L MM	42.4
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE PSI	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.886

7042-06-12

$116.21

Attribute: 7042-06-12 (06FP-12MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL MM	13.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 MM	17.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX MM	32.0
OVERALL LENGTH L MM	29.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE PSI	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.812

7042-08-02

$65.59

Attribute: 7042-08-02 (08FP-02MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL MM	16.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/8-28
THREAD DRILL B2 MM	4.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX MM	28.0
OVERALL LENGTH L MM	36.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.722

7042-08-02-SS

$95.74

Attribute: 7042-08-02-SS (08FP-02MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL MM	16.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/8-28
THREAD DRILL B2 MM	4.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX MM	28.0
OVERALL LENGTH L MM	36.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.722

7042-08-04

$42.38

Attribute: 7042-08-04 (08FP-04MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL MM	16.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 MM	6.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX MM	27.0
OVERALL LENGTH L MM	41.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.244
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.824

7042-08-04-SS

$115.43

Attribute: 7042-08-04-SS (08FP-04MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL MM	16.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 MM	6.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX MM	27.0
OVERALL LENGTH L MM	41.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.824

7042-08-06

$42.87

Attribute: 7042-08-06 (08FP-06MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL MM	16.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 MM	9.5
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX MM	30.0
OVERALL LENGTH L MM	39.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.225
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	2.169

7042-08-06-SS

$99.93

Attribute: 7042-08-06-SS (08FP-06MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL MM	16.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 MM	9.5
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX MM	30.0
OVERALL LENGTH L MM	39.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	2.169

7042-08-08

$31.75

Attribute: 7042-08-08 (08FP-08MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL MM	16.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 MM	12.7
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX MM	30.0
OVERALL LENGTH L MM	42.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.218
MAXIMUM DYNAMIC PRESSURE PSI	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	2.307

7042-08-08-SS

$126.41

Attribute: 7042-08-08-SS (08FP-08MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL MM	16.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 MM	12.7
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX MM	30.0
OVERALL LENGTH L MM	42.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.244
MAXIMUM DYNAMIC PRESSURE PSI	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	2.307

7042-08-12

$41.64

Attribute: 7042-08-12 (08FP-12MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL MM	16.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 MM	17.4
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX MM	32.0
OVERALL LENGTH L MM	53.3
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.406
MAXIMUM DYNAMIC PRESSURE PSI	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	3.331

7042-08-12-SS

$156.63

Attribute: 7042-08-12-SS (08FP-12MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL MM	16.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 MM	17.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX MM	32.0
OVERALL LENGTH L MM	53.3
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE PSI	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	3.331

7042-08-16

$226.87

Attribute: 7042-08-16 (08FP-16MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL MM	16.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 MM	22.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX MM	41.0
OVERALL LENGTH L MM	32.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE PSI	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	3.283

7042-12-08

$63.84

Attribute: 7042-12-08 (12FP-08MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL MM	17.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 MM	12.7
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX MM	32.0
OVERALL LENGTH L MM	50.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.363
MAXIMUM DYNAMIC PRESSURE PSI	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	3.124

7042-12-08-SS

$239.03

Attribute: 7042-12-08-SS (12FP-08MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL MM	17.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 MM	12.7
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX MM	32.0
OVERALL LENGTH L MM	50.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE PSI	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	3.124

7042-12-12

$50.90

Attribute: 7042-12-12 (12FP-12MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL MM	17.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 MM	17.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX MM	34.92
OVERALL LENGTH L MM	45.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.250
MAXIMUM DYNAMIC PRESSURE PSI	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	3.386

7042-12-12-SS

$229.14

Attribute: 7042-12-12-SS (12FP-12MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL MM	17.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 MM	17.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX MM	34.92
OVERALL LENGTH L MM	45.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.413
MAXIMUM DYNAMIC PRESSURE PSI	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	3.386

7042-12-16

$67.54

Attribute: 7042-12-16 (12FP-16MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL MM	17.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 MM	22.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX MM	41.0
OVERALL LENGTH L MM	47.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.543
MAXIMUM DYNAMIC PRESSURE PSI	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	4.821

7042-12-16-SS

$266.53

Attribute: 7042-12-16-SS (12FP-16MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL MM	17.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 MM	22.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX MM	41.0
OVERALL LENGTH L MM	47.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE PSI	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	4.821

7042-12-24-SS

$624.52

Attribute: 7042-12-24-SS (12FP-24MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL MM	17.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 MM	33.3
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX MM	55.0
OVERALL LENGTH L MM	37.2
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE PSI	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	6.867

7042-16-12

$122.57

Attribute: 7042-16-12 (16FP-12MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD B1 SIZE	1-11-1/2
THREAD B1 DRILL MM	27.4
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 MM	17.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX MM	41.0
OVERALL LENGTH L MM	55.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE PSI	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	5.683

7042-16-16

$84.37

Attribute: 7042-16-16 (16FP-16MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD B1 SIZE	1-11-1/2
THREAD B1 DRILL MM	27.4
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 MM	21.5
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX MM	41.0
OVERALL LENGTH L MM	56.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.668
MAXIMUM DYNAMIC PRESSURE PSI	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	5.745

7042-16-16-SS

$315.43

Attribute: 7042-16-16-SS (16FP-16MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD B1 SIZE	1-11-1/2
THREAD B1 DRILL MM	27.4
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 MM	22.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX MM	41.0
OVERALL LENGTH L MM	56.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.644
MAXIMUM DYNAMIC PRESSURE PSI	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	5.745

7042-16-20

$125.62

Attribute: 7042-16-20 (16FP-20MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD B1 SIZE	1-11-1/2
THREAD B1 DRILL MM	27.4
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 MM	28.6
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX MM	50.0
OVERALL LENGTH L MM	60.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.450
MAXIMUM DYNAMIC PRESSURE PSI	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	9.154

7042-16-20-SS

$290.57

Attribute: 7042-16-20-SS (16FP-20MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD B1 SIZE	1-11-1/2
THREAD B1 DRILL MM	27.4
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 MM	28.6
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX MM	50.0
OVERALL LENGTH L MM	60.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE PSI	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	9.154

7042-16-24

$196.85

Attribute: 7042-16-24 (16FP-24MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD B1 SIZE	1-11-1/2
THREAD B1 DRILL MM	27.4
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 MM	33.3
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX MM	55.0
OVERALL LENGTH L MM	42.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.688
MAXIMUM DYNAMIC PRESSURE PSI	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	7.753

7042-16-24-SS

$571.10

Attribute: 7042-16-24-SS (16FP-24MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD B1 SIZE	1-11-1/2
THREAD B1 DRILL MM	27.4
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 MM	33.3
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX MM	55.0
OVERALL LENGTH L MM	42.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE PSI	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	7.753

7042-20-16

$203.05

Attribute: 7042-20-16 (20FP-16MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD B1 SIZE	1-1/4-11-1/2
THREAD B1 DRILL MM	36.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 MM	23.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX MM	50.8
OVERALL LENGTH L MM	57.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.863
MAXIMUM DYNAMIC PRESSURE PSI	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	8.976

7042-20-16-SS

$361.90

Attribute: 7042-20-16-SS (20FP-16MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD B1 SIZE	1-1/4-11-1/2
THREAD B1 DRILL MM	36.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 MM	22.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX MM	50.8
OVERALL LENGTH L MM	57.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE PSI	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	8.976

7042-20-20

$128.38

Attribute: 7042-20-20 (20FP-20MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD B1 SIZE	1-1/4-11-1/2
THREAD B1 DRILL MM	36.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 MM	28.6
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX MM	50.0
OVERALL LENGTH L MM	60.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.838
MAXIMUM DYNAMIC PRESSURE PSI	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	9.154

7042-20-20-SS

$366.82

Attribute: 7042-20-20-SS (20FP-20MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD B1 SIZE	1-1/4-11-1/2
THREAD B1 DRILL MM	36.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 MM	28.6
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX MM	50.0
OVERALL LENGTH L MM	60.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE PSI	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	9.154

7042-20-24

$241.99

Attribute: 7042-20-24 (20FP-24MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD B1 SIZE	1-1/4-11-1/2
THREAD B1 DRILL MM	36.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 MM	33.3
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX MM	55.0
OVERALL LENGTH L MM	45.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.831
MAXIMUM DYNAMIC PRESSURE PSI	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	8.307

7042-20-24-SS

$458.18

Attribute: 7042-20-24-SS (20FP-24MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD B1 SIZE	1-1/4-11-1/2
THREAD B1 DRILL MM	36.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 MM	33.3
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX MM	55.0
OVERALL LENGTH L MM	45.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE PSI	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	8.307

7042-24-20

$287.03

Attribute: 7042-24-20 (24FP-20MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD B1 SIZE	1-1/2-11-1/2
THREAD B1 DRILL MM	42.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 MM	28.6
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX MM	60.3
OVERALL LENGTH L MM	58.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	1.306
MAXIMUM DYNAMIC PRESSURE PSI	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	12.958

7042-24-20-SS

$857.73

Attribute: 7042-24-20-SS (24FP-20MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD B1 SIZE	1-1/2-11-1/2
THREAD B1 DRILL MM	42.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 MM	28.6
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX MM	60.3
OVERALL LENGTH L MM	58.4
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE PSI	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	12.958

7042-24-24

$175.34

Attribute: 7042-24-24 (24FP-24MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD B1 SIZE	1-1/2-11-1/2
THREAD B1 DRILL MM	42.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 MM	33.3
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX MM	57.0
OVERALL LENGTH L MM	62.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	1.244
MAXIMUM DYNAMIC PRESSURE PSI	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	12.293

7042-24-24-SS

$758.45

Attribute: 7042-24-24-SS (24FP-24MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD B1 SIZE	1-1/2-11-1/2
THREAD B1 DRILL MM	42.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 MM	33.3
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX MM	57.0
OVERALL LENGTH L MM	62.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	1.256
MAXIMUM DYNAMIC PRESSURE PSI	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	12.293

7042-24-40

$1,279.88

Attribute: 7042-24-40 (24FP-40MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD B1 SIZE	1-1/2-11-1/2
THREAD B1 DRILL MM	42.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	2-1/2-11
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
CALIFORNIA RESIDENTS	PROP-65 WARNING

7042-32-32

$642.62

Attribute: 7042-32-32 (32FP-32MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD B1 SIZE	2-11-1/2
THREAD B1 DRILL MM	56.3
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	2-11
THREAD DRILL B2 MM	45.8
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX MM	73.0
OVERALL LENGTH L MM	69.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	1.700
MAXIMUM DYNAMIC PRESSURE PSI	1,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	22.731

7042-32-32-SS

$1,141.80

Attribute: 7042-32-32-SS (32FP-32MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD B1 SIZE	2-11-1/2
THREAD B1 DRILL MM	56.3
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	2-11
THREAD DRILL B2 MM	45.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX MM	73.0
OVERALL LENGTH L MM	69.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE PSI	1,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	22.731

7042-32-40

$1,153.21

Attribute: 7042-32-40 (32FP-40MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD B1 SIZE	2-11-1/2
THREAD B1 DRILL MM	56.3
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	2-1/2-11
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
CALIFORNIA RESIDENTS	PROP-65 WARNING

7042-48-48

$2,256.09

Attribute: 7042-48-48 (48FP-48MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD B1 SIZE	3-8
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3-11
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
CALIFORNIA RESIDENTS	PROP-65 WARNING

Description

Description

Variations (65)

7042-02-02

7042-02-02-B

7042-02-02-SS

7042-02-04

7042-02-06

7042-02-08

7042-04-02

7042-04-02-SS

7042-04-04

7042-04-04-SS

7042-04-06

7042-04-06-SS

7042-04-08

7042-04-08-SS

7042-04-12

7042-04-12-SS

7042-06-02

7042-06-04

7042-06-04-SS

7042-06-06

7042-06-06-24MM HEX

7042-06-06-SS

7042-06-08

7042-06-08-SS

7042-06-12

7042-08-02

7042-08-02-SS

7042-08-04

7042-08-04-SS

7042-08-06

7042-08-06-SS

7042-08-08

7042-08-08-SS

7042-08-12

7042-08-12-SS

7042-08-16

7042-12-08

7042-12-08-SS

7042-12-12

7042-12-12-SS

7042-12-16

7042-12-16-SS

7042-12-24-SS

7042-16-12

7042-16-16

7042-16-16-SS

7042-16-20

7042-16-20-SS

7042-16-24

7042-16-24-SS

7042-20-16

7042-20-16-SS

7042-20-20

7042-20-20-SS

7042-20-24

7042-20-24-SS

7042-24-20

7042-24-20-SS

7042-24-24

7042-24-24-SS

7042-24-40

7042-32-32

7042-32-32-SS

7042-32-40

7042-48-48

General Attributes

PDF Documents
