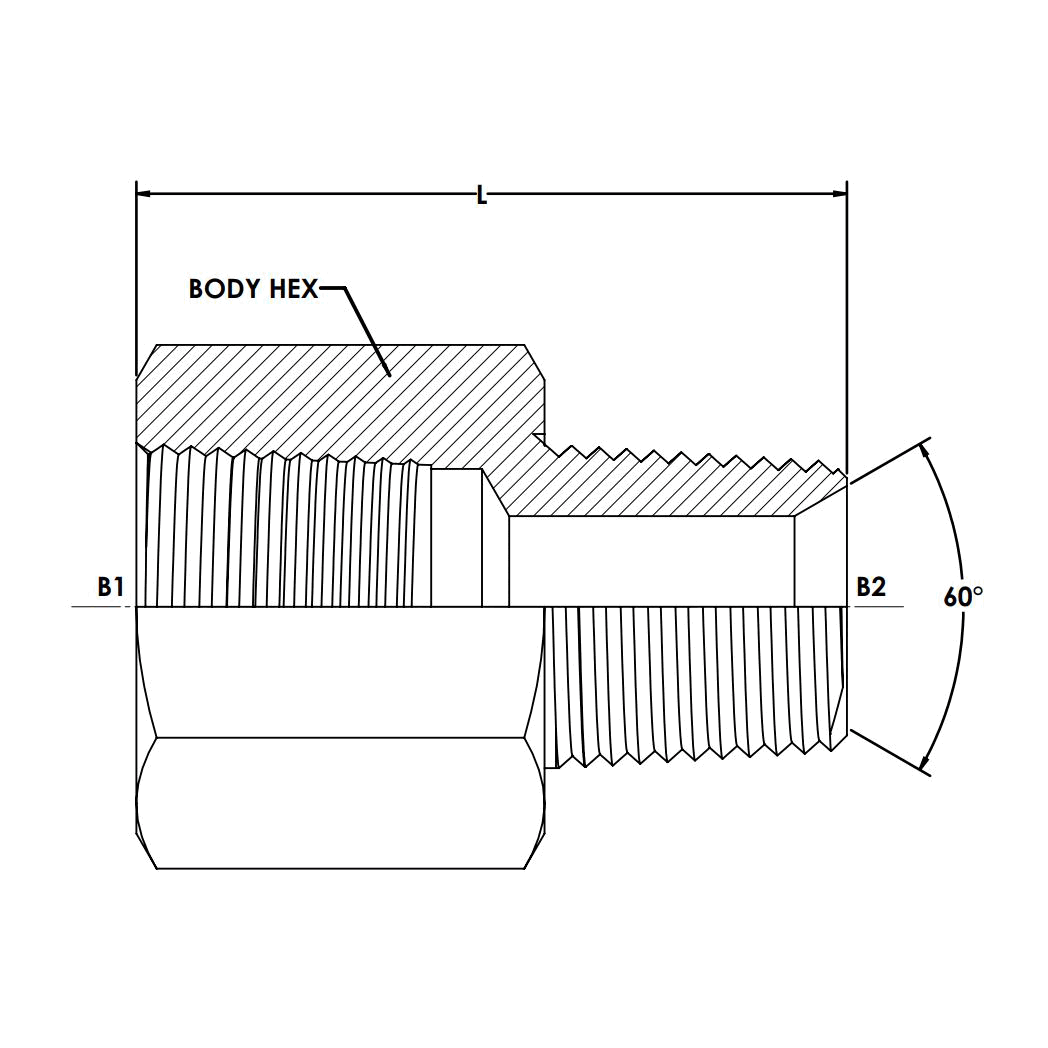

7040

7040-02-02

$16.00

Attribute: 7040-02-02 (02FP-02MBSPT Straigh...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1/8-27
THREAD DRILL B1 (MM)	8.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	4.8
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	15.9
OVERALL LENGTH L (MM)	27.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.063
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.423

7040-02-02-B

$11.82

Attribute: 7040-02-02-B (02FP-02MBSPT Strai...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1/8-27
THREAD DRILL B1 (MM)	8.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	4.8
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	15.9
OVERALL LENGTH L (MM)	27.4
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
WEIGHT (LBS)	0.069
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.423

7040-02-02-SS

$181.26

Attribute: 7040-02-02-SS (02FP-02MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1/8-27
THREAD DRILL B1 (MM)	8.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	4.8
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	15.9
OVERALL LENGTH L (MM)	27.4
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.063
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.423

7040-02-04

$30.22

Attribute: 7040-02-04 (02FP-04MBSPT Straigh...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1/8-27
THREAD DRILL B1 (MM)	8.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	17.0
OVERALL LENGTH L (MM)	21.6
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.094
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.381

7040-02-06

$46.59

Attribute: 7040-02-06 (02FP-06MBSPT Straigh...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1/8-27
THREAD DRILL B1 (MM)	8.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	9.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	21.6
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.476

7040-04-02

$21.17

Attribute: 7040-04-02 (04FP-02MBSPT Straigh...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1/4-18
THREAD DRILL B1 (MM)	7.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	4.5
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	30.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.094
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.672

7040-04-04

$21.51

Attribute: 7040-04-04 (04FP-04MBSPT Straigh...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1/4-18
THREAD DRILL B1 (MM)	7.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	34.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.088
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.760

7040-04-04-B

$14.93

Attribute: 7040-04-04-B (04FP-04MBSPT Strai...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1/4-18
THREAD DRILL B1 (MM)	7.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	34.5
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
WEIGHT (LBS)	0.106
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.760

7040-04-04-SS

$105.88

Attribute: 7040-04-04-SS (04FP-04MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1/4-18
THREAD DRILL B1 (MM)	7.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	34.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.094
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.760

7040-04-08

$24.57

Attribute: 7040-04-08 (04FP-08MBSPT Straigh...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1/4-18
THREAD DRILL B1 (MM)	7.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	28.6
OVERALL LENGTH L (MM)	27.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.393

7040-04-12

$95.01

Attribute: 7040-04-12 (04FP-12MBSPT Straigh...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1/4-18
THREAD DRILL B1 (MM)	7.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	17.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	36.0
OVERALL LENGTH L (MM)	29.7
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.349

7040-04-16

$169.53

Attribute: 7040-04-16 (04FP-16MBSPT Straigh...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1/4-18
THREAD DRILL B1 (MM)	7.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	34.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	4,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.539

7040-06-04

$24.67

Attribute: 7040-06-04 (06FP-04MBSPT Straigh...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	13.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	22.2
OVERALL LENGTH L (MM)	30.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.902

7040-06-06

$32.19

Attribute: 7040-06-06 (06FP-06MBSPT Straigh...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	13.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	10.3
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	22.2
OVERALL LENGTH L (MM)	36.6
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.131
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.101

7040-06-06-B

$34.83

Attribute: 7040-06-06-B (06FP-06MBSPT Strai...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	13.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	10.3
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	22.2
OVERALL LENGTH L (MM)	36.6
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.101

7040-06-06-SS

$132.86

Attribute: 7040-06-06-SS (06FP-06MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	13.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	10.3
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	22.2
OVERALL LENGTH L (MM)	36.6
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.288
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.101

7040-06-12

$85.71

Attribute: 7040-06-12 (06FP-12MBSPT Straigh...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	13.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	17.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	32.0
OVERALL LENGTH L (MM)	29.7
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.856

7040-06-16

$149.05

Attribute: 7040-06-16 (06FP-16MBSPT Straigh...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	13.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	34.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	4,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.539

7040-08-06-B

$56.99

Attribute: 7040-08-06-B (08FP-06MBSPT Strai...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	16.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	10.3
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	30.0
OVERALL LENGTH L (MM)	30.0
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.648

7040-08-08

$44.65

Attribute: 7040-08-08 (08FP-08MBSPT Straigh...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	16.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	30.0
OVERALL LENGTH L (MM)	47.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.281
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.581

7040-08-08-B

$50.66

Attribute: 7040-08-08-B (08FP-08MBSPT Strai...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	16.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	30.0
OVERALL LENGTH L (MM)	47.0
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.581

7040-08-08-SS

$164.61

Attribute: 7040-08-08-SS (08FP-08MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	16.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	30.0
OVERALL LENGTH L (MM)	47.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.281
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.581

7040-08-12

$68.93

Attribute: 7040-08-12 (08FP-12MBSPT Straigh...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	16.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	17.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	32.0
OVERALL LENGTH L (MM)	39.7
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.481

7040-08-16

$130.43

Attribute: 7040-08-16 (08FP-16MBSPT Straigh...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	16.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	34.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	4,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.539

7040-08-16-B

$156.68

Attribute: 7040-08-16-B (08FP-16MBSPT Strai...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	16.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	36.0
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.693

7040-12-08

$45.68

Attribute: 7040-12-08 (12FP-08MBSPT Straigh...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	17.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	36.0
OVERALL LENGTH L (MM)	49.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.400
MAXIMUM DYNAMIC PRESSURE (PSI)	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.875

7040-12-08-SS

$262.66

Attribute: 7040-12-08-SS (12FP-08MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	17.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	36.0
OVERALL LENGTH L (MM)	49.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.875

7040-12-12

$69.60

Attribute: 7040-12-12 (12FP-12MBSPT Straigh...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	17.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	17.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	36.0
OVERALL LENGTH L (MM)	49.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.400
MAXIMUM DYNAMIC PRESSURE (PSI)	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.875

7040-12-12-B

$87.06

Attribute: 7040-12-12-B (12FP-12MBSPT Strai...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	17.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	17.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	36.0
OVERALL LENGTH L (MM)	49.0
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.875

7040-12-12-SS

$254.88

Attribute: 7040-12-12-SS (12FP-12MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	17.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	17.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	36.0
OVERALL LENGTH L (MM)	49.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.444
MAXIMUM DYNAMIC PRESSURE (PSI)	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.875

7040-12-16

$123.06

Attribute: 7040-12-16 (12FP-16MBSPT Straigh...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	17.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	34.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.539

7040-12-20

$167.67

Attribute: 7040-12-20 (12FP-20MBSPT Straigh...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	17.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	30.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	50.0
OVERALL LENGTH L (MM)	37.3
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,300
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.690

7040-12-24

$235.68

Attribute: 7040-12-24 (12FP-24MBSPT Straigh...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	17.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	33.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	55.0
OVERALL LENGTH L (MM)	39.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,300
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.365

7040-12-32

$348.40

Attribute: 7040-12-32 (12FP-32MBSPT Straigh...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	17.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	2-11
THREAD DRILL B2 (MM)	45.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	63.5
OVERALL LENGTH L (MM)	44.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,300
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.950

7040-16-16

$129.22

Attribute: 7040-16-16 (16FP-16MBSPT Straigh...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1-11-1/2
THREAD DRILL B1 (MM)	27.4
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	60.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.638
MAXIMUM DYNAMIC PRESSURE (PSI)	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.155

7040-16-16-B

$164.60

Attribute: 7040-16-16-B (16FP-16MBSPT Strai...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1-11-1/2
THREAD DRILL B1 (MM)	27.4
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	60.0
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.155

7040-16-16-SS

$277.42

Attribute: 7040-16-16-SS (16FP-16MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1-11-1/2
THREAD DRILL B1 (MM)	27.4
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	60.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.155

7040-16-20

$143.46

Attribute: 7040-16-20 (16FP-20MBSPT Straigh...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1-11-1/2
THREAD DRILL B1 (MM)	27.4
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	30.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	50.0
OVERALL LENGTH L (MM)	39.2
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,300
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.980

7040-16-24

$217.24

Attribute: 7040-16-24 (16FP-24MBSPT Straigh...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1-11-1/2
THREAD DRILL B1 (MM)	27.4
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	33.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	55.0
OVERALL LENGTH L (MM)	43.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,300
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.012

7040-16-32

$333.48

Attribute: 7040-16-32 (16FP-32MBSPT Straigh...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1-11-1/2
THREAD DRILL B1 (MM)	27.4
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	2-11
THREAD DRILL B2 (MM)	45.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	70.0
OVERALL LENGTH L (MM)	44.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,300
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	13.306

7040-20-20

$180.51

Attribute: 7040-20-20 (20FP-20MBSPT Straigh...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1-1/4-11-1/2
THREAD DRILL B1 (MM)	36.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	30.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	50.0
OVERALL LENGTH L (MM)	61.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	1.031
MAXIMUM DYNAMIC PRESSURE (PSI)	2,300
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.382

7040-20-20-B

$235.82

Attribute: 7040-20-20-B (20FP-20MBSPT Strai...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1-1/4-11-1/2
THREAD DRILL B1 (MM)	36.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	30.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	50.0
OVERALL LENGTH L (MM)	61.5
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.382

7040-20-20-SS

$667.23

Attribute: 7040-20-20-SS (20FP-20MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1-1/4-11-1/2
THREAD DRILL B1 (MM)	36.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	30.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	50.0
OVERALL LENGTH L (MM)	61.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.956
MAXIMUM DYNAMIC PRESSURE (PSI)	2,300
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.382

7040-20-24

$471.12

Attribute: 7040-20-24 (20FP-24MBSPT Straigh...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1-1/4-11-1/2
THREAD DRILL B1 (MM)	36.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	33.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	55.0
OVERALL LENGTH L (MM)	40.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,300
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.384

7040-20-32

$327.90

Attribute: 7040-20-32 (20FP-32MBSPT Straigh...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1-1/4-11-1/2
THREAD DRILL B1 (MM)	36.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	2-11
THREAD DRILL B2 (MM)	45.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	70.0
OVERALL LENGTH L (MM)	44.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,300
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	13.306

7040-24-24

$226.39

Attribute: 7040-24-24 (24FP-24MBSPT Straigh...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1-1/2-11-1/2
THREAD DRILL B1 (MM)	42.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	33.3
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	55.0
OVERALL LENGTH L (MM)	70.1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	1.188
MAXIMUM DYNAMIC PRESSURE (PSI)	2,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	12.940

7040-24-24-SS

$723.44

Attribute: 7040-24-24-SS (24FP-24MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1-1/2-11-1/2
THREAD DRILL B1 (MM)	42.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	33.3
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	57.2
OVERALL LENGTH L (MM)	70.1
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.400
MAXIMUM DYNAMIC PRESSURE (PSI)	2,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	13.996

7040-24-32

$292.49

Attribute: 7040-24-32 (24FP-32MBSPT Straigh...)

Stock Status: True

THREAD TYPE B1	FEMALE NPT
THREAD SIZE B1	1-1/2-11-1/2
THREAD DRILL B1 (MM)	42.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	2-11
THREAD DRILL B2 (MM)	45.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	70.0
OVERALL LENGTH L (MM)	46.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	13.904

Connections	NPT, BSP
Shape	Straight

ID	10148762
Category	Conversion Adapters

Description

Description

Variations (48)

7040-02-02

7040-02-02-B

7040-02-02-SS

7040-02-04

7040-02-06

7040-04-02

7040-04-04

7040-04-04-B

7040-04-04-SS

7040-04-08

7040-04-12

7040-04-16

7040-06-04

7040-06-06

7040-06-06-B

7040-06-06-SS

7040-06-12

7040-06-16

7040-08-06-B

7040-08-08

7040-08-08-B

7040-08-08-SS

7040-08-12

7040-08-16

7040-08-16-B

7040-12-08

7040-12-08-SS

7040-12-12

7040-12-12-B

7040-12-12-SS

7040-12-16

7040-12-20

7040-12-24

7040-12-32

7040-16-16

7040-16-16-B

7040-16-16-SS

7040-16-20

7040-16-24

7040-16-32

7040-20-20

7040-20-20-B

7040-20-20-SS

7040-20-24

7040-20-32

7040-24-24

7040-24-24-SS

7040-24-32

General Attributes

PDF Documents
