7034

7034-02-02

$21.86

Attribute: 7034-02-02 (02MP-02FBSPPS Straig...)

Stock Status: True

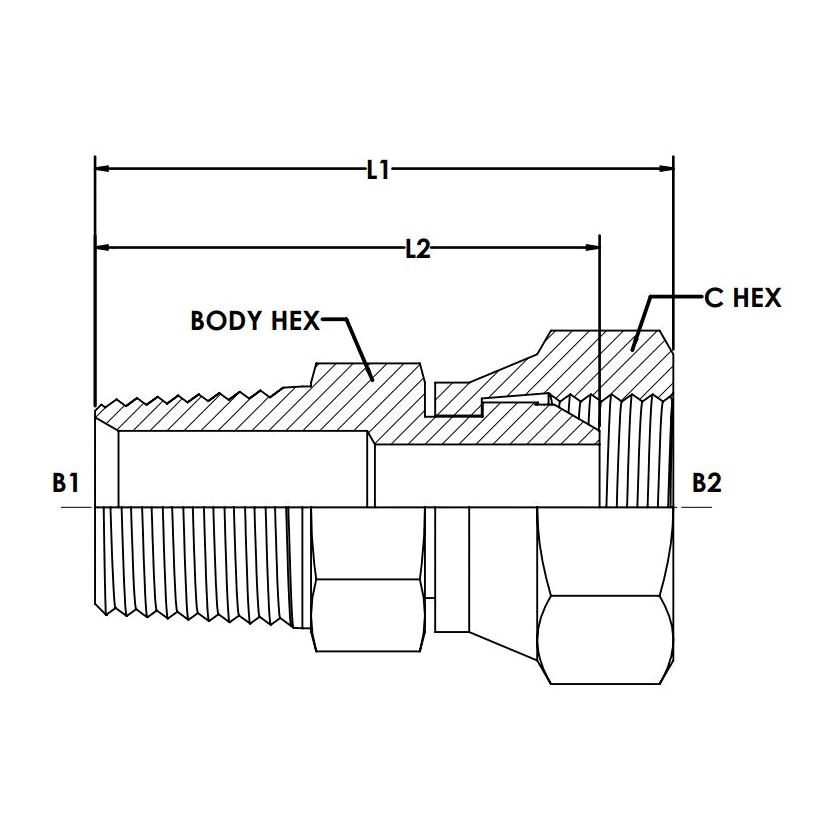

THREAD TYPE B1	MALE NPTF
THREAD SIZE B1	1/8-27
THREAD DRILL B1 (MM)	4.8
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	3.5
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	15.9
HEX C 1 (MM)	14.0
OVERALL LENGTH L1 (MM)	30.0
OVERALL LENGTH L2 (MM)	25.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.081
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.463

7034-02-02-SS

$41.94

Attribute: 7034-02-02-SS (02MP-02FBSPPS Str...)

Stock Status: True

THREAD TYPE B1	MALE NPTF
THREAD SIZE B1	1/8-27
THREAD DRILL B1 (MM)	4.8
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	3.5
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	15.9
HEX C 1 (MM)	14.0
OVERALL LENGTH L1 (MM)	30.0
OVERALL LENGTH L2 (MM)	25.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.463

7034-02-04

$23.87

Attribute: 7034-02-04 (02MP-04FBSPPS Straig...)

Stock Status: True

THREAD TYPE B1	MALE NPTF
THREAD SIZE B1	1/8-27
THREAD DRILL B1 (MM)	4.8
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	4.7
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	15.8
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	34.2
OVERALL LENGTH L2 (MM)	30.01
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.094
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.753

7034-02-04-SS

$55.37

Attribute: 7034-02-04-SS (02MP-04FBSPPS Str...)

Stock Status: True

THREAD TYPE B1	MALE NPTF
THREAD SIZE B1	1/8-27
THREAD DRILL B1 (MM)	4.8
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	4.7
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	15.8
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	34.2
OVERALL LENGTH L2 (MM)	30.01
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.753

7034-04-02

$38.76

Attribute: 7034-04-02 (04MP-02FBSPPS Straig...)

Stock Status: True

THREAD TYPE B1	MALE NPTF
THREAD SIZE B1	1/4-18
THREAD DRILL B1 (MM)	7.1
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	3.5
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	15.8
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	34.2
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.753

7034-04-04

$21.81

Attribute: 7034-04-04 (04MP-04FBSPPS Straig...)

Stock Status: True

THREAD TYPE B1	MALE NPTF
THREAD SIZE B1	1/4-18
THREAD DRILL B1 (MM)	7.1
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	4.7
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	15.9
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	38.0
OVERALL LENGTH L2 (MM)	33.8
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.100
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.837

7034-04-04-SS

$256.95

Attribute: 7034-04-04-SS (04MP-04FBSPPS Str...)

Stock Status: True

THREAD TYPE B1	MALE NPTF
THREAD SIZE B1	1/4-18
THREAD DRILL B1 (MM)	7.1
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	4.7
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	15.9
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	38.0
OVERALL LENGTH L2 (MM)	33.8
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.103
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.837

7034-04-06

$31.26

Attribute: 7034-04-06 (04MP-06FBSPPS Straig...)

Stock Status: True

THREAD TYPE B1	MALE NPTF
THREAD SIZE B1	1/4-18
THREAD DRILL B1 (MM)	7.1
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	7.5
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	38.1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.125

7034-04-06-SS

$85.01

Attribute: 7034-04-06-SS (04MP-06FBSPPS Str...)

Stock Status: True

THREAD TYPE B1	MALE NPTF
THREAD SIZE B1	1/4-18
THREAD DRILL B1 (MM)	7.1
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	7.5
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	38.1
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.125

7034-06-04

$22.44

Attribute: 7034-06-04 (06MP-04FBSPPS Straig...)

Stock Status: True

THREAD TYPE B1	MALE NPTF
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	10.3
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	4.7
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	38.1
OVERALL LENGTH L2 (MM)	33.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.119
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.839

7034-06-04-SS

$70.53

Attribute: 7034-06-04-SS (06MP-04FBSPPS Str...)

Stock Status: True

THREAD TYPE B1	MALE NPTF
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	10.3
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	4.7
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	38.1
OVERALL LENGTH L2 (MM)	33.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.839

7034-06-06

$20.93

Attribute: 7034-06-06 (06MP-06FBSPPS Straig...)

Stock Status: True

THREAD TYPE B1	MALE NPTF
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	10.0
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	7.5
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	43.6
OVERALL LENGTH L2 (MM)	33.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.169
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.288

7034-06-06-SS

$222.75

Attribute: 7034-06-06-SS (06MP-06FBSPPS Str...)

Stock Status: True

THREAD TYPE B1	MALE NPTF
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	10.0
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	7.5
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	43.6
OVERALL LENGTH L2 (MM)	33.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.288

7034-06-08

$19.50

Attribute: 7034-06-08 (06MP-08FBSPPS Straig...)

Stock Status: True

THREAD TYPE B1	MALE NPTF
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	10.3
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	11.1
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	47.0
OVERALL LENGTH L2 (MM)	40.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.225
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.091

7034-06-08-SS

$121.38

Attribute: 7034-06-08-SS (06MP-08FBSPPS Str...)

Stock Status: True

THREAD TYPE B1	MALE NPTF
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	10.3
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	11.1
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	47.0
OVERALL LENGTH L2 (MM)	40.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.091

7034-08-06

$32.25

Attribute: 7034-08-06 (08MP-06FBSPPS Straig...)

Stock Status: True

THREAD TYPE B1	MALE NPTF
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	12.7
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	7.5
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	48.5
OVERALL LENGTH L2 (MM)	42.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.200
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.432

7034-08-06-SS

$171.54

Attribute: 7034-08-06-SS (08MP-06FBSPPS Str...)

Stock Status: True

THREAD TYPE B1	MALE NPTF
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	12.7
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	7.5
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	48.5
OVERALL LENGTH L2 (MM)	42.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.432

7034-08-08

$28.95

Attribute: 7034-08-08 (08MP-08FBSPPS Straig...)

Stock Status: True

THREAD TYPE B1	MALE NPTF
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	13.5
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	11.1
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	51.0
OVERALL LENGTH L2 (MM)	44.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.238
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.269

7034-08-08-SS

$376.22

Attribute: 7034-08-08-SS (08MP-08FBSPPS Str...)

Stock Status: True

THREAD TYPE B1	MALE NPTF
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	13.5
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	11.1
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	51.0
OVERALL LENGTH L2 (MM)	44.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.238
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.269

7034-08-12

$83.88

Attribute: 7034-08-12 (08MP-12FBSPPS Straig...)

Stock Status: True

THREAD TYPE B1	MALE NPTF
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	13.5
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	16.7
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	28.5
HEX C 1 (MM)	32.0
OVERALL LENGTH L1 (MM)	51.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.187

7034-12-08

$57.50

Attribute: 7034-12-08 (12MP-08FBSPPS Straig...)

Stock Status: True

THREAD TYPE B1	MALE NPTF
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	18.3
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	11.1
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	28.5
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	52.5
OVERALL LENGTH L2 (MM)	46.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.313
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.602

7034-12-08-SS

$149.59

Attribute: 7034-12-08-SS (12MP-08FBSPPS Str...)

Stock Status: True

THREAD TYPE B1	MALE NPTF
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	18.3
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	11.1
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	28.5
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	52.5
OVERALL LENGTH L2 (MM)	46.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.602

7034-12-12

$61.43

Attribute: 7034-12-12 (12MP-12FBSPPS Straig...)

Stock Status: True

THREAD TYPE B1	MALE NPTF
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	16.5
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	16.7
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	30.0
HEX C 1 (MM)	32.0
OVERALL LENGTH L1 (MM)	55.0
OVERALL LENGTH L2 (MM)	44.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.388
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.437

7034-12-12-SS

$408.71

Attribute: 7034-12-12-SS (12MP-12FBSPPS Str...)

Stock Status: True

THREAD TYPE B1	MALE NPTF
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	16.5
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	16.7
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	30.0
HEX C 1 (MM)	32.0
OVERALL LENGTH L1 (MM)	55.0
OVERALL LENGTH L2 (MM)	44.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.369
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.437

7034-12-16

$100.81

Attribute: 7034-12-16 (12MP-16FBSPPS Straig...)

Stock Status: True

THREAD TYPE B1	MALE NPTF
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	18.3
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	21.5
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	35.0
HEX C 1 (MM)	41.0
OVERALL LENGTH L1 (MM)	53.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.478

7034-16-12

$61.24

Attribute: 7034-16-12 (16MP-12FBSPPS Straig...)

Stock Status: True

THREAD TYPE B1	MALE NPTF
THREAD SIZE B1	1-11-1/2
THREAD DRILL B1 (MM)	23.8
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	16.7
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	35.0
HEX C 1 (MM)	32.0
OVERALL LENGTH L1 (MM)	62.0
OVERALL LENGTH L2 (MM)	53.3
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.488
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.635

7034-16-12-SS

$391.68

Attribute: 7034-16-12-SS (16MP-12FBSPPS Str...)

Stock Status: True

THREAD TYPE B1	MALE NPTF
THREAD SIZE B1	1-11-1/2
THREAD DRILL B1 (MM)	23.8
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	16.7
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	35.0
HEX C 1 (MM)	32.0
OVERALL LENGTH L1 (MM)	62.0
OVERALL LENGTH L2 (MM)	53.3
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.635

7034-16-16

$65.18

Attribute: 7034-16-16 (16MP-16FBSPPS Straig...)

Stock Status: True

THREAD TYPE B1	MALE NPTF
THREAD SIZE B1	1-11-1/2
THREAD DRILL B1 (MM)	21.5
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	21.5
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	38.1
HEX C 1 (MM)	41.0
OVERALL LENGTH L1 (MM)	65.0
OVERALL LENGTH L2 (MM)	49.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.681
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.668

7034-16-16-SS

$750.47

Attribute: 7034-16-16-SS (16MP-16FBSPPS Str...)

Stock Status: True

THREAD TYPE B1	MALE NPTF
THREAD SIZE B1	1-11-1/2
THREAD DRILL B1 (MM)	21.5
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	21.5
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	38.1
HEX C 1 (MM)	41.0
OVERALL LENGTH L1 (MM)	65.0
OVERALL LENGTH L2 (MM)	49.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.668

7034-20-20

$155.30

Attribute: 7034-20-20 (20MP-20FBSPPS Straig...)

Stock Status: True

THREAD TYPE B1	MALE NPTF
THREAD SIZE B1	1-1/4-11-1/2
THREAD DRILL B1 (MM)	31.7
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	28.6
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	42.9
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	68.1
OVERALL LENGTH L2 (MM)	57.6
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.888
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.389

7034-20-20-SS

$609.17

Attribute: 7034-20-20-SS (20MP-20FBSPPS Str...)

Stock Status: True

THREAD TYPE B1	MALE NPTF
THREAD SIZE B1	1-1/4-11-1/2
THREAD DRILL B1 (MM)	31.7
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	28.6
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	42.9
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	68.1
OVERALL LENGTH L2 (MM)	57.6
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.389

7034-24-24

$522.42

Attribute: 7034-24-24 (24MP-24FBSPPS Straig...)

Stock Status: True

THREAD TYPE B1	MALE NPTF
THREAD SIZE B1	1-1/2-11-1/2
THREAD DRILL B1 (MM)	38.1
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	30.5
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	50.0
HEX C 1 (MM)	55.0
OVERALL LENGTH L1 (MM)	71.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	13.180

7034-24-24-SS

$904.25

Attribute: 7034-24-24-SS (24MP-24FBSPPS Str...)

Stock Status: True

THREAD TYPE B1	MALE NPTF
THREAD SIZE B1	1-1/2-11-1/2
THREAD DRILL B1 (MM)	38.1
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	30.5
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	50.0
HEX C 1 (MM)	55.0
OVERALL LENGTH L1 (MM)	71.4
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	13.180

7034-32-32

$692.92

Attribute: 7034-32-32 (32MP-32FBSPPS Straig...)

Stock Status: True

THREAD TYPE B1	MALE NPTF
THREAD SIZE B1	2-11-1/2
THREAD DRILL B1 (MM)	49.2
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	2-11
THREAD DRILL B2 (MM)	43.2
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	66.7
HEX C 1 (MM)	70.0
OVERALL LENGTH L1 (MM)	78.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	23.323

7034-32-32-SS

$1,345.90

Attribute: 7034-32-32-SS (32MP-32FBSPPS Str...)

Stock Status: True

THREAD TYPE B1	MALE NPTF
THREAD SIZE B1	2-11-1/2
THREAD DRILL B1 (MM)	49.2
THREAD SPECIFICATION B1	ANSI B1.20.3
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	2-11
THREAD DRILL B2 (MM)	43.2
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	66.7
HEX C 1 (MM)	70.0
OVERALL LENGTH L1 (MM)	78.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	23.323

Connections	NPT, BSP
Shape	Straight

ID	10148671
Category	Conversion Adapters

Description

Description

Variations (35)

7034-02-02

7034-02-02-SS

7034-02-04

7034-02-04-SS

7034-04-02

7034-04-04

7034-04-04-SS

7034-04-06

7034-04-06-SS

7034-06-04

7034-06-04-SS

7034-06-06

7034-06-06-SS

7034-06-08

7034-06-08-SS

7034-08-06

7034-08-06-SS

7034-08-08

7034-08-08-SS

7034-08-12

7034-12-08

7034-12-08-SS

7034-12-12

7034-12-12-SS

7034-12-16

7034-16-12

7034-16-12-SS

7034-16-16

7034-16-16-SS

7034-20-20

7034-20-20-SS

7034-24-24

7034-24-24-SS

7034-32-32

7034-32-32-SS

General Attributes

PDF Documents
