7033

7033-02-02

$12.85

Attribute: 7033-02-02 (02MP-02FBSPP Straigh...)

Stock Status: True

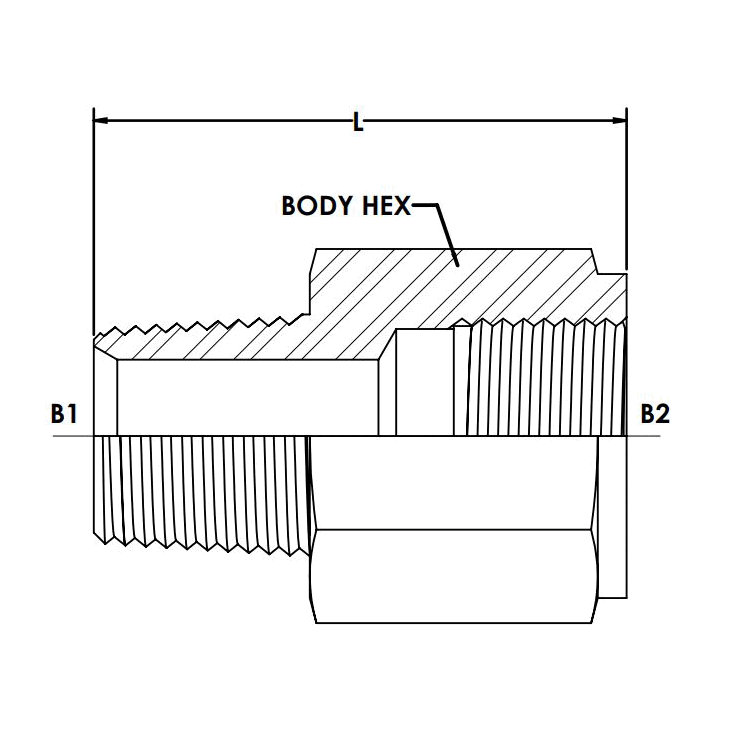

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/8-27
THREAD DRILL B1 (MM)	4.8
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	8.7
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	14.3
OVERALL LENGTH L (MM)	27.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.050
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.348

7033-02-02-B

$31.87

Attribute: 7033-02-02-B (02MP-02FBSPP Strai...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/8-27
THREAD DRILL B1 (MM)	4.8
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	8.7
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	14.3
OVERALL LENGTH L (MM)	27.9
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.348

7033-02-02-NPB

$12.72

Attribute: 7033-02-02-NPB (02MP-02FBSPP Str...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/8-27
THREAD DRILL B1 (MM)	4.8
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	8.7
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	14.3
OVERALL LENGTH L (MM)	27.9
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
PLATING	NICKEL PLATED
WEIGHT (LBS)	0.025
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.348

7033-02-02-SS

$57.54

Attribute: 7033-02-02-SS (02MP-02FBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/8-27
THREAD DRILL B1 (MM)	4.8
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	8.7
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	14.3
OVERALL LENGTH L (MM)	27.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.050
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.348

7033-02-04

$21.34

Attribute: 7033-02-04 (02MP-04FBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/8-27
THREAD DRILL B1 (MM)	4.8
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	11.6
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	29.1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.641

7033-02-06

$10.04

Attribute: 7033-02-06 (02MP-06FBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/8-27
THREAD DRILL B1 (MM)	4.8
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	15.2
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.2
OVERALL LENGTH L (MM)	32.3
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.081
MAXIMUM DYNAMIC PRESSURE (PSI)	5,800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.971

7033-04-02

$19.44

Attribute: 7033-04-02 (04MP-02FBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/4-18
THREAD DRILL B1 (MM)	7.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	8.7
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	15.9
OVERALL LENGTH L (MM)	31.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.063
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.478

7033-04-04

$9.59

Attribute: 7033-04-04 (04MP-04FBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/4-18
THREAD DRILL B1 (MM)	7.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	11.6
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.1
OVERALL LENGTH L (MM)	33.7
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.100
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.750

7033-04-04-B

$16.12

Attribute: 7033-04-04-B (04MP-04FBSPP Strai...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/4-18
THREAD DRILL B1 (MM)	7.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	11.6
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.1
OVERALL LENGTH L (MM)	33.7
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
WEIGHT (LBS)	0.100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.750

7033-04-04-SS

$65.42

Attribute: 7033-04-04-SS (04MP-04FBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/4-18
THREAD DRILL B1 (MM)	7.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	11.6
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.1
OVERALL LENGTH L (MM)	33.7
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.100
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.750

7033-04-06

$16.00

Attribute: 7033-04-06 (04MP-06FBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/4-18
THREAD DRILL B1 (MM)	7.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	15.2
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	38.1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.125
MAXIMUM DYNAMIC PRESSURE (PSI)	5,800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.125

7033-04-06-SS

$110.90

Attribute: 7033-04-06-SS (04MP-06FBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/4-18
THREAD DRILL B1 (MM)	7.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	15.2
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	38.1
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.125

7033-06-04

$16.99

Attribute: 7033-06-04 (06MP-04FBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	10.3
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	11.6
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.1
OVERALL LENGTH L (MM)	33.3
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.094
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.741

7033-06-04-SS

$47.45

Attribute: 7033-06-04-SS (06MP-04FBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	10.3
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	11.6
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	29.0
OVERALL LENGTH L (MM)	33.3
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.709

7033-06-06

$16.49

Attribute: 7033-06-06 (06MP-06FBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	10.3
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	15.2
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	36.8
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.125
MAXIMUM DYNAMIC PRESSURE (PSI)	5,800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.087

7033-06-06-B

$121.87

Attribute: 7033-06-06-B (06MP-06FBSPP Strai...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	10.3
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	15.2
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	29.0
OVERALL LENGTH L (MM)	36.8
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.889

7033-06-06-SS

$100.87

Attribute: 7033-06-06-SS (06MP-06FBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	10.3
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	15.2
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	36.8
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.138
MAXIMUM DYNAMIC PRESSURE (PSI)	5,800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.087

7033-06-08

$17.03

Attribute: 7033-06-08 (06MP-08FBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	10.3
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	18.9
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	28.6
OVERALL LENGTH L (MM)	42.2
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.175
MAXIMUM DYNAMIC PRESSURE (PSI)	5,800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.106

7033-08-04

$20.77

Attribute: 7033-08-04 (08MP-04FBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	11.7
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	11.6
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.2
OVERALL LENGTH L (MM)	28.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.119
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.842

7033-08-04-SS

$261.45

Attribute: 7033-08-04-SS (08MP-04FBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	11.7
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	11.6
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.2
OVERALL LENGTH L (MM)	28.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.842

7033-08-06

$14.13

Attribute: 7033-08-06 (08MP-06FBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	13.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	15.2
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	39.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.138
MAXIMUM DYNAMIC PRESSURE (PSI)	5,800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.178

7033-08-06-SS

$322.86

Attribute: 7033-08-06-SS (08MP-06FBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	13.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	15.2
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	39.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.178

7033-08-08

$15.70

Attribute: 7033-08-08 (08MP-08FBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	13.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	18.9
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	28.6
OVERALL LENGTH L (MM)	47.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.263
MAXIMUM DYNAMIC PRESSURE (PSI)	5,800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.346

7033-08-08-B

$191.51

Attribute: 7033-08-08-B (08MP-08FBSPP Strai...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	13.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	18.9
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	28.6
OVERALL LENGTH L (MM)	47.0
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.346

7033-08-08-SS

$159.68

Attribute: 7033-08-08-SS (08MP-08FBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	13.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	18.9
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	28.6
OVERALL LENGTH L (MM)	47.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.275
MAXIMUM DYNAMIC PRESSURE (PSI)	5,800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.346

7033-08-16-SS

$329.01

Attribute: 7033-08-16-SS (08MP-16FBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	13.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	30.6
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.3
OVERALL LENGTH L (MM)	56.6
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.594
MAXIMUM DYNAMIC PRESSURE (PSI)	4,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.891

7033-12-04

$44.25

Attribute: 7033-12-04 (12MP-04FBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	17.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	11.6
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	33.0
OVERALL LENGTH L (MM)	29.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.960

7033-12-06

$64.48

Attribute: 7033-12-06 (12MP-06FBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	17.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	15.2
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	33.0
OVERALL LENGTH L (MM)	30.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.994

7033-12-08

$51.39

Attribute: 7033-12-08 (12MP-08FBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	17.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	18.9
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	33.0
OVERALL LENGTH L (MM)	47.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.375
MAXIMUM DYNAMIC PRESSURE (PSI)	5,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.123

7033-12-12

$26.98

Attribute: 7033-12-12 (12MP-12FBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	18.3
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	24.4
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	33.0
OVERALL LENGTH L (MM)	47.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.300
MAXIMUM DYNAMIC PRESSURE (PSI)	5,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.123

7033-12-12-B

$259.55

Attribute: 7033-12-12-B (12MP-12FBSPP Strai...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	18.3
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	24.4
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	33.0
OVERALL LENGTH L (MM)	47.0
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.123

7033-12-12-SS

$642.03

Attribute: 7033-12-12-SS (12MP-12FBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	18.3
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	24.4
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	33.0
OVERALL LENGTH L (MM)	47.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.313
MAXIMUM DYNAMIC PRESSURE (PSI)	5,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.123

7033-12-16

$54.05

Attribute: 7033-12-16 (12MP-16FBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	18.3
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	30.6
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	54.1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.638
MAXIMUM DYNAMIC PRESSURE (PSI)	4,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.550

7033-16-04

$55.97

Attribute: 7033-16-04 (16MP-04FBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-11-1/2
THREAD DRILL B1 (MM)	23.83
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	11.6
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	35.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.590

7033-16-06

$178.18

Attribute: 7033-16-06 (16MP-06FBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-11-1/2
THREAD DRILL B1 (MM)	23.83
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	15.2
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	35.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.590

7033-16-08

$103.91

Attribute: 7033-16-08 (16MP-08FBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-11-1/2
THREAD DRILL B1 (MM)	23.83
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	18.9
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	36.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.693

7033-16-12

$66.25

Attribute: 7033-16-12 (16MP-12FBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-11-1/2
THREAD DRILL B1 (MM)	24.4
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	24.4
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	60.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.225
MAXIMUM DYNAMIC PRESSURE (PSI)	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.206

7033-16-16

$124.78

Attribute: 7033-16-16 (16MP-16FBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-11-1/2
THREAD DRILL B1 (MM)	23.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	30.6
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	60.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.675
MAXIMUM DYNAMIC PRESSURE (PSI)	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.206

7033-16-16-B

$365.59

Attribute: 7033-16-16-B (16MP-16FBSPP Strai...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-11-1/2
THREAD DRILL B1 (MM)	23.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	30.6
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	60.5
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.206

7033-16-16-SS

$388.14

Attribute: 7033-16-16-SS (16MP-16FBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-11-1/2
THREAD DRILL B1 (MM)	23.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	30.6
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	60.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.700
MAXIMUM DYNAMIC PRESSURE (PSI)	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.206

7033-20-04

$232.41

Attribute: 7033-20-04 (20MP-04FBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-1/4-11-1/2
THREAD DRILL B1 (MM)	31.7
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	11.6
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	50.8
OVERALL LENGTH L (MM)	36.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.669

7033-20-06

$232.41

Attribute: 7033-20-06 (20MP-06FBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-1/4-11-1/2
THREAD DRILL B1 (MM)	31.7
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	15.2
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	50.8
OVERALL LENGTH L (MM)	36.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.669

7033-20-08

$213.04

Attribute: 7033-20-08 (20MP-08FBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-1/4-11-1/2
THREAD DRILL B1 (MM)	31.7
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	18.9
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	50.8
OVERALL LENGTH L (MM)	36.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.669

7033-20-12

$126.06

Attribute: 7033-20-12 (20MP-12FBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-1/4-11-1/2
THREAD DRILL B1 (MM)	31.7
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	24.4
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	50.8
OVERALL LENGTH L (MM)	37.6
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.921

7033-20-16

$174.31

Attribute: 7033-20-16 (20MP-16FBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-1/4-11-1/2
THREAD DRILL B1 (MM)	31.7
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	30.6
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	50.8
OVERALL LENGTH L (MM)	57.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.039

7033-20-20

$108.83

Attribute: 7033-20-20 (20MP-20FBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-1/4-11-1/2
THREAD DRILL B1 (MM)	31.7
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	39.3
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	50.8
OVERALL LENGTH L (MM)	58.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.825
MAXIMUM DYNAMIC PRESSURE (PSI)	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.197

7033-20-20-SS

$898.74

Attribute: 7033-20-20-SS (20MP-20FBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-1/4-11-1/2
THREAD DRILL B1 (MM)	31.7
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	39.3
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	50.8
OVERALL LENGTH L (MM)	58.4
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.197

7033-24-08

$271.14

Attribute: 7033-24-08 (24MP-08FBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-1/2-11-1/2
THREAD DRILL B1 (MM)	34.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	18.9
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	29.0
OVERALL LENGTH L (MM)	39.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.022

7033-24-12

$222.05

Attribute: 7033-24-12 (24MP-12FBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-1/2-11-1/2
THREAD DRILL B1 (MM)	34.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	24.4
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	29.1
OVERALL LENGTH L (MM)	39.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.036

7033-24-16

$251.77

Attribute: 7033-24-16 (24MP-16FBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-1/2-11-1/2
THREAD DRILL B1 (MM)	34.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	30.6
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	29.1
OVERALL LENGTH L (MM)	39.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.036

7033-24-20

$242.09

Attribute: 7033-24-20 (24MP-20FBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-1/2-11-1/2
THREAD DRILL B1 (MM)	34.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	39.3
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	29.2
OVERALL LENGTH L (MM)	56.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.940

7033-24-24

$215.55

Attribute: 7033-24-24 (24MP-24FBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-1/2-11-1/2
THREAD DRILL B1 (MM)	34.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	45.2
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	57.2
OVERALL LENGTH L (MM)	63.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	1.156
MAXIMUM DYNAMIC PRESSURE (PSI)	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	12.678

7033-24-24-SS

$1,134.91

Attribute: 7033-24-24-SS (24MP-24FBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-1/2-11-1/2
THREAD DRILL B1 (MM)	34.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	45.2
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	57.2
OVERALL LENGTH L (MM)	63.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.100
MAXIMUM DYNAMIC PRESSURE (PSI)	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	12.678

7033-24-32-SS

$1,389.40

Attribute: 7033-24-32-SS (24MP-32FBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-1/2-11-1/2
THREAD DRILL B1 (MM)	34.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	2-11
THREAD DRILL B2 (MM)	57.0
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	29.3
OVERALL LENGTH L (MM)	64.3
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.369

7033-32-12

$558.92

Attribute: 7033-32-12 (32MP-12FBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	2-11-1/2
THREAD DRILL B1 (MM)	49.2
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	24.4
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	29.1
OVERALL LENGTH L (MM)	41.2
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.129

7033-32-16

$558.92

Attribute: 7033-32-16 (32MP-16FBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	2-11-1/2
THREAD DRILL B1 (MM)	49.2
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	30.6
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	29.1
OVERALL LENGTH L (MM)	41.2
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.129

7033-32-20

$558.92

Attribute: 7033-32-20 (32MP-20FBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	2-11-1/2
THREAD DRILL B1 (MM)	49.2
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	39.3
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	29.2
OVERALL LENGTH L (MM)	62.2
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.236

7033-32-24

$558.92

Attribute: 7033-32-24 (32MP-24FBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	2-11-1/2
THREAD DRILL B1 (MM)	49.2
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	45.2
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	29.2
OVERALL LENGTH L (MM)	68.2
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.549

7033-32-32

$419.00

Attribute: 7033-32-32 (32MP-32FBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	2-11-1/2
THREAD DRILL B1 (MM)	49.2
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	2-11
THREAD DRILL B2 (MM)	57.0
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	70.0
OVERALL LENGTH L (MM)	72.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	1.725
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	21.649

7033-32-32-SS

$1,667.22

Attribute: 7033-32-32-SS (32MP-32FBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	2-11-1/2
THREAD DRILL B1 (MM)	49.2
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	2-11
THREAD DRILL B2 (MM)	57.0
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	70.0
OVERALL LENGTH L (MM)	72.4
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	21.649

7033-40-40

$1,884.84

Attribute: 7033-40-40 (40MP-40FBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	2-1/2-8
THREAD DRILL B1 (MM)	57.15
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	2-1/2-11
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	29.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
CALIFORNIA RESIDENTS	PROP-65 WARNING

7033-48-48

$1,322.75

Attribute: 7033-48-48 (48MP-48FBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3-8
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	3-11
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	29.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
CALIFORNIA RESIDENTS	PROP-65 WARNING

Description

Description

Variations (62)

7033-02-02

7033-02-02-B

7033-02-02-NPB

7033-02-02-SS

7033-02-04

7033-02-06

7033-04-02

7033-04-04

7033-04-04-B

7033-04-04-SS

7033-04-06

7033-04-06-SS

7033-06-04

7033-06-04-SS

7033-06-06

7033-06-06-B

7033-06-06-SS

7033-06-08

7033-08-04

7033-08-04-SS

7033-08-06

7033-08-06-SS

7033-08-08

7033-08-08-B

7033-08-08-SS

7033-08-16-SS

7033-12-04

7033-12-06

7033-12-08

7033-12-12

7033-12-12-B

7033-12-12-SS

7033-12-16

7033-16-04

7033-16-06

7033-16-08

7033-16-12

7033-16-16

7033-16-16-B

7033-16-16-SS

7033-20-04

7033-20-06

7033-20-08

7033-20-12

7033-20-16

7033-20-20

7033-20-20-SS

7033-24-08

7033-24-12

7033-24-16

7033-24-20

7033-24-24

7033-24-24-SS

7033-24-32-SS

7033-32-12

7033-32-16

7033-32-20

7033-32-24

7033-32-32

7033-32-32-SS

7033-40-40

7033-48-48

General Attributes

PDF Documents
