7032-BS

7032-02-02-BS

$13.25

Attribute: 7032-02-02-BS (02MP-02MBSPP Stra...)

Stock Status: True

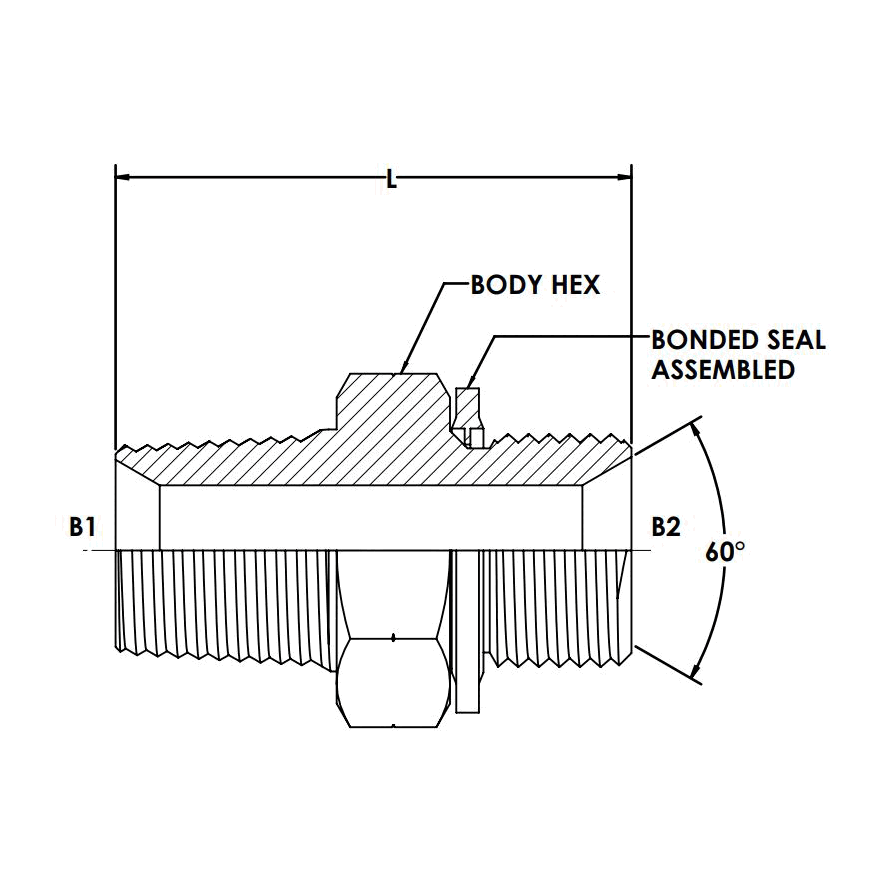

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/8-27
THREAD DRILL B1 (MM)	4.8
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	4.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-02
BODY HEX (MM)	14.0
OVERALL LENGTH L (MM)	26.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.074
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.311

7032-02-02-SS-BS

$55.13

Attribute: 7032-02-02-SS-BS (02MP-02MBSPP S...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/8-27
THREAD DRILL B1 (MM)	4.8
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	4.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-02-SS
BODY HEX (MM)	14.0
OVERALL LENGTH L (MM)	26.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.311

7032-02-04-BS

$14.72

Attribute: 7032-02-04-BS (02MP-04MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/8-27
THREAD DRILL B1 (MM)	4.8
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-04
BODY HEX (MM)	17.0
OVERALL LENGTH L (MM)	28.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.069
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.494

7032-02-04-SS-BS

$101.81

Attribute: 7032-02-04-SS-BS (02MP-04MBSPP S...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/8-27
THREAD DRILL B1 (MM)	4.8
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-04-SS
BODY HEX (MM)	17.0
OVERALL LENGTH L (MM)	28.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.494

7032-02-06-BS

$21.07

Attribute: 7032-02-06-BS (02MP-06MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/8-27
THREAD DRILL B1 (MM)	4.8
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	7.9
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-06
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	31.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.012
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.930

7032-02-06-SS-BS

$132.81

Attribute: 7032-02-06-SS-BS (02MP-06MBSPP S...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/8-27
THREAD DRILL B1 (MM)	4.8
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	7.9
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-06-SS
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	31.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.930

7032-02-08-BS

$28.12

Attribute: 7032-02-08-BS (02MP-08MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/8-27
THREAD DRILL B1 (MM)	4.8
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.7
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-08
BODY HEX (MM)	24.0
OVERALL LENGTH L (MM)	36.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.283

7032-04-02-BS

$12.06

Attribute: 7032-04-02-BS (04MP-02MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/4-18
THREAD DRILL B1 (MM)	7.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	4.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-02
BODY HEX (MM)	16.0
OVERALL LENGTH L (MM)	31.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.056
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.492

7032-04-02-SS-BS

$86.46

Attribute: 7032-04-02-SS-BS (04MP-02MBSPP S...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/4-18
THREAD DRILL B1 (MM)	7.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	4.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-02-SS
BODY HEX (MM)	16.0
OVERALL LENGTH L (MM)	31.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.492

7032-04-04-BS

$13.33

Attribute: 7032-04-04-BS (04MP-04MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/4-18
THREAD DRILL B1 (MM)	7.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-04
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	33.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.081
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.727

7032-04-04-BS-VITON

$20.47

Attribute: 7032-04-04-BS-VITON (04MP-04MBSP...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/4-18
THREAD DRILL B1 (MM)	7.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-04-VITON
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	33.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.075
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.727

7032-04-04-SS-BS

$102.48

Attribute: 7032-04-04-SS-BS (04MP-04MBSPP S...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/4-18
THREAD DRILL B1 (MM)	7.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-04-SS
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	33.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.013
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.727

7032-04-06-BS

$18.76

Attribute: 7032-04-06-BS (04MP-06MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/4-18
THREAD DRILL B1 (MM)	7.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	9.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-06
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	36.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.112
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.063

7032-04-06-SS-BS

$132.61

Attribute: 7032-04-06-SS-BS (04MP-06MBSPP S...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/4-18
THREAD DRILL B1 (MM)	7.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	9.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-06-SS
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	36.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.063

7032-04-08-BS

$25.60

Attribute: 7032-04-08-BS (04MP-08MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/4-18
THREAD DRILL B1 (MM)	7.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	9.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-08
BODY HEX (MM)	24.0
OVERALL LENGTH L (MM)	41.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.012
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.441

7032-04-08-SS-BS

$298.92

Attribute: 7032-04-08-SS-BS (04MP-08MBSPP S...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/4-18
THREAD DRILL B1 (MM)	7.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.7
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-08-SS
BODY HEX (MM)	24.0
OVERALL LENGTH L (MM)	41.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.013
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.441

7032-04-12-BS

$70.30

Attribute: 7032-04-12-BS (04MP-12MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/4-18
THREAD DRILL B1 (MM)	7.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	17.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-12
BODY HEX (MM)	32.0
OVERALL LENGTH L (MM)	44.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.018
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.781

7032-04-16-BS

$93.34

Attribute: 7032-04-16-BS (04MP-16MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/4-18
THREAD DRILL B1 (MM)	7.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-16
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	46.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.760

7032-06-02-BS

$20.38

Attribute: 7032-06-02-BS (06MP-02MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	10.3
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	4.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-02
BODY HEX (MM)	18.0
OVERALL LENGTH L (MM)	35.6
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.006
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.704

7032-06-02-SS-BS

$128.20

Attribute: 7032-06-02-SS-BS (06MP-02MBSPP S...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	10.3
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	4.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-02-SS
BODY HEX (MM)	18.0
OVERALL LENGTH L (MM)	35.6
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.013
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.704

7032-06-04-BS

$14.42

Attribute: 7032-06-04-BS (06MP-04MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	10.3
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-04
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	34.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.006
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.749

7032-06-04-SS-BS

$134.16

Attribute: 7032-06-04-SS-BS (06MP-04MBSPP S...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	10.3
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-04-SS
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	34.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.749

7032-06-06-BS

$15.75

Attribute: 7032-06-06-BS (06MP-06MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	10.3
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	7.9
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-06
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	37.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.118
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.108

7032-06-06-SS-BS

$117.44

Attribute: 7032-06-06-SS-BS (06MP-06MBSPP S...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	10.3
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	7.9
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-06-SS
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	37.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.108

7032-06-08-BS

$21.11

Attribute: 7032-06-08-BS (06MP-08MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	10.3
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.7
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-08
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	42.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.156
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.868

7032-06-08-SS-BS

$257.29

Attribute: 7032-06-08-SS-BS (06MP-08MBSPP S...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	10.3
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.7
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-08-SS
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	42.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.013
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.868

7032-06-10-BS

$32.95

Attribute: 7032-06-10-BS (06MP-10MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	10.3
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	5/8-14
THREAD DRILL B2 (MM)	12.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-10
BODY HEX (MM)	30.0
OVERALL LENGTH L (MM)	42.7
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.345

7032-06-12-BS

$63.94

Attribute: 7032-06-12-BS (06MP-12MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	10.3
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	17.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-12
BODY HEX (MM)	33.0
OVERALL LENGTH L (MM)	42.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.256
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.791

7032-06-12-SS-BS

$281.60

Attribute: 7032-06-12-SS-BS (06MP-12MBSPP S...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	10.3
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	17.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-12-SS
BODY HEX (MM)	33.0
OVERALL LENGTH L (MM)	42.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.791

7032-06-16-BS

$79.98

Attribute: 7032-06-16-BS (06MP-16MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	10.3
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-16
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	46.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.025
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.719

7032-08-02-BS

$27.14

Attribute: 7032-08-02-BS (08MP-02MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	13.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	4.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-02
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	38.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.122

7032-08-04-BS

$24.37

Attribute: 7032-08-04-BS (08MP-04MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	13.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.5
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-04
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	38.6
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.006
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.140

7032-08-04-SS-BS

$121.32

Attribute: 7032-08-04-SS-BS (08MP-04MBSPP S...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	13.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.5
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-04-SS
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	38.6
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.140

7032-08-06-BS

$20.77

Attribute: 7032-08-06-BS (08MP-06MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	13.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	7.9
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-06
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	39.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.143
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.178

7032-08-06-SS-BS

$109.32

Attribute: 7032-08-06-SS-BS (08MP-06MBSPP S...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	13.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	7.9
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-06-SS
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	39.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.178

7032-08-08-BS

$19.20

Attribute: 7032-08-08-BS (08MP-08MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	13.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.7
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-08
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	45.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.180
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.024

7032-08-08-SS-BS

$155.90

Attribute: 7032-08-08-SS-BS (08MP-08MBSPP S...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	13.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.7
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-08-SS
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	45.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.024

7032-08-10-BS

$28.15

Attribute: 7032-08-10-BS (08MP-10MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	13.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	5/8-14
THREAD DRILL B2 (MM)	12.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-10
BODY HEX (MM)	30.0
OVERALL LENGTH L (MM)	47.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.019
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.609

7032-08-10-SS-BS

$281.60

Attribute: 7032-08-10-SS-BS (08MP-10MBSPP S...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	13.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	5/8-14
THREAD DRILL B2 (MM)	12.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-10-SS
BODY HEX (MM)	30.0
OVERALL LENGTH L (MM)	47.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.609

7032-08-12-BS

$36.82

Attribute: 7032-08-12-BS (08MP-12MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	13.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	17.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-12
BODY HEX (MM)	32.0
OVERALL LENGTH L (MM)	49.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.268
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.062

7032-08-12-SS-BS

$256.99

Attribute: 7032-08-12-SS-BS (08MP-12MBSPP S...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	13.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	17.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-12-SS
BODY HEX (MM)	32.0
OVERALL LENGTH L (MM)	49.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.062

7032-08-16-BS

$70.39

Attribute: 7032-08-16-BS (08MP-16MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	13.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-16
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	53.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.025
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.437

7032-08-16-SS-BS

$401.63

Attribute: 7032-08-16-SS-BS (08MP-16MBSPP S...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	12.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-16-SS
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	53.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.437

7032-12-04-BS

$55.79

Attribute: 7032-12-04-BS (12MP-04MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	12.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.5
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-04
BODY HEX (MM)	30.0
OVERALL LENGTH L (MM)	40.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.224

7032-12-06-BS

$39.51

Attribute: 7032-12-06-BS (12MP-06MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	12.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	9.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-06
BODY HEX (MM)	30.0
OVERALL LENGTH L (MM)	43.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.362

7032-12-06-SS-BS

$271.42

Attribute: 7032-12-06-SS-BS (12MP-06MBSPP S...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	12.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	9.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-06-SS
BODY HEX (MM)	30.0
OVERALL LENGTH L (MM)	43.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.362

7032-12-08-BS

$33.67

Attribute: 7032-12-08-BS (12MP-08MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	17.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.7
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-08
BODY HEX (MM)	30.0
OVERALL LENGTH L (MM)	45.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.218
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.499

7032-12-08-SS-BS

$252.84

Attribute: 7032-12-08-SS-BS (12MP-06MBSPP S...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	17.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.7
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-08-SS
BODY HEX (MM)	30.0
OVERALL LENGTH L (MM)	45.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.499

7032-12-10-BS

$48.05

Attribute: 7032-12-10-BS (12MP-10MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	17.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	5/8-14
THREAD DRILL B2 (MM)	12.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-10
BODY HEX (MM)	30.0
OVERALL LENGTH L (MM)	47.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.250
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.581

7032-12-10-SS-BS

$250.58

Attribute: 7032-12-10-SS-BS (12MP-10MBSPP S...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	17.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	5/8-14
THREAD DRILL B2 (MM)	12.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-10-SS
BODY HEX (MM)	30.0
OVERALL LENGTH L (MM)	47.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.581

7032-12-12-BS

$31.85

Attribute: 7032-12-12-BS (12MP-12MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	17.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	17.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-12
BODY HEX (MM)	32.0
OVERALL LENGTH L (MM)	49.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.293
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.062

7032-12-12-SS-BS

$234.15

Attribute: 7032-12-12-SS-BS (12MP-12MBSPP S...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	17.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	17.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-12-SS
BODY HEX (MM)	32.0
OVERALL LENGTH L (MM)	49.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.300
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.062

7032-12-16-BS

$51.39

Attribute: 7032-12-16-BS (12MP-16MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	17.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-16
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	53.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.025
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.437

7032-12-16-SS-BS

$372.61

Attribute: 7032-12-16-SS-BS (12MP-16MBSPP S...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	17.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-16-SS
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	53.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.437

7032-12-20-BS

$126.60

Attribute: 7032-12-20-BS (12MP-20MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	17.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	30.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-20
BODY HEX (MM)	52.0
OVERALL LENGTH L (MM)	52.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.580

7032-12-24-BS

$197.69

Attribute: 7032-12-24-BS (12MP-24MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	17.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	33.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-24
BODY HEX (MM)	55.0
OVERALL LENGTH L (MM)	57.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.614

7032-16-04-BS

$89.45

Attribute: 7032-16-04-BS (16MP-04MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-11-1/2
THREAD DRILL B1 (MM)	23.83
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.5
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-04
BODY HEX (MM)	38.0
OVERALL LENGTH L (MM)	46.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.098

7032-16-06-BS

$76.40

Attribute: 7032-16-06-BS (16MP-06MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-11-1/2
THREAD DRILL B1 (MM)	23.83
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	8.5
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-06
BODY HEX (MM)	38.0
OVERALL LENGTH L (MM)	48.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.230

7032-16-08-BS

$68.86

Attribute: 7032-16-08-BS (16MP-08MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-11-1/2
THREAD DRILL B1 (MM)	23.83
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.7
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-08
BODY HEX (MM)	35.0
OVERALL LENGTH L (MM)	52.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.012
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.887

7032-16-08-SS-BS

$380.84

Attribute: 7032-16-08-SS-BS (16MP-08MBSPP S...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-11-1/2
THREAD DRILL B1 (MM)	23.83
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.7
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-08-SS
BODY HEX (MM)	35.0
OVERALL LENGTH L (MM)	52.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.887

7032-16-12-BS

$57.10

Attribute: 7032-16-12-BS (16MP-12MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-11-1/2
THREAD DRILL B1 (MM)	23.83
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	17.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-12
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	57.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.356
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.847

7032-16-12-SS-BS

$355.98

Attribute: 7032-16-12-SS-BS (16MP-12MBSPP S...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-11-1/2
THREAD DRILL B1 (MM)	23.83
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	17.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-12-SS
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	57.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.847

7032-16-16-BS

$54.10

Attribute: 7032-16-16-BS (16MP-16MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-11-1/2
THREAD DRILL B1 (MM)	23.83
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-16
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	58.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.550
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.950

7032-16-16-SS-BS

$384.68

Attribute: 7032-16-16-SS-BS (16MP-16MBSPP S...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-11-1/2
THREAD DRILL B1 (MM)	23.83
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-16-SS
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	58.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.950

7032-16-20-BS

$90.77

Attribute: 7032-16-20-BS (16MP-20MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-11-1/2
THREAD DRILL B1 (MM)	23.83
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	30.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-20
BODY HEX (MM)	50.0
OVERALL LENGTH L (MM)	61.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.638
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.306

7032-16-20-SS-BS

$592.95

Attribute: 7032-16-20-SS-BS (16MP-20MBSPP S...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-11-1/2
THREAD DRILL B1 (MM)	23.83
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	30.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-20-SS
BODY HEX (MM)	50.0
OVERALL LENGTH L (MM)	61.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.306

7032-16-24-BS

$193.45

Attribute: 7032-16-24-BS (16MP-24MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-11-1/2
THREAD DRILL B1 (MM)	23.83
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	33.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-24
BODY HEX (MM)	55.0
OVERALL LENGTH L (MM)	63.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.869
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.722

7032-16-32-BS

$367.15

Attribute: 7032-16-32-BS (16MP-32MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-11-1/2
THREAD DRILL B1 (MM)	23.83
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	2-11
THREAD DRILL B2 (MM)	46.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-32
BODY HEX (MM)	70.0
OVERALL LENGTH L (MM)	65.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	19.436

7032-20-12-BS

$114.59

Attribute: 7032-20-12-BS (20MP-12MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-1/4-11-1/2
THREAD DRILL B1 (MM)	31.7
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	17.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-12
BODY HEX (MM)	46.0
OVERALL LENGTH L (MM)	58.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.489

7032-20-12-SS-BS

$610.51

Attribute: 7032-20-12-SS-BS (20MP-12MBSPP S...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-1/4-11-1/2
THREAD DRILL B1 (MM)	31.7
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	17.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-12-SS
BODY HEX (MM)	46.0
OVERALL LENGTH L (MM)	58.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.489

7032-20-16-BS

$112.43

Attribute: 7032-20-16-BS (20MP-16MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-1/4-11-1/2
THREAD DRILL B1 (MM)	31.7
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.2
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-16
BODY HEX (MM)	50.0
OVERALL LENGTH L (MM)	60.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.706
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.230

7032-20-16-SS-BS

$576.31

Attribute: 7032-20-16-SS-BS (20MP-16MBSPP S...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-1/4-11-1/2
THREAD DRILL B1 (MM)	31.7
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.2
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-16-SS
BODY HEX (MM)	50.0
OVERALL LENGTH L (MM)	60.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.230

7032-20-20-BS

$74.57

Attribute: 7032-20-20-BS (20MP-20MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-1/4-11-1/2
THREAD DRILL B1 (MM)	31.7
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	30.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-20
BODY HEX (MM)	50.0
OVERALL LENGTH L (MM)	62.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.756
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.459

7032-20-20-SS-BS

$550.33

Attribute: 7032-20-20-SS-BS (20MP-20MBSPP S...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-1/4-11-1/2
THREAD DRILL B1 (MM)	31.7
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	30.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-20-SS
BODY HEX (MM)	50.0
OVERALL LENGTH L (MM)	62.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	9.981
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.459

7032-20-24-BS

$169.57

Attribute: 7032-20-24-BS (20MP-24MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-1/4-11-1/2
THREAD DRILL B1 (MM)	31.7
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	33.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-24
BODY HEX (MM)	55.0
OVERALL LENGTH L (MM)	64.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	1.056
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.906

7032-20-24-SS-BS

$721.87

Attribute: 7032-20-24-SS-BS (20MP-24MBSPP S...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-1/4-11-1/2
THREAD DRILL B1 (MM)	31.7
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	33.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-24-SS
BODY HEX (MM)	55.0
OVERALL LENGTH L (MM)	64.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.906

7032-20-32-BS

$313.66

Attribute: 7032-20-32-BS (20MP-32MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-1/4-11-1/2
THREAD DRILL B1 (MM)	31.7
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	2-11
THREAD DRILL B2 (MM)	45.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-32
BODY HEX (MM)	70.0
OVERALL LENGTH L (MM)	69.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	20.782

7032-24-12-BS

$188.36

Attribute: 7032-24-12-BS (24MP-12MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-1/2-11-1/2
THREAD DRILL B1 (MM)	36.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	17.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-12
BODY HEX (MM)	50.0
OVERALL LENGTH L (MM)	58.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.848

7032-24-16-BS

$172.20

Attribute: 7032-24-16-BS (24MP-16MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-1/2-11-1/2
THREAD DRILL B1 (MM)	36.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.2
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-16
BODY HEX (MM)	50.0
OVERALL LENGTH L (MM)	62.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.459

7032-24-16-SS-BS

$758.20

Attribute: 7032-24-16-SS-BS (24MP-16MBSPP S...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-1/2-11-1/2
THREAD DRILL B1 (MM)	36.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.2
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-16-SS
BODY HEX (MM)	50.0
OVERALL LENGTH L (MM)	62.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.459

7032-24-20-BS

$166.53

Attribute: 7032-24-20-BS (24MP-20MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-1/2-11-1/2
THREAD DRILL B1 (MM)	36.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	30.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-20
BODY HEX (MM)	50.0
OVERALL LENGTH L (MM)	63.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.825
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.611

7032-24-20-SS-BS

$707.07

Attribute: 7032-24-20-SS-BS (24MP-20MBSPP S...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-1/2-11-1/2
THREAD DRILL B1 (MM)	36.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	30.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-20-SS
BODY HEX (MM)	50.0
OVERALL LENGTH L (MM)	63.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.611

7032-24-24-BS

$79.50

Attribute: 7032-24-24-BS (24MP-24MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-1/2-11-1/2
THREAD DRILL B1 (MM)	38.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	33.3
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-24
BODY HEX (MM)	55.0
OVERALL LENGTH L (MM)	65.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.913
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.999

7032-24-24-SS-BS

$641.99

Attribute: 7032-24-24-SS-BS (24MP-24MBSPP S...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-1/2-11-1/2
THREAD DRILL B1 (MM)	38.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	33.3
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-24-SS
BODY HEX (MM)	55.0
OVERALL LENGTH L (MM)	65.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.999

7032-24-32-BS

$298.75

Attribute: 7032-24-32-BS (24MP-32MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-1/2-11-1/2
THREAD DRILL B1 (MM)	33.3
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	2-11
THREAD DRILL B2 (MM)	45.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-32
BODY HEX (MM)	70.0
OVERALL LENGTH L (MM)	70.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	2.162
MAXIMUM DYNAMIC PRESSURE (PSI)	1,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	21.051

7032-24-32-SS-BS

$1,087.04

Attribute: 7032-24-32-SS-BS (24MP-32MBSPP S...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-1/2-11-1/2
THREAD DRILL B1 (MM)	33.3
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	2-11
THREAD DRILL B2 (MM)	45.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-32-SS
BODY HEX (MM)	70.0
OVERALL LENGTH L (MM)	70.4
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	21.051

7032-24-40-BS

$1,126.65

Attribute: 7032-24-40-BS (24MP-40MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-1/2-11-1/2
THREAD DRILL B1 (MM)	33.3
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	2-1/2-11
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-40
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

7032-32-16-BS

$354.79

Attribute: 7032-32-16-BS (32MP-16MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	2-11-1/2
THREAD DRILL B1 (MM)	49.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.2
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-16
BODY HEX (MM)	70.0
OVERALL LENGTH L (MM)	61.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	18.240

7032-32-20-BS

$250.84

Attribute: 7032-32-20-BS (32MP-20MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	2-11-1/2
THREAD DRILL B1 (MM)	49.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	30.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-20
BODY HEX (MM)	70.0
OVERALL LENGTH L (MM)	65.7
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	19.645

7032-32-20-SS-BS

$1,073.54

Attribute: 7032-32-20-SS-BS (32MP-20MBSPP S...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	2-11-1/2
THREAD DRILL B1 (MM)	49.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	30.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-20-SS
BODY HEX (MM)	70.0
OVERALL LENGTH L (MM)	65.7
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	19.645

7032-32-24-BS

$292.98

Attribute: 7032-32-24-BS (32MP-24MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	2-11-1/2
THREAD DRILL B1 (MM)	49.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	33.3
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-24
BODY HEX (MM)	70.0
OVERALL LENGTH L (MM)	62.3
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	1.319
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	18.629

7032-32-24-SS-BS

$991.24

Attribute: 7032-32-24-SS-BS (32MP-24MBSPP S...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	2-11-1/2
THREAD DRILL B1 (MM)	49.2
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	33.3
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-24-SS
BODY HEX (MM)	70.0
OVERALL LENGTH L (MM)	62.3
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	18.629

7032-32-32-BS

$258.92

Attribute: 7032-32-32-BS (32MP-32MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	2-11-1/2
THREAD DRILL B1 (MM)	45.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	2-11
THREAD DRILL B2 (MM)	45.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-32
BODY HEX (MM)	70.0
OVERALL LENGTH L (MM)	70.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	2.256
MAXIMUM DYNAMIC PRESSURE (PSI)	1,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	20.931

7032-32-32-SS-BS

$975.75

Attribute: 7032-32-32-SS-BS (32MP-32MBSPP S...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	2-11-1/2
THREAD DRILL B1 (MM)	45.8
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	2-11
THREAD DRILL B2 (MM)	45.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-32-SS
BODY HEX (MM)	70.0
OVERALL LENGTH L (MM)	70.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	20.931

7032-32-40-BS

$983.72

Attribute: 7032-32-40-BS (32MP-40MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	2-11-1/2
THREAD DRILL B1 (MM)	45.8
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	2-1/2-11
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-40
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

7032-40-32-BS

$940.75

Attribute: 7032-40-32-BS (40MP-32MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	2-1/2-8
THREAD DRILL B1 (MM)	57.15
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	2-11
THREAD DRILL B2 (MM)	45.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-32
BODY HEX (MM)	82.55
OVERALL LENGTH L (MM)	80.7
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	33.559

7032-40-40-BS

$933.00

Attribute: 7032-40-40-BS (40MP-40MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	2-1/2-8
THREAD DRILL B1 (MM)	57.15
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	2-1/2-11
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-40
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

7032-48-48-BS

$1,561.20

Attribute: 7032-48-48-BS (48MP-48MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3-8
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3-11
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-48
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

Description

Description

Variations (98)

7032-02-02-BS

7032-02-02-SS-BS

7032-02-04-BS

7032-02-04-SS-BS

7032-02-06-BS

7032-02-06-SS-BS

7032-02-08-BS

7032-04-02-BS

7032-04-02-SS-BS

7032-04-04-BS

7032-04-04-BS-VITON

7032-04-04-SS-BS

7032-04-06-BS

7032-04-06-SS-BS

7032-04-08-BS

7032-04-08-SS-BS

7032-04-12-BS

7032-04-16-BS

7032-06-02-BS

7032-06-02-SS-BS

7032-06-04-BS

7032-06-04-SS-BS

7032-06-06-BS

7032-06-06-SS-BS

7032-06-08-BS

7032-06-08-SS-BS

7032-06-10-BS

7032-06-12-BS

7032-06-12-SS-BS

7032-06-16-BS

7032-08-02-BS

7032-08-04-BS

7032-08-04-SS-BS

7032-08-06-BS

7032-08-06-SS-BS

7032-08-08-BS

7032-08-08-SS-BS

7032-08-10-BS

7032-08-10-SS-BS

7032-08-12-BS

7032-08-12-SS-BS

7032-08-16-BS

7032-08-16-SS-BS

7032-12-04-BS

7032-12-06-BS

7032-12-06-SS-BS

7032-12-08-BS

7032-12-08-SS-BS

7032-12-10-BS

7032-12-10-SS-BS

7032-12-12-BS

7032-12-12-SS-BS

7032-12-16-BS

7032-12-16-SS-BS

7032-12-20-BS

7032-12-24-BS

7032-16-04-BS

7032-16-06-BS

7032-16-08-BS

7032-16-08-SS-BS

7032-16-12-BS

7032-16-12-SS-BS

7032-16-16-BS

7032-16-16-SS-BS

7032-16-20-BS

7032-16-20-SS-BS

7032-16-24-BS

7032-16-32-BS

7032-20-12-BS

7032-20-12-SS-BS

7032-20-16-BS

7032-20-16-SS-BS

7032-20-20-BS

7032-20-20-SS-BS

7032-20-24-BS

7032-20-24-SS-BS
