7032

7032-02-02

$6.50

Attribute: 7032-02-02 (02MP-02MBSPP Straigh...)

Stock Status: True

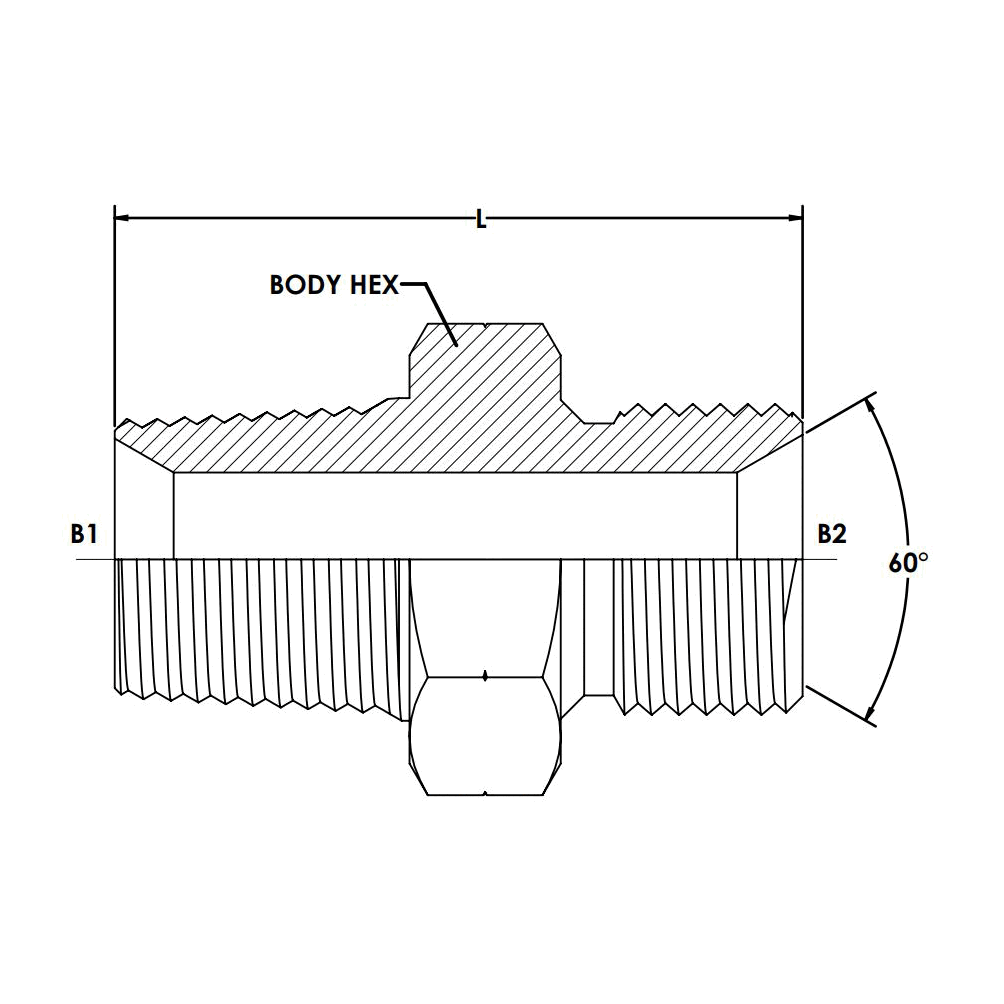

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/8-27
THREAD DRILL B1 (MM)	4.8
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	4.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	14.0
OVERALL LENGTH L (MM)	26.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.068
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.311

7032-02-02-SS

$90.52

Attribute: 7032-02-02-SS (02MP-02MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/8-27
THREAD DRILL B1 (MM)	4.8
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	4.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	14.0
OVERALL LENGTH L (MM)	26.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.050
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.311

7032-02-04

$10.29

Attribute: 7032-02-04 (02MP-04MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/8-27
THREAD DRILL B1 (MM)	4.8
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	17.0
OVERALL LENGTH L (MM)	28.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.063
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.494

7032-02-04-SS

$190.79

Attribute: 7032-02-04-SS (02MP-04MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/8-27
THREAD DRILL B1 (MM)	4.8
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	17.0
OVERALL LENGTH L (MM)	28.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.494

7032-02-06

$9.89

Attribute: 7032-02-06 (02MP-06MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/8-27
THREAD DRILL B1 (MM)	4.8
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	7.9
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	31.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.075
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.930

7032-02-06-SS

$60.40

Attribute: 7032-02-06-SS (02MP-06MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/8-27
THREAD DRILL B1 (MM)	4.8
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	7.9
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	31.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.930

7032-02-08

$25.18

Attribute: 7032-02-08 (02MP-08MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/8-27
THREAD DRILL B1 (MM)	4.8
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.7
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	24.0
OVERALL LENGTH L (MM)	36.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.283

7032-04-02

$10.19

Attribute: 7032-04-02 (04MP-02MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/4-18
THREAD DRILL B1 (MM)	7.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	4.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	16.0
OVERALL LENGTH L (MM)	31.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.050
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.492

7032-04-02-SS

$86.34

Attribute: 7032-04-02-SS (04MP-02MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/4-18
THREAD DRILL B1 (MM)	7.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	4.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	16.0
OVERALL LENGTH L (MM)	31.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.056
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.492

7032-04-04

$11.12

Attribute: 7032-04-04 (04MP-04MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/4-18
THREAD DRILL B1 (MM)	7.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	33.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.075
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.727

7032-04-04-SS

$98.64

Attribute: 7032-04-04-SS (04MP-04MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/4-18
THREAD DRILL B1 (MM)	7.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	33.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.075
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.727

7032-04-06

$15.02

Attribute: 7032-04-06 (04MP-06MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/4-18
THREAD DRILL B1 (MM)	6.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	9.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	36.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.100
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.063

7032-04-06-SS

$176.17

Attribute: 7032-04-06-SS (04MP-06MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/4-18
THREAD DRILL B1 (MM)	6.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	9.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	36.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.063

7032-04-08

$22.35

Attribute: 7032-04-08 (04MP-08MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/4-18
THREAD DRILL B1 (MM)	7.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.7
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	24.0
OVERALL LENGTH L (MM)	41.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.138
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.441

7032-04-08-SS

$166.87

Attribute: 7032-04-08-SS (04MP-08MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/4-18
THREAD DRILL B1 (MM)	7.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.7
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	24.0
OVERALL LENGTH L (MM)	41.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.150
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.441

7032-04-12

$22.88

Attribute: 7032-04-12 (04MP-12MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/4-18
THREAD DRILL B1 (MM)	7.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	17.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	32.0
OVERALL LENGTH L (MM)	44.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.256
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.781

7032-04-16

$54.10

Attribute: 7032-04-16 (04MP-16MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/4-18
THREAD DRILL B1 (MM)	7.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	46.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.419
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.760

7032-06-02

$11.66

Attribute: 7032-06-02 (06MP-02MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	9.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	4.7
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	18.0
OVERALL LENGTH L (MM)	35.6
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.075
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.704

7032-06-02-SS

$124.59

Attribute: 7032-06-02-SS (06MP-02MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	9.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	4.7
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	18.0
OVERALL LENGTH L (MM)	35.6
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.704

7032-06-04

$16.49

Attribute: 7032-06-04 (06MP-04MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	10.3
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	34.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.088
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.749

7032-06-04-B

$68.48

Attribute: 7032-06-04-B (06MP-04MBSPP Strai...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	10.3
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	34.0
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
WEIGHT (LBS)	0.094
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.749

7032-06-04-SS

$127.99

Attribute: 7032-06-04-SS (06MP-04MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	10.3
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	34.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.749

7032-06-06

$14.08

Attribute: 7032-06-06 (06MP-06MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	10.3
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	7.9
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	37.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.106
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.108

7032-06-06-B

$25.98

Attribute: 7032-06-06-B (06MP-06MBSPP Strai...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	10.3
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	7.9
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	37.5
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
WEIGHT (LBS)	0.119
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.108

7032-06-06-SS

$115.33

Attribute: 7032-06-06-SS (06MP-06MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	10.3
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	7.9
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	37.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.113
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.108

7032-06-08

$18.26

Attribute: 7032-06-08 (06MP-08MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	10.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.7
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	42.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.144
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.868

7032-06-08-B

$102.09

Attribute: 7032-06-08-B (06MP-08MBSPP Strai...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	10.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.7
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	42.0
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
WEIGHT (LBS)	0.206
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.868

7032-06-08-SS

$239.96

Attribute: 7032-06-08-SS (06MP-08MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	10.3
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.7
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	42.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.868

7032-06-10

$23.73

Attribute: 7032-06-10 (06MP-10MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	10.3
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	5/8-14
THREAD DRILL B2 (MM)	15.2
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	30.0
OVERALL LENGTH L (MM)	42.7
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.345

7032-06-12

$34.40

Attribute: 7032-06-12 (06MP-12MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	10.3
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	18.2
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	33.0
OVERALL LENGTH L (MM)	42.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.238
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.791

7032-06-12-SS

$217.77

Attribute: 7032-06-12-SS (06MP-12MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	10.3
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	17.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	33.0
OVERALL LENGTH L (MM)	42.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.791

7032-06-16

$38.64

Attribute: 7032-06-16 (06MP-16MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	10.3
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	46.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.419
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.719

7032-08-02

$13.69

Attribute: 7032-08-02 (08MP-02MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	13.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	4.7
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	38.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.113
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.122

7032-08-04

$15.50

Attribute: 7032-08-04 (08MP-04MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	13.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.5
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	38.6
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.119
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.140

7032-08-04-SS

$69.06

Attribute: 7032-08-04-SS (08MP-04MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	13.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.5
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	38.6
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.140

7032-08-06

$18.26

Attribute: 7032-08-06 (08MP-06MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	13.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	7.9
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	39.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.131
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.178

7032-08-06-SS

$106.38

Attribute: 7032-08-06-SS (08MP-06MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	13.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	7.9
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	39.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.138
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.178

7032-08-06-SS-DOM

$317.15

Attribute: 7032-08-06-SS-DOM (08MP-06MBSPP ...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	13.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	7.9
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	39.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.138
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.178

7032-08-08

$20.28

Attribute: 7032-08-08 (08MP-08MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	13.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.7
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	45.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.168
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.024

7032-08-08-SS

$151.76

Attribute: 7032-08-08-SS (08MP-08MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	13.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.7
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	45.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.181
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.024

7032-08-08-SS-DOM

$229.48

Attribute: 7032-08-08-SS-DOM (08MP-08MBSPP ...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	13.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.7
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	45.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.181
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.024

7032-08-10

$24.22

Attribute: 7032-08-10 (08MP-10MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	13.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	5/8-14
THREAD DRILL B2 (MM)	15.2
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	30.0
OVERALL LENGTH L (MM)	47.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.350
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.609

7032-08-10-SS

$137.88

Attribute: 7032-08-10-SS (08MP-10MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	13.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	5/8-14
THREAD DRILL B2 (MM)	15.2
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	30.0
OVERALL LENGTH L (MM)	47.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.609

7032-08-12

$31.70

Attribute: 7032-08-12 (08MP-12MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	12.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	17.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	32.0
OVERALL LENGTH L (MM)	49.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.250
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.062

7032-08-12-SS

$404.92

Attribute: 7032-08-12-SS (08MP-12MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	12.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	17.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	32.0
OVERALL LENGTH L (MM)	49.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.062

7032-08-16

$39.33

Attribute: 7032-08-16 (08MP-16MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	12.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	53.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.175
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.437

7032-08-16-SS

$374.40

Attribute: 7032-08-16-SS (08MP-16MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	12.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	53.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.437

7032-12-04

$19.84

Attribute: 7032-12-04 (12MP-04MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	17.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.5
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	30.0
OVERALL LENGTH L (MM)	40.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.200
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.224

7032-12-06

$30.66

Attribute: 7032-12-06 (12MP-06MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	17.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	9.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	30.0
OVERALL LENGTH L (MM)	43.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.238
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.362

7032-12-06-SS

$171.54

Attribute: 7032-12-06-SS (12MP-06MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	17.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	9.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	30.0
OVERALL LENGTH L (MM)	43.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.362

7032-12-08

$30.46

Attribute: 7032-12-08 (12MP-08MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	17.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.7
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	30.0
OVERALL LENGTH L (MM)	45.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.206
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.499

7032-12-08-SS

$364.47

Attribute: 7032-12-08-SS (12MP-08MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	17.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.7
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	30.0
OVERALL LENGTH L (MM)	45.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.499

7032-12-10

$44.70

Attribute: 7032-12-10 (12MP-10MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	17.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	5/8-14
THREAD DRILL B2 (MM)	12.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	30.0
OVERALL LENGTH L (MM)	47.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.231
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.581

7032-12-10-SS

$210.58

Attribute: 7032-12-10-SS (12MP-10MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	17.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	5/8-14
THREAD DRILL B2 (MM)	12.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	30.0
OVERALL LENGTH L (MM)	47.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.581

7032-12-12

$28.79

Attribute: 7032-12-12 (12MP-12MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	17.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	17.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	32.0
OVERALL LENGTH L (MM)	49.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.275
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.062

7032-12-12-SS

$299.38

Attribute: 7032-12-12-SS (12MP-12MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	17.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	17.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	32.0
OVERALL LENGTH L (MM)	49.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.300
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.062

7032-12-16

$54.83

Attribute: 7032-12-16 (12MP-16MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	17.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	53.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.419
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.437

7032-12-16-SS

$336.00

Attribute: 7032-12-16-SS (12MP-16MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	17.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	53.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.437

7032-12-20

$69.60

Attribute: 7032-12-20 (12MP-20MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	18.3
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	30.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	52.0
OVERALL LENGTH L (MM)	52.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.669
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.580

7032-12-24

$138.02

Attribute: 7032-12-24 (12MP-24MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	18.3
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	33.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	55.0
OVERALL LENGTH L (MM)	57.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.881
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.614

7032-16-04

$26.72

Attribute: 7032-16-04 (16MP-04MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-11-1/2
THREAD DRILL B1 (MM)	23.8
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.5
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	38.0
OVERALL LENGTH L (MM)	46.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.331
MAXIMUM DYNAMIC PRESSURE (PSI)	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.098

7032-16-06

$28.65

Attribute: 7032-16-06 (16MP-06MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-11-1/2
THREAD DRILL B1 (MM)	22.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	8.5
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	38.0
OVERALL LENGTH L (MM)	48.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.381
MAXIMUM DYNAMIC PRESSURE (PSI)	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.230

7032-16-08

$51.83

Attribute: 7032-16-08 (16MP-08MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-11-1/2
THREAD DRILL B1 (MM)	23.8
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.7
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	35.0
OVERALL LENGTH L (MM)	52.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.350
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.887

7032-16-08-SS

$296.68

Attribute: 7032-16-08-SS (16MP-08MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-11-1/2
THREAD DRILL B1 (MM)	23.8
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.7
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	35.0
OVERALL LENGTH L (MM)	52.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.887

7032-16-12

$49.38

Attribute: 7032-16-12 (16MP-12MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-11-1/2
THREAD DRILL B1 (MM)	23.8
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	18.2
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	57.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.338
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.847

7032-16-12-SS

$471.32

Attribute: 7032-16-12-SS (16MP-12MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-11-1/2
THREAD DRILL B1 (MM)	23.8
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	17.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	57.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.847

7032-16-16

$41.88

Attribute: 7032-16-16 (16MP-16MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-11-1/2
THREAD DRILL B1 (MM)	22.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	58.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.525
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.950

7032-16-16-SS

$334.04

Attribute: 7032-16-16-SS (16MP-16MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-11-1/2
THREAD DRILL B1 (MM)	22.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	58.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	7.400
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.950

7032-16-20

$70.63

Attribute: 7032-16-20 (16MP-20MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-11-1/2
THREAD DRILL B1 (MM)	22.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	30.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	50.0
OVERALL LENGTH L (MM)	61.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.638
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.306

7032-16-20-SS

$519.02

Attribute: 7032-16-20-SS (16MP-20MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-11-1/2
THREAD DRILL B1 (MM)	22.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	30.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	50.0
OVERALL LENGTH L (MM)	61.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.306

7032-16-24

$74.63

Attribute: 7032-16-24 (16MP-24MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-11-1/2
THREAD DRILL B1 (MM)	22.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	33.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	55.0
OVERALL LENGTH L (MM)	63.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.831
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.722

7032-16-32

$138.61

Attribute: 7032-16-32 (16MP-32MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-11-1/2
THREAD DRILL B1 (MM)	23.83
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	2-11
THREAD DRILL B2 (MM)	46.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	70.0
OVERALL LENGTH L (MM)	65.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	1.375
MAXIMUM DYNAMIC PRESSURE (PSI)	1,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	19.436

7032-20-12

$77.73

Attribute: 7032-20-12 (20MP-12MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-1/4-11-1/2
THREAD DRILL B1 (MM)	31.7
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	16.7
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	46.0
OVERALL LENGTH L (MM)	58.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.613
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.489

7032-20-12-SS

$274.32

Attribute: 7032-20-12-SS (20MP-12MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-1/4-11-1/2
THREAD DRILL B1 (MM)	31.7
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	17.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	46.0
OVERALL LENGTH L (MM)	58.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.489

7032-20-16

$78.17

Attribute: 7032-20-16 (20MP-16MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-1/4-11-1/2
THREAD DRILL B1 (MM)	31.7
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.2
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	50.0
OVERALL LENGTH L (MM)	60.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.681
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.230

7032-20-16-SS

$286.04

Attribute: 7032-20-16-SS (20MP-16MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-1/4-11-1/2
THREAD DRILL B1 (MM)	31.7
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.2
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	50.0
OVERALL LENGTH L (MM)	60.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.230

7032-20-20

$67.19

Attribute: 7032-20-20 (20MP-20MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-1/4-11-1/2
THREAD DRILL B1 (MM)	30.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	30.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	50.0
OVERALL LENGTH L (MM)	62.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.756
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.459

7032-20-20-SS

$731.72

Attribute: 7032-20-20-SS (20MP-20MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-1/4-11-1/2
THREAD DRILL B1 (MM)	30.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	30.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	50.0
OVERALL LENGTH L (MM)	62.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.769
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.459

7032-20-24

$144.48

Attribute: 7032-20-24 (20MP-24MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-1/4-11-1/2
THREAD DRILL B1 (MM)	30.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	33.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	55.0
OVERALL LENGTH L (MM)	64.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	1.019
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.906

7032-20-24-SS

$607.92

Attribute: 7032-20-24-SS (20MP-24MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-1/4-11-1/2
THREAD DRILL B1 (MM)	30.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	33.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	55.0
OVERALL LENGTH L (MM)	64.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.906

7032-20-32

$160.22

Attribute: 7032-20-32 (20MP-32MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-1/4-11-1/2
THREAD DRILL B1 (MM)	31.7
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	2-11
THREAD DRILL B2 (MM)	30.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	70.0
OVERALL LENGTH L (MM)	69.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	1.600
MAXIMUM DYNAMIC PRESSURE (PSI)	1,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	20.782

7032-24-12

$167.32

Attribute: 7032-24-12 (24MP-12MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-1/2-11-1/2
THREAD DRILL B1 (MM)	36.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	17.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	50.0
OVERALL LENGTH L (MM)	58.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.656
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.848

7032-24-16

$167.42

Attribute: 7032-24-16 (24MP-16MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-1/2-11-1/2
THREAD DRILL B1 (MM)	36.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.2
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	50.0
OVERALL LENGTH L (MM)	62.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.825
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.459

7032-24-16-SS

$718.75

Attribute: 7032-24-16-SS (24MP-16MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-1/2-11-1/2
THREAD DRILL B1 (MM)	36.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.2
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	50.0
OVERALL LENGTH L (MM)	62.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.459

7032-24-20

$167.46

Attribute: 7032-24-20 (24MP-20MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-1/2-11-1/2
THREAD DRILL B1 (MM)	36.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	30.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	50.0
OVERALL LENGTH L (MM)	63.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.775
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.611

7032-24-20-SS

$718.87

Attribute: 7032-24-20-SS (24MP-20MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-1/2-11-1/2
THREAD DRILL B1 (MM)	36.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	30.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	50.0
OVERALL LENGTH L (MM)	63.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.750
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.611

7032-24-24

$122.08

Attribute: 7032-24-24 (24MP-24MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-1/2-11-1/2
THREAD DRILL B1 (MM)	38.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	33.3
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	55.0
OVERALL LENGTH L (MM)	65.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.913
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.999

7032-24-24-SS

$867.78

Attribute: 7032-24-24-SS (24MP-24MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-1/2-11-1/2
THREAD DRILL B1 (MM)	38.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	33.3
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	55.0
OVERALL LENGTH L (MM)	65.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.000
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.999

7032-24-32

$284.27

Attribute: 7032-24-32 (24MP-32MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-1/2-11-1/2
THREAD DRILL B1 (MM)	33.3
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	2-11
THREAD DRILL B2 (MM)	46.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	70.0
OVERALL LENGTH L (MM)	70.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	2.106
MAXIMUM DYNAMIC PRESSURE (PSI)	1,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	21.051

7032-24-32-SS

$1,254.79

Attribute: 7032-24-32-SS (24MP-32MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-1/2-11-1/2
THREAD DRILL B1 (MM)	33.3
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	2-11
THREAD DRILL B2 (MM)	45.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	70.0
OVERALL LENGTH L (MM)	70.4
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	1,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	21.051

7032-24-40

$1,065.14

Attribute: 7032-24-40 (24MP-40MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-1/2-11-1/2
THREAD DRILL B1 (MM)	33.3
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	2-1/2-11
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
CALIFORNIA RESIDENTS	PROP-65 WARNING

7032-32-16

$140.58

Attribute: 7032-32-16 (32MP-16MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	2-11-1/2
THREAD DRILL B1 (MM)	49.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.2
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	70.0
OVERALL LENGTH L (MM)	61.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	18.240

7032-32-20

$251.14

Attribute: 7032-32-20 (32MP-20MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	2-11-1/2
THREAD DRILL B1 (MM)	49.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	30.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	70.0
OVERALL LENGTH L (MM)	65.7
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	1.225
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	19.645

7032-32-20-SS

$843.61

Attribute: 7032-32-20-SS (32MP-20MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	2-11-1/2
THREAD DRILL B1 (MM)	49.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	30.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	70.0
OVERALL LENGTH L (MM)	65.7
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	19.645

7032-32-24

$284.27

Attribute: 7032-32-24 (32MP-24MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	2-11-1/2
THREAD DRILL B1 (MM)	49.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	33.3
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	70.0
OVERALL LENGTH L (MM)	62.3
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	1.281
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	18.629

7032-32-24-SS

$920.37

Attribute: 7032-32-24-SS (32MP-24MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	2-11-1/2
THREAD DRILL B1 (MM)	49.2
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	33.3
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	70.0
OVERALL LENGTH L (MM)	62.3
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	18.629

7032-32-32

$236.18

Attribute: 7032-32-32 (32MP-32MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	2-11-1/2
THREAD DRILL B1 (MM)	45.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	2-11
THREAD DRILL B2 (MM)	45.0
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	70.0
OVERALL LENGTH L (MM)	70.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	2.200
MAXIMUM DYNAMIC PRESSURE (PSI)	1,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	20.931

7032-32-32-SS

$2,275.14

Attribute: 7032-32-32-SS (32MP-32MBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	2-11-1/2
THREAD DRILL B1 (MM)	45.8
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	2-11
THREAD DRILL B2 (MM)	45.8
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	70.0
OVERALL LENGTH L (MM)	70.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.525
MAXIMUM DYNAMIC PRESSURE (PSI)	1,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	20.931

7032-32-40

$940.42

Attribute: 7032-32-40 (32MP-40MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	2-11-1/2
THREAD DRILL B1 (MM)	45.8
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	2-1/2-11
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
CALIFORNIA RESIDENTS	PROP-65 WARNING

7032-40-32

$968.59

Attribute: 7032-40-32 (40MP-32MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	2-1/2-8
THREAD DRILL B1 (MM)	57.15
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	2-11
THREAD DRILL B2 (MM)	45.8
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
BODY HEX (MM)	82.55
OVERALL LENGTH L (MM)	80.7
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	2.388
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	33.559

7032-40-40

$896.07

Attribute: 7032-40-40 (40MP-40MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	2-1/2-8
THREAD DRILL B1 (MM)	57.15
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	2-1/2-11
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
CALIFORNIA RESIDENTS	PROP-65 WARNING

7032-48-48

$1,373.11

Attribute: 7032-48-48 (48MP-48MBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3-8
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3-11
THREAD SPECIFICATION B2	60 DEG SEAT SWIVEL CONNECTION
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
CALIFORNIA RESIDENTS	PROP-65 WARNING

Description

Description

Variations (102)

7032-02-02

7032-02-02-SS

7032-02-04

7032-02-04-SS

7032-02-06

7032-02-06-SS

7032-02-08

7032-04-02

7032-04-02-SS

7032-04-04

7032-04-04-SS

7032-04-06

7032-04-06-SS

7032-04-08

7032-04-08-SS

7032-04-12

7032-04-16

7032-06-02

7032-06-02-SS

7032-06-04

7032-06-04-B

7032-06-04-SS

7032-06-06

7032-06-06-B

7032-06-06-SS

7032-06-08

7032-06-08-B

7032-06-08-SS

7032-06-10

7032-06-12

7032-06-12-SS

7032-06-16

7032-08-02

7032-08-04

7032-08-04-SS

7032-08-06

7032-08-06-SS

7032-08-06-SS-DOM

7032-08-08

7032-08-08-SS

7032-08-08-SS-DOM

7032-08-10

7032-08-10-SS

7032-08-12

7032-08-12-SS

7032-08-16

7032-08-16-SS

7032-12-04

7032-12-06

7032-12-06-SS

7032-12-08

7032-12-08-SS

7032-12-10

7032-12-10-SS

7032-12-12

7032-12-12-SS

7032-12-16

7032-12-16-SS

7032-12-20

7032-12-24

7032-16-04

7032-16-06

7032-16-08

7032-16-08-SS

7032-16-12

7032-16-12-SS

7032-16-16

7032-16-16-SS

7032-16-20

7032-16-20-SS

7032-16-24

7032-16-32

7032-20-12

7032-20-12-SS

7032-20-16

7032-20-16-SS
