7030

7030-02-02

$23.04

Attribute: 7030-02-02 (02MP-02MBSPT Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/8-27
THREAD DRILL B1 (MM)	4.8
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	3.5
THREAD SPECIFICATION B2	ISO 7-1

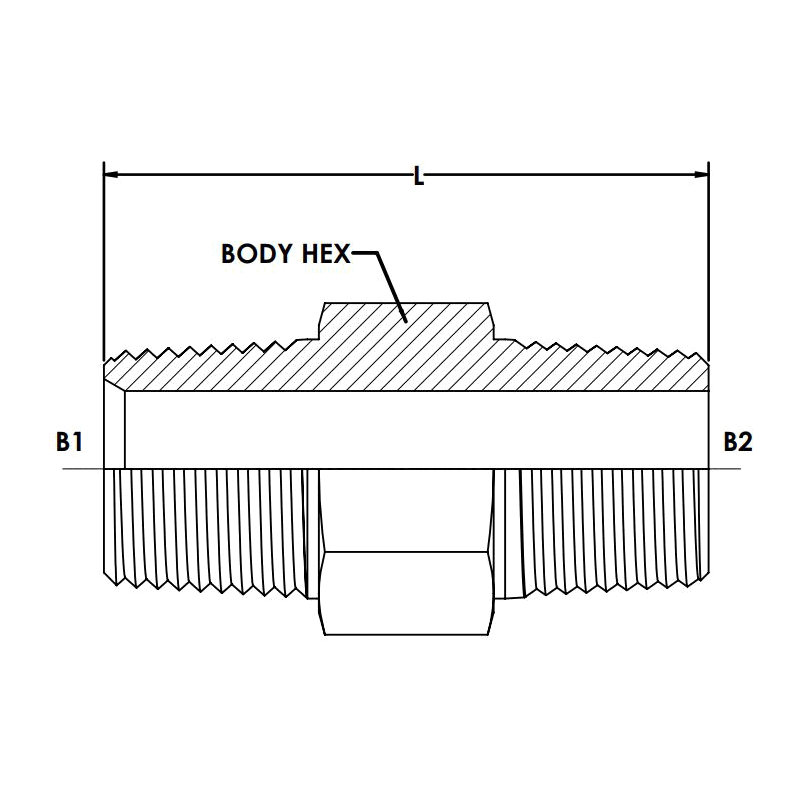

BODY HEX (MM)	11.1
OVERALL LENGTH L (MM)	27.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.031
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.203

7030-02-02-SS

$25.25

Attribute: 7030-02-02-SS (02MP-02MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/8-27
THREAD DRILL B1 (MM)	4.8
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	3.5
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	29.0
OVERALL LENGTH L (MM)	27.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.386

7030-04-04

$23.87

Attribute: 7030-04-04 (04MP-04MBSPT Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/4-18
THREAD DRILL B1 (MM)	7.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	7.1
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	15.9
OVERALL LENGTH L (MM)	36.8
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.069
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.568

7030-04-04-SS

$42.48

Attribute: 7030-04-04-SS (04MP-04MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/4-18
THREAD DRILL B1 (MM)	7.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	7.1
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	15.9
OVERALL LENGTH L (MM)	36.8
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.063
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.568

7030-04-06

$31.31

Attribute: 7030-04-06 (04MP-06MBSPT Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/4-18
THREAD DRILL B1 (MM)	7.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	10.3
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	17.5
OVERALL LENGTH L (MM)	39.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.094
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.729

7030-04-06-SS

$49.96

Attribute: 7030-04-06-SS (04MP-06MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/4-18
THREAD DRILL B1 (MM)	7.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	10.3
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	29.0
OVERALL LENGTH L (MM)	39.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.002

7030-06-04

$29.58

Attribute: 7030-06-04 (06MP-04MBSPT Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	9.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.3
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	17.4
OVERALL LENGTH L (MM)	38.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.088
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.702

7030-06-04-SS

$76.24

Attribute: 7030-06-04-SS (06MP-04MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	9.5
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.3
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	17.4
OVERALL LENGTH L (MM)	38.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.702

7030-06-06

$34.85

Attribute: 7030-06-06 (06MP-06MBSPT Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	10.3
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	10.3
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	40.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.094
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.881

7030-06-06-SS

$173.71

Attribute: 7030-06-06-SS (06MP-06MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/8-18
THREAD DRILL B1 (MM)	10.3
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	10.3
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	29.0
OVERALL LENGTH L (MM)	40.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.106
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.053

7030-08-06

$44.57

Attribute: 7030-08-06 (08MP-06MBSPT Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	12.7
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	10.3
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	29.0
OVERALL LENGTH L (MM)	45.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.309

7030-08-08

$30.28

Attribute: 7030-08-08 (08MP-08MBSPT Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	12.7
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.7
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	49.8
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.175
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.471

7030-08-08-SS

$99.93

Attribute: 7030-08-08-SS (08MP-08MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	12.7
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.7
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	49.8
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.188
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.471

7030-08-12

$73.39

Attribute: 7030-08-12 (08MP-12MBSPT Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1/2-14
THREAD DRILL B1 (MM)	12.7
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	17.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	29.1
OVERALL LENGTH L (MM)	52.1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.692

7030-12-12

$57.84

Attribute: 7030-12-12 (12MP-12MBSPT Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	18.3
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	18.3
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	28.6
OVERALL LENGTH L (MM)	52.1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.269
MAXIMUM DYNAMIC PRESSURE (PSI)	5,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.601

7030-12-12-SS

$180.85

Attribute: 7030-12-12-SS (12MP-12MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	18.3
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	17.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	29.1
OVERALL LENGTH L (MM)	52.1
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.275
MAXIMUM DYNAMIC PRESSURE (PSI)	5,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.692

7030-12-16

$63.94

Attribute: 7030-12-16 (12MP-16MBSPT Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3/4-14
THREAD DRILL B1 (MM)	17.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	23.8
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	29.1
OVERALL LENGTH L (MM)	55.1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	4,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.847

7030-16-12

$116.21

Attribute: 7030-16-12 (16MP-12MBSPT Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-11-1/2
THREAD DRILL B1 (MM)	23.8
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	17.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	29.1
OVERALL LENGTH L (MM)	55.1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.847

7030-16-16

$93.19

Attribute: 7030-16-16 (16MP-16MBSPT Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-11-1/2
THREAD DRILL B1 (MM)	23.8
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	23.8
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	35.0
OVERALL LENGTH L (MM)	59.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.469
MAXIMUM DYNAMIC PRESSURE (PSI)	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.478

7030-16-16-SS

$253.41

Attribute: 7030-16-16-SS (16MP-16MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-11-1/2
THREAD DRILL B1 (MM)	23.8
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	23.8
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	29.1
OVERALL LENGTH L (MM)	59.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.095

7030-20-20

$145.95

Attribute: 7030-20-20 (20MP-20MBSPT Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-1/4-11-1/2
THREAD DRILL B1 (MM)	31.7
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	31.7
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	47.6
OVERALL LENGTH L (MM)	65.8
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	1.119
MAXIMUM DYNAMIC PRESSURE (PSI)	2,300
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.098

7030-20-20-SS

$454.14

Attribute: 7030-20-20-SS (20MP-20MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-1/4-11-1/2
THREAD DRILL B1 (MM)	31.7
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	31.7
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	47.6
OVERALL LENGTH L (MM)	65.8
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.769
MAXIMUM DYNAMIC PRESSURE (PSI)	2,300
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.098

7030-24-24

$161.85

Attribute: 7030-24-24 (24MP-24MBSPT Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-1/2-11-1/2
THREAD DRILL B1 (MM)	38.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	38.1
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	50.8
OVERALL LENGTH L (MM)	66.3
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.763
MAXIMUM DYNAMIC PRESSURE (PSI)	2,300
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.441

7030-24-24-SS

$442.92

Attribute: 7030-24-24-SS (24MP-24MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	1-1/2-11-1/2
THREAD DRILL B1 (MM)	38.1
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	38.1
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	29.2
OVERALL LENGTH L (MM)	66.3
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	2,300
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.450

7030-32-32

$244.40

Attribute: 7030-32-32 (32MP-32MBSPT Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	2-11-1/2
THREAD DRILL B1 (MM)	49.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	2-11
THREAD DRILL B2 (MM)	45.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	69.9
OVERALL LENGTH L (MM)	72.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	1.569
MAXIMUM DYNAMIC PRESSURE (PSI)	2,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	21.736

7030-32-32-SS

$943.59

Attribute: 7030-32-32-SS (32MP-32MBSPT Stra...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	2-11-1/2
THREAD DRILL B1 (MM)	49.0
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	2-11
THREAD DRILL B2 (MM)	46.0
THREAD SPECIFICATION B2	ISO 7-1
BODY HEX (MM)	69.9
OVERALL LENGTH L (MM)	72.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	2,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	21.736

7030-40-40

$525.96

Attribute: 7030-40-40 (40MP-40MBSPT Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	2-1/2-8
THREAD DRILL B1 (MM)	57.15
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	2-1/2-11
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
CALIFORNIA RESIDENTS	PROP-65 WARNING

7030-48-48

$1,355.63

Attribute: 7030-48-48 (48MP-48MBSPT Straigh...)

Stock Status: True

THREAD TYPE B1	MALE NPT
THREAD SIZE B1	3-8
THREAD SPECIFICATION B1	ANSI B1.20.1
THREAD TYPE B2	MALE BSPT (R)
THREAD SIZE B2	3-11
THREAD SPECIFICATION B2	ISO 7-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
CALIFORNIA RESIDENTS	PROP-65 WARNING

Connections	NPT, BSP
Shape	Straight

ID	10148364
Category	Conversion Adapters

Description

Description

Variations (28)

7030-02-02

7030-02-02-SS

7030-04-04

7030-04-04-SS

7030-04-06

7030-04-06-SS

7030-06-04

7030-06-04-SS

7030-06-06

7030-06-06-SS

7030-08-06

7030-08-08

7030-08-08-SS

7030-08-12

7030-12-12

7030-12-12-SS

7030-12-16

7030-16-12

7030-16-16

7030-16-16-SS

7030-20-20

7030-20-20-SS

7030-24-24

7030-24-24-SS

7030-32-32

7030-32-32-SS

7030-40-40

7030-48-48

General Attributes

PDF Documents
