7025

7025-04-10

$16.99

Attribute: 7025-04-10 (04FJS-10MM Straight)

Stock Status: True

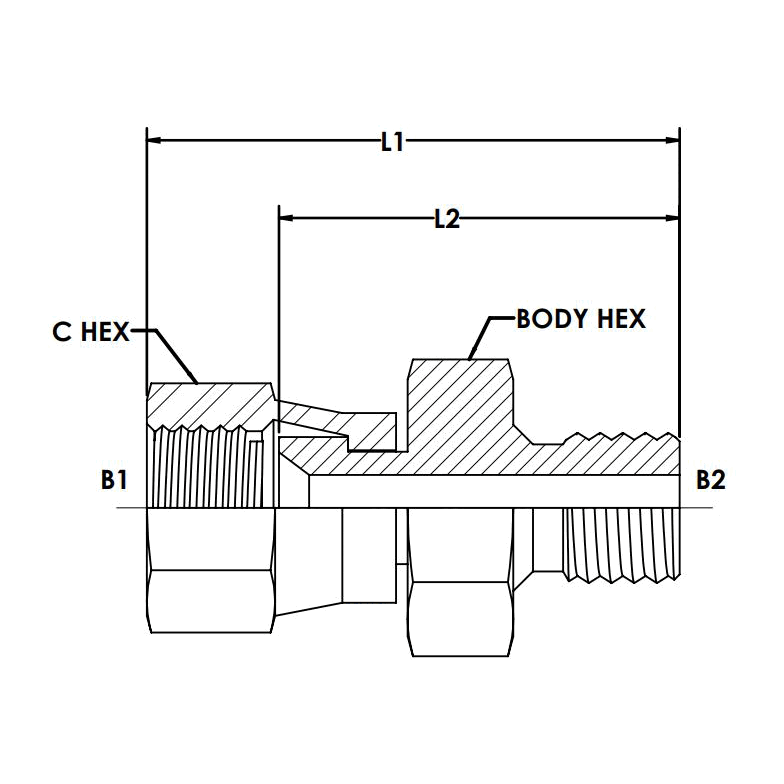

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M10X1.0
THREAD DRILL B2 (MM)	4.4
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	17.0
HEX C 1 (MM)	14.3
OVERALL LENGTH L1 (MM)	35.2
OVERALL LENGTH L2 (MM)	26.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.072
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.621

7025-04-12

$42.63

Attribute: 7025-04-12 (04FJS-12MM Straight)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M12X1.5
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	19.0
HEX C 1 (MM)	14.3
OVERALL LENGTH L1 (MM)	36.2
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.797

7025-05-12

$30.62

Attribute: 7025-05-12 (05FJS-12MM Straight)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	1/2-20
THREAD DRILL B1 (MM)	6.0
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M12X1.5
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	19.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L1 (MM)	37.7
OVERALL LENGTH L2 (MM)	29.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.081
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.831

7025-06-14

$37.16

Attribute: 7025-06-14 (06FJS-14MM Straight)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	6.0
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M14X1.5
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	19.0
HEX C 1 (MM)	17.5
OVERALL LENGTH L1 (MM)	38.0
OVERALL LENGTH L2 (MM)	28.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.113
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.837

7025-06-16

$38.84

Attribute: 7025-06-16 (06FJS-16MM Straight)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M16X1.5
THREAD DRILL B2 (MM)	7.5
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	22.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	40.5
OVERALL LENGTH L2 (MM)	31.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.131
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.196

7025-06-18

$41.50

Attribute: 7025-06-18 (06FJS-18MM Straight)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M18X1.5
THREAD DRILL B2 (MM)	7.5
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	24.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	42.5
OVERALL LENGTH L2 (MM)	33.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.169
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.494

7025-06-20

$44.99

Attribute: 7025-06-20 (06FJS-20MM Straight)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M20X1.5
THREAD DRILL B2 (MM)	12.5
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	27.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	40.7
OVERALL LENGTH L2 (MM)	34.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.190
CUBIC INCH SPACE (L X W X H)	PROP-65 WARNING

7025-06-22

$61.78

Attribute: 7025-06-22 (06FJS-22MM Straight)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M22X1.5
THREAD DRILL B2 (MM)	14.0
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	27.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	43.7
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.144
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.944

7025-08-16

$37.66

Attribute: 7025-08-16 (08FJS-16MM Straight)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M16X1.5
THREAD DRILL B2 (MM)	9.0
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	22.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	42.6
OVERALL LENGTH L2 (MM)	33.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.150
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.258

7025-08-18

$39.48

Attribute: 7025-08-18 (08FJS-18MM Straight)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M18X1.5
THREAD DRILL B2 (MM)	11.0
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	24.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	44.7
OVERALL LENGTH L2 (MM)	34.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.169
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.571

7025-08-20

$41.60

Attribute: 7025-08-20 (08FJS-20MM Straight)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M20X1.5
THREAD DRILL B2 (MM)	12.5
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	27.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	43.1
OVERALL LENGTH L2 (MM)	35.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.206
CUBIC INCH SPACE (L X W X H)	PROP-65 WARNING

7025-08-22

$49.22

Attribute: 7025-08-22 (08FJS-22MM Straight)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M22X1.5
THREAD DRILL B2 (MM)	12.3
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	27.0
HEX C 1 (MM)	22.2
OVERALL LENGTH L1 (MM)	45.7
OVERALL LENGTH L2 (MM)	35.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.219
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.033

7025-10-16

$50.45

Attribute: 7025-10-16 (10FJS-16MM Straight)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M16X1.5
THREAD DRILL B2 (MM)	8.0
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	22.0
HEX C 1 (MM)	25.4
OVERALL LENGTH L1 (MM)	44.9
OVERALL LENGTH L2 (MM)	32.2
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.163
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.768

7025-10-18

$52.42

Attribute: 7025-10-18 (10FJS-18MM Straight)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M18X1.5
THREAD DRILL B2 (MM)	11.0
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	22.0
HEX C 1 (MM)	25.4
OVERALL LENGTH L1 (MM)	46.7
OVERALL LENGTH L2 (MM)	34.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.131
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.839

7025-10-20

$56.86

Attribute: 7025-10-20 (10FJS-20MM Straight)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M20X1.5
THREAD DRILL B2 (MM)	12.5
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	27.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	45.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.263
CUBIC INCH SPACE (L X W X H)	PROP-65 WARNING

7025-10-22

$57.06

Attribute: 7025-10-22 (10FJS-22MM Straight)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M22X1.5
THREAD DRILL B2 (MM)	14.0
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	27.0
HEX C 1 (MM)	25.4
OVERALL LENGTH L1 (MM)	47.0
OVERALL LENGTH L2 (MM)	32.82
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.206
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.091

7025-12-26

$53.40

Attribute: 7025-12-26 (12FJS-26MM Straight)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC
THREAD SIZE B2	M26X1.5
THREAD DRILL B2 (MM)	18.0
THREAD SPECIFICATION B2	ISO 9974
BODY HEX (MM)	32.0
HEX C 1 (MM)	32.0
OVERALL LENGTH L1 (MM)	54.3
OVERALL LENGTH L2 (MM)	40.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.369
CUBIC INCH SPACE (L X W X H)	PROP-65 WARNING

Connections	JIC, Metric
Shape	Straight

ID	10148344
Category	Conversion Adapters

Description

Description

Variations (17)

7025-04-10

7025-04-12

7025-05-12

7025-06-14

7025-06-16

7025-06-18

7025-06-20

7025-06-22

7025-08-16

7025-08-18

7025-08-20

7025-08-22

7025-10-16

7025-10-18

7025-10-20

7025-10-22

7025-12-26

General Attributes

PDF Documents
