7023

7023-04-04

$14.72

Attribute: 7023-04-04 (04FJS-04FBSPPS Strai...)

Stock Status: True

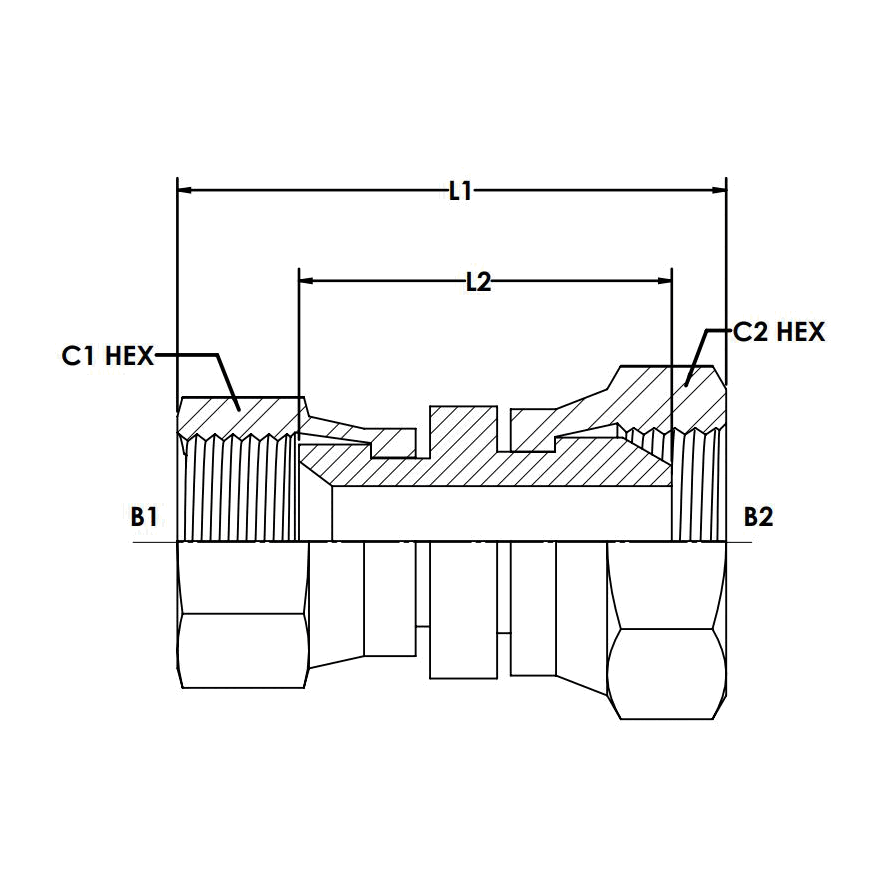

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	4.7
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
HEX C 1 (MM)	14.0
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	37.0
OVERALL LENGTH L2 (MM)	23.27
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.163
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.815

7023-04-04-SS

$67.39

Attribute: 7023-04-04-SS (04FJS-04FBSPPS St...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	4.7
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
HEX C 1 (MM)	14.0
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	37.0
OVERALL LENGTH L2 (MM)	23.27
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.815

7023-04-06

$30.52

Attribute: 7023-04-06 (04FJS-06FBSPPS Strai...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	7.5
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
HEX C 1 (MM)	14.0
HEX C 2 (MM)	22.0
OVERALL LENGTH L1 (MM)	39.2
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.158

7023-05-04

$37.16

Attribute: 7023-05-04 (05FJS-04FBSPPS Strai...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	1/2-20
THREAD DRILL B1 (MM)	6.0
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	4.7
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
HEX C 1 (MM)	15.9
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	38.7
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.853

7023-05-06

$35.05

Attribute: 7023-05-06 (05FJS-06FBSPPS Strai...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	1/2-20
THREAD DRILL B1 (MM)	6.0
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	7.5
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
HEX C 1 (MM)	15.9
HEX C 2 (MM)	22.0
OVERALL LENGTH L1 (MM)	40.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.208

7023-06-04

$45.38

Attribute: 7023-06-04 (06FJS-04FBSPPS Strai...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	4.7
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
HEX C 1 (MM)	17.4
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	37.0
OVERALL LENGTH L2 (MM)	24.56
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.094
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.815

7023-06-04-SS

$136.25

Attribute: 7023-06-04-SS (06FJS-04FBSPPS St...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	4.7
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
HEX C 1 (MM)	17.4
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	37.0
OVERALL LENGTH L2 (MM)	24.56
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.815

7023-06-06

$33.92

Attribute: 7023-06-06 (06FJS-06FBSPPS Strai...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	7.5
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
HEX C 1 (MM)	17.5
HEX C 2 (MM)	22.0
OVERALL LENGTH L1 (MM)	39.5
OVERALL LENGTH L2 (MM)	25.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.125
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.167

7023-06-06-SS

$163.62

Attribute: 7023-06-06-SS (06FJS-06FBSPPS St...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	7.5
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
HEX C 1 (MM)	17.5
HEX C 2 (MM)	22.0
OVERALL LENGTH L1 (MM)	39.5
OVERALL LENGTH L2 (MM)	25.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.167

7023-06-08

$35.20

Attribute: 7023-06-08 (06FJS-08FBSPPS Strai...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	11.1
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
HEX C 1 (MM)	19.0
HEX C 2 (MM)	27.0
OVERALL LENGTH L1 (MM)	44.7
OVERALL LENGTH L2 (MM)	28.6
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.213
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.989

7023-06-08-SS

$215.31

Attribute: 7023-06-08-SS (06FJS-08FBSPPS St...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	11.1
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
HEX C 1 (MM)	19.0
HEX C 2 (MM)	27.0
OVERALL LENGTH L1 (MM)	44.7
OVERALL LENGTH L2 (MM)	28.6
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.989

7023-08-06

$38.00

Attribute: 7023-08-06 (08FJS-06FBSPPS Strai...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	7.5
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
HEX C 1 (MM)	22.0
HEX C 2 (MM)	22.0
OVERALL LENGTH L1 (MM)	44.1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.163
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.303

7023-08-06-SS

$120.35

Attribute: 7023-08-06-SS (08FJS-06FBSPPS St...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	7.5
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
HEX C 1 (MM)	22.0
HEX C 2 (MM)	22.0
OVERALL LENGTH L1 (MM)	44.1
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.303

7023-08-08

$43.41

Attribute: 7023-08-08 (08FJS-08FBSPPS Strai...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	11.1
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
HEX C 1 (MM)	22.0
HEX C 2 (MM)	27.0
OVERALL LENGTH L1 (MM)	47.1
OVERALL LENGTH L2 (MM)	29.88
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.225
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.095

7023-08-08-SS

$140.34

Attribute: 7023-08-08-SS (08FJS-08FBSPPS St...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	11.1
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
HEX C 1 (MM)	22.0
HEX C 2 (MM)	27.0
OVERALL LENGTH L1 (MM)	47.1
OVERALL LENGTH L2 (MM)	29.88
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.095

7023-08-12

$78.03

Attribute: 7023-08-12 (08FJS-12FBSPPS Strai...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	16.7
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
HEX C 1 (MM)	22.0
HEX C 2 (MM)	31.8
OVERALL LENGTH L1 (MM)	48.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.993

7023-10-08

$55.13

Attribute: 7023-10-08 (10FJS-08FBSPPS Strai...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	11.1
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
HEX C 1 (MM)	25.4
HEX C 2 (MM)	27.0
OVERALL LENGTH L1 (MM)	49.6
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.207

7023-10-10

$58.11

Attribute: 7023-10-10 (10FJS-10FBSPPS Strai...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	5/8-14
THREAD DRILL B2 (MM)	12.3
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
HEX C 1 (MM)	25.4
HEX C 2 (MM)	30.0
OVERALL LENGTH L1 (MM)	50.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.746

7023-10-12

$116.21

Attribute: 7023-10-12 (10FJS-12FBSPPS Strai...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	16.7
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
HEX C 1 (MM)	25.4
HEX C 2 (MM)	31.8
OVERALL LENGTH L1 (MM)	52.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.240

7023-12-08

$96.86

Attribute: 7023-12-08 (12FJS-08FBSPPS Strai...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	11.1
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
HEX C 1 (MM)	31.8
HEX C 2 (MM)	27.0
OVERALL LENGTH L1 (MM)	51.2
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.160

7023-12-12

$73.54

Attribute: 7023-12-12 (12FJS-12FBSPPS Strai...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	16.7
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
HEX C 1 (MM)	31.8
HEX C 2 (MM)	31.8
OVERALL LENGTH L1 (MM)	54.1
OVERALL LENGTH L2 (MM)	33.6
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.356
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.338

7023-12-16

$168.05

Attribute: 7023-12-16 (12FJS-16FBSPPS Strai...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	21.5
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
HEX C 1 (MM)	31.8
HEX C 2 (MM)	41.0
OVERALL LENGTH L1 (MM)	57.6
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.909

7023-16-12

$168.05

Attribute: 7023-16-12 (16FJS-12FBSPPS Strai...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	21.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	16.7
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
HEX C 1 (MM)	38.1
HEX C 2 (MM)	31.8
OVERALL LENGTH L1 (MM)	56.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.996

7023-16-16

$135.71

Attribute: 7023-16-16 (16FJS-16FBSPPS Strai...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	21.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	21.5
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
HEX C 1 (MM)	38.1
HEX C 2 (MM)	41.0
OVERALL LENGTH L1 (MM)	59.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	8.800
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.145

7023-16-20

$194.83

Attribute: 7023-16-20 (16FJS-20FBSPPS Strai...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	21.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	28.6
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
HEX C 1 (MM)	38.1
HEX C 2 (MM)	50.0
OVERALL LENGTH L1 (MM)	61.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.367

7023-20-20

$195.03

Attribute: 7023-20-20 (20FJS-20FBSPPS Strai...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	1-5/8-12
THREAD DRILL B1 (MM)	27.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	28.6
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
HEX C 1 (MM)	50.8
HEX C 2 (MM)	50.0
OVERALL LENGTH L1 (MM)	61.6
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.894
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.701

7023-24-24

$369.14

Attribute: 7023-24-24 (24FJS-24FBSPPS Strai...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	1-7/8-12
THREAD DRILL B1 (MM)	33.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	30.5
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
HEX C 1 (MM)	57.2
HEX C 2 (MM)	55.0
OVERALL LENGTH L1 (MM)	69.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	13.777

Connections	JIC, BSP
Shape	Straight

ID	10148314
Category	Conversion Adapters

Description

Description

Variations (27)

7023-04-04

7023-04-04-SS

7023-04-06

7023-05-04

7023-05-06

7023-06-04

7023-06-04-SS

7023-06-06

7023-06-06-SS

7023-06-08

7023-06-08-SS

7023-08-06

7023-08-06-SS

7023-08-08

7023-08-08-SS

7023-08-12

7023-10-08

7023-10-10

7023-10-12

7023-12-08

7023-12-12

7023-12-16

7023-16-12

7023-16-16

7023-16-20

7023-20-20

7023-24-24

General Attributes

PDF Documents
