Description

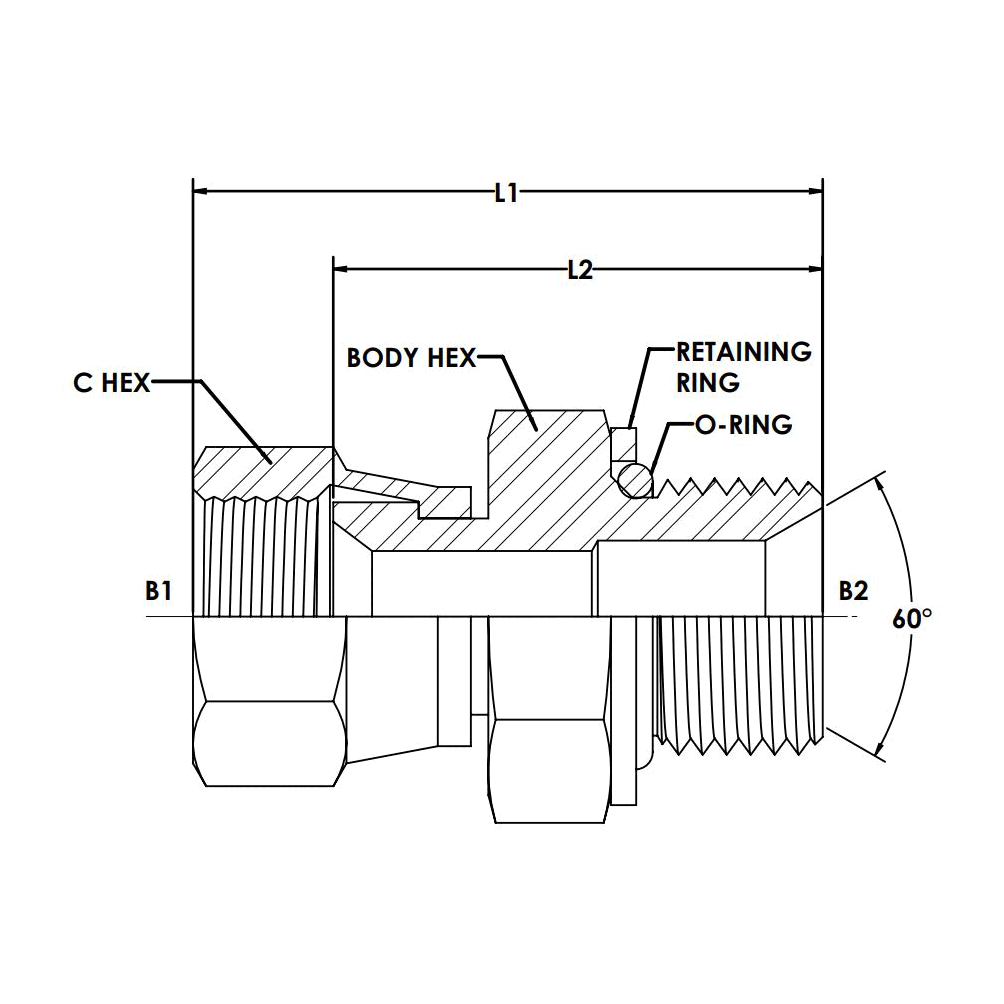

FJS-MBSPP STRAIGHT WITH O-RING AND RETAINING RING. PORT ONLY
Description
Variations (5)
7022-16-12-ORR
$133.01Attribute: 7022-16-12-ORR (16FJS-12MBSPP OR...)
Stock Status: True
| THREAD TYPE B1 | FEMALE JIC SWIVEL 37 DEG FLARE |
|---|---|
| THREAD SIZE B1 | 1-5/16-12 |
| THREAD DRILL B1 (MM) | 21.4 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE BSPP ORR |
| THREAD SIZE B2 | 3/4-14 |
| THREAD DRILL B2 (MM) | 17.0 |
| THREAD SPECIFICATION B2 | BS 5200 |
| BODY HEX (MM) | 35.0 |
| HEX C 1 (MM) | 38.1 |
| OVERALL LENGTH L1 (MM) | 61.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 4,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 5.404 |
7022-16-16-ORR
$100.51Attribute: 7022-16-16-ORR (16FJS-16MBSPP OR...)
Stock Status: True
| THREAD TYPE B1 | FEMALE JIC SWIVEL 37 DEG FLARE |
|---|---|
| THREAD SIZE B1 | 1-5/16-12 |
| THREAD DRILL B1 (MM) | 21.4 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE BSPP ORR |
| THREAD SIZE B2 | 1-11 |
| THREAD DRILL B2 (MM) | 21.4 |
| THREAD SPECIFICATION B2 | BS 5200 |
| BODY HEX (MM) | 41.0 |
| HEX C 1 (MM) | 38.1 |
| OVERALL LENGTH L1 (MM) | 64.5 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 4,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 6.616 |
7022-20-20-ORR
$142.89Attribute: 7022-20-20-ORR (20FJS-20MBSPP OR...)
Stock Status: True
| THREAD TYPE B1 | FEMALE JIC SWIVEL 37 DEG FLARE |
|---|---|
| THREAD SIZE B1 | 1-5/8-12 |
| THREAD DRILL B1 (MM) | 27.4 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE BSPP ORR |
| THREAD SIZE B2 | 1-1/4-11 |
| THREAD DRILL B2 (MM) | 30.0 |
| THREAD SPECIFICATION B2 | BS 5200 |
| BODY HEX (MM) | 50.0 |
| HEX C 1 (MM) | 50.0 |
| OVERALL LENGTH L1 (MM) | 63.9 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 3,600 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 9.749 |
7022-24-24-ORR
$175.63Attribute: 7022-24-24-ORR (24FJS-24MBSPP OR...)
Stock Status: True
| THREAD TYPE B1 | FEMALE JIC SWIVEL 37 DEG FLARE |
|---|---|
| THREAD SIZE B1 | 1-7/8-12 |
| THREAD DRILL B1 (MM) | 33.3 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE BSPP ORR |
| THREAD SIZE B2 | 1-1/2-11 |
| THREAD DRILL B2 (MM) | 33.3 |
| THREAD SPECIFICATION B2 | BS 5200 |
| BODY HEX (MM) | 55.0 |
| HEX C 1 (MM) | 57.2 |
| OVERALL LENGTH L1 (MM) | 71.6 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 3,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 14.296 |
7022-32-32-ORR
$677.83Attribute: 7022-32-32-ORR (32FJS-32MBSPP OR...)
Stock Status: True
| THREAD TYPE B1 | FEMALE JIC SWIVEL 37 DEG FLARE |
|---|---|
| THREAD SIZE B1 | 2-1/2-12 |
| THREAD DRILL B1 (MM) | 45.0 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE BSPP ORR |
| THREAD SIZE B2 | 2-11 |
| THREAD DRILL B2 (MM) | 45.0 |
| THREAD SPECIFICATION B2 | BS 5200 |
| BODY HEX (MM) | 66.7 |
| HEX C 1 (MM) | 73.0 |
| OVERALL LENGTH L1 (MM) | 84.5 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 27.479 |
General Attributes
| Connections | JIC, BSP |
|---|---|
| Shape | Straight |
