7022-BS

7022-04-02-BS

$19.04

Attribute: 7022-04-02-BS (04FJS-02MBSPP Str...)

Stock Status: True

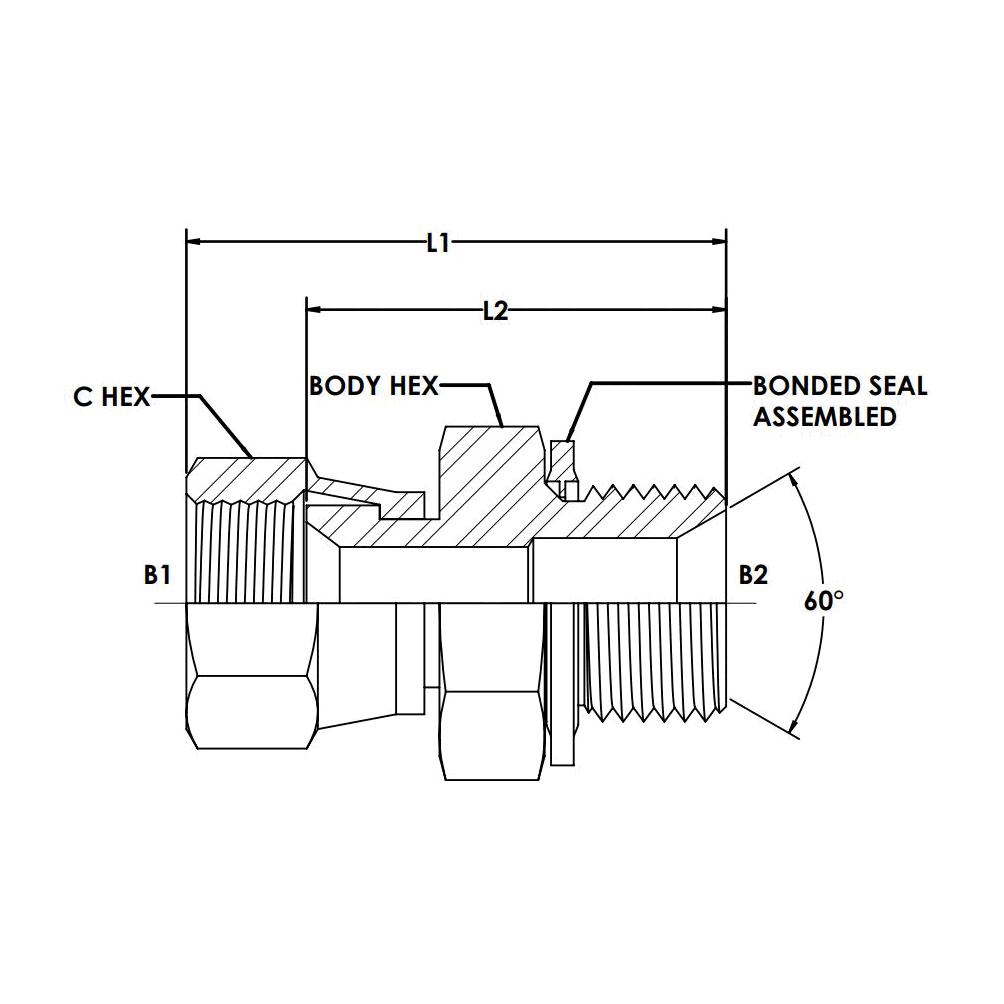

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	3.5
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-02
BODY HEX (MM)	14.0
HEX C 1 (MM)	14.0
OVERALL LENGTH L1 (MM)	30.0
OVERALL LENGTH L2 (MM)	25.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.062
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.359

7022-04-02-SS-BS

$122.28

Attribute: 7022-04-02-SS-BS (04FJS-02MBSPP ...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	3.5
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-02-SS
BODY HEX (MM)	14.0
HEX C 1 (MM)	14.0
OVERALL LENGTH L1 (MM)	30.0
OVERALL LENGTH L2 (MM)	25.4
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.359

7022-04-04-BS

$20.93

Attribute: 7022-04-04-BS (04FJS-04MBSPP Str...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-04
BODY HEX (MM)	19.0
HEX C 1 (MM)	14.3
OVERALL LENGTH L1 (MM)	36.7
OVERALL LENGTH L2 (MM)	28.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.094
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.808

7022-04-04-SS-BS

$124.65

Attribute: 7022-04-04-SS-BS (04FJS-04MBSPP ...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-04-SS
BODY HEX (MM)	19.0
HEX C 1 (MM)	14.3
OVERALL LENGTH L1 (MM)	36.7
OVERALL LENGTH L2 (MM)	28.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.808

7022-04-06-BS

$36.72

Attribute: 7022-04-06-BS (04FJS-06MBSPP Str...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	9.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-06
BODY HEX (MM)	22.0
HEX C 1 (MM)	15.0
OVERALL LENGTH L1 (MM)	37.0
OVERALL LENGTH L2 (MM)	29.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.012
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.093

7022-04-06-SS-BS

$155.44

Attribute: 7022-04-06-SS-BS (04FJS-06MBSPP ...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	9.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-06-SS
BODY HEX (MM)	22.0
HEX C 1 (MM)	15.0
OVERALL LENGTH L1 (MM)	37.0
OVERALL LENGTH L2 (MM)	29.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.093

7022-04-08-BS

$43.62

Attribute: 7022-04-08-BS (04FJS-08MBSPP Str...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	11.1
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-08
BODY HEX (MM)	27.0
HEX C 1 (MM)	14.3
OVERALL LENGTH L1 (MM)	40.4
OVERALL LENGTH L2 (MM)	32.45
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.797

7022-05-04-BS

$66.21

Attribute: 7022-05-04-BS (05FJS-04MBSPP Str...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	1/2-20
THREAD DRILL B1 (MM)	5.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	5.9
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-04
BODY HEX (MM)	19.0
HEX C 1 (MM)	15.9
OVERALL LENGTH L1 (MM)	36.7
OVERALL LENGTH L2 (MM)	28.7
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.006
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.808

7022-05-04-SS-BS

$248.37

Attribute: 7022-05-04-SS-BS (05FJS-04MBSPP ...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	1/2-20
THREAD DRILL B1 (MM)	5.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	5.9
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-04-SS
BODY HEX (MM)	19.0
HEX C 1 (MM)	15.9
OVERALL LENGTH L1 (MM)	36.7
OVERALL LENGTH L2 (MM)	28.7
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.808

7022-05-06-BS

$64.59

Attribute: 7022-05-06-BS (05FJS-06MBSPP Str...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	1/2-20
THREAD DRILL B1 (MM)	5.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	9.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-06
BODY HEX (MM)	22.0
HEX C 1 (MM)	15.9
OVERALL LENGTH L1 (MM)	37.0
OVERALL LENGTH L2 (MM)	28.08
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.093

7022-05-08-BS

$72.67

Attribute: 7022-05-08-BS (05FJS-08MBSPP Str...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	1/2-20
THREAD DRILL B1 (MM)	5.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	11.1
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-08
BODY HEX (MM)	27.0
HEX C 1 (MM)	15.9
OVERALL LENGTH L1 (MM)	42.1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.873

7022-06-04-BS

$28.99

Attribute: 7022-06-04-BS (06FJS-04MBSPP Str...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-04
BODY HEX (MM)	19.0
HEX C 1 (MM)	17.5
OVERALL LENGTH L1 (MM)	39.0
OVERALL LENGTH L2 (MM)	29.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.106
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.859

7022-06-04-SS-BS

$200.79

Attribute: 7022-06-04-SS-BS (06FJS-04MBSPP ...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-04-SS
BODY HEX (MM)	19.0
HEX C 1 (MM)	17.5
OVERALL LENGTH L1 (MM)	39.0
OVERALL LENGTH L2 (MM)	29.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.859

7022-06-06-BS

$27.71

Attribute: 7022-06-06-BS (06FJS-06MBSPP Str...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	9.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-06
BODY HEX (MM)	22.0
HEX C 1 (MM)	17.5
OVERALL LENGTH L1 (MM)	40.5
OVERALL LENGTH L2 (MM)	31.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.131
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.196

7022-06-06-SS-BS

$199.18

Attribute: 7022-06-06-SS-BS (06FJS-06MBSPP ...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	9.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-06-SS
BODY HEX (MM)	22.0
HEX C 1 (MM)	17.5
OVERALL LENGTH L1 (MM)	40.5
OVERALL LENGTH L2 (MM)	31.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.196

7022-06-08-BS

$32.40

Attribute: 7022-06-08-BS (06FJS-08MBSPP Str...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	11.1
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-08
BODY HEX (MM)	27.0
HEX C 1 (MM)	17.5
OVERALL LENGTH L1 (MM)	43.7
OVERALL LENGTH L2 (MM)	36.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.012
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.944

7022-06-08-SS-BS

$233.78

Attribute: 7022-06-08-SS-BS (06FJS-08MBSPP ...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	11.1
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-08-SS
BODY HEX (MM)	27.0
HEX C 1 (MM)	17.5
OVERALL LENGTH L1 (MM)	43.7
OVERALL LENGTH L2 (MM)	36.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.944

7022-08-04-BS

$32.53

Attribute: 7022-08-04-BS (08FJS-04MBSPP Str...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-04
BODY HEX (MM)	22.0
HEX C 1 (MM)	22.2
OVERALL LENGTH L1 (MM)	41.3
OVERALL LENGTH L2 (MM)	30.56
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.006
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.242

7022-08-04-SS-BS

$257.01

Attribute: 7022-08-04-SS-BS (08FJS-04MBSPP ...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-04-SS
BODY HEX (MM)	22.0
HEX C 1 (MM)	22.2
OVERALL LENGTH L1 (MM)	41.3
OVERALL LENGTH L2 (MM)	30.56
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.242

7022-08-06-BS

$30.32

Attribute: 7022-08-06-BS (08FJS-06MBSPP Str...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	9.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-06
BODY HEX (MM)	22.0
HEX C 1 (MM)	22.2
OVERALL LENGTH L1 (MM)	43.2
OVERALL LENGTH L2 (MM)	32.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.156
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.299

7022-08-06-SS-BS

$260.15

Attribute: 7022-08-06-SS-BS (08FJS-06MBSPP ...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	9.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-06-SS
BODY HEX (MM)	22.0
HEX C 1 (MM)	22.2
OVERALL LENGTH L1 (MM)	43.2
OVERALL LENGTH L2 (MM)	32.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.299

7022-08-08-BS

$29.58

Attribute: 7022-08-08-BS (08FJS-08MBSPP Str...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	11.5
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-08
BODY HEX (MM)	27.0
HEX C 1 (MM)	22.2
OVERALL LENGTH L1 (MM)	46.1
OVERALL LENGTH L2 (MM)	37.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.212
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.051

7022-08-08-SS-BS

$246.80

Attribute: 7022-08-08-SS-BS (08FJS-08MBSPP ...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	11.5
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-08-SS
BODY HEX (MM)	27.0
HEX C 1 (MM)	22.2
OVERALL LENGTH L1 (MM)	46.1
OVERALL LENGTH L2 (MM)	37.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.051

7022-08-10-BS

$89.76

Attribute: 7022-08-10-BS (08FJS-10MBSPP Str...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	5/8-14
THREAD DRILL B2 (MM)	15.2
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-10
BODY HEX (MM)	30.0
HEX C 1 (MM)	22.2
OVERALL LENGTH L1 (MM)	49.8
OVERALL LENGTH L2 (MM)	39.12
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.735

7022-08-12-BS

$110.42

Attribute: 7022-08-12-BS (08FJS-12MBSPP Str...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	17.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-12
BODY HEX (MM)	32.0
HEX C 1 (MM)	22.2
OVERALL LENGTH L1 (MM)	51.3
OVERALL LENGTH L2 (MM)	40.56
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.206

7022-08-12-SS-BS

$403.58

Attribute: 7022-08-12-SS-BS (08FJS-12MBSPP ...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	17.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-12-SS
BODY HEX (MM)	32.0
HEX C 1 (MM)	22.2
OVERALL LENGTH L1 (MM)	51.3
OVERALL LENGTH L2 (MM)	40.56
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.206

7022-10-04-BS

$70.06

Attribute: 7022-10-04-BS (10FJS-04MBSPP Str...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-04
BODY HEX (MM)	27.0
HEX C 1 (MM)	22.2
OVERALL LENGTH L1 (MM)	44.2
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.966

7022-10-06-BS

$60.71

Attribute: 7022-10-06-BS (10FJS-06MBSPP Str...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	9.5
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-06
BODY HEX (MM)	27.0
HEX C 1 (MM)	25.4
OVERALL LENGTH L1 (MM)	46.2
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.055

7022-10-06-SS-BS

$333.15

Attribute: 7022-10-06-SS-BS (10FJS-06MBSPP ...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	9.5
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-06-SS
BODY HEX (MM)	27.0
HEX C 1 (MM)	25.4
OVERALL LENGTH L1 (MM)	46.2
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.055

7022-10-08-BS

$56.66

Attribute: 7022-10-08-BS (10FJS-08MBSPP Str...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.3
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-08
BODY HEX (MM)	27.0
HEX C 1 (MM)	25.4
OVERALL LENGTH L1 (MM)	50.7
OVERALL LENGTH L2 (MM)	38.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.243
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.255

7022-10-08-SS-BS

$351.82

Attribute: 7022-10-08-SS-BS (10FJS-08MBSPP ...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.3
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-08-SS
BODY HEX (MM)	27.0
HEX C 1 (MM)	25.4
OVERALL LENGTH L1 (MM)	50.7
OVERALL LENGTH L2 (MM)	38.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.255

7022-10-10-BS

$52.57

Attribute: 7022-10-10-BS (10FJS-10MBSPP Str...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	5/8-14
THREAD DRILL B2 (MM)	15.2
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-10
BODY HEX (MM)	30.0
HEX C 1 (MM)	25.4
OVERALL LENGTH L1 (MM)	52.7
OVERALL LENGTH L2 (MM)	40.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.019
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.894

7022-10-10-SS-BS

$289.35

Attribute: 7022-10-10-SS-BS (10FJS-10MBSPP ...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	5/8-14
THREAD DRILL B2 (MM)	15.2
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-10-SS
BODY HEX (MM)	30.0
HEX C 1 (MM)	25.4
OVERALL LENGTH L1 (MM)	52.7
OVERALL LENGTH L2 (MM)	40.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.894

7022-10-12-BS

$81.38

Attribute: 7022-10-12-BS (10FJS-12MBSPP Str...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	17.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-12
BODY HEX (MM)	32.0
HEX C 1 (MM)	25.4
OVERALL LENGTH L1 (MM)	56.8
OVERALL LENGTH L2 (MM)	44.1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.549

7022-10-12-SS-BS

$380.74

Attribute: 7022-10-12-SS-BS (10FJS-12MBSPP ...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	17.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-12-SS
BODY HEX (MM)	32.0
HEX C 1 (MM)	25.4
OVERALL LENGTH L1 (MM)	56.8
OVERALL LENGTH L2 (MM)	44.1
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.549

7022-12-06-BS

$114.94

Attribute: 7022-12-06-BS (12FJS-06MBSPP Str...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	9.5
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-06
BODY HEX (MM)	29.0
HEX C 1 (MM)	31.8
OVERALL LENGTH L1 (MM)	49.2
OVERALL LENGTH L2 (MM)	35.8
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.036

7022-12-08-BS

$54.05

Attribute: 7022-12-08-BS (12FJS-08MBSPP Str...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.7
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-08
BODY HEX (MM)	28.6
HEX C 1 (MM)	31.8
OVERALL LENGTH L1 (MM)	53.2
OVERALL LENGTH L2 (MM)	39.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.194
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.283

7022-12-08-SS-BS

$370.86

Attribute: 7022-12-08-SS-BS (12FJS-08MBSPP ...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.7
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-08-SS
BODY HEX (MM)	28.6
HEX C 1 (MM)	31.8
OVERALL LENGTH L1 (MM)	53.2
OVERALL LENGTH L2 (MM)	39.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.283

7022-12-12-BS

$63.75

Attribute: 7022-12-12-BS (12FJS-12MBSPP Str...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	17.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-12
BODY HEX (MM)	29.1
HEX C 1 (MM)	31.8
OVERALL LENGTH L1 (MM)	59.3
OVERALL LENGTH L2 (MM)	45.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.431
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.659

7022-12-12-SS-BS

$346.47

Attribute: 7022-12-12-SS-BS (12FJS-12MBSPP ...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	17.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-12-SS
BODY HEX (MM)	29.1
HEX C 1 (MM)	31.8
OVERALL LENGTH L1 (MM)	59.3
OVERALL LENGTH L2 (MM)	45.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.659

7022-12-16-BS

$103.02

Attribute: 7022-12-16-BS (12FJS-16MBSPP Str...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	21.4
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-16
BODY HEX (MM)	29.1
HEX C 1 (MM)	31.8
OVERALL LENGTH L1 (MM)	56.5
OVERALL LENGTH L2 (MM)	46.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.487

7022-12-16-SS-BS

$369.32

Attribute: 7022-12-16-SS-BS (12FJS-16MBSPP ...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	21.4
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-16-SS
BODY HEX (MM)	29.1
HEX C 1 (MM)	31.8
OVERALL LENGTH L1 (MM)	56.5
OVERALL LENGTH L2 (MM)	46.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.487

7022-14-12-BS

$106.56

Attribute: 7022-14-12-BS (14FJS-12MBSPP Str...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	1-3/16-12
THREAD DRILL B1 (MM)	18.2
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	17.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-12
BODY HEX (MM)	29.1
HEX C 1 (MM)	34.9
OVERALL LENGTH L1 (MM)	58.2
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.326

7022-16-12-BS

$109.23

Attribute: 7022-16-12-BS (16FJS-12MBSPP Str...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	21.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	17.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-12
BODY HEX (MM)	35.0
HEX C 1 (MM)	38.1
OVERALL LENGTH L1 (MM)	61.0
OVERALL LENGTH L2 (MM)	43.15
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.018
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.404

7022-16-12-SS-BS

$498.75

Attribute: 7022-16-12-SS-BS (12FJS-16MBSPP ...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	21.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	17.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-12-SS
BODY HEX (MM)	35.0
HEX C 1 (MM)	38.1
OVERALL LENGTH L1 (MM)	61.0
OVERALL LENGTH L2 (MM)	43.15
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.404

7022-16-16-BS

$93.82

Attribute: 7022-16-16-BS (16FJS-16MBSPP Str...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	21.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	21.4
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-16
BODY HEX (MM)	41.0
HEX C 1 (MM)	38.1
OVERALL LENGTH L1 (MM)	64.5
OVERALL LENGTH L2 (MM)	47.3
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.605
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.616

7022-16-16-SS-BS

$446.08

Attribute: 7022-16-16-SS-BS (16FJS-16MBSPP ...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	21.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	21.4
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-16-SS
BODY HEX (MM)	41.0
HEX C 1 (MM)	38.1
OVERALL LENGTH L1 (MM)	64.5
OVERALL LENGTH L2 (MM)	47.3
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.219
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.616

7022-16-20-BS

$134.10

Attribute: 7022-16-20-BS (16FJS-20MBSPP Str...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	21.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	30.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-20
BODY HEX (MM)	50.0
HEX C 1 (MM)	38.1
OVERALL LENGTH L1 (MM)	66.3
OVERALL LENGTH L2 (MM)	51.2
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.115

7022-16-20-SS-BS

$799.54

Attribute: 7022-16-20-SS-BS (16FJS-20MBSPP ...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	21.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	30.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-20-SS
BODY HEX (MM)	50.0
HEX C 1 (MM)	38.1
OVERALL LENGTH L1 (MM)	66.3
OVERALL LENGTH L2 (MM)	51.2
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.115

7022-20-16-BS

$176.62

Attribute: 7022-20-16-BS (20FJS-16MBSPP Str...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	1-5/8-12
THREAD DRILL B1 (MM)	27.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-16
BODY HEX (MM)	50.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	61.8
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.428

7022-20-16-SS-BS

$881.41

Attribute: 7022-20-16-SS-BS (20FJS-16MBSPP ...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	1-5/8-12
THREAD DRILL B1 (MM)	27.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-16-SS
BODY HEX (MM)	50.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	61.8
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.428

7022-20-20-BS

$125.22

Attribute: 7022-20-20-BS (20FJS-20MBSPP Str...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	1-5/8-12
THREAD DRILL B1 (MM)	27.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	30.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-20
BODY HEX (MM)	50.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	63.9
OVERALL LENGTH L2 (MM)	50.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.050
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.749

7022-20-20-SS-BS

$817.57

Attribute: 7022-20-20-SS-BS (20FJS-20MBSPP ...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	1-5/8-12
THREAD DRILL B1 (MM)	27.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	30.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-20-SS
BODY HEX (MM)	50.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	63.9
OVERALL LENGTH L2 (MM)	50.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.749

7022-20-24-BS

$226.29

Attribute: 7022-20-24-BS (20FJS-24MBSPP Str...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	1-5/8-12
THREAD DRILL B1 (MM)	27.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	33.3
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-24
BODY HEX (MM)	55.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	64.6
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.925

7022-24-20-BS

$262.16

Attribute: 7022-24-20-BS (24FJS-20MBSPP Str...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	1-7/8-12
THREAD DRILL B1 (MM)	33.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	30.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-20
BODY HEX (MM)	55.0
HEX C 1 (MM)	57.2
OVERALL LENGTH L1 (MM)	70.1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	13.996

7022-24-20-SS-BS

$875.69

Attribute: 7022-24-20-SS-BS (24FJS-20MBSPP ...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	1-7/8-12
THREAD DRILL B1 (MM)	33.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	30.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-20-SS
BODY HEX (MM)	55.0
HEX C 1 (MM)	57.2
OVERALL LENGTH L1 (MM)	70.1
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	13.996

7022-24-24-BS

$225.36

Attribute: 7022-24-24-BS (24FJS-24MBSPP Str...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	1-7/8-12
THREAD DRILL B1 (MM)	33.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	33.3
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-24
BODY HEX (MM)	55.0
HEX C 1 (MM)	57.2
OVERALL LENGTH L1 (MM)	71.6
OVERALL LENGTH L2 (MM)	53.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	1.300
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	14.296

7022-24-24-SS-BS

$1,022.70

Attribute: 7022-24-24-SS-BS (24FJS-24MBSPP ...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	1-7/8-12
THREAD DRILL B1 (MM)	33.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	33.3
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-24-SS
BODY HEX (MM)	55.0
HEX C 1 (MM)	57.2
OVERALL LENGTH L1 (MM)	71.6
OVERALL LENGTH L2 (MM)	53.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	14.296

7022-32-32-BS

$603.23

Attribute: 7022-32-32-BS (32FJS-32MBSPP Str...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	2-1/2-12
THREAD DRILL B1 (MM)	45.0
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	2-11
THREAD DRILL B2 (MM)	45.0
THREAD SPECIFICATION B2	FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL	9900-32
BODY HEX (MM)	66.7
HEX C 1 (MM)	73.0
OVERALL LENGTH L1 (MM)	84.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	1,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	27.479

Description

Description

Variations (59)

7022-04-02-BS

7022-04-02-SS-BS

7022-04-04-BS

7022-04-04-SS-BS

7022-04-06-BS

7022-04-06-SS-BS

7022-04-08-BS

7022-05-04-BS

7022-05-04-SS-BS

7022-05-06-BS

7022-05-08-BS

7022-06-04-BS

7022-06-04-SS-BS

7022-06-06-BS

7022-06-06-SS-BS

7022-06-08-BS

7022-06-08-SS-BS

7022-08-04-BS

7022-08-04-SS-BS

7022-08-06-BS

7022-08-06-SS-BS

7022-08-08-BS

7022-08-08-SS-BS

7022-08-10-BS

7022-08-12-BS

7022-08-12-SS-BS

7022-10-04-BS

7022-10-06-BS

7022-10-06-SS-BS

7022-10-08-BS

7022-10-08-SS-BS

7022-10-10-BS

7022-10-10-SS-BS

7022-10-12-BS

7022-10-12-SS-BS

7022-12-06-BS

7022-12-08-BS

7022-12-08-SS-BS

7022-12-12-BS

7022-12-12-SS-BS

7022-12-16-BS

7022-12-16-SS-BS

7022-14-12-BS

7022-16-12-BS

7022-16-12-SS-BS

7022-16-16-BS

7022-16-16-SS-BS

7022-16-20-BS

7022-16-20-SS-BS

7022-20-16-BS

7022-20-16-SS-BS

7022-20-20-BS

7022-20-20-SS-BS

7022-20-24-BS

7022-24-20-BS

7022-24-20-SS-BS

7022-24-24-BS

7022-24-24-SS-BS

7022-32-32-BS

General Attributes

PDF Documents
