7022

7022-04-02

$14.86

Attribute: 7022-04-02 (04FJS-02MBSPP Straig...)

Stock Status: True

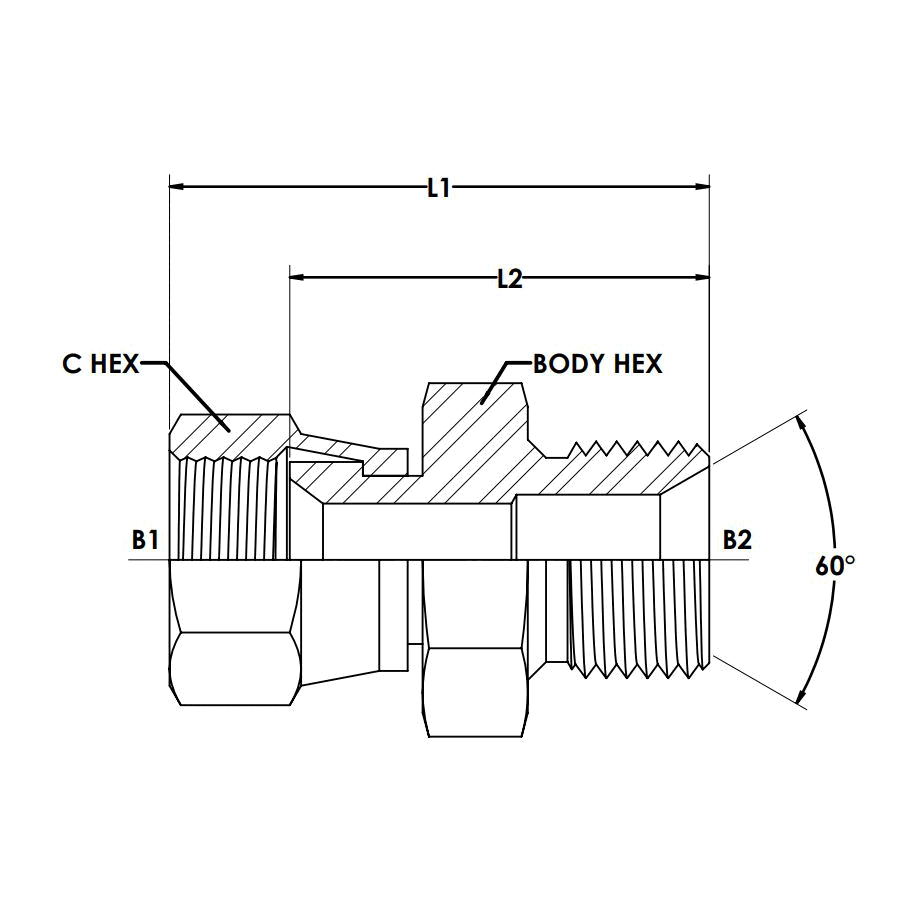

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	3.5
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	14.0
HEX C 1 (MM)	14.0
OVERALL LENGTH L1 (MM)	30.0
OVERALL LENGTH L2 (MM)	25.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.056
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.359

7022-04-02-SS

$48.68

Attribute: 7022-04-02-SS (04FJS-02MBSPP Str...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	3.5
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	14.0
HEX C 1 (MM)	14.0
OVERALL LENGTH L1 (MM)	30.0
OVERALL LENGTH L2 (MM)	25.4
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.359

7022-04-04

$18.76

Attribute: 7022-04-04 (04FJS-04MBSPP Straig...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	19.0
HEX C 1 (MM)	14.3
OVERALL LENGTH L1 (MM)	36.7
OVERALL LENGTH L2 (MM)	28.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.088
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.808

7022-04-04-SS

$125.76

Attribute: 7022-04-04-SS (04FJS-04MBSPP Str...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	19.0
HEX C 1 (MM)	14.3
OVERALL LENGTH L1 (MM)	36.7
OVERALL LENGTH L2 (MM)	28.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.100
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.808

7022-04-06

$23.08

Attribute: 7022-04-06 (04FJS-06MBSPP Straig...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	9.0
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	22.0
HEX C 1 (MM)	15.0
OVERALL LENGTH L1 (MM)	37.0
OVERALL LENGTH L2 (MM)	29.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.100
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.093

7022-04-06-SS

$115.77

Attribute: 7022-04-06-SS (04FJS-06MBSPP Str...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	9.0
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	22.0
HEX C 1 (MM)	15.0
OVERALL LENGTH L1 (MM)	37.0
OVERALL LENGTH L2 (MM)	29.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.093

7022-04-08

$14.03

Attribute: 7022-04-08 (04FJS-08MBSPP Straig...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	11.1
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	27.0
HEX C 1 (MM)	14.3
OVERALL LENGTH L1 (MM)	40.4
OVERALL LENGTH L2 (MM)	32.45
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.100
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.797

7022-05-04

$14.23

Attribute: 7022-05-04 (05FJS-04MBSPP Straig...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	1/2-20
THREAD DRILL B1 (MM)	5.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	5.9
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	19.0
HEX C 1 (MM)	15.9
OVERALL LENGTH L1 (MM)	36.7
OVERALL LENGTH L2 (MM)	28.7
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.081
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.808

7022-05-04-SS

$118.68

Attribute: 7022-05-04-SS (05FJS-04MBSPP Str...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	1/2-20
THREAD DRILL B1 (MM)	5.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	5.9
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	19.0
HEX C 1 (MM)	15.9
OVERALL LENGTH L1 (MM)	36.7
OVERALL LENGTH L2 (MM)	28.7
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.808

7022-05-06

$24.17

Attribute: 7022-05-06 (05FJS-06MBSPP Straig...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	1/2-20
THREAD DRILL B1 (MM)	5.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	9.0
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	22.0
HEX C 1 (MM)	15.9
OVERALL LENGTH L1 (MM)	37.0
OVERALL LENGTH L2 (MM)	28.08
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.100
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.093

7022-05-08

$24.57

Attribute: 7022-05-08 (05FJS-08MBSPP Straig...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	1/2-20
THREAD DRILL B1 (MM)	5.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	11.1
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	27.0
HEX C 1 (MM)	15.9
OVERALL LENGTH L1 (MM)	42.1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.873

7022-06-04

$27.81

Attribute: 7022-06-04 (06FJS-04MBSPP Straig...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	19.0
HEX C 1 (MM)	17.5
OVERALL LENGTH L1 (MM)	39.0
OVERALL LENGTH L2 (MM)	29.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.100
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.859

7022-06-04-SS

$209.64

Attribute: 7022-06-04-SS (06FJS-04MBSPP Str...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	19.0
HEX C 1 (MM)	17.5
OVERALL LENGTH L1 (MM)	39.0
OVERALL LENGTH L2 (MM)	29.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.859

7022-06-06

$21.61

Attribute: 7022-06-06 (06FJS-06MBSPP Straig...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	9.0
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	22.0
HEX C 1 (MM)	17.5
OVERALL LENGTH L1 (MM)	40.5
OVERALL LENGTH L2 (MM)	31.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.119
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.196

7022-06-06-SS

$124.78

Attribute: 7022-06-06-SS (06FJS-06MBSPP Str...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	9.0
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	22.0
HEX C 1 (MM)	17.5
OVERALL LENGTH L1 (MM)	40.5
OVERALL LENGTH L2 (MM)	31.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.196

7022-06-08

$32.43

Attribute: 7022-06-08 (06FJS-08MBSPP Straig...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	11.1
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	27.0
HEX C 1 (MM)	17.5
OVERALL LENGTH L1 (MM)	43.7
OVERALL LENGTH L2 (MM)	36.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.181
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.944

7022-06-08-SS

$182.82

Attribute: 7022-06-08-SS (06FJS-08MBSPP Str...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	11.1
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	27.0
HEX C 1 (MM)	17.5
OVERALL LENGTH L1 (MM)	43.7
OVERALL LENGTH L2 (MM)	36.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.944

7022-08-04

$29.49

Attribute: 7022-08-04 (08FJS-04MBSPP Straig...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	22.0
HEX C 1 (MM)	22.2
OVERALL LENGTH L1 (MM)	41.3
OVERALL LENGTH L2 (MM)	30.56
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.139
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.242

7022-08-04-SS

$246.61

Attribute: 7022-08-04-SS (08FJS-04MBSPP Str...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	22.0
HEX C 1 (MM)	22.2
OVERALL LENGTH L1 (MM)	41.3
OVERALL LENGTH L2 (MM)	30.56
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.242

7022-08-06

$30.12

Attribute: 7022-08-06 (08FJS-06MBSPP Straig...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	9.5
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	22.0
HEX C 1 (MM)	22.2
OVERALL LENGTH L1 (MM)	43.2
OVERALL LENGTH L2 (MM)	32.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.144
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.299

7022-08-06-SS

$176.67

Attribute: 7022-08-06-SS (08FJS-06MBSPP Str...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	9.5
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	22.0
HEX C 1 (MM)	22.2
OVERALL LENGTH L1 (MM)	43.2
OVERALL LENGTH L2 (MM)	32.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.299

7022-08-08

$20.93

Attribute: 7022-08-08 (08FJS-08MBSPP Straig...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	11.5
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	27.0
HEX C 1 (MM)	22.2
OVERALL LENGTH L1 (MM)	46.1
OVERALL LENGTH L2 (MM)	37.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.200
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.051

7022-08-08-SS

$251.14

Attribute: 7022-08-08-SS (08FJS-08MBSPP Str...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	11.5
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	27.0
HEX C 1 (MM)	22.2
OVERALL LENGTH L1 (MM)	46.1
OVERALL LENGTH L2 (MM)	37.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.051

7022-08-10

$65.76

Attribute: 7022-08-10 (08FJS-10MBSPP Straig...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	5/8-14
THREAD DRILL B2 (MM)	15.2
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	30.0
HEX C 1 (MM)	22.2
OVERALL LENGTH L1 (MM)	49.8
OVERALL LENGTH L2 (MM)	39.12
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.231
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.735

7022-08-12

$102.38

Attribute: 7022-08-12 (08FJS-12MBSPP Straig...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	15.5
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	32.0
HEX C 1 (MM)	22.2
OVERALL LENGTH L1 (MM)	51.3
OVERALL LENGTH L2 (MM)	40.56
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.263
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.206

7022-08-12-SS

$361.01

Attribute: 7022-08-12-SS (08FJS-12MBSPP Str...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	15.5
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	32.0
HEX C 1 (MM)	22.2
OVERALL LENGTH L1 (MM)	51.3
OVERALL LENGTH L2 (MM)	40.56
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.206

7022-10-04

$17.67

Attribute: 7022-10-04 (10FJS-04MBSPP Straig...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	27.0
HEX C 1 (MM)	22.2
OVERALL LENGTH L1 (MM)	44.2
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.966

7022-10-06

$33.23

Attribute: 7022-10-06 (10FJS-06MBSPP Straig...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	9.5
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	27.0
HEX C 1 (MM)	25.4
OVERALL LENGTH L1 (MM)	46.2
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.055

7022-10-06-SS

$320.49

Attribute: 7022-10-06-SS (10FJS-06MBSPP Str...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	9.5
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	27.0
HEX C 1 (MM)	25.4
OVERALL LENGTH L1 (MM)	46.2
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.055

7022-10-08

$20.93

Attribute: 7022-10-08 (10FJS-08MBSPP Straig...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.3
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	27.0
HEX C 1 (MM)	25.4
OVERALL LENGTH L1 (MM)	50.7
OVERALL LENGTH L2 (MM)	38.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.231
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.255

7022-10-08-SS

$165.69

Attribute: 7022-10-08-SS (10FJS-08MBSPP Str...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.3
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	27.0
HEX C 1 (MM)	25.4
OVERALL LENGTH L1 (MM)	50.7
OVERALL LENGTH L2 (MM)	38.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.255

7022-10-10

$44.15

Attribute: 7022-10-10 (10FJS-10MBSPP Straig...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	5/8-14
THREAD DRILL B2 (MM)	15.2
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	30.0
HEX C 1 (MM)	25.4
OVERALL LENGTH L1 (MM)	52.7
OVERALL LENGTH L2 (MM)	40.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.244
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.894

7022-10-10-SS

$204.33

Attribute: 7022-10-10-SS (10FJS-10MBSPP Str...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	5/8-14
THREAD DRILL B2 (MM)	15.2
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	30.0
HEX C 1 (MM)	25.4
OVERALL LENGTH L1 (MM)	52.7
OVERALL LENGTH L2 (MM)	40.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.894

7022-10-12

$31.75

Attribute: 7022-10-12 (10FJS-12MBSPP Straig...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	15.5
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	32.0
HEX C 1 (MM)	25.4
OVERALL LENGTH L1 (MM)	56.8
OVERALL LENGTH L2 (MM)	44.1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.549

7022-10-12-SS

$357.93

Attribute: 7022-10-12-SS (10FJS-12MBSPP Str...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	15.5
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	32.0
HEX C 1 (MM)	25.4
OVERALL LENGTH L1 (MM)	56.8
OVERALL LENGTH L2 (MM)	44.1
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.549

7022-12-06

$32.25

Attribute: 7022-12-06 (12FJS-06MBSPP Straig...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	9.5
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	29.0
HEX C 1 (MM)	31.8
OVERALL LENGTH L1 (MM)	49.2
OVERALL LENGTH L2 (MM)	35.8
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.100
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.036

7022-12-08

$56.41

Attribute: 7022-12-08 (12FJS-08MBSPP Straig...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.7
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	28.6
HEX C 1 (MM)	31.8
OVERALL LENGTH L1 (MM)	53.2
OVERALL LENGTH L2 (MM)	39.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.194
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.283

7022-12-08-SS

$352.19

Attribute: 7022-12-08-SS (12FJS-08MBSPP Str...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.7
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	28.6
HEX C 1 (MM)	31.8
OVERALL LENGTH L1 (MM)	53.2
OVERALL LENGTH L2 (MM)	39.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.283

7022-12-12

$64.48

Attribute: 7022-12-12 (12FJS-12MBSPP Straig...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	15.5
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	32.0
HEX C 1 (MM)	31.8
OVERALL LENGTH L1 (MM)	59.3
OVERALL LENGTH L2 (MM)	45.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.413
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.706

7022-12-12-SS

$356.29

Attribute: 7022-12-12-SS (12FJS-12MBSPP Str...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	15.5
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	29.1
HEX C 1 (MM)	31.8
OVERALL LENGTH L1 (MM)	59.3
OVERALL LENGTH L2 (MM)	45.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.659

7022-12-16

$61.28

Attribute: 7022-12-16 (12FJS-16MBSPP Straig...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.0
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	41.0
HEX C 1 (MM)	31.8
OVERALL LENGTH L1 (MM)	56.5
OVERALL LENGTH L2 (MM)	46.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.556
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.796

7022-12-16-SS

$329.87

Attribute: 7022-12-16-SS (12FJS-16MBSPP Str...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.0
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	29.1
HEX C 1 (MM)	31.8
OVERALL LENGTH L1 (MM)	56.5
OVERALL LENGTH L2 (MM)	46.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.487

7022-14-12

$66.69

Attribute: 7022-14-12 (14FJS-12MBSPP Straig...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	1-3/16-12
THREAD DRILL B1 (MM)	18.2
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	15.5
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	29.1
HEX C 1 (MM)	34.9
OVERALL LENGTH L1 (MM)	58.2
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.326

7022-16-12

$73.74

Attribute: 7022-16-12 (16FJS-12MBSPP Straig...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	21.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	18.0
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	35.0
HEX C 1 (MM)	38.1
OVERALL LENGTH L1 (MM)	61.0
OVERALL LENGTH L2 (MM)	43.15
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.500
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.404

7022-16-12-SS

$482.59

Attribute: 7022-16-12-SS (16FJS-12MBSPP Str...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	21.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	18.0
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	35.0
HEX C 1 (MM)	38.1
OVERALL LENGTH L1 (MM)	61.0
OVERALL LENGTH L2 (MM)	43.15
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.404

7022-16-16

$82.45

Attribute: 7022-16-16 (16FJS-16MBSPP Straig...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	21.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	21.4
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	41.0
HEX C 1 (MM)	38.1
OVERALL LENGTH L1 (MM)	64.5
OVERALL LENGTH L2 (MM)	47.3
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.580
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.616

7022-16-16-SS

$637.79

Attribute: 7022-16-16-SS (16FJS-16MBSPP Str...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	21.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	21.4
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	41.0
HEX C 1 (MM)	38.1
OVERALL LENGTH L1 (MM)	64.5
OVERALL LENGTH L2 (MM)	47.3
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.219
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.616

7022-16-20

$75.56

Attribute: 7022-16-20 (16FJS-20MBSPP Straig...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	21.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	30.0
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	50.0
HEX C 1 (MM)	38.1
OVERALL LENGTH L1 (MM)	66.3
OVERALL LENGTH L2 (MM)	51.2
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.863
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.115

7022-16-20-SS

$743.46

Attribute: 7022-16-20-SS (16FJS-20MBSPP Str...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	21.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	30.0
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	50.0
HEX C 1 (MM)	38.1
OVERALL LENGTH L1 (MM)	66.3
OVERALL LENGTH L2 (MM)	51.2
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.115

7022-20-16

$131.82

Attribute: 7022-20-16 (20FJS-16MBSPP Straig...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	1-5/8-12
THREAD DRILL B1 (MM)	27.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.0
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	50.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	61.8
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.428

7022-20-16-SS

$841.94

Attribute: 7022-20-16-SS (20FJS-16MBSPP Str...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	1-5/8-12
THREAD DRILL B1 (MM)	27.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.0
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	50.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	61.8
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.428

7022-20-20

$78.86

Attribute: 7022-20-20 (20FJS-20MBSPP Straig...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	1-5/8-12
THREAD DRILL B1 (MM)	27.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	30.0
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	50.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	63.9
OVERALL LENGTH L2 (MM)	50.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.875
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.749

7022-20-20-SS

$626.77

Attribute: 7022-20-20-SS (20FJS-20MBSPP Str...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	1-5/8-12
THREAD DRILL B1 (MM)	27.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	30.0
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	50.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	63.9
OVERALL LENGTH L2 (MM)	50.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.749

7022-20-24

$111.49

Attribute: 7022-20-24 (20FJS-24MBSPP Straig...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	1-5/8-12
THREAD DRILL B1 (MM)	27.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	33.3
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	55.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	64.6
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.100
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.925

7022-24-20

$161.71

Attribute: 7022-24-20 (24FJS-20MBSPP Straig...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	1-7/8-12
THREAD DRILL B1 (MM)	33.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	30.0
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	55.0
HEX C 1 (MM)	57.2
OVERALL LENGTH L1 (MM)	70.1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	13.996

7022-24-20-SS

$819.60

Attribute: 7022-24-20-SS (24FJS-20MBSPP Str...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	1-7/8-12
THREAD DRILL B1 (MM)	33.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	30.0
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	55.0
HEX C 1 (MM)	57.2
OVERALL LENGTH L1 (MM)	70.1
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	13.996

7022-24-24

$212.16

Attribute: 7022-24-24 (24FJS-24MBSPP Straig...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	1-7/8-12
THREAD DRILL B1 (MM)	33.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	33.3
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	55.0
HEX C 1 (MM)	57.2
OVERALL LENGTH L1 (MM)	71.6
OVERALL LENGTH L2 (MM)	53.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	1.300
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	14.296

7022-24-24-SS

$1,188.76

Attribute: 7022-24-24-SS (24FJS-24MBSPP Str...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	1-7/8-12
THREAD DRILL B1 (MM)	33.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	33.3
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	55.0
HEX C 1 (MM)	57.2
OVERALL LENGTH L1 (MM)	71.6
OVERALL LENGTH L2 (MM)	53.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	14.296

7022-32-32

$641.15

Attribute: 7022-32-32 (32FJS-32MBSPP Straig...)

Stock Status: True

THREAD TYPE B1	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD SIZE B1	2-1/2-12
THREAD DRILL B1 (MM)	45.0
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B2	2-11
THREAD DRILL B2 (MM)	45.0
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	66.7
HEX C 1 (MM)	73.0
OVERALL LENGTH L1 (MM)	84.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	2.263
MAXIMUM DYNAMIC PRESSURE (PSI)	1,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	27.479

Description

Description

Variations (59)

7022-04-02

7022-04-02-SS

7022-04-04

7022-04-04-SS

7022-04-06

7022-04-06-SS

7022-04-08

7022-05-04

7022-05-04-SS

7022-05-06

7022-05-08

7022-06-04

7022-06-04-SS

7022-06-06

7022-06-06-SS

7022-06-08

7022-06-08-SS

7022-08-04

7022-08-04-SS

7022-08-06

7022-08-06-SS

7022-08-08

7022-08-08-SS

7022-08-10

7022-08-12

7022-08-12-SS

7022-10-04

7022-10-06

7022-10-06-SS

7022-10-08

7022-10-08-SS

7022-10-10

7022-10-10-SS

7022-10-12

7022-10-12-SS

7022-12-06

7022-12-08

7022-12-08-SS

7022-12-12

7022-12-12-SS

7022-12-16

7022-12-16-SS

7022-14-12

7022-16-12

7022-16-12-SS

7022-16-16

7022-16-16-SS

7022-16-20

7022-16-20-SS

7022-20-16

7022-20-16-SS

7022-20-20

7022-20-20-SS

7022-20-24

7022-24-20

7022-24-20-SS

7022-24-24

7022-24-24-SS

7022-32-32

General Attributes

PDF Documents
