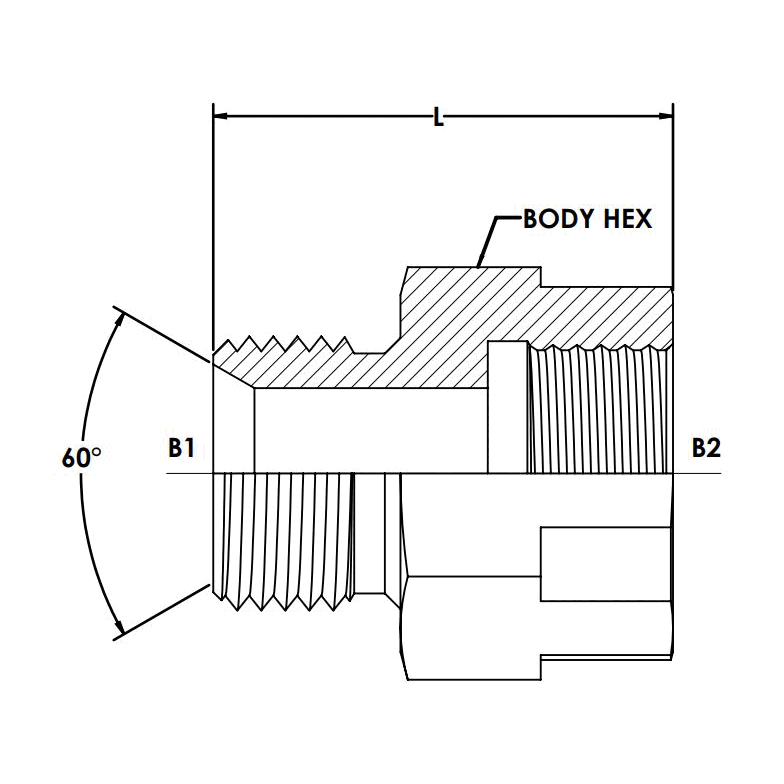

MBSPP-FBSPP Gauge Port Adapter
Description
Variations (11)
7017-02-02
$24.07Attribute: 7017-02-02 (02MBSPP-02FBSPP GP G...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 1/8-28 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | FEMALE BSPP GAUGE PORT |
| THREAD SIZE B2 | 1/8-28 |
| THREAD SPECIFICATION B2 | WITH CUT FOR COPPER SEAL |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
7017-02-04
$26.78Attribute: 7017-02-04 (02MBSPP-04FBSPP GP G...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 1/8-28 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | FEMALE BSPP GAUGE PORT |
| THREAD SIZE B2 | 1/4-19 |
| THREAD SPECIFICATION B2 | WITH CUT FOR COPPER SEAL |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
7017-04-04
$41.30Attribute: 7017-04-04 (04MBSPP-04FBSPP GP G...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 1/4-19 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | FEMALE BSPP GAUGE PORT |
| THREAD SIZE B2 | 1/4-19 |
| THREAD SPECIFICATION B2 | WITH CUT FOR COPPER SEAL |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
7017-04-06
$33.92Attribute: 7017-04-06 (04MBSPP-06FBSPP GP G...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 1/4-19 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | FEMALE BSPP GAUGE PORT |
| THREAD SIZE B2 | 3/8-19 |
| THREAD SPECIFICATION B2 | WITH CUT FOR COPPER SEAL |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
7017-04-08
$59.31Attribute: 7017-04-08 (04MBSPP-08FBSPP GP G...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 1/4-19 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | FEMALE BSPP GAUGE PORT |
| THREAD SIZE B2 | 1/2-14 |
| THREAD SPECIFICATION B2 | WITH CUT FOR COPPER SEAL |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
7017-06-04
$50.85Attribute: 7017-06-04 (06MBSPP-04FBSPP GP G...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 3/8-19 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | FEMALE BSPP GAUGE PORT |
| THREAD SIZE B2 | 1/4-19 |
| THREAD SPECIFICATION B2 | WITH CUT FOR COPPER SEAL |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
7017-06-06
$48.29Attribute: 7017-06-06 (06MBSPP-06FBSPP GP G...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 3/8-19 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | FEMALE BSPP GAUGE PORT |
| THREAD SIZE B2 | 3/8-19 |
| THREAD SPECIFICATION B2 | WITH CUT FOR COPPER SEAL |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.094 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
7017-06-08
$61.53Attribute: 7017-06-08 (06MBSPP-08FBSPP GP G...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 3/8-19 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | FEMALE BSPP GAUGE PORT |
| THREAD SIZE B2 | 1/2-14 |
| THREAD SPECIFICATION B2 | WITH CUT FOR COPPER SEAL |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
7017-08-04
$63.25Attribute: 7017-08-04 (08MBSPP-04FBSPP GP G...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 1/2-14 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | FEMALE BSPP GAUGE PORT |
| THREAD SIZE B2 | 1/4-19 |
| THREAD SPECIFICATION B2 | WITH CUT FOR COPPER SEAL |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
7017-08-06
$61.53Attribute: 7017-08-06 (08MBSPP-06FBSPP GP G...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 1/2-14 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | FEMALE BSPP GAUGE PORT |
| THREAD SIZE B2 | 3/8-19 |
| THREAD SPECIFICATION B2 | WITH CUT FOR COPPER SEAL |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
7017-08-08
$57.34Attribute: 7017-08-08 (08MBSPP-08FBSPP GP G...)
Stock Status: True
| THREAD TYPE B1 | MALE BSPP WITH 60 DEGREE SEAT |
|---|---|
| THREAD SIZE B1 | 1/2-14 |
| THREAD SPECIFICATION B1 | 60 DEG SEAT SWIVEL CONNECTION |
| THREAD TYPE B2 | FEMALE BSPP GAUGE PORT |
| THREAD SIZE B2 | 1/2-14 |
| THREAD SPECIFICATION B2 | WITH CUT FOR COPPER SEAL |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
General Attributes
| Connections | BSP |
|---|---|
| Shape | Straight |
