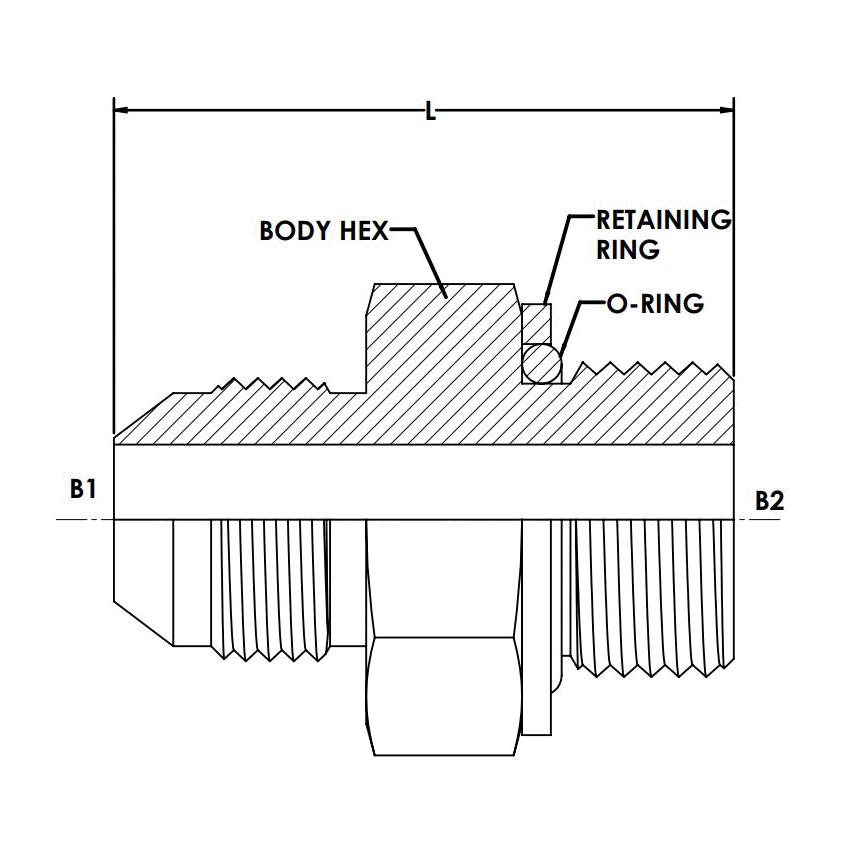

7012-ORR

7012-04-02

$11.02

Attribute: 7012-04-02 (04MJ-02MBSPP ORR Str...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	3.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ORR
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	4.68
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	14.29
OVERALL LENGTH L (MM)	28.25
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.044
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.352

7012-04-02-SS

$65.31

Attribute: 7012-04-02-SS (04MJ-02MBSPP ORR ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	3.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ORR
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	4.68
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	14.29
OVERALL LENGTH L (MM)	28.25
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.352

7012-04-04

$11.46

Attribute: 7012-04-04 (04MJ-04MBSPP ORR Str...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.37
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ORR
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	7.5
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	32.2
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.069
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.709

7012-04-04-SS

$49.28

Attribute: 7012-04-04-SS (04MJ-04MBSPP ORR ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.37
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ORR
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	7.5
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	32.2
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.709

7012-04-06

$12.06

Attribute: 7012-04-06 (04MJ-06MBSPP ORR Str...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/16-20
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ORR
THREAD SIZE B2	3/8-19
THREAD SPECIFICATION B2	BS 5200
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.126
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING

7012-04-06-SS

$75.90

Attribute: 7012-04-06-SS (04MJ-06MBSPP ORR ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/16-20
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ORR
THREAD SIZE B2	3/8-19
THREAD SPECIFICATION B2	BS 5200
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING

7012-04-08

$22.14

Attribute: 7012-04-08 (04MJ-08MBSPP ORR Str...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/16-20
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ORR
THREAD SIZE B2	1/2-14
THREAD SPECIFICATION B2	BS 5200
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING

7012-05-04

$17.13

Attribute: 7012-05-04 (05MJ-04MBSPP ORR Str...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1/2-20
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ORR
THREAD SIZE B2	1/4-19
THREAD SPECIFICATION B2	BS 5200
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING

7012-05-06

$19.73

Attribute: 7012-05-06 (05MJ-06MBSPP ORR Str...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1/2-20
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ORR
THREAD SIZE B2	3/8-19
THREAD SPECIFICATION B2	BS 5200
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING

7012-06-02

$13.63

Attribute: 7012-06-02 (06MJ-02MBSPP ORR Str...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ORR
THREAD SIZE B2	1/8-28
THREAD SPECIFICATION B2	BS 5200
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING

7012-06-02-SS

$78.48

Attribute: 7012-06-02-SS (06MJ-02MBSPP ORR ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ORR
THREAD SIZE B2	1/8-28
THREAD SPECIFICATION B2	BS 5200
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING

7012-06-04

$14.47

Attribute: 7012-06-04 (06MJ-04MBSPP ORR Str...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.54
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ORR
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	7.54
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	32.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.069
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.705

7012-06-04-SS

$73.63

Attribute: 7012-06-04-SS (06MJ-04MBSPP ORR ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.54
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ORR
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	7.54
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	32.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.705

7012-06-06

$15.12

Attribute: 7012-06-06 (06MJ-06MBSPP ORR Str...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.54
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ORR
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	9.9
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	33.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.100
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.975

7012-06-06-SS

$73.60

Attribute: 7012-06-06-SS (06MJ-06MBSPP ORR ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.54
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ORR
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	9.9
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	33.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.975

7012-06-08

$21.95

Attribute: 7012-06-08 (06MJ-08MBSPP ORR Str...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ORR
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.3
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	30.0
OVERALL LENGTH L (MM)	38.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.219
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.087

7012-06-08-SS

$106.25

Attribute: 7012-06-08-SS (06MJ-08MBSPP ORR ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ORR
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.3
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	30.0
OVERALL LENGTH L (MM)	38.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.087

7012-06-12

$32.25

Attribute: 7012-06-12 (06MJ-12MBSPP ORR Str...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ORR
THREAD SIZE B2	3/4-14
THREAD SPECIFICATION B2	BS 5200
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.375
MAXIMUM DYNAMIC PRESSURE (PSI)	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING

7012-08-04

$18.56

Attribute: 7012-08-04 (08MJ-04MBSPP ORR Str...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ORR
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	7.4
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	22.23
OVERALL LENGTH L (MM)	35.7
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.006
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.077

7012-08-04-SS

$128.09

Attribute: 7012-08-04-SS (08MJ-04MBSPP ORR ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ORR
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	7.4
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	22.23
OVERALL LENGTH L (MM)	35.7
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.077

7012-08-04-VITON

$26.68

Attribute: 7012-08-04-VITON (7012-08-04 Wit...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ORR
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	7.4
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	22.23
OVERALL LENGTH L (MM)	35.7
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.006
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.077

7012-08-06

$17.13

Attribute: 7012-08-06 (08MJ-06MBSPP ORR Str...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ORR
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	9.9
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	22.23
OVERALL LENGTH L (MM)	36.95
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.006
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.114

7012-08-06-SS

$110.36

Attribute: 7012-08-06-SS (08MJ-06MBSPP ORR ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ORR
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	9.9
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	22.23
OVERALL LENGTH L (MM)	36.95
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.119
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.114

7012-08-08

$20.28

Attribute: 7012-08-08 (08MJ-08MBSPP ORR Str...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.93
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ORR
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	9.93
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	41.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.157
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.824

7012-08-08-SS

$100.54

Attribute: 7012-08-08-SS (08MJ-08MBSPP ORR ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.93
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ORR
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	9.93
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	41.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.824

7012-08-10

$27.88

Attribute: 7012-08-10 (08MJ-10MBSPP ORR Str...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ORR
THREAD SIZE B2	5/8-14
THREAD SPECIFICATION B2	BS 5200
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING

7012-08-12

$35.20

Attribute: 7012-08-12 (08MJ-12MBSPP ORR Str...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.93
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ORR
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	16.0
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	34.9
OVERALL LENGTH L (MM)	44.2
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.306
MAXIMUM DYNAMIC PRESSURE (PSI)	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.285

7012-08-12-SS

$215.78

Attribute: 7012-08-12-SS (08MJ-12MBSPP ORR ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.93
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ORR
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	16.0
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	34.9
OVERALL LENGTH L (MM)	44.2
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.285

7012-08-16

$61.54

Attribute: 7012-08-16 (08MJ-16MBSPP ORR Str...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ORR
THREAD SIZE B2	1-11
THREAD SPECIFICATION B2	BS 5200
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING

7012-10-04

$12.16

Attribute: 7012-10-04 (10MJ-04MBSPP ORR Str...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/8-14
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ORR
THREAD SIZE B2	1/4-19
THREAD SPECIFICATION B2	BS 5200
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.006
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING

7012-10-06

$13.05

Attribute: 7012-10-06 (10MJ-06MBSPP ORR Str...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.29
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ORR
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	9.9
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	24.0
OVERALL LENGTH L (MM)	40.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.406

7012-10-08

$20.23

Attribute: 7012-10-08 (10MJ-08MBSPP ORR Str...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.29
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ORR
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.29
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	43.3
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.188
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.926

7012-10-08-SS

$165.28

Attribute: 7012-10-08-SS (10MJ-08MBSPP ORR ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.29
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ORR
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.29
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	43.3
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.926

7012-10-10

$24.67

Attribute: 7012-10-10 (10MJ-10MBSPP ORR Str...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/8-14
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ORR
THREAD SIZE B2	5/8-14
THREAD SPECIFICATION B2	BS 5200
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING

7012-10-10-SS

$156.11

Attribute: 7012-10-10-SS (10MJ-10MBSPP ORR ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/8-14
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ORR
THREAD SIZE B2	5/8-14
THREAD SPECIFICATION B2	BS 5200
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING

7012-10-12

$29.49

Attribute: 7012-10-12 (10MJ-12MBSPP ORR Str...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.29
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ORR
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	15.47
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	36.0
OVERALL LENGTH L (MM)	44.7
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.331
MAXIMUM DYNAMIC PRESSURE (PSI)	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.535

7012-12-08

$33.67

Attribute: 7012-12-08 (12MJ-08MBSPP ORR Str...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.47
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ORR
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.7
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	30.0
OVERALL LENGTH L (MM)	46.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.244
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.548

7012-12-08-SS

$212.81

Attribute: 7012-12-08-SS (12MJ-08MBSPP ORR ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.47
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ORR
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	12.7
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	30.0
OVERALL LENGTH L (MM)	46.4
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.548

7012-12-10

$33.42

Attribute: 7012-12-10 (12MJ-10MBSPP ORR Str...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ORR
THREAD SIZE B2	5/8-14
THREAD SPECIFICATION B2	BS 5200
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING

7012-12-12

$32.73

Attribute: 7012-12-12 (12MJ-12MBSPP ORR Str...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.47
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ORR
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	15.47
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	31.75
OVERALL LENGTH L (MM)	47.65
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.375
MAXIMUM DYNAMIC PRESSURE (PSI)	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.931

7012-12-12-SS

$213.73

Attribute: 7012-12-12-SS (12MJ-12MBSPP ORR ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.47
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ORR
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	15.47
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	31.75
OVERALL LENGTH L (MM)	47.65
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.288
MAXIMUM DYNAMIC PRESSURE (PSI)	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.931

7012-12-16

$51.98

Attribute: 7012-12-16 (12MJ-16MBSPP ORR Str...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.47
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ORR
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	21.5
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	53.7
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.525
MAXIMUM DYNAMIC PRESSURE (PSI)	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.509

7012-12-16-SS

$344.07

Attribute: 7012-12-16-SS (12MJ-16MBSPP ORR ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.47
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ORR
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	21.5
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	53.7
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.509

7012-12-20

$117.38

Attribute: 7012-12-20 (12MJ-20MBSPP ORR Str...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ORR
THREAD SIZE B2	1-1/4-11
THREAD SPECIFICATION B2	BS 5200
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	3,600
CALIFORNIA RESIDENTS	PROP-65 WARNING

7012-16-12

$55.09

Attribute: 7012-16-12 (16MJ-12MBSPP ORR Str...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	21.44
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ORR
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	15.5
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	36.0
OVERALL LENGTH L (MM)	48.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.406
MAXIMUM DYNAMIC PRESSURE (PSI)	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.836

7012-16-12-SS

$327.44

Attribute: 7012-16-12-SS (16MJ-12MBSPP ORR ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	21.44
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ORR
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	15.5
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	36.0
OVERALL LENGTH L (MM)	48.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.836

7012-16-16

$67.14

Attribute: 7012-16-16 (16MJ-16MBSPP ORR Str...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	21.44
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ORR
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	21.44
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	46.0
OVERALL LENGTH L (MM)	53.6
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.600
MAXIMUM DYNAMIC PRESSURE (PSI)	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.921

7012-16-16-SS

$303.52

Attribute: 7012-16-16-SS (16MJ-16MBSPP ORR ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	21.44
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ORR
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	21.44
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	46.0
OVERALL LENGTH L (MM)	53.6
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.594
MAXIMUM DYNAMIC PRESSURE (PSI)	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.921

7012-16-16-SS-VITON

$310.65

Attribute: 7012-16-16-SS-VITON (7012-16-16-...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	21.44
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ORR
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	21.44
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	46.0
OVERALL LENGTH L (MM)	53.6
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.594
MAXIMUM DYNAMIC PRESSURE (PSI)	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.921

7012-16-16-VITON

$74.27

Attribute: 7012-16-16-VITON (7012-16-16 Wit...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	21.44
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ORR
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	21.44
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	46.0
OVERALL LENGTH L (MM)	53.6
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	0.500
MAXIMUM DYNAMIC PRESSURE (PSI)	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.921

7012-16-20

$79.98

Attribute: 7012-16-20 (16MJ-20MBSPP ORR Str...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/16-12
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ORR
THREAD SIZE B2	1-1/4-11
THREAD SPECIFICATION B2	BS 5200
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.669
MAXIMUM DYNAMIC PRESSURE (PSI)	3,600
CALIFORNIA RESIDENTS	PROP-65 WARNING

7012-16-20-SS

$497.97

Attribute: 7012-16-20-SS (16MJ-20MBSPP ORR ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/16-12
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ORR
THREAD SIZE B2	1-1/4-11
THREAD SPECIFICATION B2	BS 5200
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	3,600
CALIFORNIA RESIDENTS	PROP-65 WARNING

7012-16-24

$173.07

Attribute: 7012-16-24 (16MJ-24MBSPP ORR Str...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/16-12
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ORR
THREAD SIZE B2	1-1/2-11
THREAD SPECIFICATION B2	BS 5200
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING

7012-20-16

$88.55

Attribute: 7012-20-16 (20MJ-16MBSPP ORR Str...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/8-12
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ORR
THREAD SIZE B2	1-11
THREAD SPECIFICATION B2	BS 5200
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.674
MAXIMUM DYNAMIC PRESSURE (PSI)	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING

7012-20-20

$98.94

Attribute: 7012-20-20 (20MJ-20MBSPP ORR Str...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/8-12
THREAD DRILL B1 (MM)	27.38
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ORR
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	27.38
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	50.0
OVERALL LENGTH L (MM)	56.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.831
MAXIMUM DYNAMIC PRESSURE (PSI)	3,600
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.543

7012-20-20-SS

$461.38

Attribute: 7012-20-20-SS (20MJ-20MBSPP ORR ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/8-12
THREAD DRILL B1 (MM)	27.38
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ORR
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	27.38
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	50.0
OVERALL LENGTH L (MM)	56.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	3,600
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.543

7012-20-24

$135.66

Attribute: 7012-20-24 (20MJ-24MBSPP ORR Str...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/8-12
THREAD DRILL B1 (MM)	27.38
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ORR
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	33.0
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	55.0
OVERALL LENGTH L (MM)	57.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	1.000
MAXIMUM DYNAMIC PRESSURE (PSI)	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.688

7012-24-20

$158.05

Attribute: 7012-24-20 (24MJ-20MBSPP ORR Str...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-7/8-12
THREAD DRILL B1 (MM)	33.32
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ORR
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	27.5
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	50.0
OVERALL LENGTH L (MM)	60.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.925
MAXIMUM DYNAMIC PRESSURE (PSI)	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.215

7012-24-20-SS

$627.21

Attribute: 7012-24-20-SS (24MJ-20MBSPP ORR ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-7/8-12
THREAD DRILL B1 (MM)	33.32
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ORR
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	27.5
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	50.0
OVERALL LENGTH L (MM)	60.4
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.215

7012-24-24

$136.40

Attribute: 7012-24-24 (24MJ-24MBSPP ORR Str...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-7/8-12
THREAD DRILL B1 (MM)	33.32
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ORR
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	33.0
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	55.0
OVERALL LENGTH L (MM)	61.1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	1.063
MAXIMUM DYNAMIC PRESSURE (PSI)	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.279

7012-24-24-SS

$607.73

Attribute: 7012-24-24-SS (24MJ-24MBSPP ORR ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-7/8-12
THREAD DRILL B1 (MM)	33.32
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ORR
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	33.0
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	55.0
OVERALL LENGTH L (MM)	61.1
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.279

7012-32-32

$290.42

Attribute: 7012-32-32 (32MJ-32MBSPP ORR Str...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	2-1/2-12
THREAD DRILL B1 (MM)	45.0
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ORR
THREAD SIZE B2	2-11
THREAD DRILL B2 (MM)	45.0
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	65.0
OVERALL LENGTH L (MM)	75.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	2.275
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	19.337

7012-32-32-SS

$966.23

Attribute: 7012-32-32-SS (32MJ-32MBSPP ORR ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	2-1/2-12
THREAD DRILL B1 (MM)	45.0
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ORR
THREAD SIZE B2	2-11
THREAD DRILL B2 (MM)	45.0
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	65.0
OVERALL LENGTH L (MM)	75.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	19.337

7012-32-32-VITON

$297.56

Attribute: 7012-32-32-VITON (7012-32-32 Wit...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	2-1/2-12
THREAD DRILL B1 (MM)	45.0
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP ORR
THREAD SIZE B2	2-11
THREAD DRILL B2 (MM)	45.0
THREAD SPECIFICATION B2	BS 5200
BODY HEX (MM)	65.0
OVERALL LENGTH L (MM)	75.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	VITON
WEIGHT (LBS)	2.275
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	19.337

Description

Description

Variations (64)

7012-04-02

7012-04-02-SS

7012-04-04

7012-04-04-SS

7012-04-06

7012-04-06-SS

7012-04-08

7012-05-04

7012-05-06

7012-06-02

7012-06-02-SS

7012-06-04

7012-06-04-SS

7012-06-06

7012-06-06-SS

7012-06-08

7012-06-08-SS

7012-06-12

7012-08-04

7012-08-04-SS

7012-08-04-VITON

7012-08-06

7012-08-06-SS

7012-08-08

7012-08-08-SS

7012-08-10

7012-08-12

7012-08-12-SS

7012-08-16

7012-10-04

7012-10-06

7012-10-08

7012-10-08-SS

7012-10-10

7012-10-10-SS

7012-10-12

7012-12-08

7012-12-08-SS

7012-12-10

7012-12-12

7012-12-12-SS

7012-12-16

7012-12-16-SS

7012-12-20

7012-16-12

7012-16-12-SS

7012-16-16

7012-16-16-SS

7012-16-16-SS-VITON

7012-16-16-VITON

7012-16-20

7012-16-20-SS

7012-16-24

7012-20-16

7012-20-20

7012-20-20-SS

7012-20-24

7012-24-20

7012-24-20-SS

7012-24-24

7012-24-24-SS

7012-32-32

7012-32-32-SS

7012-32-32-VITON

General Attributes

PDF Documents
