Description

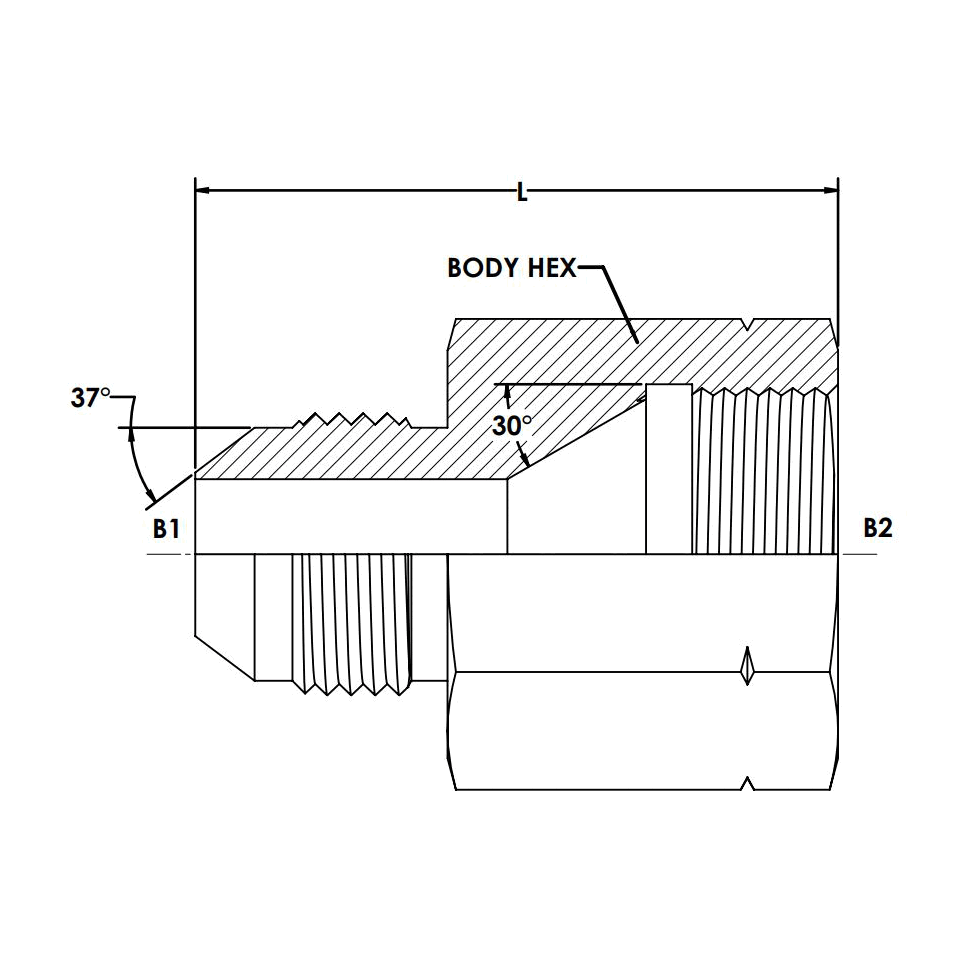

MJ-FK STRAIGHT. FEMALE KOMATSU
Description
Variations (6)
7009-F-04-14
$20.47Attribute: 7009-F-04-14 (04MJ-14FK Female K...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 7/16-20 |
| THREAD DRILL B1 (MM) | 4.4 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | FEMALE KOMATSU |
| THREAD SIZE B2 | M14X1.5 |
| THREAD SPECIFICATION B2 | ISO 261 |
| BODY HEX (MM) | 19.1 |
| OVERALL LENGTH L (MM) | 34.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.088 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.76 |
7009-F-06-18
$21.41Attribute: 7009-F-06-18 (06MJ-18FK Female K...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 9/16-18 |
| THREAD DRILL B1 (MM) | 7.5 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | FEMALE KOMATSU |
| THREAD SIZE B2 | M18X1.5 |
| THREAD SPECIFICATION B2 | ISO 261 |
| BODY HEX (MM) | 24.0 |
| OVERALL LENGTH L (MM) | 36.8 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.150 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.29 |
7009-F-08-22
$34.50Attribute: 7009-F-08-22 (08MJ-22FK Female K...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 3/4-16 |
| THREAD DRILL B1 (MM) | 9.9 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | FEMALE KOMATSU |
| THREAD SIZE B2 | M22X1.5 |
| THREAD SPECIFICATION B2 | ISO 261 |
| BODY HEX (MM) | 27.0 |
| OVERALL LENGTH L (MM) | 42.5 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.213 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.89 |
7009-F-10-24
$41.54Attribute: 7009-F-10-24 (10MJ-24FK Female K...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 7/8-14 |
| THREAD DRILL B1 (MM) | 12.3 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | FEMALE KOMATSU |
| THREAD SIZE B2 | M24X1.5 |
| THREAD SPECIFICATION B2 | ISO 261 |
| BODY HEX (MM) | 31.8 |
| OVERALL LENGTH L (MM) | 41.9 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.263 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 2.59 |
7009-F-12-30
$82.70Attribute: 7009-F-12-30 (12MJ-30FK Female K...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 1-1/16-12 |
| THREAD DRILL B1 (MM) | 15.2 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | FEMALE KOMATSU |
| THREAD SIZE B2 | M30X1.5 |
| THREAD SPECIFICATION B2 | ISO 261 |
| BODY HEX (MM) | 36.0 |
| OVERALL LENGTH L (MM) | 79.4 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 6.28 |
7009-F-16-33
$88.31Attribute: 7009-F-16-33 (16MJ-33FK Female K...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 1-5/16-12 |
| THREAD DRILL B1 (MM) | 21.4 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | FEMALE KOMATSU |
| THREAD SIZE B2 | M33X1.5 |
| THREAD SPECIFICATION B2 | ISO 261 |
| BODY HEX (MM) | 41.3 |
| OVERALL LENGTH L (MM) | 54.6 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.600 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 5.68 |
General Attributes
| Connections | JIC, Other |
|---|---|
| Shape | Straight |
