7008-F

7008-F-04-04

$26.82

Attribute: 7008-F-04-04 (04MJ-04FJIS Straig...)

Stock Status: True

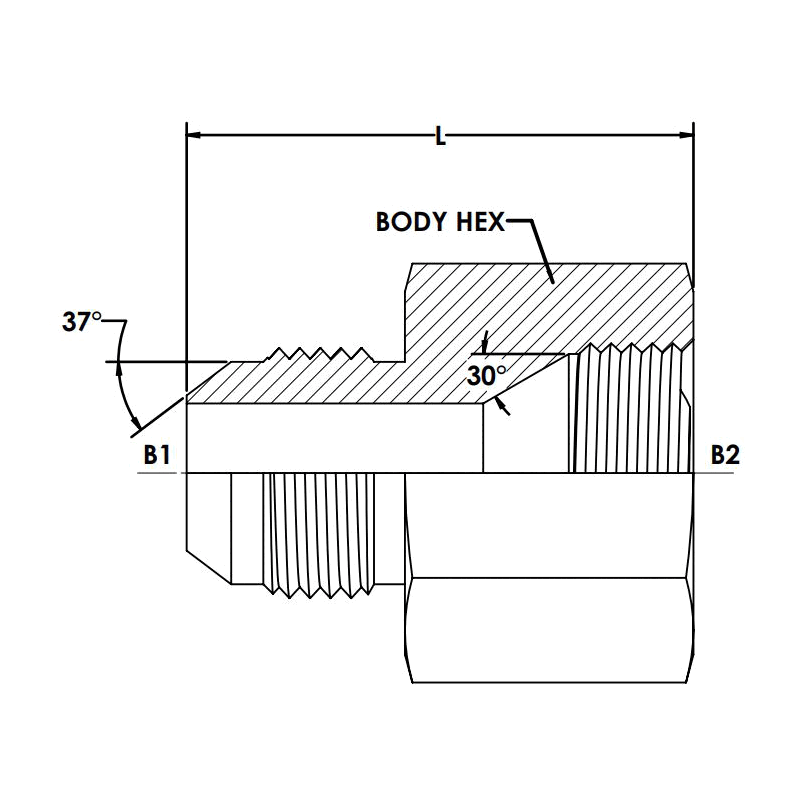

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE JIS 30 DEGREE FLARE
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	34.5
THREAD SPECIFICATION B2	JIS B 0202
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	34.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.106
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.760

7008-F-04-04-SS

$66.35

Attribute: 7008-F-04-04-SS (04MJ-04FJIS Str...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE JIS 30 DEGREE FLARE
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	34.5
THREAD SPECIFICATION B2	JIS B 0202
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	34.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.760

7008-F-04-06

$26.88

Attribute: 7008-F-04-06 (04MJ-06FJIS Straig...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE JIS 30 DEGREE FLARE
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	34.8
THREAD SPECIFICATION B2	JIS B 0202
BODY HEX (MM)	22.2
OVERALL LENGTH L (MM)	34.8
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.119
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.047

7008-F-06-06

$35.69

Attribute: 7008-F-06-06 (06MJ-06FJIS Straig...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE JIS 30 DEGREE FLARE
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	35.1
THREAD SPECIFICATION B2	JIS B 0202
BODY HEX (MM)	22.2
OVERALL LENGTH L (MM)	35.1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.137
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.056

7008-F-06-06-SS

$83.14

Attribute: 7008-F-06-06-SS (06MJ-06FJIS Str...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE JIS 30 DEGREE FLARE
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	35.1
THREAD SPECIFICATION B2	JIS B 0202
BODY HEX (MM)	22.2
OVERALL LENGTH L (MM)	35.1
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.131
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.056

7008-F-08-06

$37.27

Attribute: 7008-F-08-06 (08MJ-06FJIS Straig...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE JIS 30 DEGREE FLARE
THREAD SIZE B2	3/8-19
THREAD SPECIFICATION B2	JIS B 0202
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING

7008-F-08-08

$36.47

Attribute: 7008-F-08-08 (08MJ-08FJIS Straig...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE JIS 30 DEGREE FLARE
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	43.5
THREAD SPECIFICATION B2	JIS B 0202
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	43.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.238
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.935

7008-F-08-08-SS

$75.66

Attribute: 7008-F-08-08-SS (08MJ-08FJIS Str...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE JIS 30 DEGREE FLARE
THREAD SIZE B2	1/2-14
THREAD SPECIFICATION B2	JIS B 0202
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	43.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.244
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.935

7008-F-10-10

$44.45

Attribute: 7008-F-10-10 (10MJ-10FJIS Straig...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE JIS 30 DEGREE FLARE
THREAD SIZE B2	5/8-14
THREAD DRILL B2 (MM)	44.7
THREAD SPECIFICATION B2	JIS B 0202
BODY HEX (MM)	32.0
OVERALL LENGTH L (MM)	44.7
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.331
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.793

7008-F-10-10-SS

$129.70

Attribute: 7008-F-10-10-SS (10MJ-10FJIS Str...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE JIS 30 DEGREE FLARE
THREAD SIZE B2	5/8-14
THREAD DRILL B2 (MM)	44.7
THREAD SPECIFICATION B2	JIS B 0202
BODY HEX (MM)	32.0
OVERALL LENGTH L (MM)	44.7
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.793

7008-F-12-12

$47.01

Attribute: 7008-F-12-12 (12MJ-12FJIS Straig...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE JIS 30 DEGREE FLARE
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	44.0
THREAD SPECIFICATION B2	JIS B 0202
BODY HEX (MM)	36.0
OVERALL LENGTH L (MM)	44.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.419
MAXIMUM DYNAMIC PRESSURE (PSI)	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.480

7008-F-12-12-SS

$350.42

Attribute: 7008-F-12-12-SS (12MJ-12FJIS Str...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE JIS 30 DEGREE FLARE
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	44.0
THREAD SPECIFICATION B2	JIS B 0202
BODY HEX (MM)	36.0
OVERALL LENGTH L (MM)	44.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.356
MAXIMUM DYNAMIC PRESSURE (PSI)	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.480

7008-F-16-16

$57.50

Attribute: 7008-F-16-16 (16MJ-16FJIS Straig...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	19.7
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE JIS 30 DEGREE FLARE
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	54.1
THREAD SPECIFICATION B2	JIS B 0202
BODY HEX (MM)	41.3
OVERALL LENGTH L (MM)	54.1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.594
MAXIMUM DYNAMIC PRESSURE (PSI)	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.631

7008-F-16-16-SS

$373.66

Attribute: 7008-F-16-16-SS (16MJ-16FJIS Str...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	19.7
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE JIS 30 DEGREE FLARE
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	54.1
THREAD SPECIFICATION B2	JIS B 0202
BODY HEX (MM)	41.3
OVERALL LENGTH L (MM)	54.1
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.631

7008-F-20-20

$213.44

Attribute: 7008-F-20-20 (20MJ-20FJIS Straig...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/8-12
THREAD DRILL B1 (MM)	27.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE JIS 30 DEGREE FLARE
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	55.4
THREAD SPECIFICATION B2	JIS B 0202
BODY HEX (MM)	50.08
OVERALL LENGTH L (MM)	55.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.825
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.479

7008-F-20-20-SS

$591.43

Attribute: 7008-F-20-20-SS (20MJ-20FJIS Str...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/8-12
THREAD DRILL B1 (MM)	27.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE JIS 30 DEGREE FLARE
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	55.4
THREAD SPECIFICATION B2	JIS B 0202
BODY HEX (MM)	50.8
OVERALL LENGTH L (MM)	55.4
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.724

7008-F-24-24

$867.65

Attribute: 7008-F-24-24 (24MJ-24FJIS Straig...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-7/8-12
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE JIS 30 DEGREE FLARE
THREAD SIZE B2	1-1/2-11
THREAD SPECIFICATION B2	JIS B 0202
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
CALIFORNIA RESIDENTS	PROP-65 WARNING

7008-F-24-24-SS

$877.90

Attribute: 7008-F-24-24-SS (24MJ-24FJIS Str...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-7/8-12
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE JIS 30 DEGREE FLARE
THREAD SIZE B2	1-1/2-11
THREAD SPECIFICATION B2	JIS B 0202
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

7008-F-32-32

$327.90

Attribute: 7008-F-32-32 (32MJ-32FJIS Straig...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	2-1/2-12
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE JIS 30 DEGREE FLARE
THREAD SIZE B2	2-11
THREAD SPECIFICATION B2	JIS B 0202
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
CALIFORNIA RESIDENTS	PROP-65 WARNING

Connections	JIC, JIS
Shape	Straight

ID	10148035
Category	Conversion Adapters

Description

Description

Variations (19)

7008-F-04-04

7008-F-04-04-SS

7008-F-04-06

7008-F-06-06

7008-F-06-06-SS

7008-F-08-06

7008-F-08-08

7008-F-08-08-SS

7008-F-10-10

7008-F-10-10-SS

7008-F-12-12

7008-F-12-12-SS

7008-F-16-16

7008-F-16-16-SS

7008-F-20-20

7008-F-20-20-SS

7008-F-24-24

7008-F-24-24-SS

7008-F-32-32

General Attributes

PDF Documents
