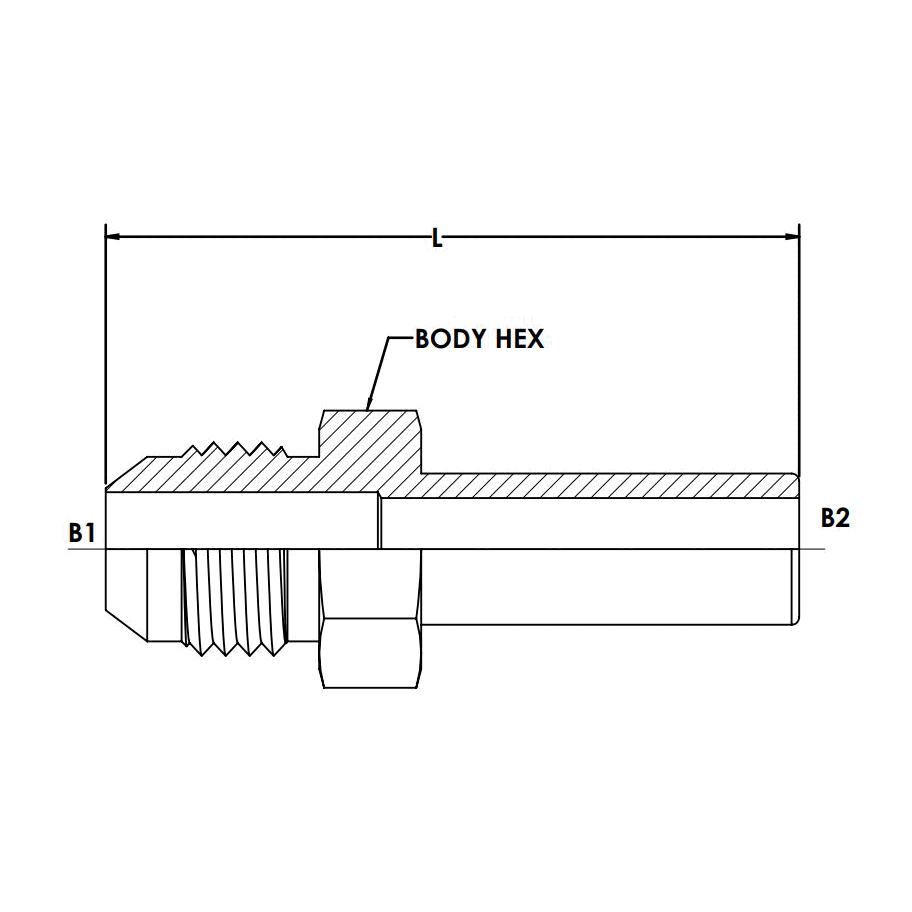

7006

7006-04-06

$15.85

Attribute: 7006-04-06 (04MJ-06MM StandPipe ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.07
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	DIN STANDPIPE TUBE
TUBE SIZE B2	06MM
THREAD DRILL B2 (MM)	2.75
THREAD SPECIFICATION B2	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.29
OVERALL LENGTH L (MM)	39.25
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.038
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.489

7006-04-06-SS

$260.29

Attribute: 7006-04-06-SS (04MJ-06MM StandPi...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.07
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	DIN STANDPIPE TUBE
TUBE SIZE B2	06MM
THREAD DRILL B2 (MM)	2.75
THREAD SPECIFICATION B2	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.29
OVERALL LENGTH L (MM)	39.25
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.044
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.489

7006-04-08

$25.89

Attribute: 7006-04-08 (04MJ-08MM StandPipe ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.07
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	DIN STANDPIPE TUBE
TUBE SIZE B2	08MM
THREAD DRILL B2 (MM)	4.75
THREAD SPECIFICATION B2	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.29
OVERALL LENGTH L (MM)	42.6
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.050
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.531

7006-04-08-SS

$167.69

Attribute: 7006-04-08-SS (04MJ-08MM StandPi...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.07
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	DIN STANDPIPE TUBE
TUBE SIZE B2	08MM
THREAD DRILL B2 (MM)	4.75
THREAD SPECIFICATION B2	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.29
OVERALL LENGTH L (MM)	42.6
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.531

7006-04-10

$32.42

Attribute: 7006-04-10 (04MJ-10MM StandPipe ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.07
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	DIN STANDPIPE TUBE
TUBE SIZE B2	10MM
THREAD DRILL B2 (MM)	6.75
THREAD SPECIFICATION B2	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.29
OVERALL LENGTH L (MM)	45.25
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.564

7006-06-08

$20.43

Attribute: 7006-06-08 (06MJ-08MM StandPipe ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	DIN STANDPIPE TUBE
TUBE SIZE B2	08MM
THREAD DRILL B2 (MM)	4.75
THREAD SPECIFICATION B2	DIN 2353, ISO 8434-1
BODY HEX (MM)	15.88
OVERALL LENGTH L (MM)	43.2
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.056
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.665

7006-06-08-SS

$203.72

Attribute: 7006-06-08-SS (06MJ-08MM StandPi...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	DIN STANDPIPE TUBE
TUBE SIZE B2	08MM
THREAD DRILL B2 (MM)	4.75
THREAD SPECIFICATION B2	DIN 2353, ISO 8434-1
BODY HEX (MM)	15.88
OVERALL LENGTH L (MM)	43.2
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.665

7006-06-10

$34.56

Attribute: 7006-06-10 (06MJ-10MM StandPipe ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	DIN STANDPIPE TUBE
TUBE SIZE B2	10MM
THREAD DRILL B2 (MM)	6.75
THREAD SPECIFICATION B2	DIN 2353, ISO 8434-1
BODY HEX (MM)	15.88
OVERALL LENGTH L (MM)	45.87
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.063
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.706

7006-06-10-SS

$203.72

Attribute: 7006-06-10-SS (06MJ-10MM StandPi...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	DIN STANDPIPE TUBE
TUBE SIZE B2	10MM
THREAD DRILL B2 (MM)	6.75
THREAD SPECIFICATION B2	DIN 2353, ISO 8434-1
BODY HEX (MM)	15.88
OVERALL LENGTH L (MM)	45.87
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.706

7006-06-12

$20.93

Attribute: 7006-06-12 (06MJ-12MM StandPipe ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	DIN STANDPIPE TUBE
TUBE SIZE B2	12MM
THREAD DRILL B2 (MM)	7.8
THREAD SPECIFICATION B2	DIN 2353, ISO 8434-1
BODY HEX (MM)	15.88
OVERALL LENGTH L (MM)	45.72
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.069
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.704

7006-06-12-SS

$238.74

Attribute: 7006-06-12-SS (06MJ-12MM StandPi...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	DIN STANDPIPE TUBE
TUBE SIZE B2	12MM
THREAD DRILL B2 (MM)	7.8
THREAD SPECIFICATION B2	DIN 2353, ISO 8434-1
BODY HEX (MM)	15.88
OVERALL LENGTH L (MM)	45.72
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.069
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.704

7006-06-14

$53.66

Attribute: 7006-06-14 (06MJ-14MM StandPipe ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	DIN STANDPIPE TUBE
TUBE SIZE B2	14MM
THREAD SPECIFICATION B2	DIN 2353, ISO 8434-1
BODY HEX (MM)	15.88
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.069
CALIFORNIA RESIDENTS	PROP-65 WARNING

7006-06-18-SS

$203.72

Attribute: 7006-06-18-SS (06MJ-18MM StandPi...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	DIN STANDPIPE TUBE
TUBE SIZE B2	18MM
THREAD SPECIFICATION B2	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.23
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

7006-08-10

$100.07

Attribute: 7006-08-10 (08MJ-10MM StandPipe ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.75
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	DIN STANDPIPE TUBE
TUBE SIZE B2	10MM
THREAD DRILL B2 (MM)	6.75
THREAD SPECIFICATION B2	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.23
OVERALL LENGTH L (MM)	49.95
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.175
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.506

7006-08-12

$29.49

Attribute: 7006-08-12 (08MJ-12MM StandPipe ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.75
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	DIN STANDPIPE TUBE
TUBE SIZE B2	12MM
THREAD DRILL B2 (MM)	7.8
THREAD SPECIFICATION B2	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.23
OVERALL LENGTH L (MM)	49.95
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.125
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.506

7006-08-12-SS

$237.98

Attribute: 7006-08-12-SS (08MJ-12MM StandPi...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.75
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	DIN STANDPIPE TUBE
TUBE SIZE B2	12MM
THREAD DRILL B2 (MM)	7.8
THREAD SPECIFICATION B2	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.23
OVERALL LENGTH L (MM)	49.95
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.506

7006-08-14

$30.76

Attribute: 7006-08-14 (08MJ-14MM StandPipe ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.75
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	DIN STANDPIPE TUBE
TUBE SIZE B2	14MM
THREAD SPECIFICATION B2	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.23
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
CALIFORNIA RESIDENTS	PROP-65 WARNING

7006-08-15-SS

$237.98

Attribute: 7006-08-15-SS (08MJ-15MM StandPi...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.75
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	DIN STANDPIPE TUBE
TUBE SIZE B2	15MM
THREAD SPECIFICATION B2	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.23
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

7006-08-16

$30.96

Attribute: 7006-08-16 (08MJ-16MM StandPipe ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.75
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	DIN STANDPIPE TUBE
TUBE SIZE B2	16MM
THREAD SPECIFICATION B2	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.23
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
CALIFORNIA RESIDENTS	PROP-65 WARNING

7006-12-16

$125.72

Attribute: 7006-12-16 (12MJ-16MM StandPipe ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.15
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	DIN STANDPIPE TUBE
TUBE SIZE B2	16MM
THREAD SPECIFICATION B2	DIN 2353, ISO 8434-1
BODY HEX (MM)	28.58
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
CALIFORNIA RESIDENTS	PROP-65 WARNING

7006-12-18

$86.39

Attribute: 7006-12-18 (12MJ-18MM StandPipe ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.15
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	DIN STANDPIPE TUBE
TUBE SIZE B2	18MM
THREAD SPECIFICATION B2	DIN 2353, ISO 8434-1
BODY HEX (MM)	28.58
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.319
CALIFORNIA RESIDENTS	PROP-65 WARNING

7006-12-18-SS

$285.56

Attribute: 7006-12-18-SS (12MJ-18MM StandPi...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.15
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	DIN STANDPIPE TUBE
TUBE SIZE B2	18MM
THREAD SPECIFICATION B2	DIN 2353, ISO 8434-1
BODY HEX (MM)	28.58
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.319
CALIFORNIA RESIDENTS	PROP-65 WARNING

7006-12-20

$93.27

Attribute: 7006-12-20 (12MJ-20MM StandPipe ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.15
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	DIN STANDPIPE TUBE
TUBE SIZE B2	20MM
THREAD DRILL B2 (MM)	16.6
THREAD SPECIFICATION B2	DIN 2353, ISO 8434-1
BODY HEX (MM)	28.58
OVERALL LENGTH L (MM)	60.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.244
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.991

7006-12-20-SS

$285.56

Attribute: 7006-12-20-SS (12MJ-20MM StandPi...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.15
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	DIN STANDPIPE TUBE
TUBE SIZE B2	20MM
THREAD DRILL B2 (MM)	16.6
THREAD SPECIFICATION B2	DIN 2353, ISO 8434-1
BODY HEX (MM)	28.58
OVERALL LENGTH L (MM)	60.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.991

7006-12-22

$94.76

Attribute: 7006-12-22 (12MJ-22MM StandPipe ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.47
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	DIN STANDPIPE TUBE
TUBE SIZE B2	22MM
THREAD DRILL B2 (MM)	15.47
THREAD SPECIFICATION B2	DIN 2353, ISO 8434-1
BODY HEX (MM)	31.75
OVERALL LENGTH L (MM)	64.77
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.331
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.984

7006-12-25

$190.40

Attribute: 7006-12-25 (12MJ-25MM StandPipe ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.47
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	DIN STANDPIPE TUBE
TUBE SIZE B2	25MM
THREAD SPECIFICATION B2	DIN 2353, ISO 8434-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
CALIFORNIA RESIDENTS	PROP-65 WARNING

7006-16-25

$110.86

Attribute: 7006-16-25 (16MJ-25MM StandPipe ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	21.44
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	DIN STANDPIPE TUBE
TUBE SIZE B2	25MM
THREAD DRILL B2 (MM)	15.47
THREAD SPECIFICATION B2	DIN 2353, ISO 8434-1
BODY HEX (MM)	35.0
OVERALL LENGTH L (MM)	68.8
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.438
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.143

7006-16-28

$317.56

Attribute: 7006-16-28 (16MJ-28MM StandPipe ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/16-12
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	DIN STANDPIPE TUBE
TUBE SIZE B2	28MM
THREAD SPECIFICATION B2	DIN 2353, ISO 8434-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
CALIFORNIA RESIDENTS	PROP-65 WARNING

7006-16-30

$288.36

Attribute: 7006-16-30 (16MJ-30MM StandPipe ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	21.44
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	DIN STANDPIPE TUBE
TUBE SIZE B2	30MM
THREAD DRILL B2 (MM)	21.44
THREAD SPECIFICATION B2	DIN 2353, ISO 8434-1
BODY HEX (MM)	34.92
OVERALL LENGTH L (MM)	69.39
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.164

7006-16-30-SS

$336.96

Attribute: 7006-16-30-SS (16MJ-30MM StandPi...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	21.44
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	DIN STANDPIPE TUBE
TUBE SIZE B2	30MM
THREAD DRILL B2 (MM)	21.44
THREAD SPECIFICATION B2	DIN 2353, ISO 8434-1
BODY HEX (MM)	34.92
OVERALL LENGTH L (MM)	69.39
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.164

7006-20-35

$174.00

Attribute: 7006-20-35 (20MJ-35MM StandPipe ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/8-12
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	DIN STANDPIPE TUBE
TUBE SIZE B2	35MM
THREAD SPECIFICATION B2	DIN 2353, ISO 8434-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
CALIFORNIA RESIDENTS	PROP-65 WARNING

7006-20-38

$544.76

Attribute: 7006-20-38 (20MJ-38MM StandPipe ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/8-12
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	DIN STANDPIPE TUBE
TUBE SIZE B2	38MM
THREAD SPECIFICATION B2	DIN 2353, ISO 8434-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
CALIFORNIA RESIDENTS	PROP-65 WARNING

7006-24-42

$937.74

Attribute: 7006-24-42 (24MJ-42MM StandPipe ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-7/8-12
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	DIN STANDPIPE TUBE
TUBE SIZE B2	42MM
THREAD SPECIFICATION B2	DIN 2353, ISO 8434-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
CALIFORNIA RESIDENTS	PROP-65 WARNING

Connections	JIC, Other
Shape	Straight

ID	10147979
Category	Conversion Adapters

Description

Description

Variations (33)

7006-04-06

7006-04-06-SS

7006-04-08

7006-04-08-SS

7006-04-10

7006-06-08

7006-06-08-SS

7006-06-10

7006-06-10-SS

7006-06-12

7006-06-12-SS

7006-06-14

7006-06-18-SS

7006-08-10

7006-08-12

7006-08-12-SS

7006-08-14

7006-08-15-SS

7006-08-16

7006-12-16

7006-12-18

7006-12-18-SS

7006-12-20

7006-12-20-SS

7006-12-22

7006-12-25

7006-16-25

7006-16-28

7006-16-30

7006-16-30-SS

7006-20-35

7006-20-38

7006-24-42

General Attributes

PDF Documents
