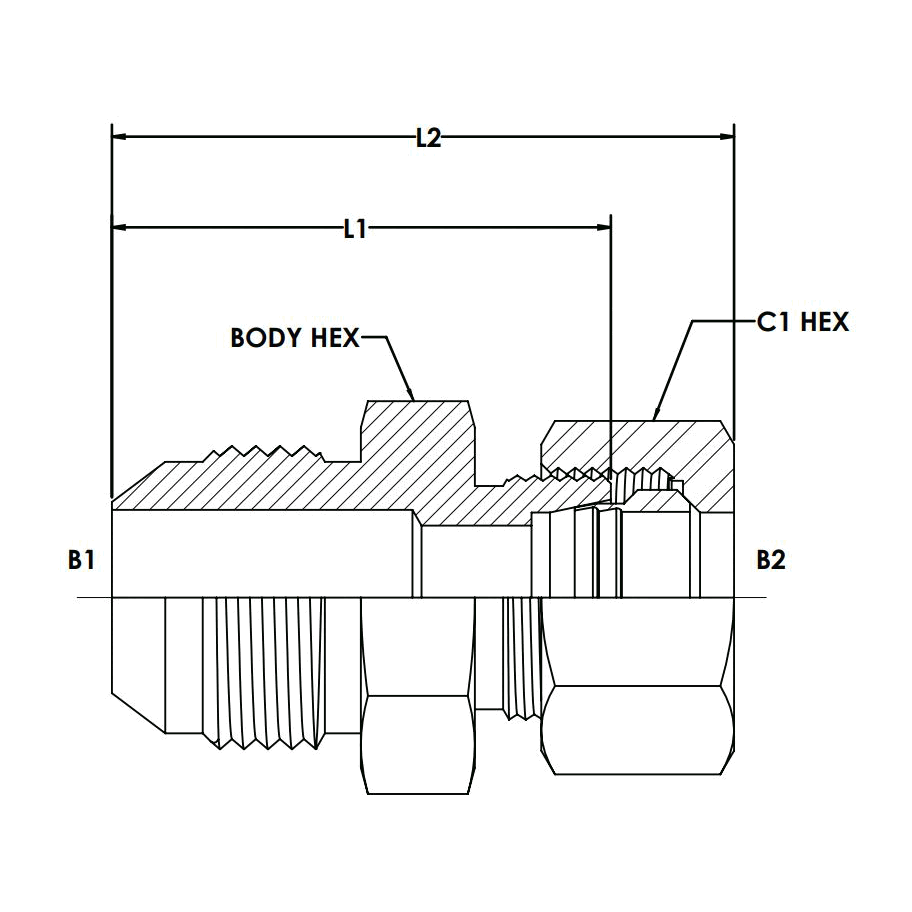

7005-DIN LIGHT-NBR

7005-04-L06-12-NBR

$20.71

Attribute: 7005-04-L06-12-NBR (04MJ-L06MBT ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.0
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	L06
THREAD SIZE B2	4.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-L06
DIN TUBE SLEEVE	D0319-06
BODY HEX (MM)	14.0
HEX C 1 (MM)	14.0
OVERALL LENGTH L2 (MM)	35.8
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	7,250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.428

7005-04-L06-12-NBR-SS

$165.19

Attribute: 7005-04-L06-12-NBR-SS (04MJ-L06M...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.0
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	L06
THREAD SIZE B2	4.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-L06-SS
DIN TUBE SLEEVE	D0319-06-SS
BODY HEX (MM)	14.0
HEX C 1 (MM)	14.0
OVERALL LENGTH L2 (MM)	35.8
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	7,250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.428

7005-04-L08-14-NBR

$22.88

Attribute: 7005-04-L08-14-NBR (04MJ-L08MBT ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.2
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	L08
THREAD SIZE B2	6.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-L08
DIN TUBE SLEEVE	D0319-08
BODY HEX (MM)	17.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L2 (MM)	34.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	7,250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.608

7005-04-L08-14-NBR-SS

$133.79

Attribute: 7005-04-L08-14-NBR-SS (04MJ-L08M...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.2
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	L08
THREAD SIZE B2	6.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-L08-SS
DIN TUBE SLEEVE	D0319-08-SS
BODY HEX (MM)	17.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L2 (MM)	34.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	7,250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.608

7005-04-L10-16-NBR

$29.85

Attribute: 7005-04-L10-16-NBR (04MJ-L10MBT ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	L10
THREAD SIZE B2	8.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-L10
DIN TUBE SLEEVE	D0319-10
BODY HEX (MM)	16.8
HEX C 1 (MM)	19.0
OVERALL LENGTH L2 (MM)	37.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.826

7005-04-L10-16-NBR-SS

$164.06

Attribute: 7005-04-L10-16-NBR-SS (04MJ-L10M...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	L10
THREAD SIZE B2	8.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-L10-SS
DIN TUBE SLEEVE	D0319-10-SS
BODY HEX (MM)	16.8
HEX C 1 (MM)	19.0
OVERALL LENGTH L2 (MM)	37.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.826

7005-05-L08-14-NBR-SS

$189.44

Attribute: 7005-05-L08-14-NBR-SS (05MJ-L08M...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1/2-20
THREAD DRILL B1 (MM)	6.0
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	L08
THREAD SIZE B2	6.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-L08-SS
DIN TUBE SLEEVE	D0319-08-SS
BODY HEX (MM)	17.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L2 (MM)	34.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.608

7005-06-L06-12-NBR-SS

$172.63

Attribute: 7005-06-L06-12-NBR-SS (06MJ-L06M...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	6.0
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	L06
THREAD SIZE B2	4.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-L06-SS
DIN TUBE SLEEVE	D0319-06-SS
BODY HEX (MM)	17.0
HEX C 1 (MM)	14.0
OVERALL LENGTH L2 (MM)	35.6
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.628

7005-06-L08-14-NBR

$27.86

Attribute: 7005-06-L08-14-NBR (06MJ-L08MBT ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	6.0
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	L08
THREAD SIZE B2	6.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-L08
DIN TUBE SLEEVE	D0319-08
BODY HEX (MM)	19.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L2 (MM)	35.6
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.784

7005-06-L08-14-NBR-SS

$144.72

Attribute: 7005-06-L08-14-NBR-SS (06MJ-L08M...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	6.0
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	L08
THREAD SIZE B2	6.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-L08-SS
DIN TUBE SLEEVE	D0319-08-SS
BODY HEX (MM)	19.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L2 (MM)	35.6
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.784

7005-06-L10-16-NBR

$28.01

Attribute: 7005-06-L10-16-NBR (06MJ-L10MBT ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	L10
THREAD SIZE B2	8.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-L10
DIN TUBE SLEEVE	D0319-10
BODY HEX (MM)	17.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L2 (MM)	37.7
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.831

7005-06-L10-16-NBR-SS

$129.60

Attribute: 7005-06-L10-16-NBR-SS (06MJ-L10M...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	L10
THREAD SIZE B2	8.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-L10-SS
DIN TUBE SLEEVE	D0319-10-SS
BODY HEX (MM)	17.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L2 (MM)	37.7
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.831

7005-06-L12-18-NBR

$30.68

Attribute: 7005-06-L12-18-NBR (06MJ-L12MBT ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.0
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	L12
THREAD SIZE B2	10.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-L12
DIN TUBE SLEEVE	D0319-12
BODY HEX (MM)	19.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L2 (MM)	36.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.078

7005-06-L12-18-NBR-SS

$174.25

Attribute: 7005-06-L12-18-NBR-SS (06MJ-L12M...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.0
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	L12
THREAD SIZE B2	10.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-L12-SS
DIN TUBE SLEEVE	D0319-12-SS
BODY HEX (MM)	19.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L2 (MM)	36.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.078

7005-08-L08-14-NBR-SS

$155.43

Attribute: 7005-08-L08-14-NBR-SS (08MJ-L08M...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.6
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	L08
THREAD SIZE B2	10.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-L08-SS
DIN TUBE SLEEVE	D0319-08-SS
BODY HEX (MM)	22.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L2 (MM)	38.3
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.131

7005-08-L10-16-NBR

$32.83

Attribute: 7005-08-L10-16-NBR (08MJ-L10MBT ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.6
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	L10
THREAD SIZE B2	8.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-L10
DIN TUBE SLEEVE	D0319-10
BODY HEX (MM)	22.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L2 (MM)	39.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.152

7005-08-L10-16-NBR-SS

$178.14

Attribute: 7005-08-L10-16-NBR-SS (08MJ-L10M...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.6
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	L10
THREAD SIZE B2	8.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-L10-SS
DIN TUBE SLEEVE	D0319-10-SS
BODY HEX (MM)	22.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L2 (MM)	39.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.152

7005-08-L12-18-NBR

$37.80

Attribute: 7005-08-L12-18-NBR (08MJ-L12MBT ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	L12
THREAD SIZE B2	9.9
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-L12
DIN TUBE SLEEVE	D0319-12
BODY HEX (MM)	19.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L2 (MM)	40.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.196

7005-08-L12-18-NBR-SS

$199.75

Attribute: 7005-08-L12-18-NBR-SS (08MJ-L12M...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	L12
THREAD SIZE B2	9.9
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-L12-SS
DIN TUBE SLEEVE	D0319-12-SS
BODY HEX (MM)	19.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L2 (MM)	40.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.183
MAXIMUM DYNAMIC PRESSURE (PSI)	5,800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.196

7005-08-L15-22-NBR

$43.37

Attribute: 7005-08-L15-22-NBR (08MJ-L15MBT ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.6
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	L15
THREAD SIZE B2	12.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-L15
DIN TUBE SLEEVE	D0319-15
BODY HEX (MM)	24.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L2 (MM)	41.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.824

7005-08-L15-22-NBR-SS

$211.30

Attribute: 7005-08-L15-22-NBR-SS (08MJ-L15M...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.6
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	L15
THREAD SIZE B2	12.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-L15-SS
DIN TUBE SLEEVE	D0319-15-SS
BODY HEX (MM)	24.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L2 (MM)	41.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.824

7005-08-L28-36-NBR-SS

$306.60

Attribute: 7005-08-L28-36-NBR-SS (08MJ-L28M...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	L28
THREAD SIZE B2	24.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-L28-SS
DIN TUBE SLEEVE	D0319-28-SS
BODY HEX (MM)	38.0
HEX C 1 (MM)	41.0
OVERALL LENGTH L2 (MM)	46.3
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	3,600
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.749

7005-10-L15-22-NBR

$39.40

Attribute: 7005-10-L15-22-NBR (10MJ-L15MBT ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.0
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	L15
THREAD SIZE B2	12.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-L15
DIN TUBE SLEEVE	D0319-15
BODY HEX (MM)	24.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L2 (MM)	43.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.935

7005-10-L15-22-NBR-SS

$259.95

Attribute: 7005-10-L15-22-NBR-SS (10MJ-L15M...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.0
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	L15
THREAD SIZE B2	12.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-L15-SS
DIN TUBE SLEEVE	D0319-15-SS
BODY HEX (MM)	24.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L2 (MM)	43.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.935

7005-10-L18-26-NBR

$66.55

Attribute: 7005-10-L18-26-NBR (10MJ-L18MBT ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	L18
THREAD SIZE B2	15.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-L18
DIN TUBE SLEEVE	D0319-18
BODY HEX (MM)	27.0
HEX C 1 (MM)	32.0
OVERALL LENGTH L2 (MM)	45.3
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.831

7005-10-L18-26-NBR-SS

$326.80

Attribute: 7005-10-L18-26-NBR-SS (10MJ-L18M...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	L18
THREAD SIZE B2	15.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-L18-SS
DIN TUBE SLEEVE	D0319-18-SS
BODY HEX (MM)	27.0
HEX C 1 (MM)	32.0
OVERALL LENGTH L2 (MM)	45.3
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.831

7005-12-L15-22-NBR

$50.48

Attribute: 7005-12-L15-22-NBR (12MJ-L15MBT ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	L15
THREAD SIZE B2	12.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-L15
DIN TUBE SLEEVE	D0319-15
BODY HEX (MM)	30.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L2 (MM)	49.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.719

7005-12-L15-22-NBR-SS

$357.27

Attribute: 7005-12-L15-22-NBR-SS (12MJ-L15M...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	L15
THREAD SIZE B2	12.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-L15-SS
DIN TUBE SLEEVE	D0319-15-SS
BODY HEX (MM)	30.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L2 (MM)	49.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.719

7005-12-L18-24-NBR

$61.03

Attribute: 7005-12-L18-24-NBR (12MJ-L18MBT ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	14.0
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	L18
THREAD SIZE B2	46.3
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-L18
DIN TUBE SLEEVE	D0319-18
BODY HEX (MM)	32.0
HEX C 1 (MM)	32.0
OVERALL LENGTH L2 (MM)	52.8
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.299

7005-12-L18-26-NBR

$42.08

Attribute: 7005-12-L18-26-NBR (12MJ-L18MBT ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	L18
THREAD SIZE B2	15.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-L18
DIN TUBE SLEEVE	D0319-18
BODY HEX (MM)	30.0
HEX C 1 (MM)	32.0
OVERALL LENGTH L2 (MM)	48.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.399
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.031

7005-12-L18-26-NBR-SS

$407.92

Attribute: 7005-12-L18-26-NBR-SS (12MJ-L18M...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	L18
THREAD SIZE B2	15.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-L18-SS
DIN TUBE SLEEVE	D0319-18-SS
BODY HEX (MM)	30.0
HEX C 1 (MM)	32.0
OVERALL LENGTH L2 (MM)	48.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.031

7005-12-L22-30-NBR

$75.96

Attribute: 7005-12-L22-30-NBR (12MJ-L22MBT ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	L22
THREAD SIZE B2	19.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-L22
DIN TUBE SLEEVE	D0319-22
BODY HEX (MM)	32.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L2 (MM)	50.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	3,600
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.994

7005-12-L22-30-NBR-SS

$576.94

Attribute: 7005-12-L22-30-NBR-SS (12MJ-L22M...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	L22
THREAD SIZE B2	19.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-L22-SS
DIN TUBE SLEEVE	D0319-22-SS
BODY HEX (MM)	32.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L2 (MM)	50.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	3,600
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.994

7005-12-L28-36-NBR

$102.04

Attribute: 7005-12-L28-36-NBR (12MJ-L28MBT ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	L28
THREAD SIZE B2	24.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-L28
DIN TUBE SLEEVE	D0319-28
BODY HEX (MM)	38.0
HEX C 1 (MM)	41.0
OVERALL LENGTH L2 (MM)	51.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	3,600
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.283

7005-12-L28-36-NBR-SS

$657.14

Attribute: 7005-12-L28-36-NBR-SS (12MJ-L28M...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	L28
THREAD SIZE B2	24.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-L28-SS
DIN TUBE SLEEVE	D0319-28-SS
BODY HEX (MM)	38.0
HEX C 1 (MM)	41.0
OVERALL LENGTH L2 (MM)	51.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	3,600
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.283

7005-12-L35-45-NBR-SS

$848.28

Attribute: 7005-12-L35-45-NBR-SS (12MJ-L35M...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	L35
THREAD SIZE B2	30.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-L35-SS
DIN TUBE SLEEVE	D0319-35-SS
BODY HEX (MM)	46.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L2 (MM)	55.4
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	3,600
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.452

7005-16-L22-30-NBR

$98.10

Attribute: 7005-16-L22-30-NBR (16MJ-L22MBT ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	21.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	L22
THREAD SIZE B2	19.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-L22
DIN TUBE SLEEVE	D0319-22
BODY HEX (MM)	36.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L2 (MM)	54.6
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	3,600
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.318

7005-16-L22-30-NBR-SS

$469.50

Attribute: 7005-16-L22-30-NBR-SS (16MJ-L22M...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	21.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	L22
THREAD SIZE B2	19.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-L22-SS
DIN TUBE SLEEVE	D0319-22-SS
BODY HEX (MM)	36.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L2 (MM)	54.6
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	3,600
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.318

7005-16-L28-36-NBR

$122.31

Attribute: 7005-16-L28-36-NBR (16MJ-L28MBT ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	21.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	L28
THREAD SIZE B2	24.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-L28
DIN TUBE SLEEVE	D0319-28
BODY HEX (MM)	38.0
HEX C 1 (MM)	41.0
OVERALL LENGTH L2 (MM)	52.6
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	3,600
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.396

7005-16-L28-36-NBR-SS

$562.14

Attribute: 7005-16-L28-36-NBR-SS (16MJ-L28M...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	21.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	L28
THREAD SIZE B2	24.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-L28-SS
DIN TUBE SLEEVE	D0319-28-SS
BODY HEX (MM)	38.0
HEX C 1 (MM)	41.0
OVERALL LENGTH L2 (MM)	52.6
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	3,600
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.396

7005-16-L35-45-NBR

$211.11

Attribute: 7005-16-L35-45-NBR (16MJ-L35MBT ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	21.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	L35
THREAD SIZE B2	30.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-L35
DIN TUBE SLEEVE	D0319-35
BODY HEX (MM)	46.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L2 (MM)	56.1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	3,600
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.559

7005-16-L35-45-NBR-SS

$848.28

Attribute: 7005-16-L35-45-NBR-SS (16MJ-L35M...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	21.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	L35
THREAD SIZE B2	30.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-L35-SS
DIN TUBE SLEEVE	D0319-35-SS
BODY HEX (MM)	46.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L2 (MM)	56.1
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	3,600
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.559

7005-20-L35-45-NBR

$218.48

Attribute: 7005-20-L35-45-NBR (20MJ-L35MBT ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/8-12
THREAD DRILL B1 (MM)	27.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	L35
THREAD SIZE B2	30.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-L35
DIN TUBE SLEEVE	D0319-35
BODY HEX (MM)	46.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L2 (MM)	57.1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	3,600
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.711

7005-20-L35-45-NBR-SS

$848.28

Attribute: 7005-20-L35-45-NBR-SS (20MJ-L35M...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/8-12
THREAD DRILL B1 (MM)	27.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	L35
THREAD SIZE B2	30.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-L35-SS
DIN TUBE SLEEVE	D0319-35-SS
BODY HEX (MM)	46.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L2 (MM)	57.1
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	3,600
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.711

7005-20-L42-52-NBR

$309.58

Attribute: 7005-20-L42-52-NBR (20MJ-L42MBT ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/8-12
THREAD DRILL B1 (MM)	27.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	L42
THREAD SIZE B2	36.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-L42
DIN TUBE SLEEVE	D0319-42
BODY HEX (MM)	55.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L2 (MM)	59.3
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	3,600
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	13.027

7005-24-L42-52-NBR

$328.03

Attribute: 7005-24-L42-52-NBR (24MJ-L42MBT ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-7/8-12
THREAD DRILL B1 (MM)	33.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	L42
THREAD SIZE B2	36.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-L42
DIN TUBE SLEEVE	D0319-42
BODY HEX (MM)	55.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L2 (MM)	62.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	13.730

7005-24-L42-52-NBR-SS

$1,008.40

Attribute: 7005-24-L42-52-NBR-SS (24MJ-L42M...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-7/8-12
THREAD DRILL B1 (MM)	33.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	L42
THREAD SIZE B2	36.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-L42-SS
DIN TUBE SLEEVE	D0319-42-SS
BODY HEX (MM)	55.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L2 (MM)	62.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	13.730

Connections	JIC, Metric
Shape	Straight

ID	10147919
Category	Conversion Adapters

Description

Description

Variations (47)

7005-04-L06-12-NBR

7005-04-L06-12-NBR-SS

7005-04-L08-14-NBR

7005-04-L08-14-NBR-SS

7005-04-L10-16-NBR

7005-04-L10-16-NBR-SS

7005-05-L08-14-NBR-SS

7005-06-L06-12-NBR-SS

7005-06-L08-14-NBR

7005-06-L08-14-NBR-SS

7005-06-L10-16-NBR

7005-06-L10-16-NBR-SS

7005-06-L12-18-NBR

7005-06-L12-18-NBR-SS

7005-08-L08-14-NBR-SS

7005-08-L10-16-NBR

7005-08-L10-16-NBR-SS

7005-08-L12-18-NBR

7005-08-L12-18-NBR-SS

7005-08-L15-22-NBR

7005-08-L15-22-NBR-SS

7005-08-L28-36-NBR-SS

7005-10-L15-22-NBR

7005-10-L15-22-NBR-SS

7005-10-L18-26-NBR

7005-10-L18-26-NBR-SS

7005-12-L15-22-NBR

7005-12-L15-22-NBR-SS

7005-12-L18-24-NBR

7005-12-L18-26-NBR

7005-12-L18-26-NBR-SS

7005-12-L22-30-NBR

7005-12-L22-30-NBR-SS

7005-12-L28-36-NBR

7005-12-L28-36-NBR-SS

7005-12-L35-45-NBR-SS

7005-16-L22-30-NBR

7005-16-L22-30-NBR-SS

7005-16-L28-36-NBR

7005-16-L28-36-NBR-SS

7005-16-L35-45-NBR

7005-16-L35-45-NBR-SS

7005-20-L35-45-NBR

7005-20-L35-45-NBR-SS

7005-20-L42-52-NBR

7005-24-L42-52-NBR

7005-24-L42-52-NBR-SS

General Attributes

PDF Documents
