Description

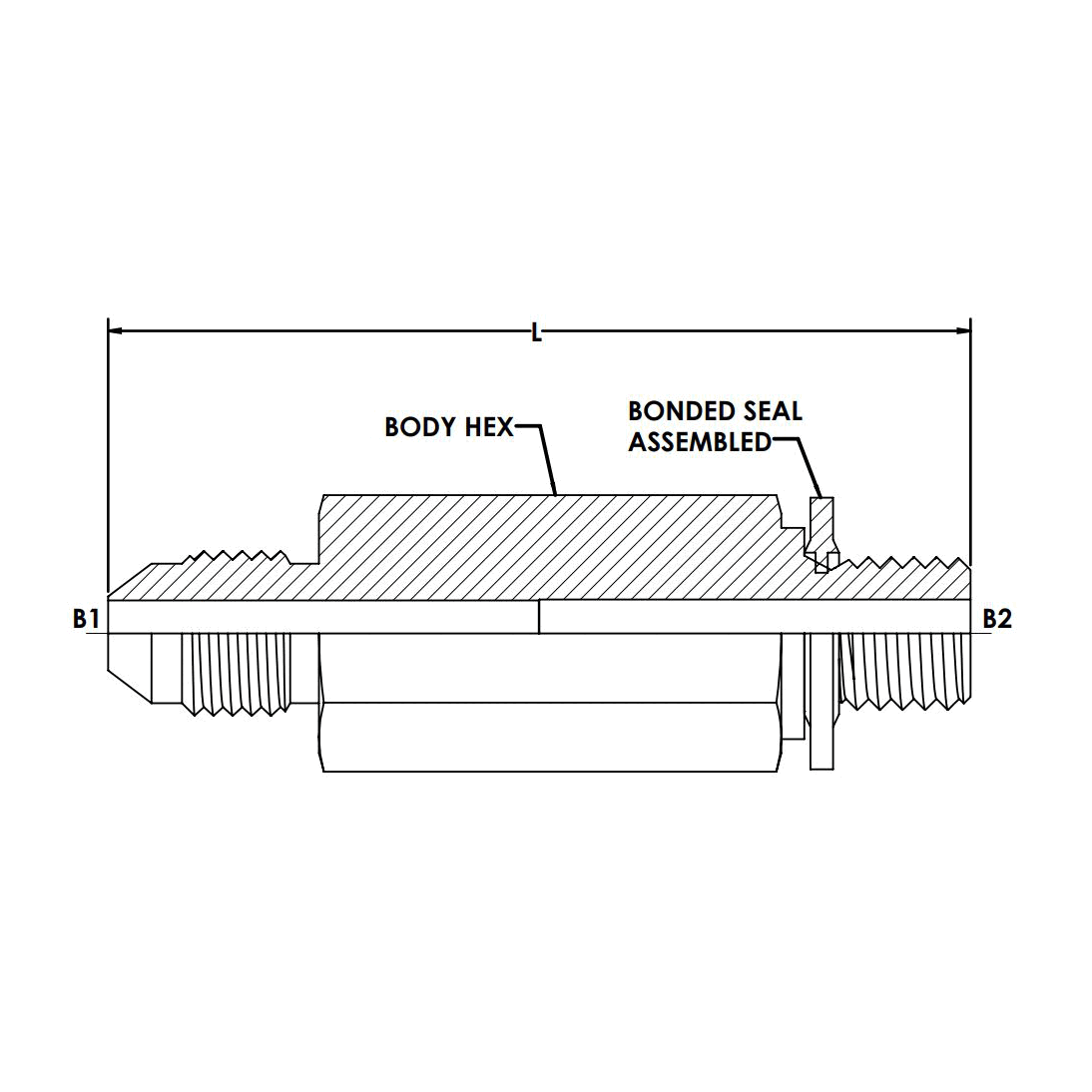

MJ-MM STRAIGHT LONG WITH BONDED SEAL ASSEMBLED (FOR ISO 9974 PORT)
Description
Variations (1)
7005-L-04-10-BS
$0.00Attribute: 7005-L-04-10-BS (04MJ-10MM Port ...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 7/16-20 |
| THREAD DRILL B1 (MM) | 4.4 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M10X1.0 |
| THREAD DRILL B2 (MM) | 4.4 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-10 |
| BODY HEX (MM) | 15.9 |
| OVERALL LENGTH L (MM) | 57.15 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.132 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.882 |
General Attributes
| Connections | JIC, Metric |
|---|---|
| Shape | Straight |
